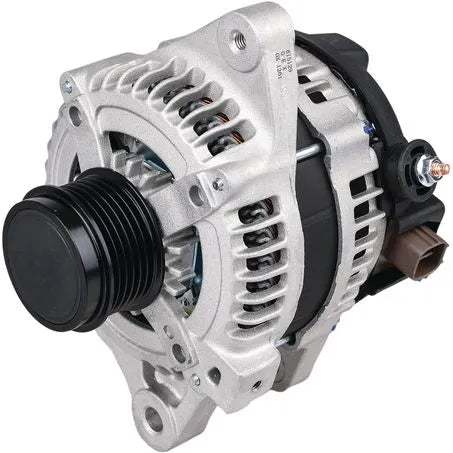

OEX DXA585 Alternator 12V 100A Denso Style
Click to open expanded view
OEX logo

OEX DXA585 Alternator 12V 100A Denso Style

SKU: DXA585
Price
$367
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX DXA585 Alternator 12V 100A Denso Style

The OEX DXA585 is a new 12V 100A alternator, Denso style, fitted with a clutch style pulley, featuring an internal regulator and twin leg mount.

Product Overview

The DXA585 is a new 12V Denso style alternator from OEX, delivering 100A of output through an internal regulator. Built with a twin leg mount and a mount centre to centre distance of 176mm, the DXA585 is fitted with a clutch style pulley with a 55mm outside diameter and 6 groove section.

An adaptor is available to suit HXK-34, HXK-31, and HXK-29 applications, extending fitment flexibility where required.

Features & Benefits

100A Output at 12V: Delivers 100A of charging output on a standard 12V electrical system.

Clutch Style Pulley: The clutch style pulley helps reduce belt noise and vibration compared to a standard fixed pulley.

Internal Regulator: An internal regulator keeps the charging system compact without needing a separate external regulator unit.

Twin Leg Mount: The twin leg mounting arrangement matches the original Denso style fitment for straightforward installation.

Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.

Adaptor Available for HXK-34, HXK-31, HXK-29: An adaptor is available to suit these applications, extending fitment flexibility.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXA585
Brand OEX
Type Alternator
Voltage 12V
Power Rating 100A
Regulator Type Internal
Suits Unit Make Denso
Alternator Mount Twin Leg
Mount Cnt to Cnt 176mm
Inside Mounting Legs 51mm
Adjusting Hole Diameter M8x1.25
Pivot Hole Diameter M10x1.25 / 11mm
Pulley Outside Diameter 55mm
Pulley Section 6 Groove (Clutch Style)
Pin Code IR115
Adaptor Compatibility HXK-34, HXK-31, HXK-29
New / Reman. New
Weight 5.72kg

Compatible With

The DXA585 is a Denso style 12V 100A alternator fitted with a clutch style pulley. An adaptor is available to suit HXK-34, HXK-31, and HXK-29 applications. Confirm fitment against your original alternator's mounting dimensions and pin code (IR115) before ordering.

Frequently Asked Questions

What is a clutch style pulley?

A clutch style pulley helps reduce belt noise and vibration compared to a standard fixed pulley, and is fitted to the DXA585.

What voltage and output does the DXA585 provide?

The DXA585 is a 12V alternator delivering 100A of output.

What adaptors are available for the DXA585?

An adaptor is available to suit HXK-34, HXK-31, and HXK-29 applications.

How is the DXA585 mounted?

The DXA585 uses a twin leg mount with a 176mm mounting centre to centre distance.

Is the DXA585 new or reconditioned?

The DXA585 is supplied new.
