OEX DXA582 Alternator 12V 100A Denso Style
Click to open expanded view
OEX logo

OEX DXA582 Alternator 12V 100A Denso Style

SKU: DXA582
Price
$422
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

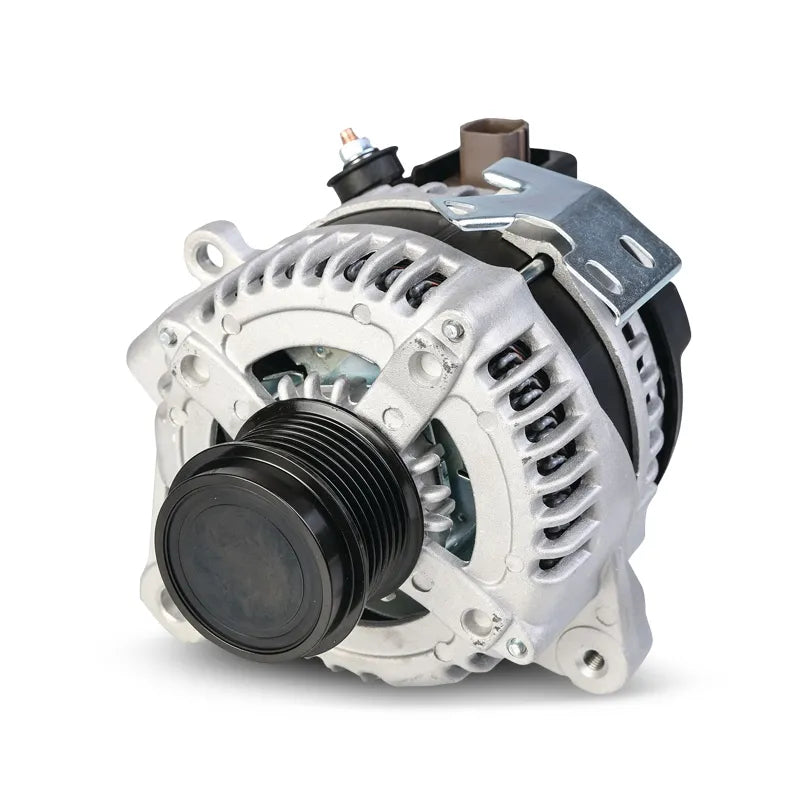

OEX DXA582 Alternator 12V 100A Denso Style

The OEX DXA582 is a new 12V 100A alternator, Denso style, featuring an internal regulator with a Sense terminal, twin leg mount, and a 7 groove pulley.

Product Overview

The DXA582 is a new 12V Denso style alternator from OEX, delivering 100A of output through an internal regulator. Built with a twin leg mount and a mount centre to centre distance of 123mm, the DXA582 features a 7 groove pulley with a 55mm outside diameter.

This unit has a Sense terminal in the regulator plug. If a unit with an RLO terminal is required instead, use the DXA583. The ACX6250 may be required to confirm circuit configuration.

Features & Benefits

100A Output at 12V: Delivers 100A of charging output on a standard 12V electrical system.

Internal Regulator with Sense Terminal: Fitted with an internal regulator featuring a Sense terminal; for an RLO terminal option, use the DXA583 instead.

Twin Leg Mount: The twin leg mounting arrangement matches the original Denso style fitment for straightforward installation.

7 Groove Pulley: The 7 groove pulley at 55mm outside diameter suits the specified fitment applications.

Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXA582
Brand OEX
Type Alternator
Voltage 12V
Power Rating 100A
Regulator Type Internal, Sense Terminal
Suits Unit Make Denso
Alternator Mount Twin Leg
Mount Cnt to Cnt 123mm
Inside Mounting Legs 46.5mm
Adjusting Hole Diameter M8x1.25
Pivot Hole Diameter M10x1.25 / 11mm
Pulley Outside Diameter 55mm
Pulley Section 7 Groove
Pin Code IR115
New / Reman. New
Weight 6.1kg

Compatible With

The DXA582 is a Denso style 12V 100A alternator with a Sense terminal regulator plug and twin leg mount. If a unit with an RLO terminal is required, use the DXA583 instead. The ACX6250 may be required to confirm circuit configuration.

Frequently Asked Questions

What terminal does the DXA582 regulator use?

The DXA582 has a Sense terminal in the regulator plug. If a unit with an RLO terminal is required, use the DXA583 instead.

How do I confirm the correct circuit configuration?

The ACX6250 may be required to confirm circuit configuration before ordering.

What voltage and output does the DXA582 provide?

The DXA582 is a 12V alternator delivering 100A of output.

How is the DXA582 mounted?

The DXA582 uses a twin leg mount with a 123mm mounting centre to centre distance.

Is the DXA582 new or reconditioned?

The DXA582 is supplied new.
