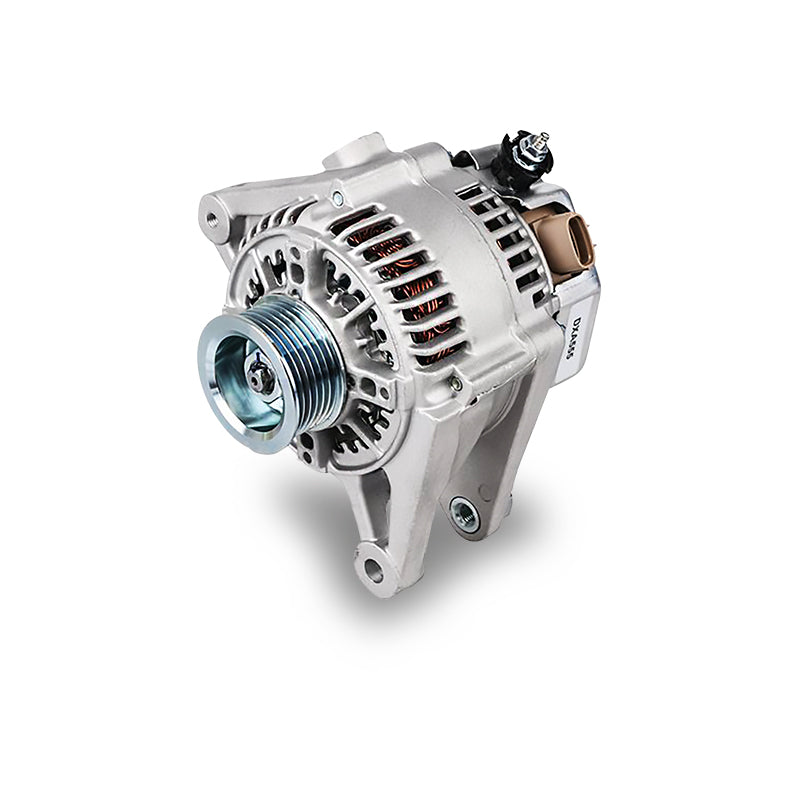

OEX DXA555 Alternator 12V 80A Denso Style
Click to open expanded view
OEX logo

OEX DXA555 Alternator 12V 80A Denso Style

SKU: DXA555
Price
$474
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX 12V 80A Alternator Denso Style, Twin Leg Mount, 6-Groove Pulley, Internal Regulator, New Unit. 3-Year Passenger / 1-Year Commercial Warranty.

Product Overview

The OEX DXA555 is a new 12V 80A alternator in the Denso style the same output rating as the DXA565 (80A) but a distinct unit with different fitment dimensions and a 6-groove pulley rather than 7-groove. Key differences: 170mm CTC (vs 122mm on DXA565), 41mm inside leg (vs 45mm), 55mm pulley OD (vs 56mm), 6-groove pulley (vs 7-groove), M10x1.25/11mm pivot hole, M8x1.25 adjusting hole, IR11 pin code (vs IR115).

Key Specifications

  • Voltage: 12V
  • Output: 80A
  • Style: Denso
  • Regulator: Internal
  • Mount type: Twin leg
  • Pulley: 6-groove, 55mm OD
  • Mount centre-to-centre: 170mm
  • Inside mounting legs: 41mm
  • Pivot hole: M10x1.25 / 11mm
  • Adjusting hole: M8x1.25
  • Pin code: IR11
  • Condition: New
  • Weight: 5kg
  • Warranty: 3 years (passenger) / 1 year (commercial)
  • Brand: OEX
  • SKU: DXA555

Features & Benefits

  • 6-groove pulley: Key distinction from the DXA565 (7-groove) at the same 80A output confirm your vehicle's belt configuration before purchasing
  • 80A output: Same output as DXA565, distinct fitment dimensions
  • New unit not remanufactured: Brand new construction
  • 3-year passenger / 1-year commercial warranty: Category-specific warranty coverage
  • Twin leg mount: Standard twin leg with different CTC and inside leg dimensions vs DXA565 and DXA558
  • Internal regulator: Self-contained voltage regulation
  • ISO 9001 controlled manufacturing

Technical Specs

Specification Detail
SKU DXA555
Brand OEX
Voltage 12V
Output 80A
Style Denso
Regulator Internal
Mount Twin Leg
Pulley Section 6-Groove
Pulley OD 55mm
Mount CTC 170mm
Inside Leg 41mm
Pivot Hole M10x1.25 / 11mm
Adjusting Hole M8x1.25
Pin Code IR11
Condition New
Weight 5kg
Warranty 3yr Passenger / 1yr Commercial

Frequently Asked Questions

Is this a new or remanufactured unit?

New the DXA555 is a brand new unit, not remanufactured or rebuilt.

How does the DXA555 differ from the DXA565 both are 80A?

Both are 12V 80A Denso style twin leg alternators with internal regulators, but they are not interchangeable. The DXA555 has a 6-groove pulley (vs 7-groove), 170mm CTC (vs 122mm), 41mm inside leg (vs 45mm), 55mm pulley OD (vs 56mm), and IR11 pin code (vs IR115). Always confirm all dimensions against your vehicle.

What is the warranty on this alternator?

3 years for passenger vehicle applications, 1 year for commercial use.

What vehicles does this alternator suit?

The DXA555 suits vehicles using a Denso-style alternator with twin leg mount, 170mm CTC, M10x1.25/11mm pivot hole, M8x1.25 adjusting hole, 6-groove 55mm pulley, and IR11 pin code. Confirm all dimensions before purchasing.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
