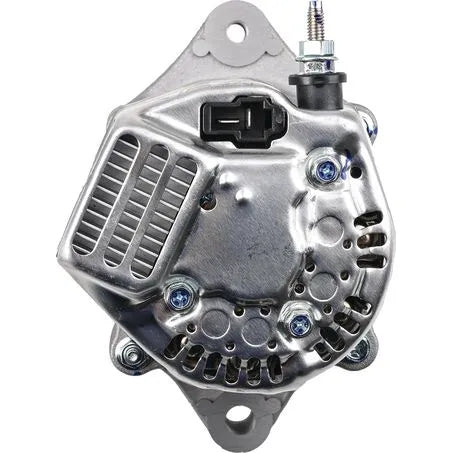

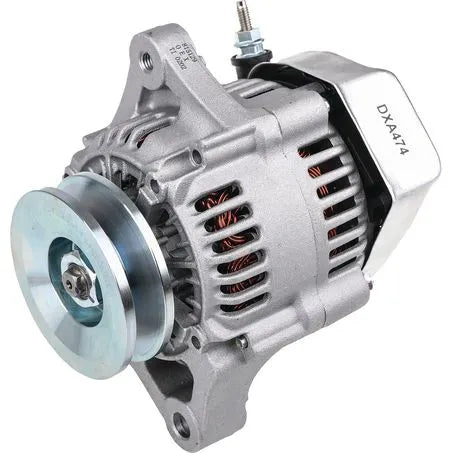

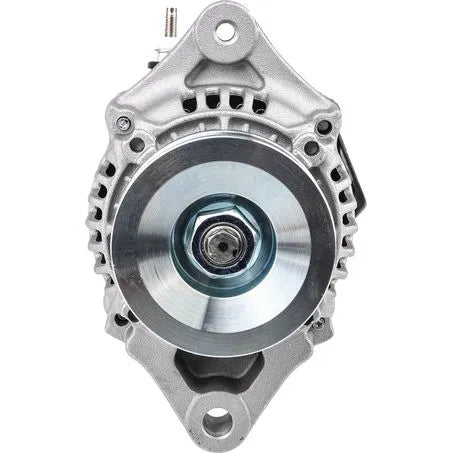

OEX DXA474 Alternator 12V 40A Denso Style

SKU: DXA474
Price
$477
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX DXA474 12V 40A Denso Style Alternator Single Leg Mount A Section V-Belt 74mm Pulley IR17 New Unit

The OEX DXA474 is a new 12V 40A alternator in the Denso style with a single leg mount and A section (V-belt) pulley. One of two A section V-belt units in the OEX Denso range alongside the DXA4005 (55A twin leg) the DXA474 and DXA4005 are not interchangeable. Confirm all mounting dimensions and pin code against your vehicle's existing alternator before ordering. 3-year passenger vehicle warranty, 1-year commercial warranty.

Product overview

The DXA474 is a low-output 40A Denso-style single leg alternator, the lightest unit in the OEX Denso range at 2.94kg. The A section pulley uses a single V-groove for a traditional V-belt drive and is not compatible with modern multi-rib serpentine belt systems. Confirm your vehicle uses an A section V-belt drive before ordering.

The DXA474 shares the A section V-belt configuration with the DXA4005 (55A, twin leg, 172mm CTC, 75mm inside leg, 70mm OD, IR74) but the two are not interchangeable. The DXA474 has a single leg mount with 138mm CTC, 24mm leg thickness, 74mm pulley OD and IR17 pin code. Always confirm all specifications against your vehicle before ordering.

Features and benefits

New unit: Brand new, not remanufactured.

40A output: Low-output unit suited to older or lower electrical demand vehicles.

A section V-belt pulley, 74mm OD: Single V-groove pulley for V-belt drive systems. Not compatible with multi-rib serpentine belt systems. Confirm your vehicle uses an A section V-belt drive before ordering.

Single leg mount, 138mm CTC, 24mm leg thickness: Confirm all mounting dimensions against the vehicle before ordering.

10mm pivot hole, M8x1.25 adjusting hole: Confirm hole sizes and thread specifications suit the vehicle's mounting points.

15mm shaft dimension: Confirm shaft size suits your application.

IR17 pin code: Confirm pin code and all dimensions against your vehicle.

Internal regulator: Voltage regulation handled internally.

Lightweight at 2.94kg: The lightest unit in the OEX Denso alternator range.

3-year passenger / 1-year commercial warranty: Extended warranty for passenger vehicle applications.

Technical specs

Specification Detail
SKU DXA474
Brand OEX
Voltage 12V
Output 40A
Style Denso
Regulator Internal
Mount Single leg
Pulley Section A (V-belt)
Pulley OD 74mm
Mount CTC 138mm
Leg Thickness 24mm
Pivot Hole 10mm
Adjusting Hole M8x1.25
Shaft Dimension 15mm
Pin Code IR17
Condition New
Weight 2.94kg
Warranty 3 years (passenger), 1 year (commercial)

Frequently asked questions

Is this a new or remanufactured unit? New. The DXA474 is a brand new unit, not remanufactured or rebuilt.

What is an A section V-belt pulley? An A section pulley uses a single V-groove for a traditional V-belt drive and is not compatible with modern multi-rib serpentine belt systems. The DXA474 suits vehicles with an A section V-belt drive only. Confirm your vehicle uses this belt type before ordering.

How does the DXA474 differ from the DXA4005 both are A section V-belt? Both are A section V-belt Denso alternators but are not interchangeable. The DXA474 is 40A with a single leg mount, 138mm CTC, 24mm leg thickness, 74mm pulley OD and IR17 pin code. The DXA4005 is 55A with a twin leg mount, 172mm CTC, 75mm inside leg, 70mm pulley OD and IR74 pin code. Confirm all specifications against your vehicle before ordering.

What is the warranty on this alternator? 3 years for passenger vehicle applications, 1 year for commercial use.

What should I confirm before ordering this alternator? Confirm mount type (single leg), CTC (138mm), leg thickness (24mm), pivot hole (10mm), adjusting hole (M8x1.25), pulley section (A section V-belt), pulley OD (74mm), shaft dimension (15mm) and pin code (IR17) all match your vehicle's requirements. Alternators are vehicle-specific, verify fitment before purchasing.
