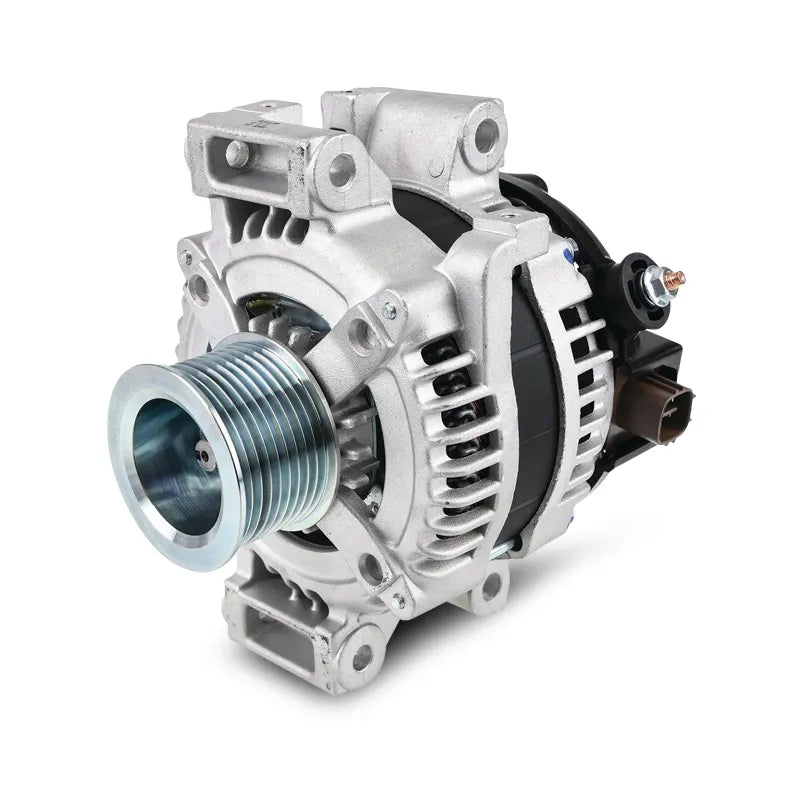

OEX DXA4142 Alternator 12V 150A Denso Style
Click to open expanded view
OEX logo

OEX DXA4142 Alternator 12V 150A Denso Style

SKU: DXA4142
Price
$395
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX 12V 150A Alternator Denso Style, Pad Mount, 9-Groove Pulley, Semi-Sealed Brush Box, Internal Regulator, New Unit. 3-Year Passenger / 1-Year Commercial Warranty.

Product Overview

The OEX DXA4142 is a new 12V 150A alternator in the Denso style the highest-output unit in the OEX Denso series listed in this session. It is also the only 9-groove pulley unit and features a semi-sealed brush box to minimise entry of debris and moisture suited to minor adverse operating conditions. Pad mount configuration with 161mm CTC, 60mm leg thickness, 64mm inside mounting legs, 8mm mount hole, 58mm pulley OD, and IR115 pin code. OEM cross-reference: DXA570.

Key Specifications

  • Voltage: 12V
  • Output: 150A
  • Style: Denso
  • Regulator: Internal
  • Mount type: Pad
  • Pulley: 9-groove, 58mm OD
  • Mount centre-to-centre: 161mm
  • Mount leg thickness: 60mm
  • Inside mounting legs: 64mm
  • Mount hole diameter: 8mm
  • Pin code: IR115
  • OEM cross-reference: DXA570
  • Condition: New
  • Weight: 5.88kg
  • Warranty: 3 years (passenger) / 1 year (commercial)
  • Brand: OEX
  • SKU: DXA4142

Features & Benefits

  • 150A output: Highest-output unit in the OEX Denso series listed in this session suited to vehicles with the highest electrical load requirements
  • 9-groove pulley: The only 9-groove unit in the series confirm your vehicle's belt groove count before purchasing
  • Semi-sealed brush box: Minimises entry of debris and moisture suited to minor adverse operating conditions including light dust and moisture exposure
  • Pad mount: Same mount style as DXA561 but different dimensions confirm all specifications
  • New unit not remanufactured: Brand new construction
  • OEM cross-reference DXA570: Replaces or cross-references the DXA570
  • 3-year passenger / 1-year commercial warranty

Technical Specs

Specification Detail
SKU DXA4142
Brand OEX
Voltage 12V
Output 150A
Style Denso
Regulator Internal
Mount Pad
Pulley Section 9-Groove
Pulley OD 58mm
Mount CTC 161mm
Leg Thickness 60mm
Inside Leg 64mm
Mount Hole 8mm
Pin Code IR115
OEM Cross-Ref DXA570
Semi-Sealed Yes brush box
Condition New
Weight 5.88kg
Warranty 3yr Passenger / 1yr Commercial

Frequently Asked Questions

Is this a new or remanufactured unit?

New the DXA4142 is a brand new unit, not remanufactured or rebuilt.

What does the semi-sealed brush box do?

The semi-sealed brush box is designed to minimise entry of debris and moisture into the brush assembly providing an added layer of protection in dusty or lightly wet operating environments compared to a standard unsealed brush box.

What is the OEM cross-reference for this unit?

The DXA4142 cross-references to OEM number DXA570.

The DXA4142 and DXA561 both use pad mounts at 161mm CTC are they interchangeable?

No despite sharing a pad mount and 161mm CTC, these are distinct units. The DXA4142 is 150A with a 9-groove pulley, 58mm OD, IR115 pin code, 60mm leg thickness. The DXA561 is 105A with a 7-groove pulley, 60mm OD, IR43 pin code, 41mm leg thickness. Always confirm all dimensions and pin codes.

What is the warranty?

3 years for passenger vehicle applications, 1 year for commercial use.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
