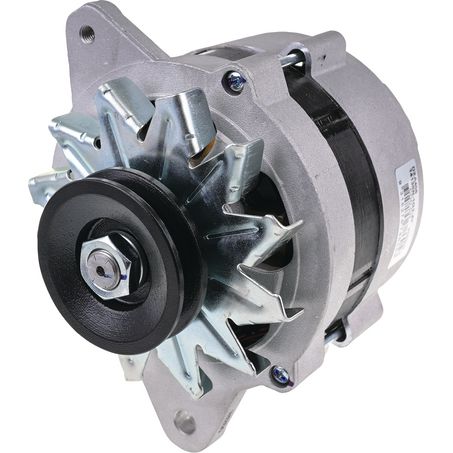

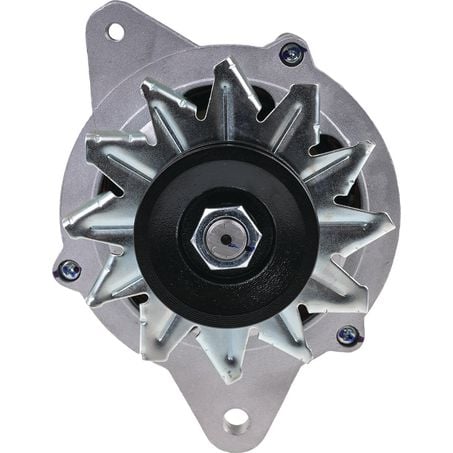

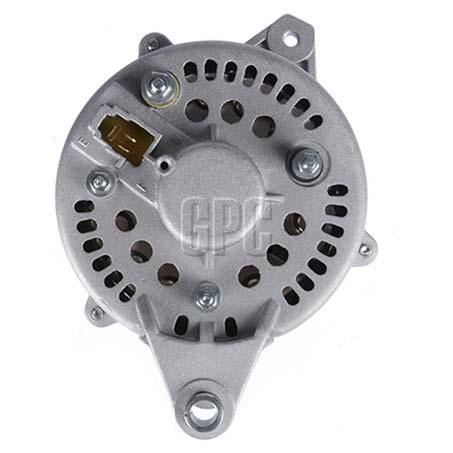

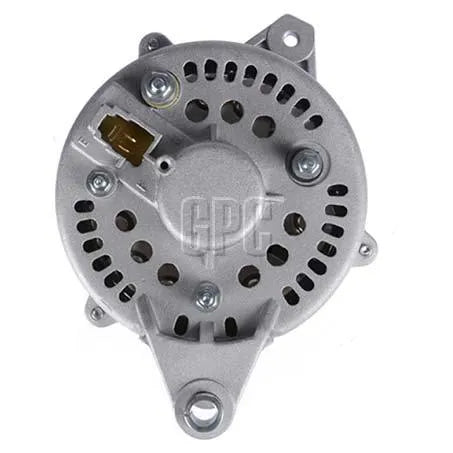

OEX DXA4069 Alternator 12V 50A Denso Style
OEX DXA4069 Alternator 12V 50A Denso Style
OEX DXA4069 Alternator 12V 50A Denso Style
OEX DXA4069 Alternator 12V 50A Denso Style
Click to open expanded view
OEX logo

OEX DXA4069 Alternator 12V 50A Denso Style

SKU: DXA4069
Price
$465
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX DXA4069 12V 90A Denso Style Alternator Twin Leg Mount 7-Groove 62mm Pulley IR97 GEN1 MY09 to MY12 New Unit

The OEX DXA4069 is a new 12V 90A alternator in the Denso style with a twin leg mount, suited to GEN1 vehicles from MY09 to MY12 with a build date from 03/08 to 06/13. This is one of two identical-looking alternators with different regulator functions confirm by OE number before ordering to ensure the correct unit is selected. 3-year passenger vehicle warranty, 1-year commercial warranty.

Product overview

The DXA4069 suits GEN1 vehicles from model year 2009 to 2012 with a build date from March 2008 to June 2013. The supplier notes that two identical-looking alternators exist for this application with different regulator functions the units are visually indistinguishable but are not interchangeable. Confirm the correct unit by OE number before ordering. Using the wrong unit will result in incorrect charging behaviour even though the alternators appear identical.

Features and benefits

New unit: Brand new not remanufactured.

90A output: Standard output for GEN1 MY09 to MY12 vehicles within the confirmed build date range.

Confirm by OE number: One of two identical-looking alternators with different regulator functions. OE number confirmation is required visual identification is not sufficient.

Twin leg mount, 160mm CTC, 83mm inside leg: Confirm all mounting dimensions against the vehicle before ordering.

7-groove 62mm OD pulley: 7-groove multi-rib pulley for serpentine belt drive systems.

10mm pivot hole, M8x1.25 adjusting hole: Confirm hole sizes and thread specifications suit the vehicle's mounting points.

IR97 pin code: Confirm pin code and all dimensions against your vehicle's OE number.

Internal regulator: Voltage regulation handled internally.

3-year passenger / 1-year commercial warranty: Extended warranty for passenger vehicle applications.

Technical specs

Specification Detail
SKU DXA4069
Brand OEX
Voltage 12V
Output 90A
Style Denso
Regulator Internal
Mount Twin leg
Pulley Section 7-groove
Pulley OD 62mm
Mount CTC 160mm
Inside Leg 83mm
Pivot Hole 10mm
Adjusting Hole M8x1.25
Pin Code IR97
Vehicle Application GEN1 MY09 to MY12, build date 03/08 to 06/13
Condition New
Weight 4.46kg
Warranty 3 years (passenger), 1 year (commercial)

Frequently asked questions

Is this a new or remanufactured unit? New. The DXA4069 is a brand new unit, not remanufactured or rebuilt.

Why must I confirm by OE number? There are two identical-looking alternators for this application with different internal regulator functions. The units are visually indistinguishable but are not interchangeable. Contact us with your OE number to confirm the correct unit before ordering.

What vehicles does this alternator suit? The DXA4069 suits GEN1 vehicles from model year 2009 to 2012 with a build date from March 2008 to June 2013. Contact us with your vehicle details and existing alternator OE number to confirm fitment.

What is the warranty on this alternator? 3 years for passenger vehicle applications, 1 year for commercial use.

What should I confirm before ordering this alternator? Confirm fitment by OE number this is essential for this SKU due to the existence of an identical-looking unit with a different regulator. Also confirm mount type (twin leg), CTC (160mm), inside leg (83mm), pivot hole (10mm), adjusting hole (M8x1.25), pulley section (7-groove), pulley OD (62mm) and pin code (IR97) all match your vehicle's requirements.
