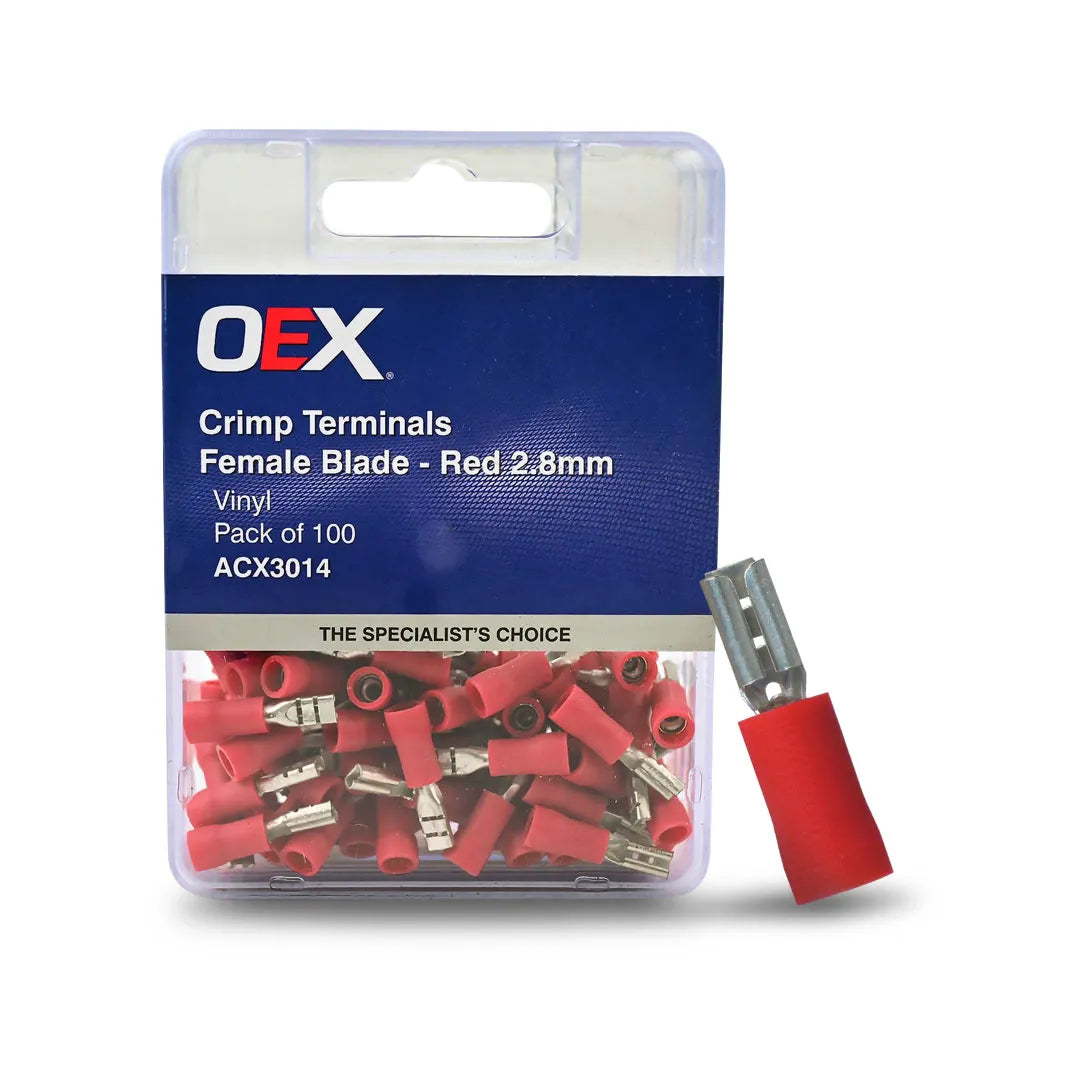

OEX ACX3014 2.8 x 0.8mm Terminal Blade Female Crimp Red Terminal Entry Vinyl 100 Pce

SKU: ACX3014
Price
$23
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

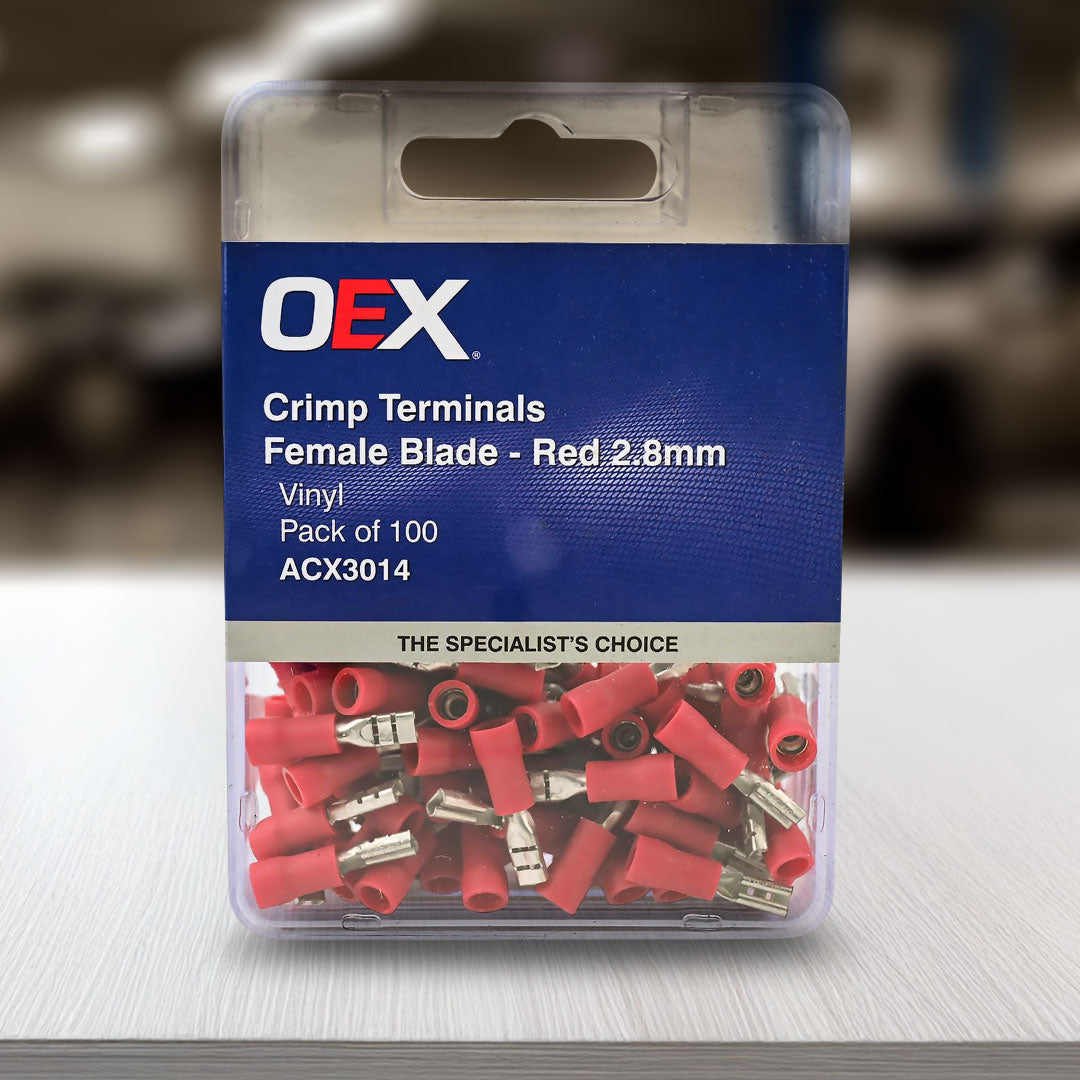

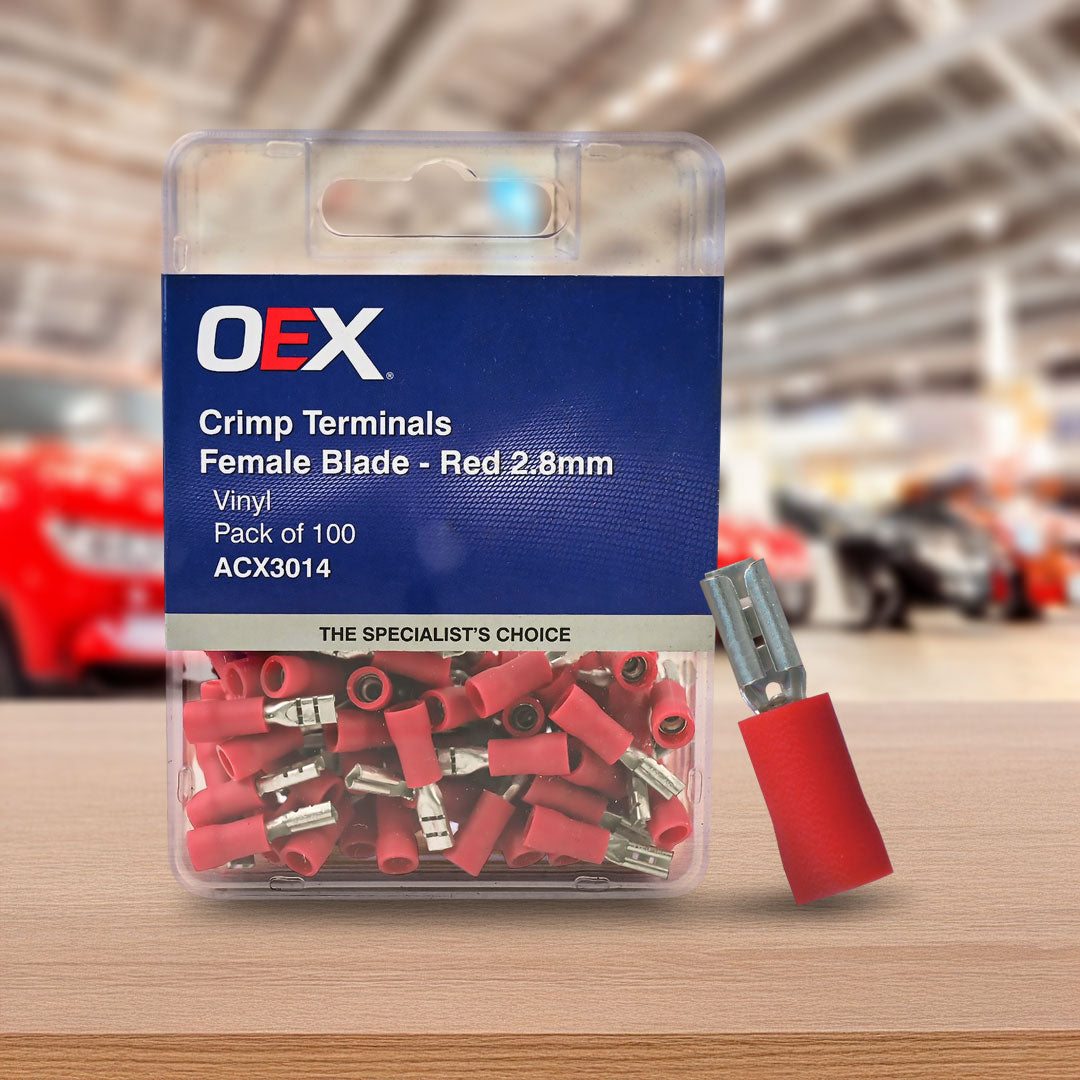

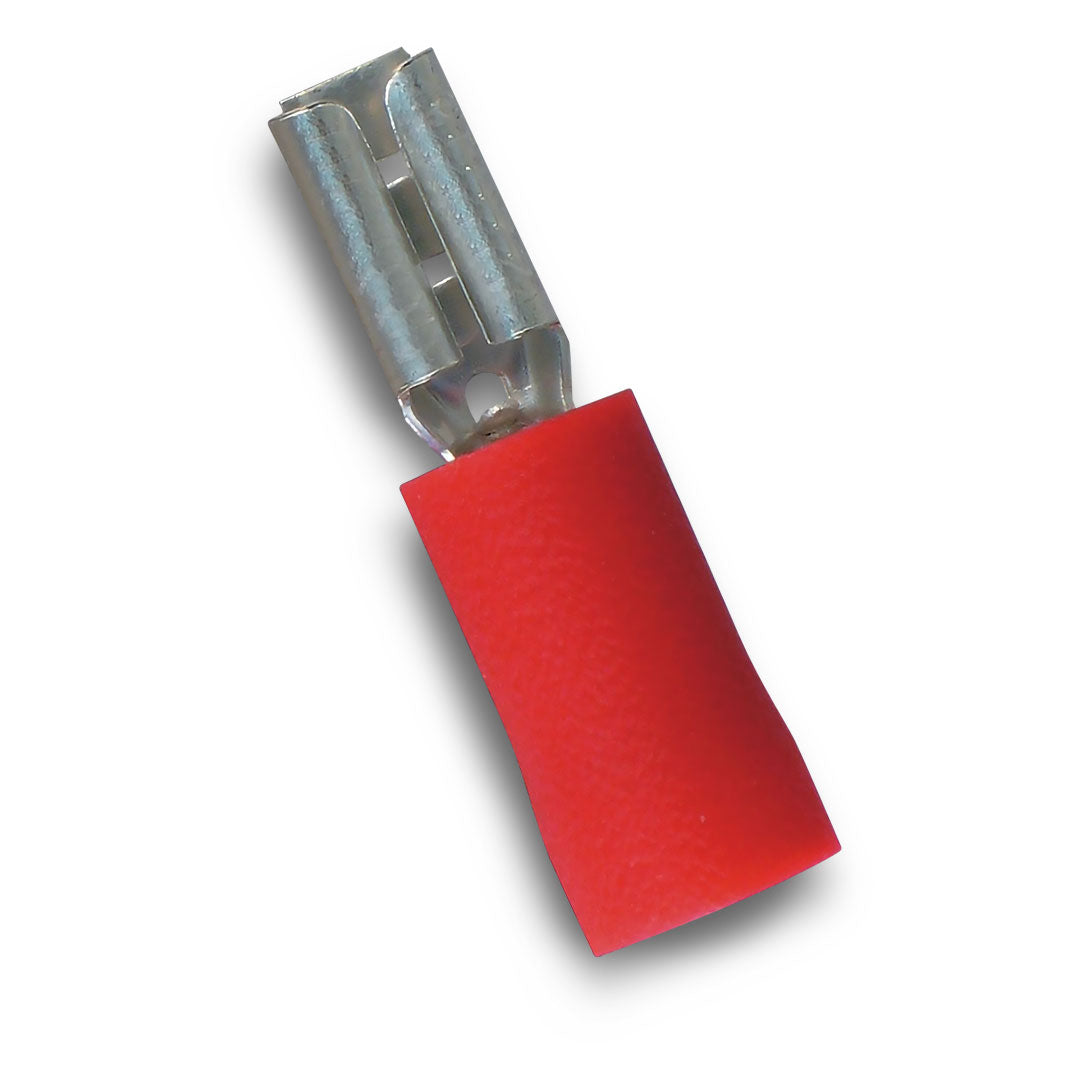

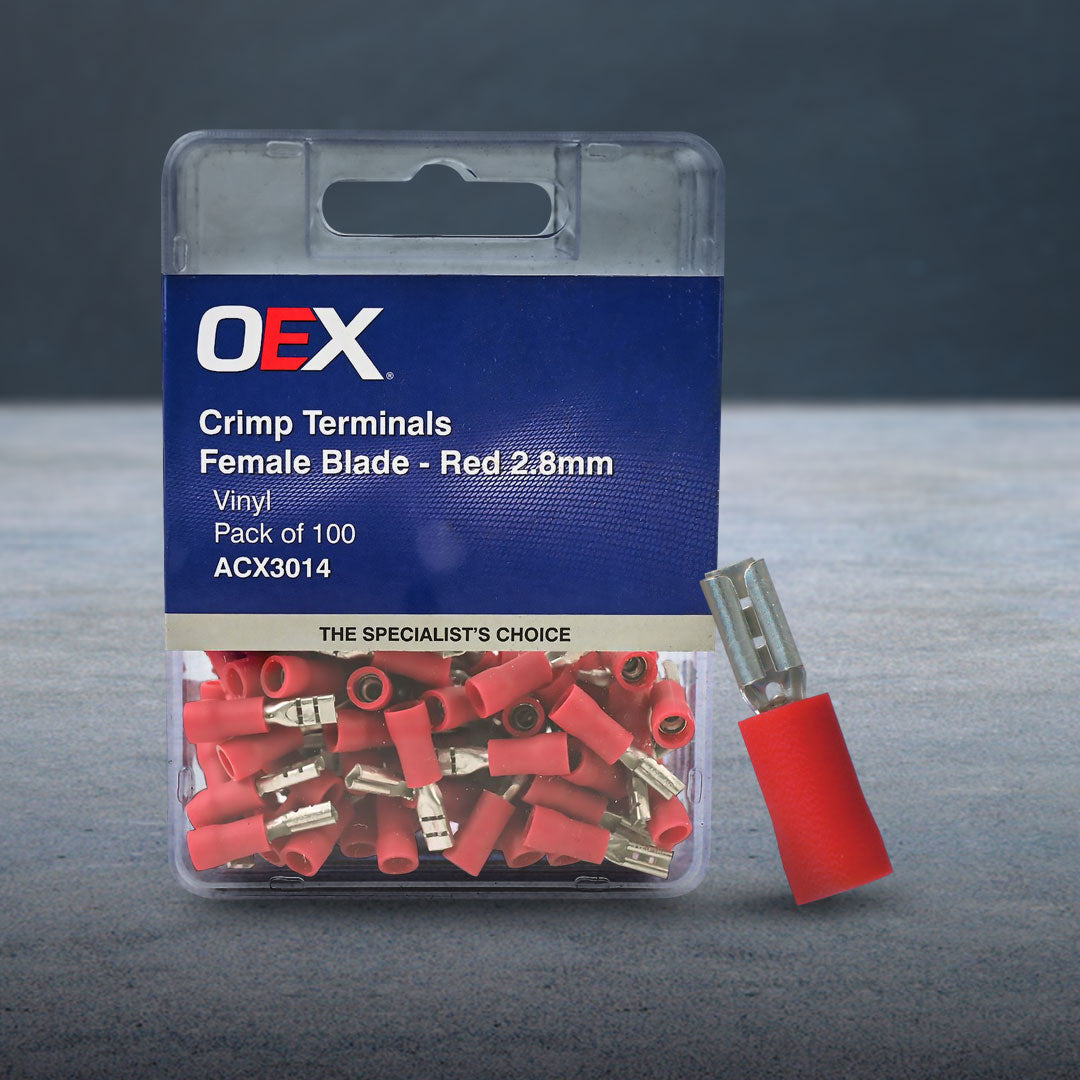

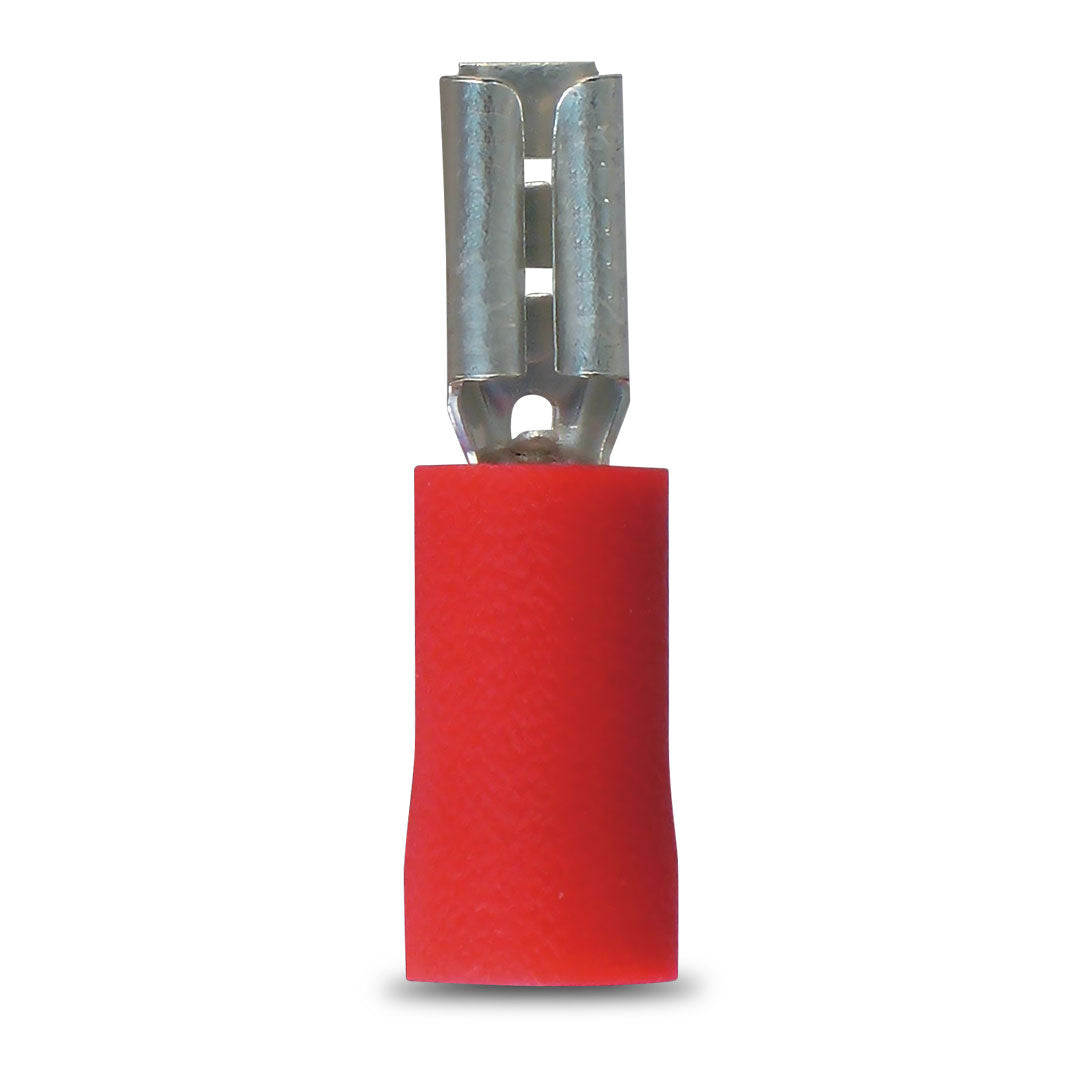

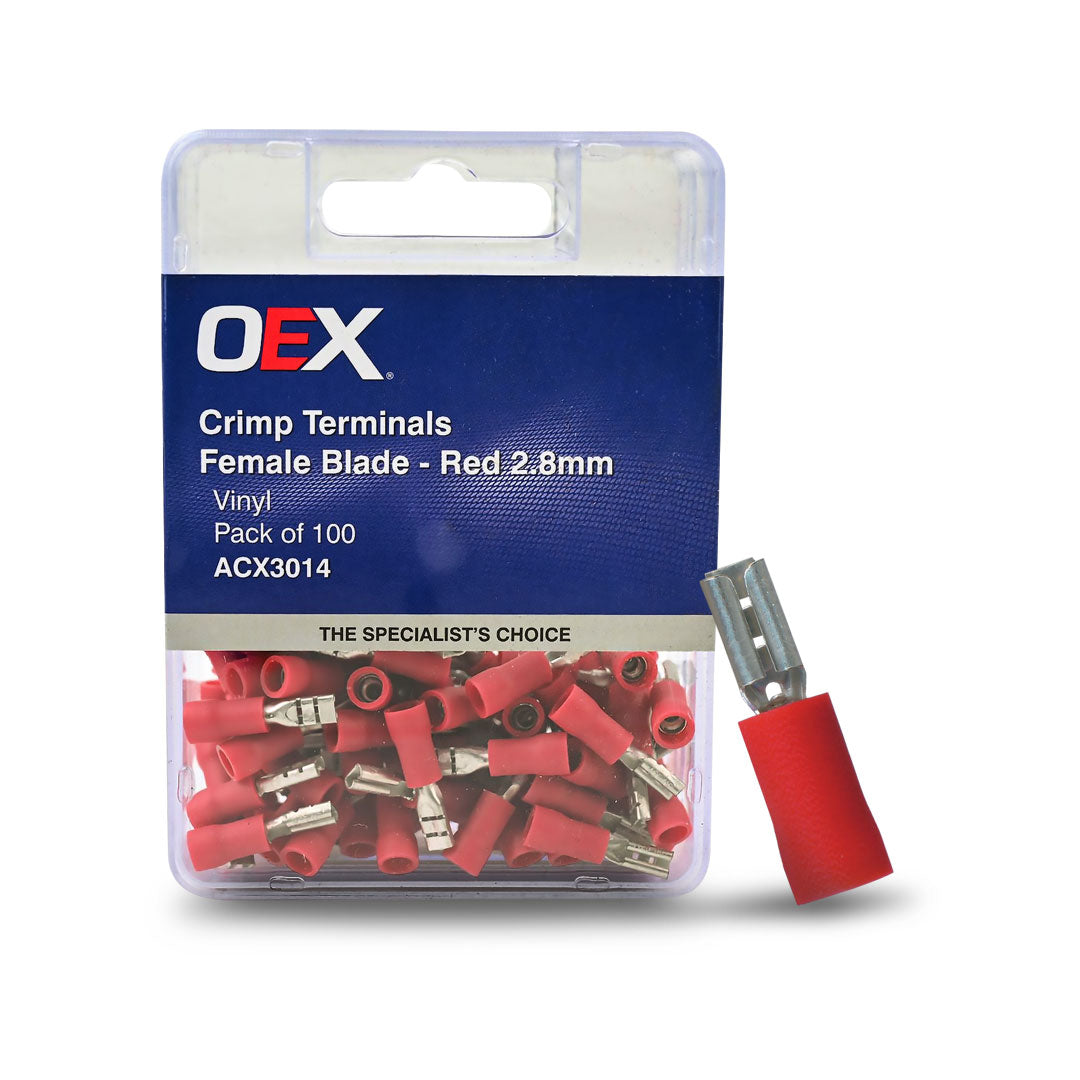

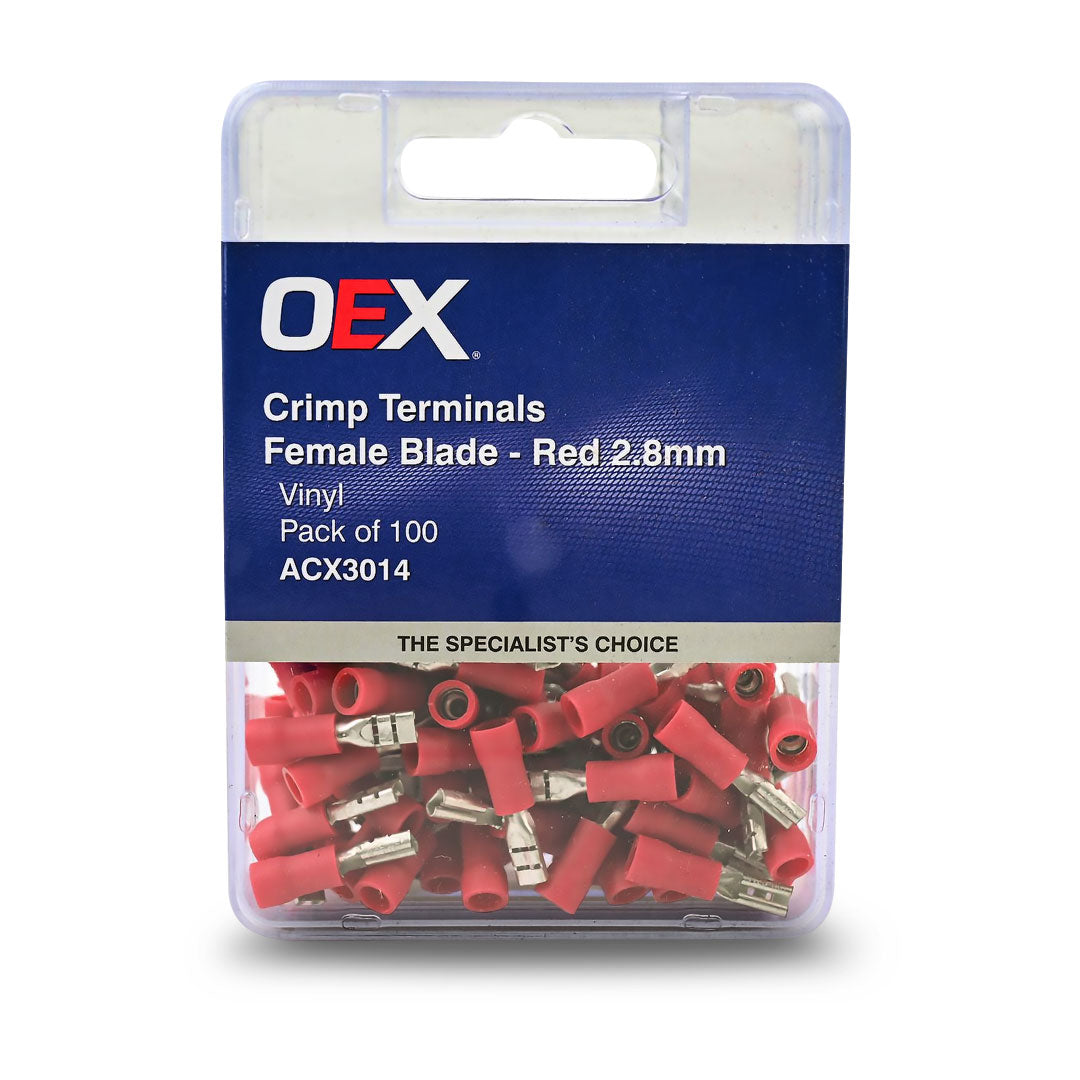

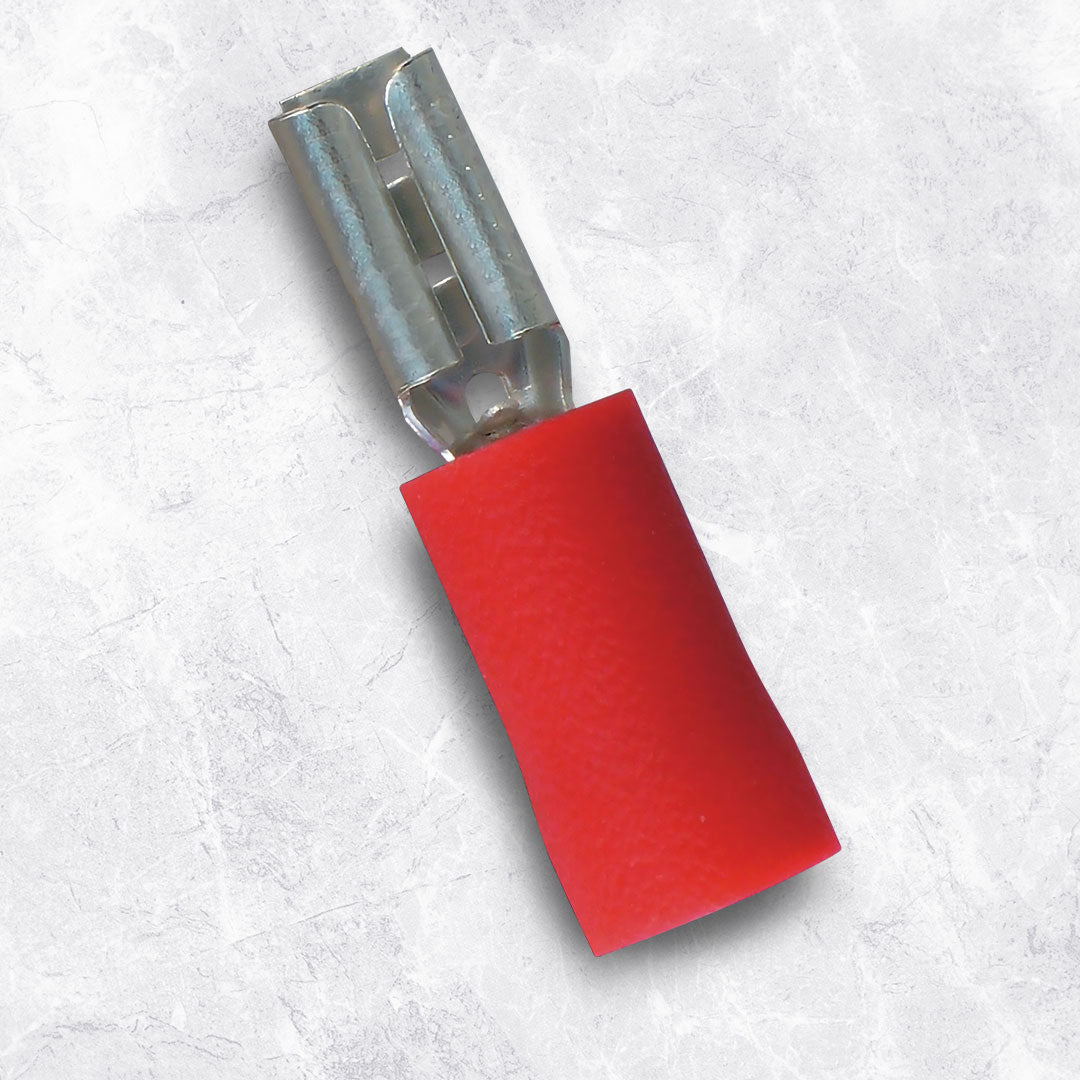

OEX ACX3014 2.8mm Female Blade Crimp Terminal Red Vinyl Insulated 0.5 to 1.5mm² Double Crimp Tin Plated Copper Pack of 100

The OEX ACX3014 is a 2.8mm female blade crimp terminal in red, supplied in a pack of 100. The vinyl insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper construction ensures reliable conductivity and corrosion resistance. The red colour coding indicates compatibility with the 0.5 to 1.5mm² cable range in the standard automotive terminal colour convention. Covered by a one year warranty.

Product overview

The 2.8mm female blade terminal is a smaller format than the common 6.3mm blade and is used for lighter-current circuits, sensors and small connector housings where the larger 6.3mm tab would not fit. The ACX3014 mates with 2.8mm male blade terminals and connectors. The two sizes are not interchangeable confirm the tab width of the mating terminal before purchasing.

The double crimp design has two separate crimp zones, one gripping the bare conductor and one gripping the cable insulation, providing both a secure electrical connection and strain relief. The red vinyl insulation follows the standard automotive terminal colour convention for the 0.5 to 1.5mm² cable range. A ratchet crimping tool designed for insulated terminals in the red range is recommended. The pack of 100 suits trade workshops.

Features and benefits

2.8mm x 0.8mm female blade: Suits 2.8mm male blade terminals and connectors used in sensors, lighting connectors and small-gauge automotive wiring.

Red vinyl insulation: Colour codes the 0.5 to 1.5mm² cable range following the standard automotive terminal convention.

Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.

Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.

Pack of 100: Trade-friendly workshop quantity.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX3014
Brand OEX
Terminal Type Female Blade
Terminal Size 2.8mm x 0.8mm
Insulation Vinyl, Red
Cable Range 0.5 to 1.5mm²
Construction Double crimp
Material Tin plated copper
Pack Quantity 100
Weight 0.04kg
Warranty One year
Sold As Pack of 100

Frequently asked questions

What does the red colour indicate? Red is the standard colour code for automotive crimp terminals suited to the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.

How does a 2.8mm female blade differ from a 6.3mm female blade? The 2.8mm female blade is a smaller format used for lighter-current circuits, sensors and small connector housings. The 6.3mm female blade is a larger format for heavier-current accessory circuits. They are not interchangeable confirm the tab width of the mating terminal before purchasing.

What is a double crimp terminal? A double crimp terminal has two crimp zones: one that grips the bare conductor for the electrical connection, and one that grips the cable insulation for strain relief, preventing the terminal from pulling off the cable under tension.

What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the red (0.5 to 1.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.

Are these terminals available in other sizes or colours? OEX produces crimp terminals in a range of types, sizes and cable ranges. Check the OEX terminal range for other available options.
