OEX BXS0105 Starter Motor 12V 9TH CW Bosch Style
Click to open expanded view
OEX logo

OEX BXS0105 Starter Motor 12V 9TH CW Bosch Style

SKU: BXS0105
Price
$187
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

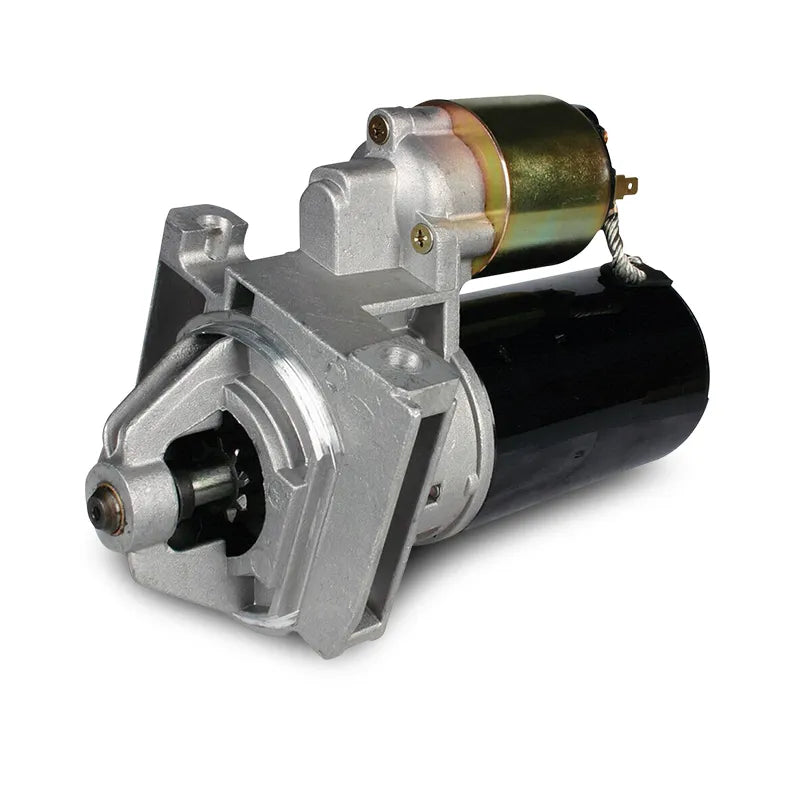

OEX BXS0105 12V 1.4kW 9 Tooth CW Bosch Style Starter Motor, Pad Mount, Dry Clutch, New Unit

The BXS0105 from OEX is a new 12V 1.4kW starter motor in Bosch style with a 9-tooth pinion, clockwise rotation, and a pad mount configuration. It features an 82mm flange diameter, 81mm mount centres, dry clutch, and an overall length of 240mm. Backed by a 3-year or 75,000 kilometre warranty on new units for passenger vehicle applications.

Product overview

The BXS0105 is a direct replacement starter motor for applications requiring a Bosch-style unit with CW rotation, a 9-tooth pinion, and a pad mount. OEX, which stands for Original Equipment Xchange, is a brand with its origins in Japanese starter motor and alternator production, now serving the broader Australian automotive aftermarket with quality replacement rotating electrical components at competitive prices.

This is a new unit, not a remanufactured one, and carries a 3-year or 75,000 kilometre warranty for passenger vehicle applications and a 1-year warranty for commercial applications. The dry clutch design suits the operating conditions of the applications this unit is built to replace.

Features and benefits

New unit, not remanufactured: The BXS0105 is supplied as a new starter motor, providing confidence in service life from the point of installation.

1.4kW power rating: Delivers 1.4kW of cranking power, suited to the engine applications this unit is designed to replace.

9-tooth CW pinion: Clockwise rotation with a 9-tooth pinion and 25mm pinion diameter, matching the ring gear specifications of confirmed compatible applications.

Pad mount configuration: The pad mount style with 82mm flange diameter and 81mm mount centres suits engine block mounting points of Bosch-style applications calling for this configuration.

Dry clutch design: Fitted with a dry clutch, appropriate for the operating conditions of the applications this unit is designed to suit.

3-year or 75,000km passenger warranty: Backed by a 3-year or 75,000 kilometre warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

OEX Original Equipment Xchange: OEX products are sourced from market-leading original equipment manufacturers and aftermarket suppliers, delivering premium quality replacement rotating electrical components for the Australian automotive aftermarket.

Technical specs

Specification Detail
SKU BXS0105
Brand OEX
Voltage 12V
Power Rating 1.4kW
Rotation Clockwise (CW)
Number of Teeth 9
Pinion Diameter 25mm
Pinion at Rest 6mm
Flange Diameter 82mm
Mount Centres A 81mm
Mount Hole Diameter 10mm
Overall Length 240mm
Starter Mount Type Pad
Clutch Type Dry
Suits Unit Make Bosch Style
Condition New
Weight 3.4kg
Warranty 3 Years or 75,000km Passenger, 1 Year Commercial

Frequently asked questions

Is the BXS0105 a new or remanufactured unit?
The BXS0105 is a new starter motor, not a remanufactured unit.

What warranty does the BXS0105 carry?
The BXS0105 carries a 3-year or 75,000 kilometre warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

What is the rotation direction of the BXS0105?
The BXS0105 rotates clockwise (CW). Confirm that your application requires CW rotation before ordering, as an incorrect rotation direction will prevent the starter from engaging the ring gear correctly.

What mount type does the BXS0105 use?
The BXS0105 uses a pad mount configuration, unlike the 2-hole mount used on some other Bosch-style starter motors in the OEX range. Confirm that your application requires a pad mount before ordering.

What are the key dimensions I need to confirm before ordering?
The key dimensions for fitment confirmation are the flange diameter (82mm), mount centres A (81mm), mount hole diameter (10mm), pinion diameter (25mm), pinion at rest (6mm), and overall length (240mm). Contact us if you need assistance confirming fitment for your specific application.
