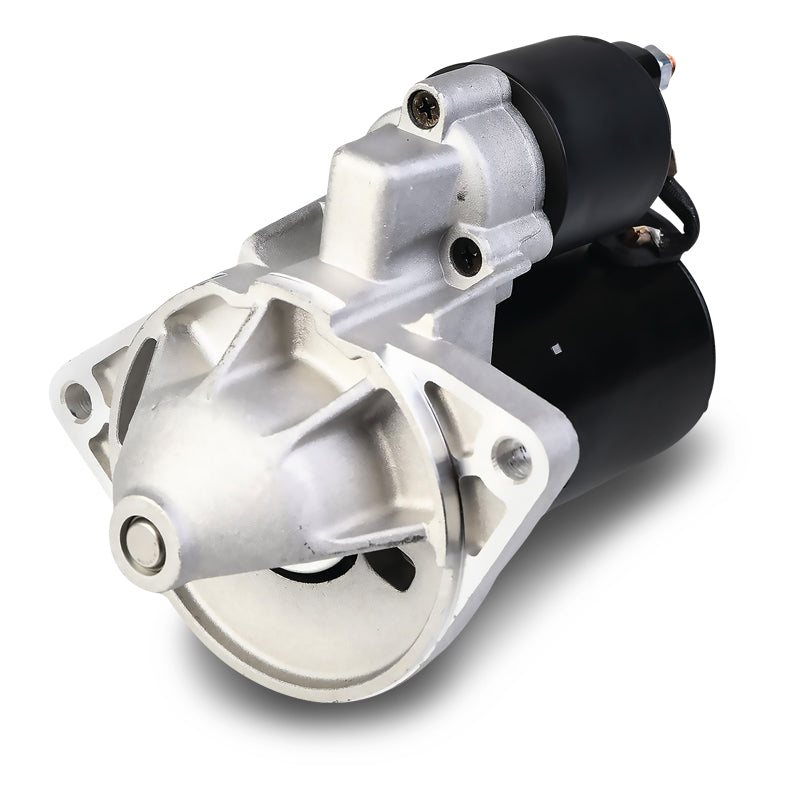

new OEX brand starter motor with a silver and black color scheme, designed for a 12V 10Th CW Bosch style application.
new OEX brand starter motor with a silver and black color scheme, designed for a 12V 10Th CW Bosch style application.

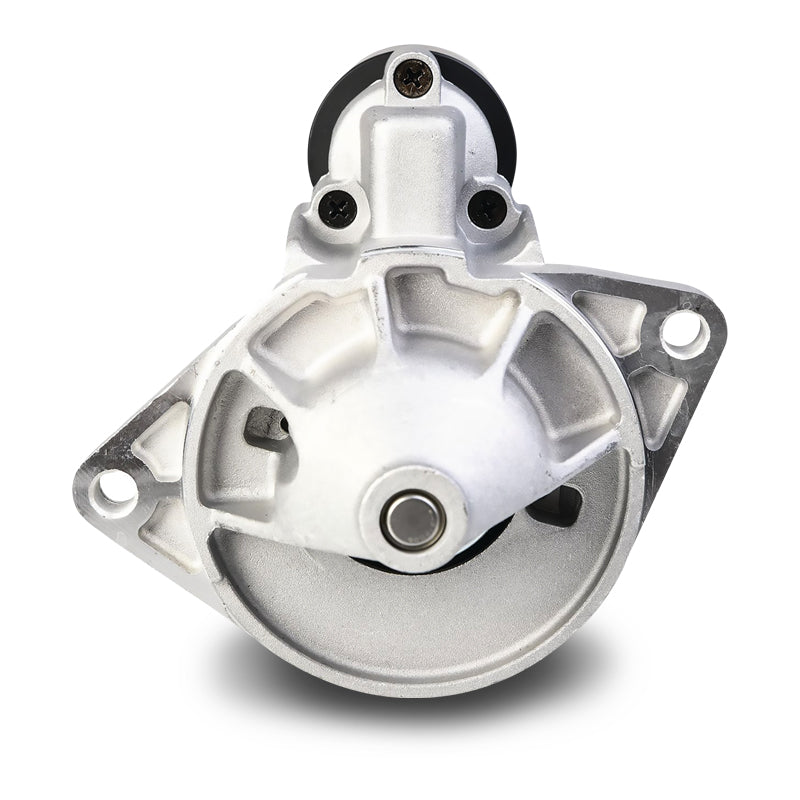

OEX Starter Motor 12V 10Th CW Bosch Style shown from a side angle
OEX Starter Motor 12V 10Th CW Bosch Style shown from a side angle

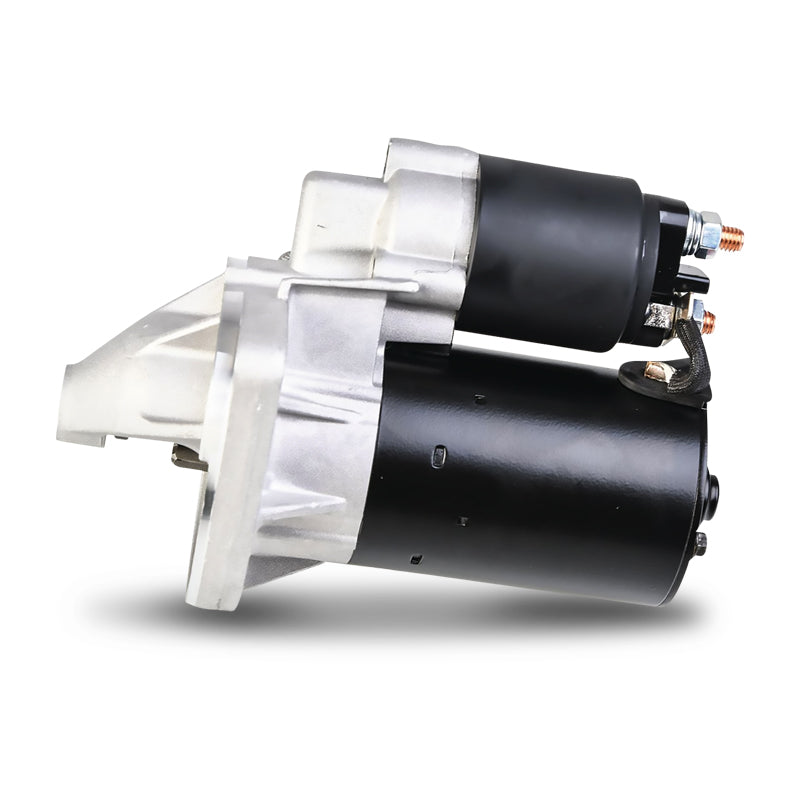

Side view of OEX Starter Motor 12V 10Th CW Bosch Style housing and mounting points
Side view of OEX Starter Motor 12V 10Th CW Bosch Style housing and mounting points

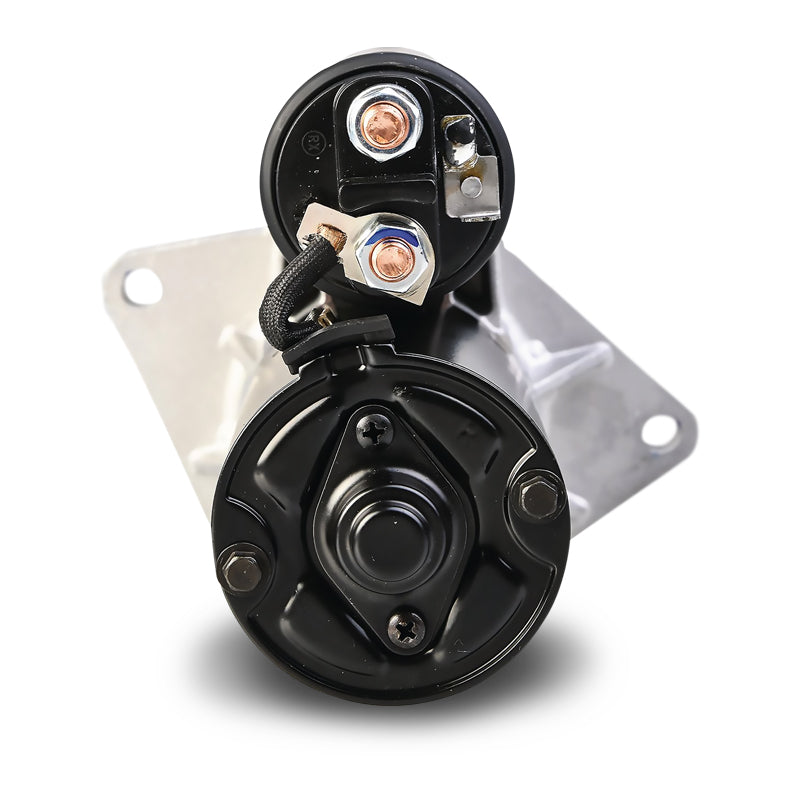

back view image of OEX Starter Motor 12V 10Th CW Bosch Style
back view image of OEX Starter Motor 12V 10Th CW Bosch Style
Click to open expanded view
OEX logo

OEX BXS0102 Starter Motor 12V 10Th CW Bosch Style

SKU: BXS0102
Price
$159
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX BXS0102 12V 1.4kW 10 Tooth CW Bosch Style Starter Motor, 2-Hole Mount, Dry Clutch, New Unit

The BXS0102 from OEX is a new 12V 1.4kW starter motor in Bosch style with a 10-tooth pinion, clockwise rotation, and a 2-hole mount configuration. It features a 103mm flange diameter, 134mm mount centres, dry clutch, and an overall length of 198mm. This unit will also replace Bosch style 9-tooth starters. Backed by a 3-year passenger and 1-year commercial warranty.

Product overview

The BXS0102 is a direct replacement starter motor for applications requiring a Bosch-style unit with CW rotation, a 10-tooth pinion, and a 2-hole mount. A key compatibility note applies to this unit: despite being a 10-tooth starter, the BXS0102 is confirmed to replace Bosch style 9-tooth starters as well, broadening its application coverage beyond what the tooth count alone might suggest.

This is a new unit, not a remanufactured one, and carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications. The dry clutch design suits the operating conditions of the applications this unit replaces.

Features and benefits

New unit, not remanufactured: The BXS0102 is supplied as a new starter motor, providing confidence in service life from the point of installation.

1.4kW power rating: Delivers 1.4kW of cranking power, suited to the engine applications this unit is designed to replace.

10-tooth CW pinion, replaces 9-tooth Bosch style starters: Clockwise rotation with a 10-tooth pinion and 27mm pinion diameter. Confirmed to replace Bosch style 9-tooth starters, extending compatibility beyond the standard tooth count match.

2-hole Bosch style mount: The 2-hole mounting configuration with 103mm flange diameter and 134mm mount centres suits the engine block mounting points of Bosch-style applications requiring these dimensions.

Dry clutch design: Fitted with a dry clutch, appropriate for the operating conditions of the applications this unit is designed to suit.

3-year passenger warranty: Backed by a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

Technical specs

Specification Detail
SKU BXS0102
Brand OEX
Voltage 12V
Power Rating 1.4kW
Rotation Clockwise (CW)
Number of Teeth 10
Pinion Diameter 27mm
Pinion at Rest 13mm
Flange Diameter 103mm
Mount Centres A 134mm
Mount Hole Diameter 11mm
Overall Length 198mm
Starter Mount Type 2 Hole
Clutch Type Dry
Suits Unit Make Bosch Style
Replaces Bosch Style 9 Tooth Starters
Condition New
Weight 4.22kg
Warranty 3 Years Passenger, 1 Year Commercial

Frequently asked questions

Will the BXS0102 replace a Bosch style 9-tooth starter motor?
Yes. Despite being a 10-tooth unit, the BXS0102 is confirmed to replace Bosch style 9-tooth starters. If you are replacing a 9-tooth Bosch style starter, confirm the remaining dimensions match before ordering. Contact us if you need assistance confirming fitment.

Is the BXS0102 a new or remanufactured unit?
The BXS0102 is a new starter motor, not a remanufactured unit.

What warranty does the BXS0102 carry?
The BXS0102 carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

What is the rotation direction of the BXS0102?
The BXS0102 rotates clockwise (CW). Confirm that your application requires CW rotation before ordering, as an incorrect rotation direction will prevent the starter from engaging the ring gear correctly.

What are the key dimensions I need to confirm before ordering?
The key dimensions for fitment confirmation are the flange diameter (103mm), mount centres A (134mm), mount hole diameter (11mm), pinion diameter (27mm), pinion at rest (13mm), and overall length (198mm). Contact us if you need assistance confirming fitment for your specific application.
