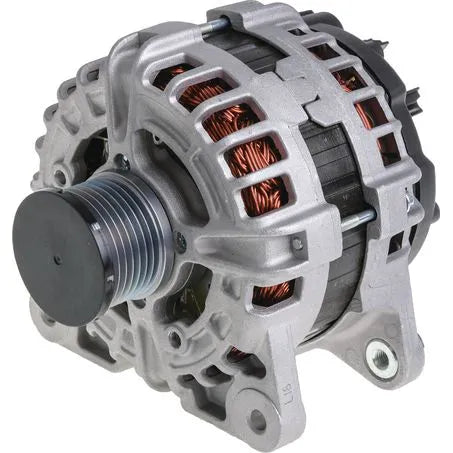

OEX BXA067 Alternator 12V 150A Bosch Style
Click to open expanded view
OEX logo

OEX BXA067 Alternator 12V 150A Bosch Style

SKU: BXA067
Price
$1,020
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX BXA067 12V 150A Bosch Style Alternator, Quad Leg Mount, 7 Groove Pulley, Internal Regulator, New Unit

The BXA067 from OEX is a new 12V 150A alternator in Bosch style with a quad leg mount, 7-groove pulley, and internal regulator. It features a 49mm pulley outside diameter, 127mm mount centre to centre, 60mm inside mounting legs, and a pin code of IR216. Backed by a 3-year passenger and 1-year commercial warranty.

Product overview

The BXA067 is a direct replacement alternator for applications requiring a Bosch-style unit with a quad leg mount and internal regulator at 150A output. The 7-groove pulley suits multi-ribbed belt drive systems commonly found in the engine applications this unit is designed to replace.

OEX products are sourced from market-leading original equipment manufacturers and aftermarket suppliers, delivering quality replacement rotating electrical components for the Australian automotive aftermarket. This is a new unit, not a remanufactured one, and carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

Features and benefits

New unit, not remanufactured: The BXA067 is supplied as a new alternator, providing confidence in output performance and service life from the point of installation.

150A output at 12V: Delivers 150A of charging output at 12V, suited to the electrical demands of the engine applications this unit is designed to replace.

Quad leg mount: The quad leg mounting configuration with 127mm centre-to-centre measurement and 60mm inside mounting legs suits the bracket arrangements of confirmed Bosch-style applications requiring this mount type.

7-groove pulley: The 49mm outside diameter 7-groove pulley suits multi-ribbed belt drive systems found in the applications this alternator is built to replace.

Internal regulator: Fitted with an internal voltage regulator (pin code IR216), eliminating the need for an external regulator in compatible applications.

3-year passenger warranty: Backed by a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

Technical specs

Specification Detail
SKU BXA067
Brand OEX
Voltage 12V
Power Rating 150A
Suits Unit Make Bosch Style
Alternator Mount Quad Leg
Mount Centre to Centre 127mm
Inside Mounting Legs 60mm
Pulley Outside Diameter 49mm
Pulley Section 7 Groove
Regulator Type Internal
Pin Code IR216
Condition New
Weight 6.48kg
Warranty 3 Years Passenger, 1 Year Commercial

Frequently asked questions

Is the BXA067 a new or remanufactured unit?
The BXA067 is a new alternator, not a remanufactured unit.

What warranty does the BXA067 carry?
The BXA067 carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.

What regulator type does the BXA067 use?
The BXA067 is fitted with an internal voltage regulator with a pin code of IR216. No external regulator is required for compatible applications.

What pulley type does the BXA067 use?
The BXA067 uses a 7-groove pulley with a 49mm outside diameter, suited to multi-ribbed belt drive systems in the applications this unit is designed to replace. Confirm your belt groove count matches before ordering.

What are the key dimensions I need to confirm before ordering?
The key dimensions for fitment confirmation are the mount centre-to-centre measurement (127mm), inside mounting leg dimension (60mm), and pulley outside diameter (49mm). The mount type is quad leg and the pin code is IR216. Contact us if you need assistance confirming fitment for your specific application.
