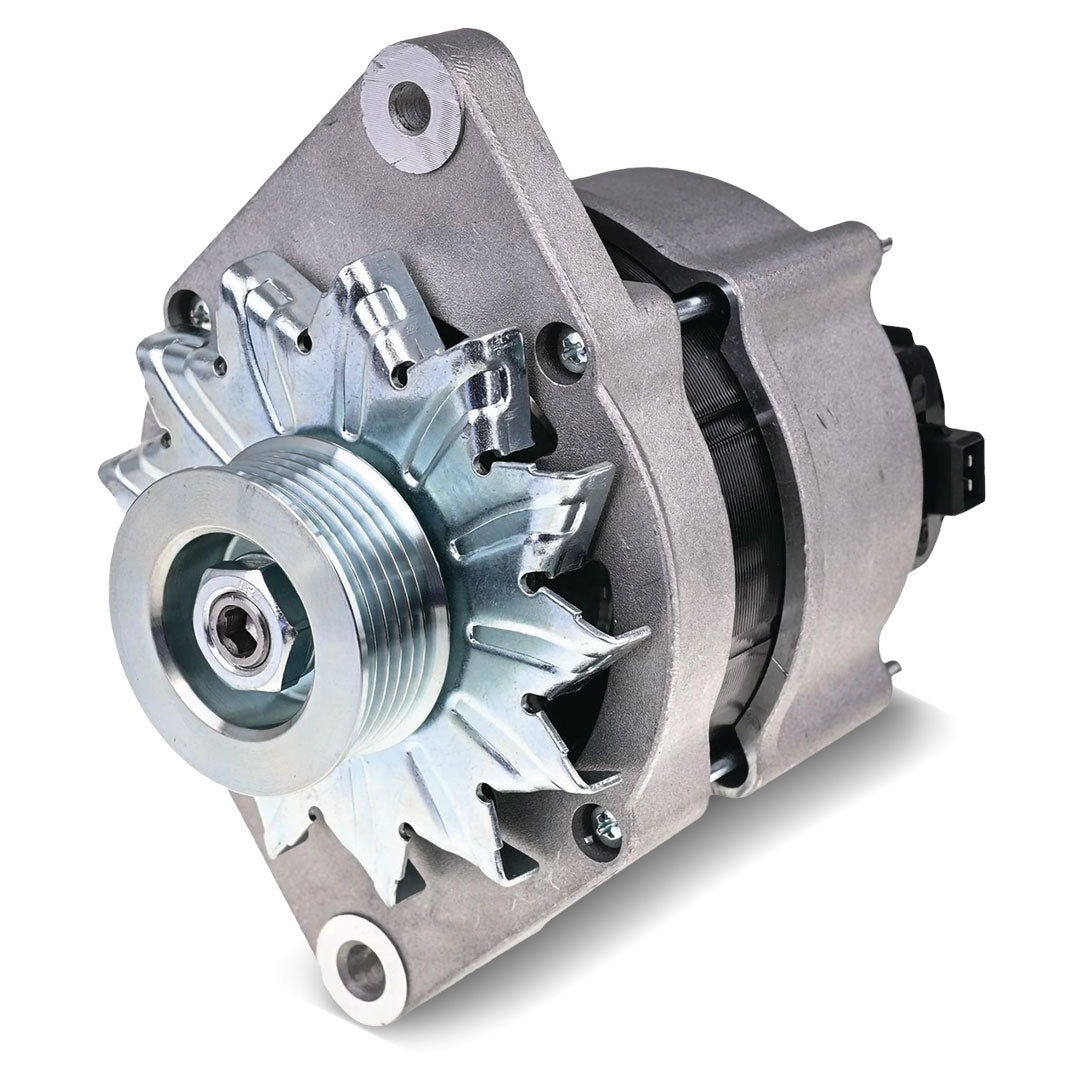

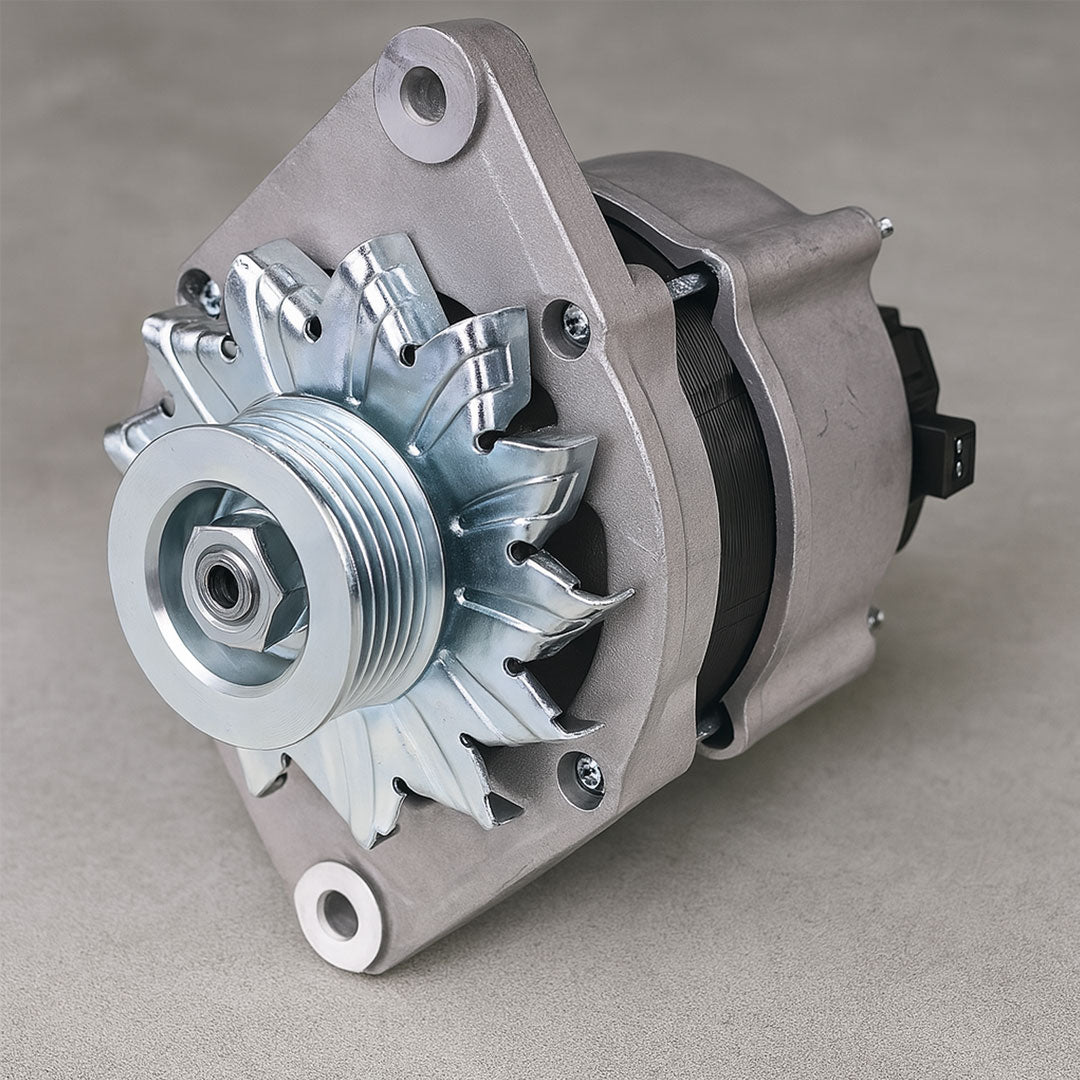

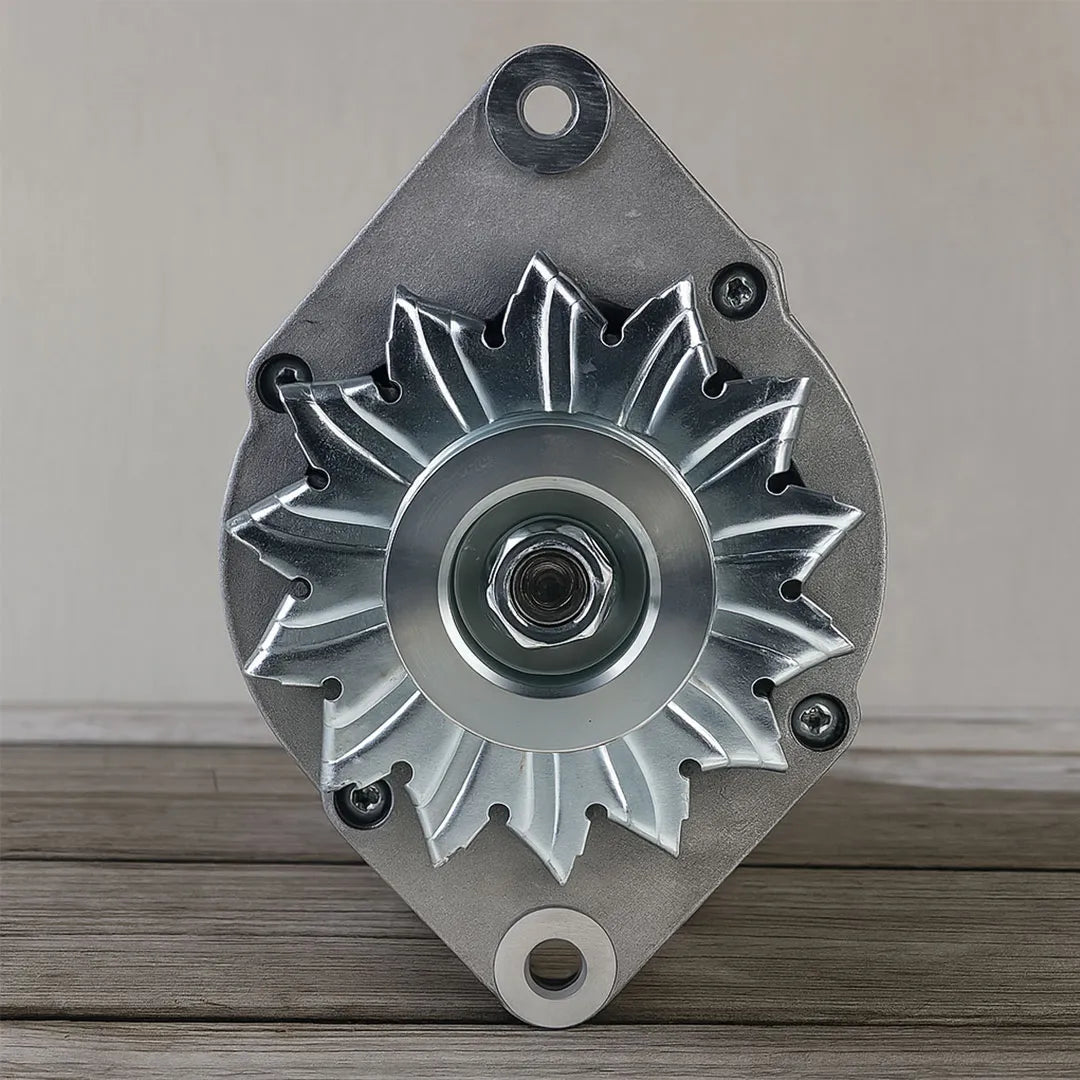

OEX BXA003 12V 85A Bosch Style Alternator with 6 Groove Pulley

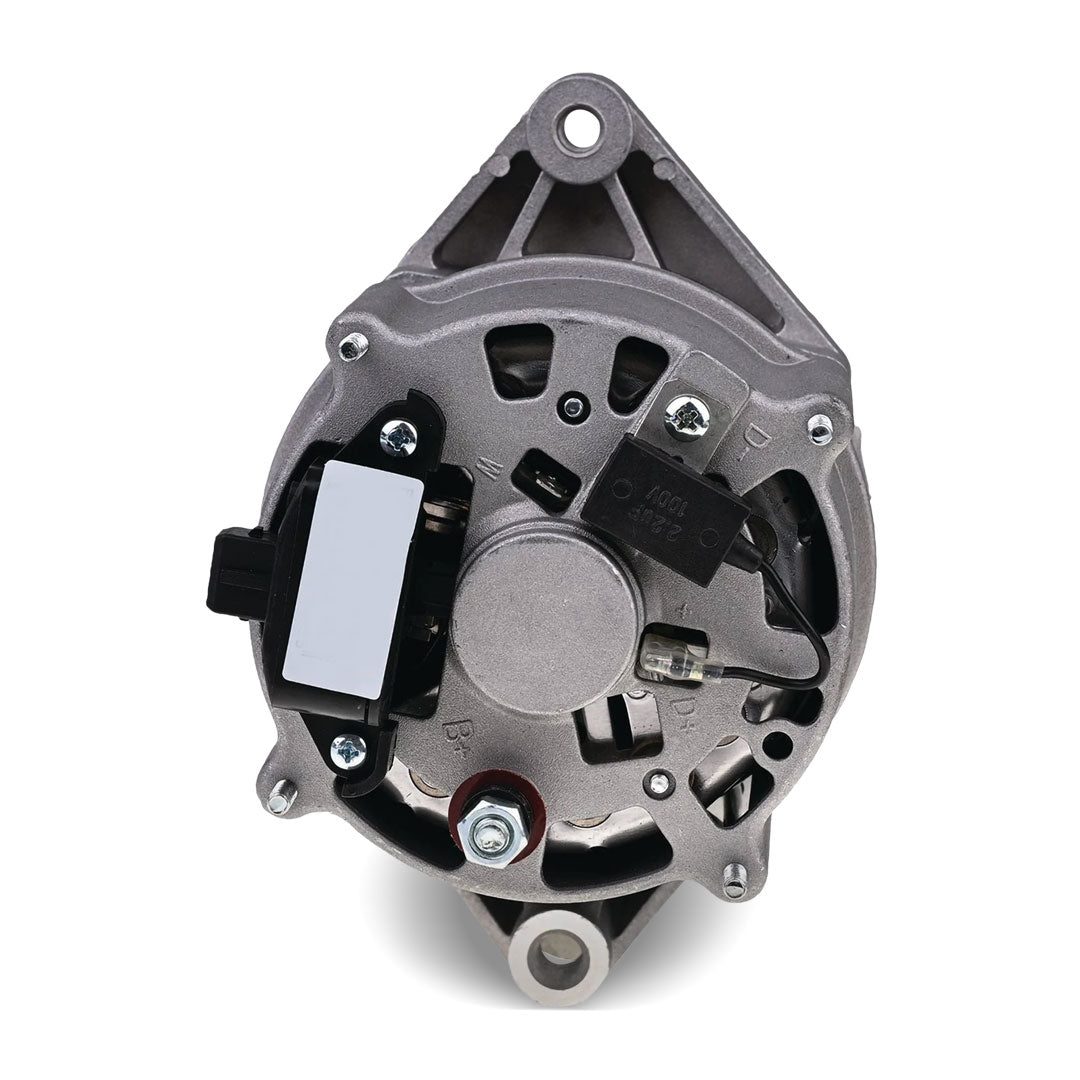

Charging faults on a Bosch equipped vehicle need a unit with the same mount, pulley and plug. The OEX BXA003 is a new 12V 85A Bosch style alternator with an internal regulator and pin code IR110.

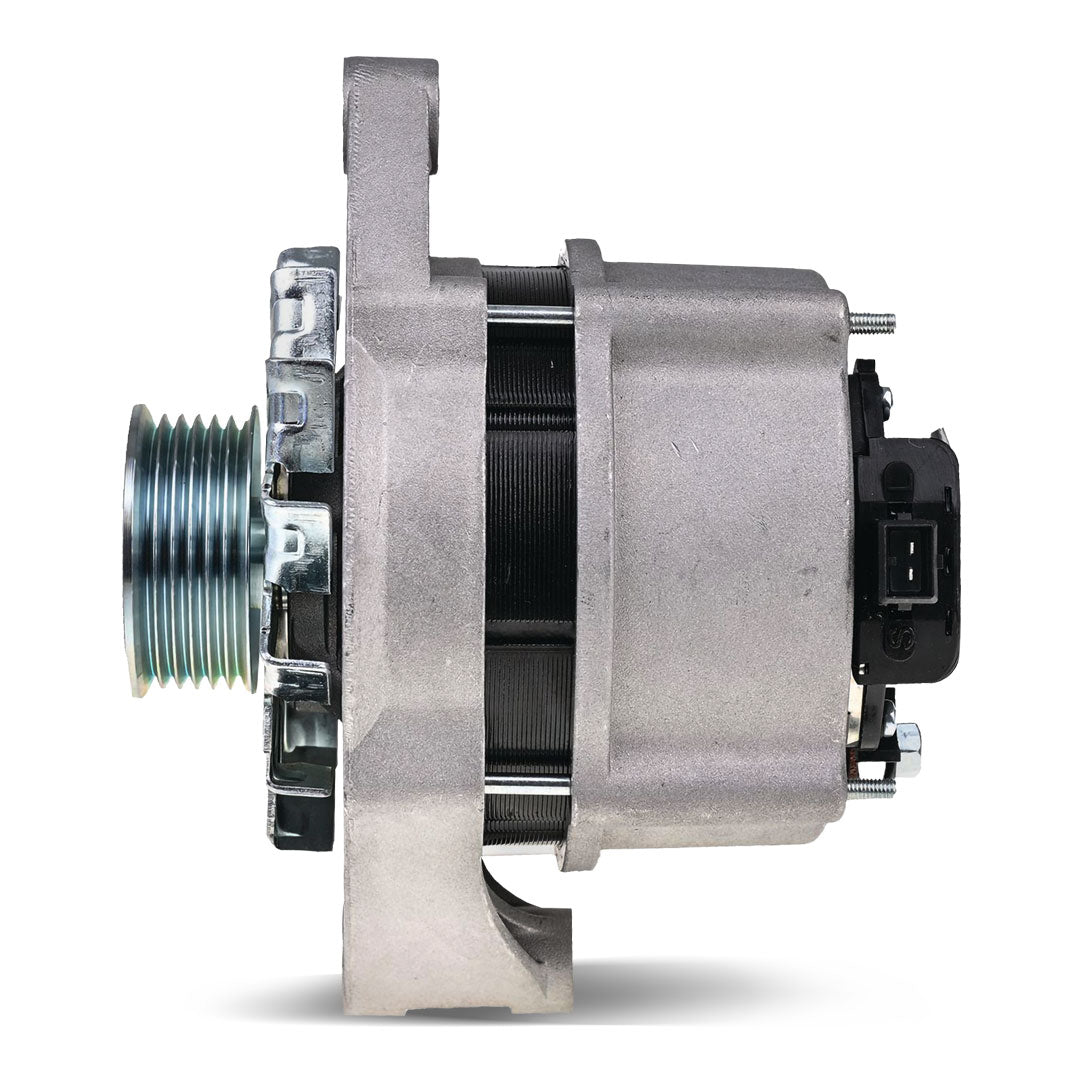

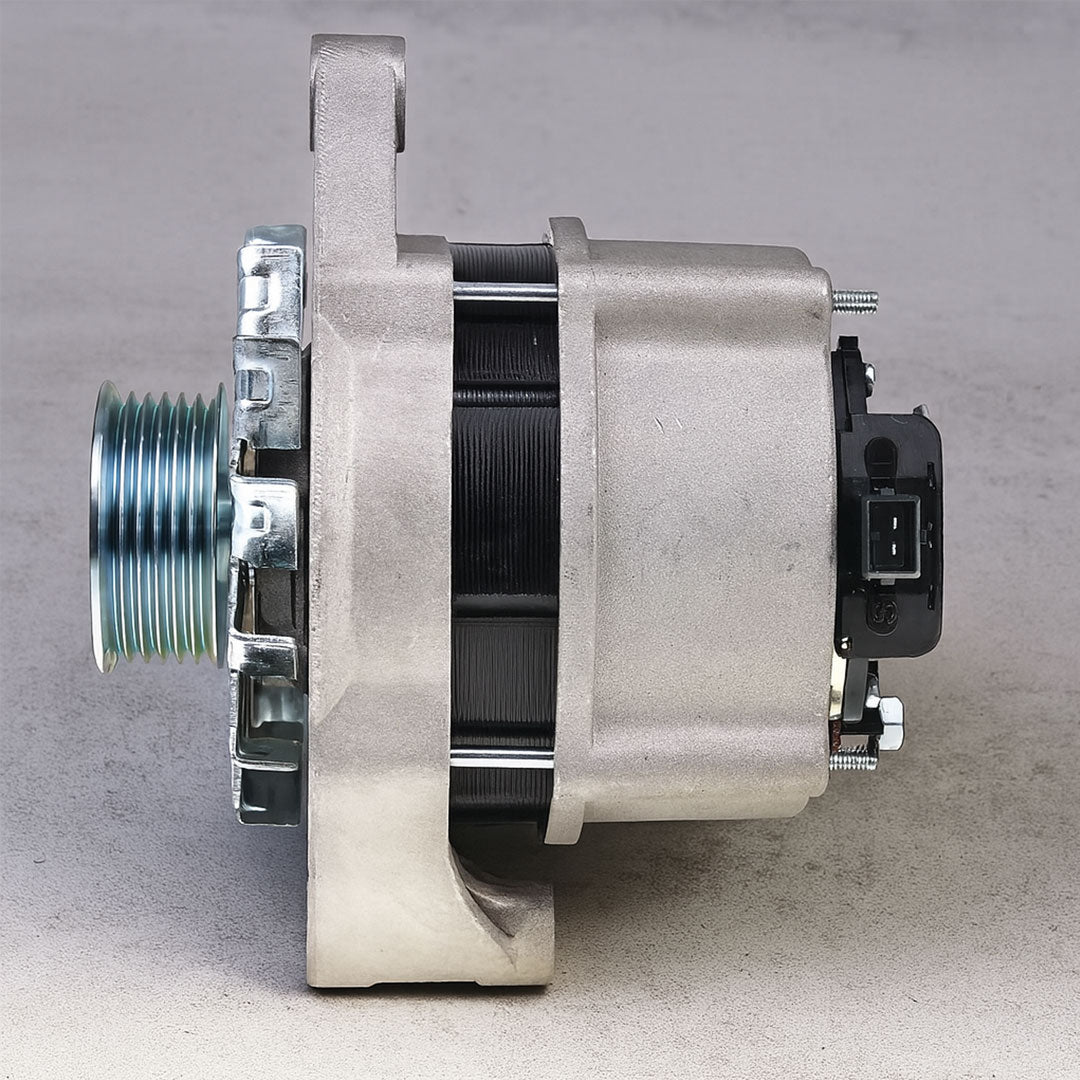

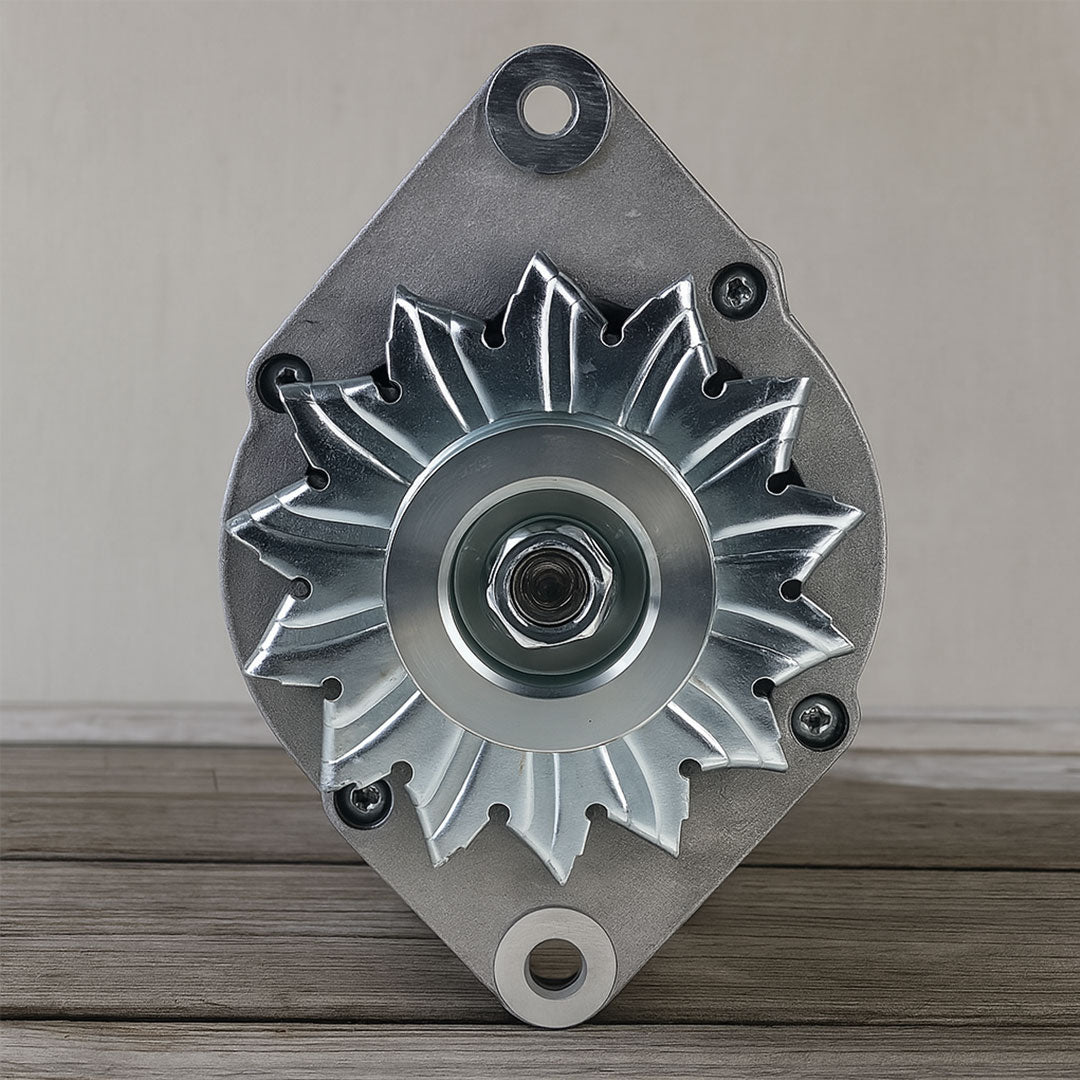

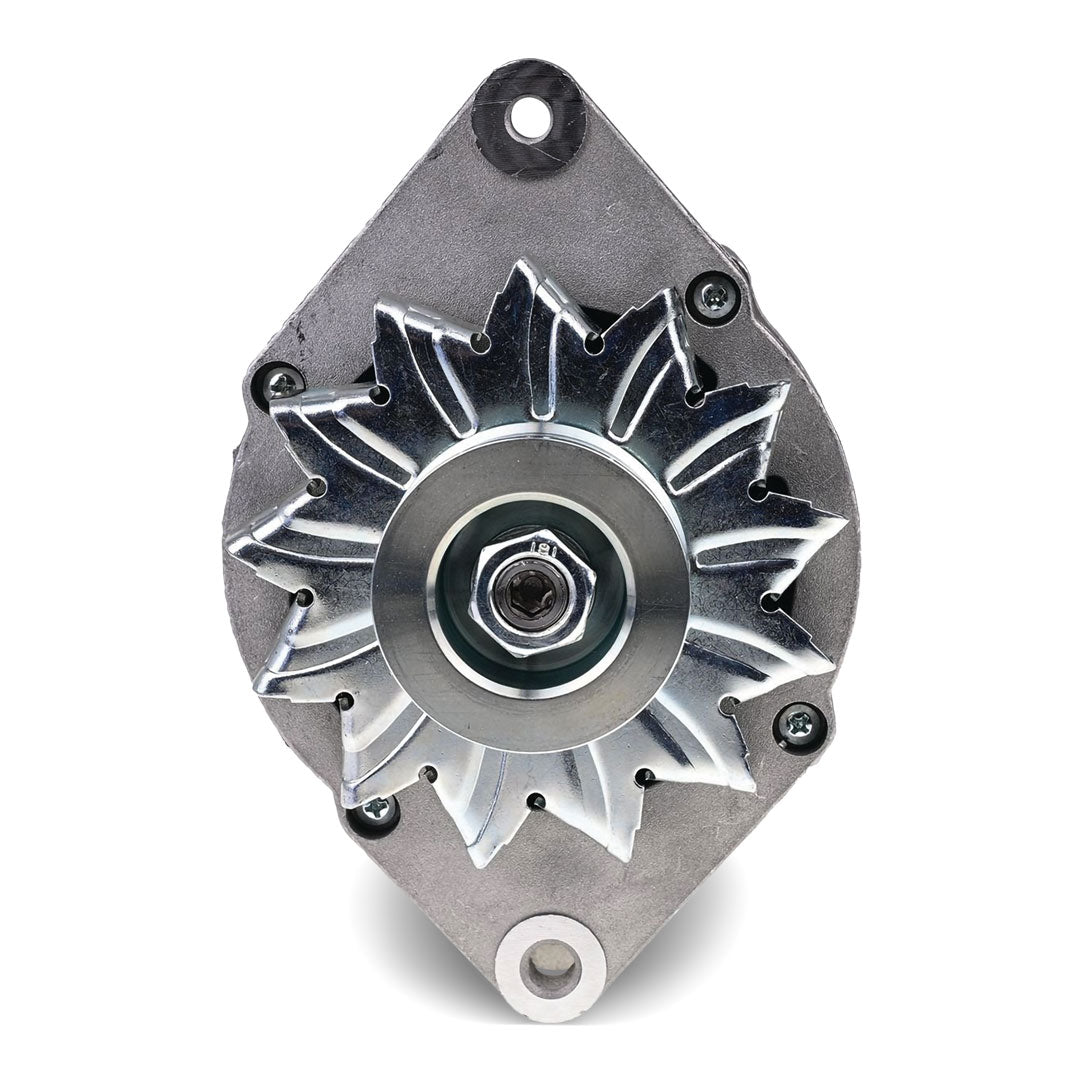

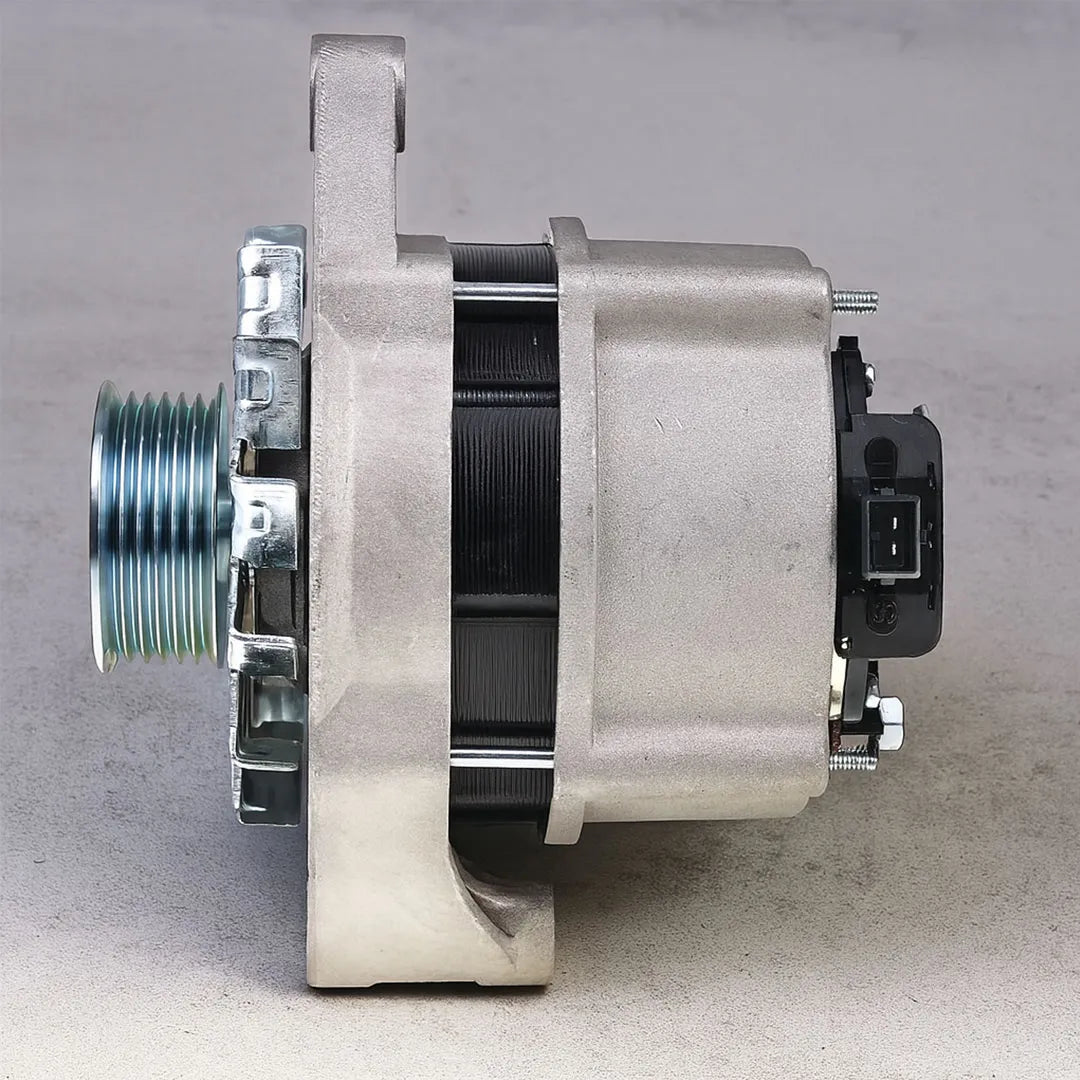

Sold each, the BXA003 hangs from a single leg spaced 183mm centre to centre and turns a six groove 60mm pulley.

Problems it solves

• Getting the wrong mounting pattern. Check for a single leg at 183mm centres with a 51mm leg, a 10mm pivot hole and an 8mm adjusting hole.
• Belt squeal from a mismatched pulley. Compare your belt with the 6 groove, 60mm pulley.
• Extra parts to buy. The regulator is built in, so no external one is needed.

BXA003 specifications

• Voltage: 12V
• Output: 85A
• Style: Bosch
• Condition: new
• Regulator: internal
• Pin code: IR110
• Pulley: 6 groove, 60mm OD
• Mount: single leg
• Centre to centre: 183mm
• Pivot hole: 10mm
• Adjusting hole: 8mm
• Leg thickness: 51mm
• Sold as: each

Fitment and compatibility

Vehicles originally fitted with a Bosch alternator of the same specifications; compare against your old unit or service manual.

What is in the box

If the parts packed with the BXA003 matter for your job, raise it with us when you order.

Install notes

Note the belt routing before taking the old alternator off.

Clean the earth path at the mounting leg so the case grounds properly.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

BXA003 FAQs

Does the BXA003 need a separate voltage regulator?

No, it has its own.

Which connector does the BXA003 use?

Pin code IR110.

Is there an OE number for the BXA003?

No cross reference is available yet; bring us your old unit or its numbers.
