OEX AXS969 Starter Motor 12V 22Th CCW Autolite Style
Click to open expanded view
OEX logo

OEX AXS969 Starter Motor 12V 22Th CCW Autolite Style

SKU: AXS969
Price
$433
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

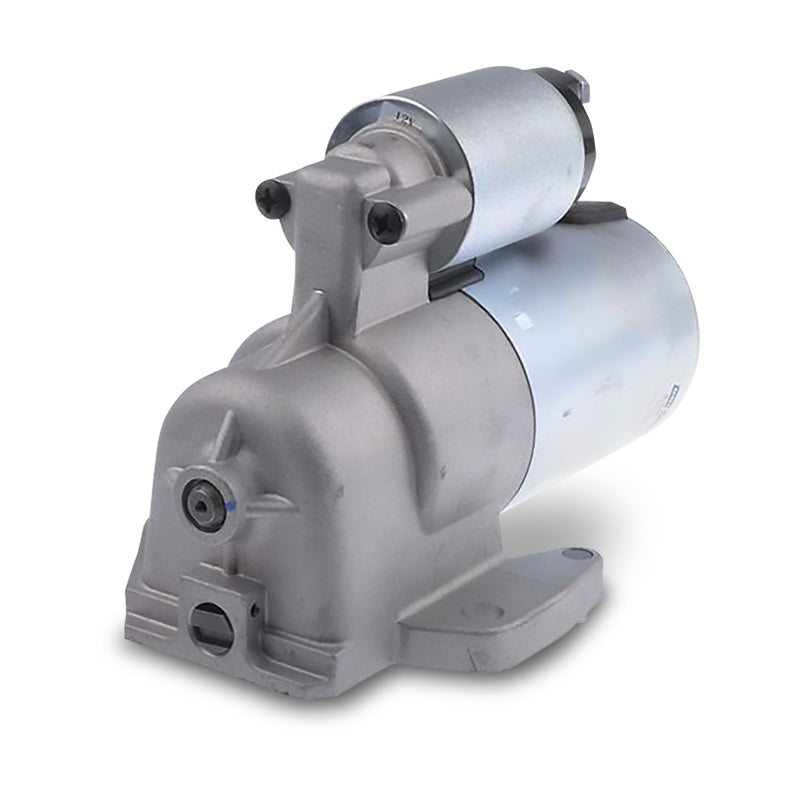

OEX AXS969 12V 1.4kW Autolite Style Starter Motor 22 Tooth CCW Pad Mount Dry Clutch

The OEX AXS969 is a new 12V 1.4kW starter motor built to Autolite style specifications. It has a 22-tooth pinion with counter-clockwise rotation, a pad mount with 105mm mount centres, 11mm mount hole diameter and a dry clutch. Overall length is 226mm, pinion at rest is 77mm and pinion diameter is 52mm. Weighing 4.16kg, it is covered by a 3-year warranty for passenger applications and a 1-year warranty for commercial applications.

Product overview

The AXS969 is a brand-new Autolite style starter motor suited to vehicles originally fitted with an Autolite unit sharing these specifications. The 22-tooth CCW pinion engages the ring gear in the correct rotation direction for compatible engines, and the 1.4kW power output provides sufficient cranking force for the engine applications this unit is designed for. The pad mount configuration with 105mm centre spacing aligns to OEM mounting dimensions on compatible vehicles.

Sourced from ISO-certified manufacturers and backed by OEX's nationwide warranty programme, the AXS969 is a new unit rather than a remanufactured part, delivering full service life from installation. Compare the specifications tooth count, rotation direction, mount type, mount centres and pinion dimensions against the existing unit or vehicle service manual before purchasing to confirm correct fitment.

Features and benefits

1.4kW output at 12V: Provides 1.4kW cranking output suited to the engine displacement and compression requirements of compatible Autolite-style applications.

22-tooth CCW pinion: Counter-clockwise rotation with a 22-tooth pinion matches the ring gear configuration of compatible engines. Confirm tooth count and rotation direction against the existing unit before purchasing.

Pad mount with 105mm centre spacing: Pad-style mounting with 105mm mount centres and 11mm mount hole diameter aligns to OEM mounting dimensions on compatible vehicles.

Dry clutch: Dry clutch configuration suited to standard automotive starter motor applications.

New unit from ISO-certified manufacturer: Supplied as a new starter motor from an ISO-certified factory, not a remanufactured unit, providing full service life from installation.

3-year passenger / 1-year commercial warranty: Backed by a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial vehicle applications, supported by OEX's nationwide warranty programme.

Technical specs

Specification Detail
SKU AXS969
Brand OEX
Voltage 12V
Power Rating 1.4kW
Style Autolite
Condition New
Number of Teeth 22
Rotation Counter-clockwise (CCW)
Mount Type Pad
Mount Centres 105mm
Mount Hole Diameter 11mm
Clutch Type Dry
Overall Length 226mm
Pinion at Rest 77mm
Pinion Diameter 52mm
Weight 4.16kg
Warranty 3 years (passenger), 1 year (commercial)
Sold As Each

Frequently asked questions

How do I confirm the AXS969 is the correct starter motor for my vehicle? Compare the key specifications against your existing starter motor or vehicle service manual: 22 teeth, counter-clockwise rotation, pad mount, 105mm mount centres, 11mm mount hole diameter, 226mm overall length, 77mm pinion at rest and 52mm pinion diameter. Contact us if you need assistance confirming fitment for your specific vehicle.

Is the AXS969 a new or remanufactured unit? The AXS969 is a brand-new starter motor. It is not a remanufactured unit, providing full service life from installation.

What warranty applies to the AXS969? The AXS969 is covered by a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial vehicle applications, backed by OEX's nationwide warranty programme.

What does CCW rotation mean? CCW stands for counter-clockwise. This refers to the direction the starter motor pinion rotates when viewed from the pinion end. It must match the ring gear configuration of the engine. Fitting a CCW starter to an engine requiring CW rotation will result in incorrect engagement and the starter will not function correctly.

What is the difference between a pad mount and a nose mount starter? A pad mount starter attaches to the engine block or bellhousing via a flat pad with bolt holes at the specified centre distance. A nose mount starter uses a cylindrical nose that fits into a locating bore. The AXS969 uses a pad mount with 105mm centre spacing. Confirm the mount type matches your vehicle's bellhousing configuration before purchasing.
