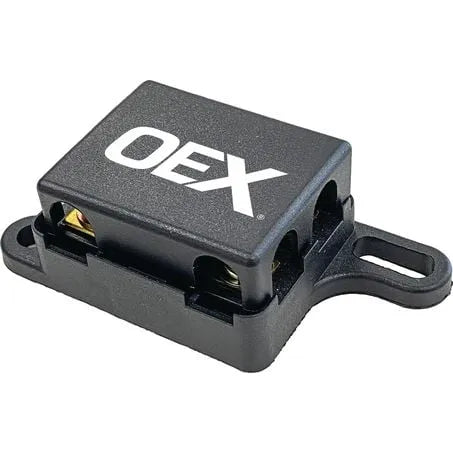

OEX ACX6535 Twin In-Line ANG / ANS Midi Fuse Holder with Cover
Click to open expanded view
OEX logo

OEX ACX6535 Twin In-Line ANG / ANS Midi Fuse Holder with Cover

SKU: ACX6535
Price
$25
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX6535 Twin In-Line ANG/ANS Midi Fuse Holder with Cover 30–80A

The OEX ACX6535 is a twin in-line midi fuse holder for ANG and ANS type midi fuses, rated for a current load of 30 to 80A. The housing is black nylon plastic with 100% copper connecting plates, 5mm bolts and coloured zinc plated screws and washers. Dimensions are 81mm x 41mm x 23mm. Supplied individually in a blister pack with a one-year warranty.

Product overview

The ACX6535 provides a twin in-line fusing solution for automotive, caravan and 4WD electrical installations where two circuits require midi fuse protection in a single compact holder. The 100% copper connecting plates ensure low-resistance current transfer across the full 30 to 80A operating range, and the protective cover keeps the fuse terminals shielded from moisture, dust and accidental contact. The black nylon plastic housing is lightweight at 0.01kg and compact at 81 x 41 x 23mm, suited to tight installation spaces.

Coloured zinc plated screws and washers assist with assembly identification during installation, and the 5mm bolt terminals provide a secure, reliable mechanical connection. The ACX6535 accepts both ANG and ANS type midi fuses, covering a broad selection of common midi fuse amperages across the 30 to 80A range.

Features and benefits

Twin in-line midi fuse holder: Dual-circuit configuration allows two midi-fused circuits to be managed from a single compact holder, reducing wiring clutter in the installation.

ANG and ANS midi fuse compatibility: Accepts both ANG and ANS type midi fuses across the 30 to 80A range, covering a broad range of common midi fuse amperages.

100% copper connecting plates: Full copper connecting plates provide low-resistance current transfer for consistent performance across the rated current load.

5mm bolt terminals: Secure mechanical bolt connections resist loosening from vibration, maintaining reliable circuit continuity.

Coloured zinc plated screws and washers: Colour-coded hardware assists with installation identification and the zinc plating provides corrosion resistance.

Protective cover included: The cover shields fuse terminals from moisture, dust and accidental contact, extending service life in demanding environments.

Black nylon plastic housing: Lightweight and compact housing at 81 x 41 x 23mm, suited to tight installation spaces.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX6535
Brand OEX
Type Twin In-Line Midi Fuse Holder
Fuse Type ANG/ANS Midi
Current Load 30–80A
Housing Material Black nylon plastic
Connecting Plates 100% copper
Terminal Bolts 5mm
Hardware Coloured zinc plated screws and washers
Dimensions 81mm x 41mm x 23mm
Weight 0.01kg
Pack Quantity 1
Warranty One year
Sold As Each

Frequently asked questions

What fuse types does the ACX6535 accept? The ACX6535 accepts ANG and ANS type midi fuses within the 30 to 80A current load range. Confirm the amperage rating of your chosen midi fuses suits your circuit requirements before installing.

How many circuits does the ACX6535 protect? The ACX6535 is a twin holder protecting two separate circuits, one fuse per circuit. For single-circuit applications, a single in-line midi fuse holder may be more appropriate.

Is the ACX6535 supplied with fuses? No. The ACX6535 is a fuse holder only. Compatible ANG or ANS midi fuses must be purchased separately. Contact us for compatible fuse options.

What are the dimensions of the ACX6535? The ACX6535 measures 81mm x 41mm x 23mm, making it compact enough for installation in confined spaces such as under-seat or engine bay locations.

Is the ACX6535 suitable for outdoor or marine use? The protective cover and zinc plated hardware provide basic protection against moisture and dust. However, the source data does not confirm an IP rating for the ACX6535. Contact us for further information if the installation environment involves heavy moisture or salt air exposure.
