OEX ACX6531 Panel Mount Fuse Holder Mega 1 Way 500A Side Connection Entry

SKU: ACX6531
Sale price
$28.25
Regular price
$42
You save
33%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Heavy-duty fuse protection that won't fail when you need it most

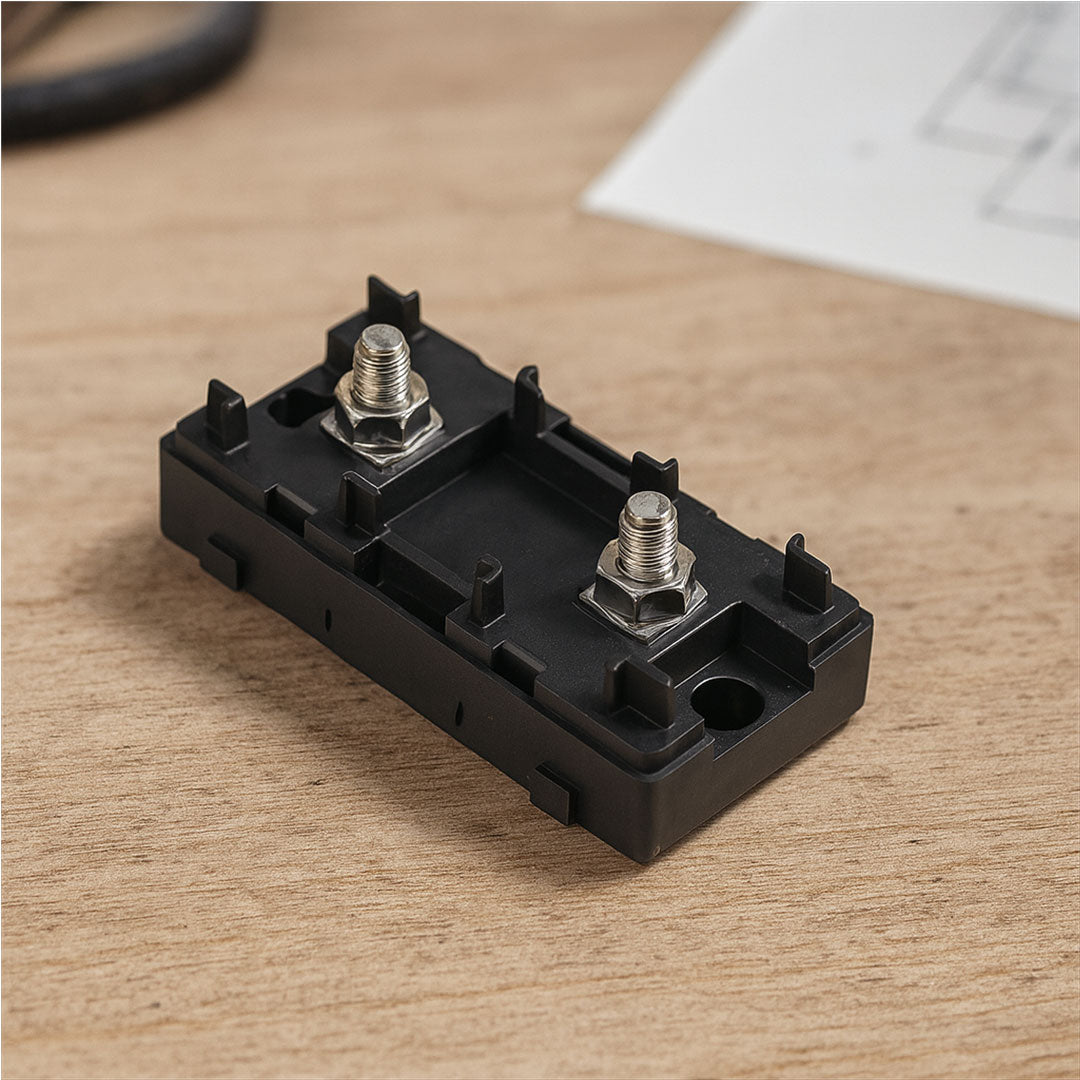

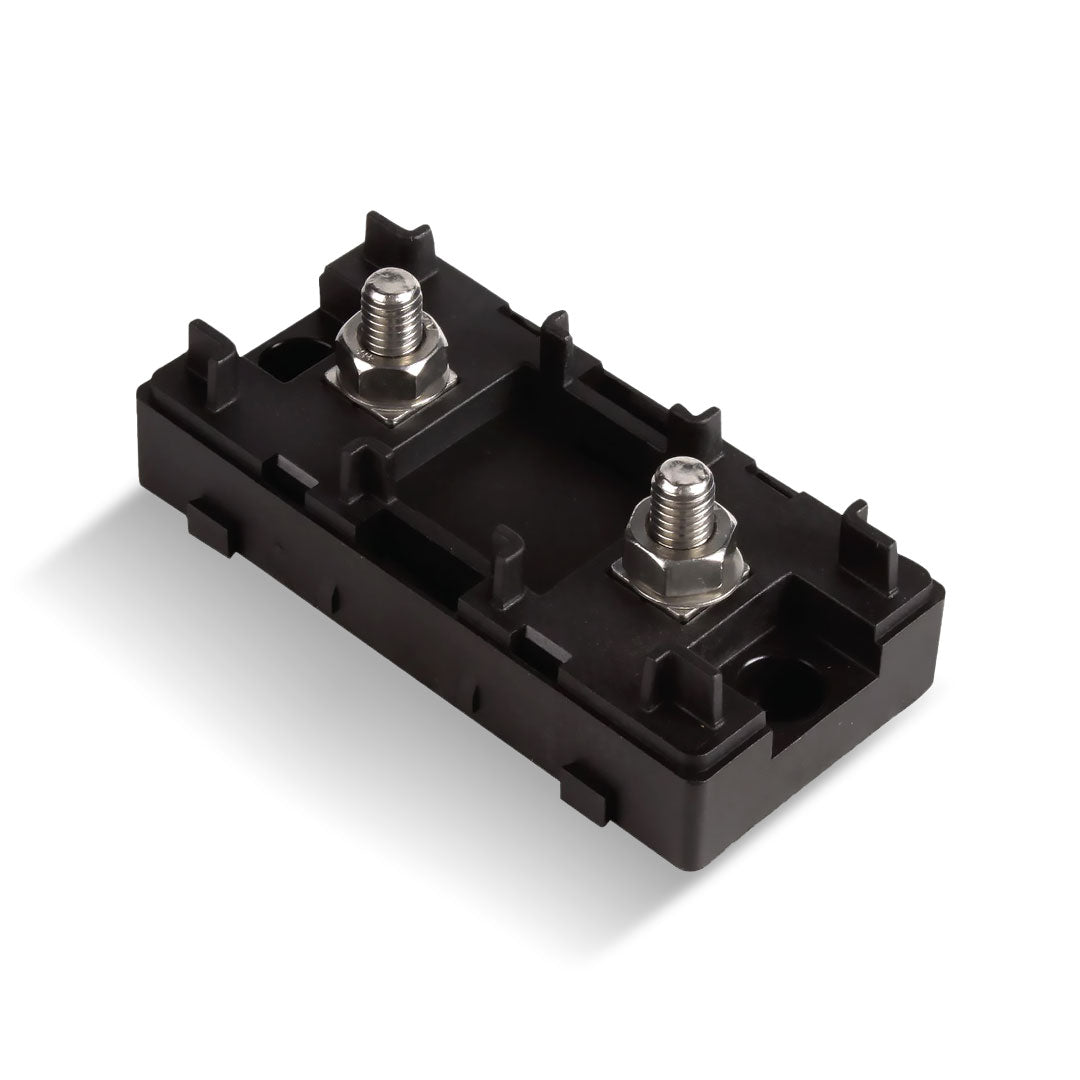

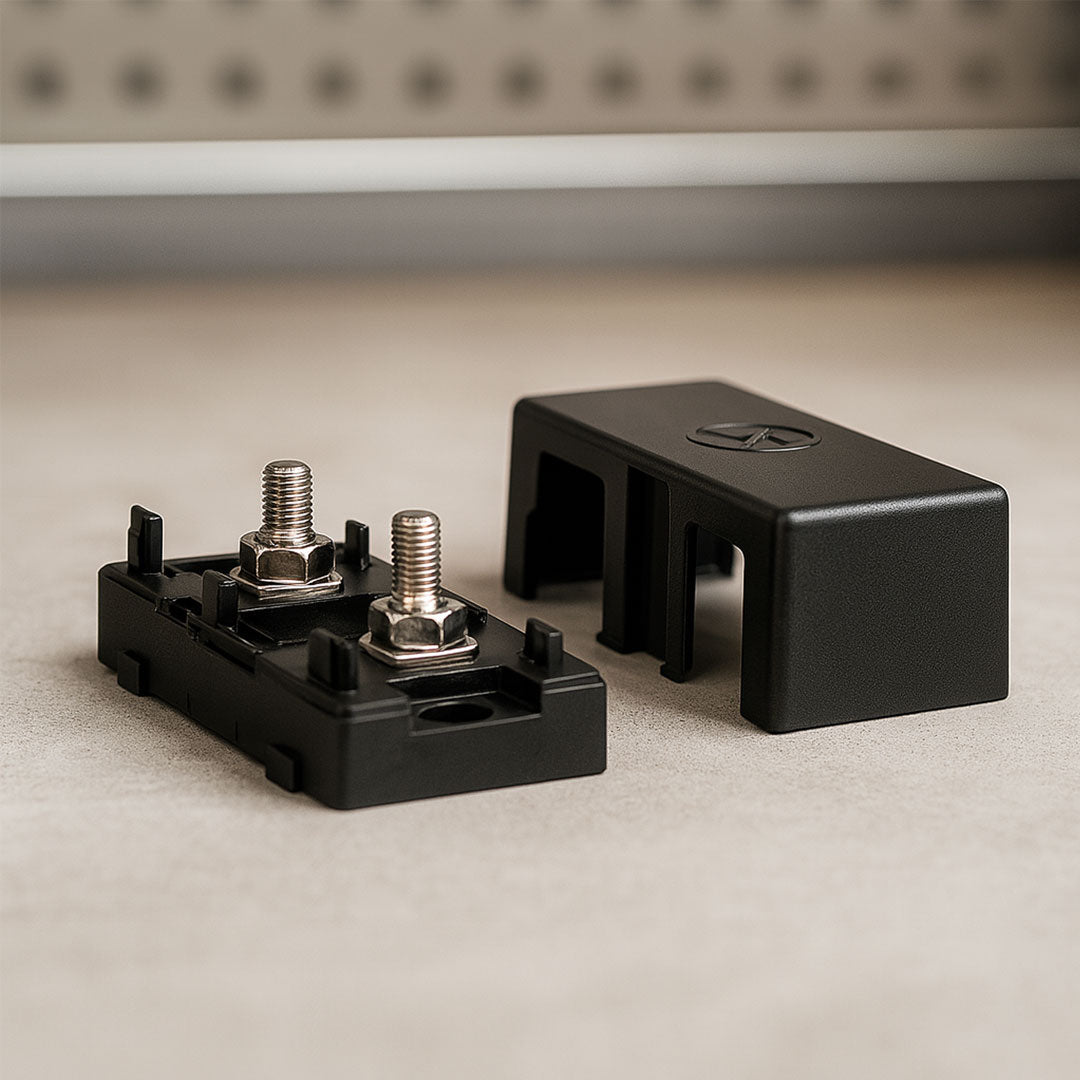

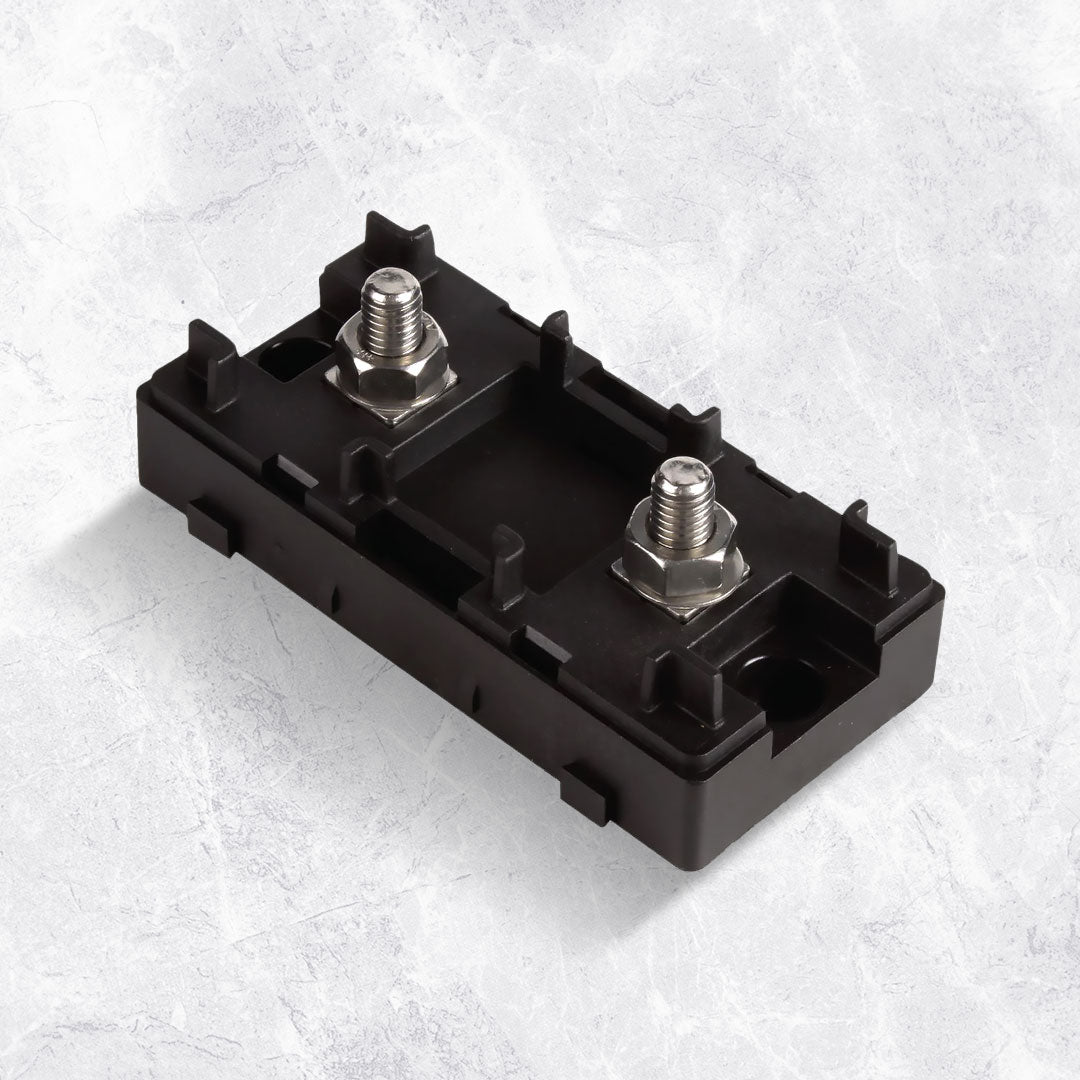

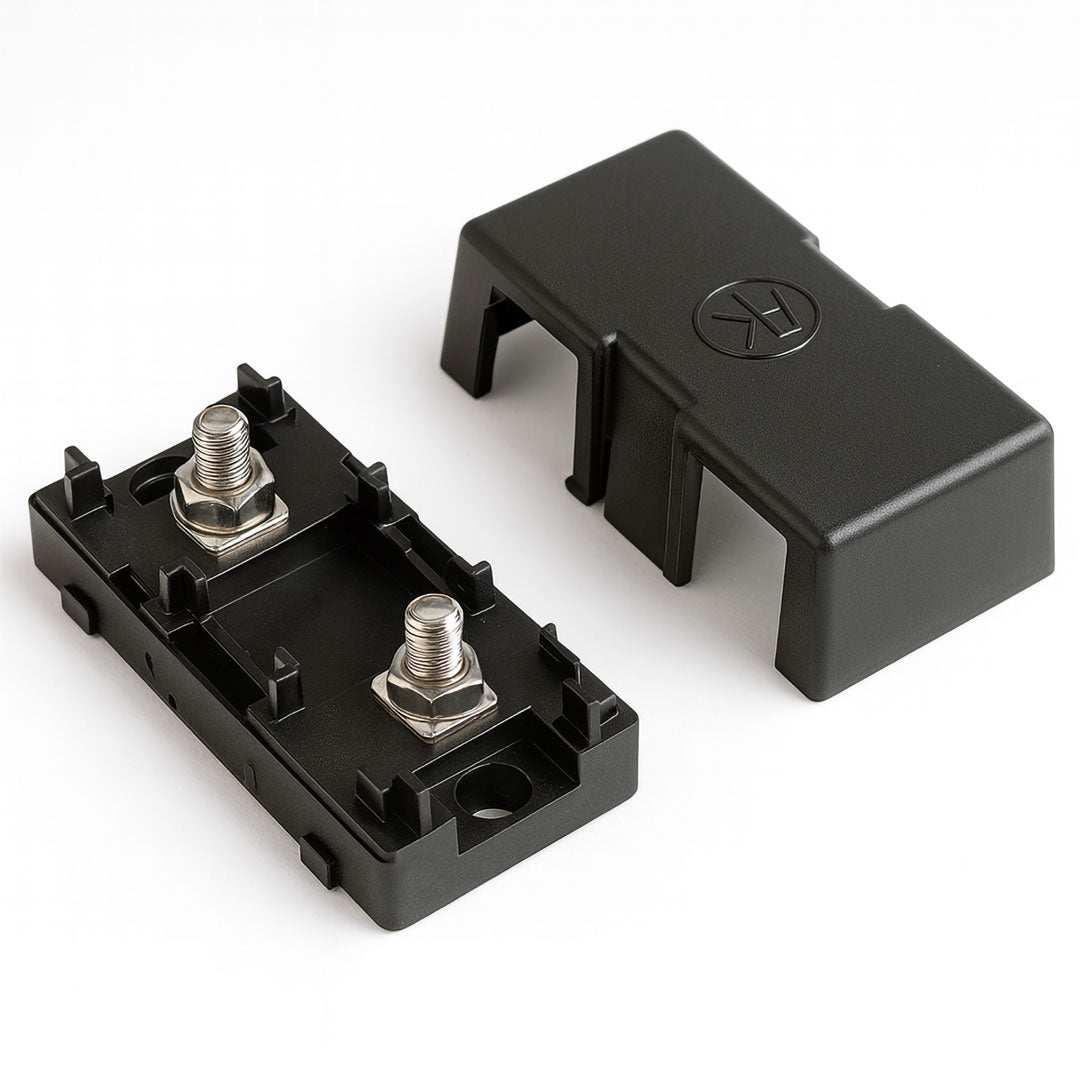

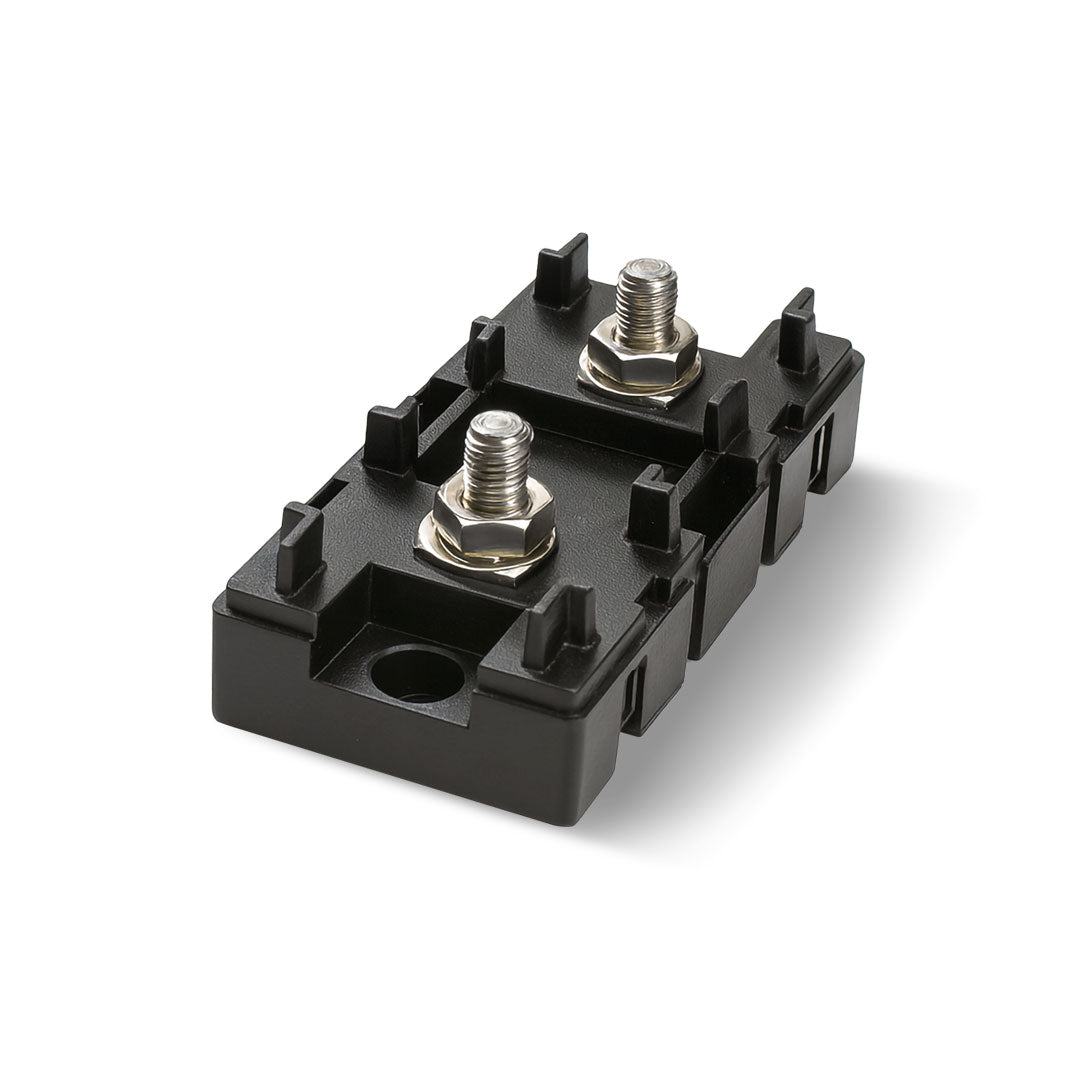

The OEX ACX6531 Panel Mount Mega Fuse Holder delivers industrial-grade circuit protection for high-current applications up to 500A. This robust single-way fuse holder features side connection entry for easy cable access and professional installation in tight spaces. Built with PA6-GF30 glass-filled nylon housing and stainless-steel connection studs, it handles extreme temperatures from -40°C to 100°C continuous operation, with short-term capability up to 180°C. The panel mount design provides secure installation in control panels, distribution boards, and heavy-duty automotive applications where reliable circuit protection is critical.

Perfect for auto electricians, marine installers, industrial technicians, and heavy equipment specialists who demand bulletproof fuse protection that performs under extreme conditions.

Features & Benefits

  • 500A rating - handles extreme current loads for the most demanding applications
  • Side connection entry - easier cable routing and installation in confined spaces
  • Stainless steel studs - corrosion resistant connections that won't fail over time
  • PA6-GF30 housing - glass-filled nylon provides superior strength and heat resistance
  • Panel mount design - secure installation in control panels and distribution boards
  • Mega fuse compatibility - accepts industry standard mega fuses for reliable protection
  • Extreme temperature rating - operates continuously at 100°C, handles 180°C peaks
  • Single fuse slot - clean, compact design for space-conscious installations
  • Australian quality assurance - ISO 9001 certified manufacturing with Brisbane testing
  • Professional appearance - engineered for commercial and industrial applications

Technical Specs

  • Part Number: ACX6531
  • Fuse Type: Mega
  • Current Rating: 500A
  • Number of Fuses: 1
  • Connection Type: Side Entry
  • Stud Material: Stainless Steel
  • Housing Material: PA6-GF30 (Glass-filled Nylon)
  • Continuous Temperature Rating: 100°C (30 minutes)
  • Short-term Temperature Rating: 180°C (2 minutes)
  • Melting Point: 200°C
  • Weight: 0.14kg
  • Warranty: 12 months

Compatible With

  • Mega fuses (32V, 58V, 80V ratings)
  • Heavy-duty automotive applications
  • Marine electrical systems
  • Industrial control panels
  • Mining equipment electrical systems
  • Solar power installations
  • Electric vehicle charging systems
  • Heavy truck electrical systems
