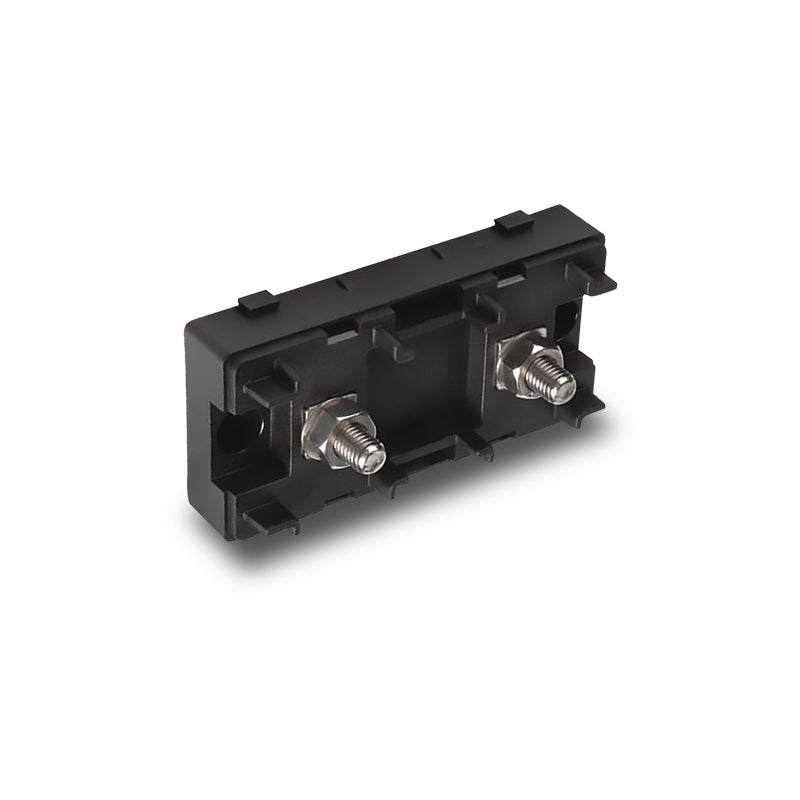

OEX ACX6530 panel mount mega fuse holder with stainless steel studs
OEX ACX6530 panel mount mega fuse holder with stainless steel studs
Click to open expanded view
OEX logo

Out of stock

OEX ACX6530 Panel Mount Mega Fuse Holder, 1 Way 500A, End Entry

SKU: ACX6530
5.0 (1)
Regular price
$42
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail

Product features

The OEX ACX6530 is a single way, panel mount mega fuse holder rated to 500A, with end connection entry and stainless steel studs.

The main feed from a big lithium bank or a second alternator needs a fuse close to the source, and an inline holder flopping about on the cable is not the way to do it. This holder bolts to a panel so the heavy cables have a fixed, tidy point to land on.

Features

  • Mega (SFI) fuse type
  • 500A maximum current rating
  • Stainless steel studs
  • Maximum temperature rating 120°C
  • Melting point 200°C
  • End connection entry
  • 1 way, sold individually

Choosing the setup

Match the fuse to the cable size, not the load. Where cables need to come in from the side, OEX makes the side entry ACX6531. Mega fuses are sold separately.

Specifications

Fuse type Mega (SFI)
Ways 1
Maximum current 500A
Studs Stainless steel
Maximum temperature 120°C
Melting point 200°C
Connection End entry
Weight 0.12kg

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Does it come with a fuse?

No. Mega fuses are sold separately.

What voltage is it rated for?

OEX does not publish a voltage rating. Ask us before using it on a 48V system.

How does the ACX6530 mount?

It bolts to a panel, and the cables land on its stainless studs from the end. If your cables have to come in from the side, OEX makes the ACX6531 instead.

Which fuses does it take?

Mega (SFI) type fuses, up to the holder maximum of 500A. Pick the fuse to suit the cable size.
