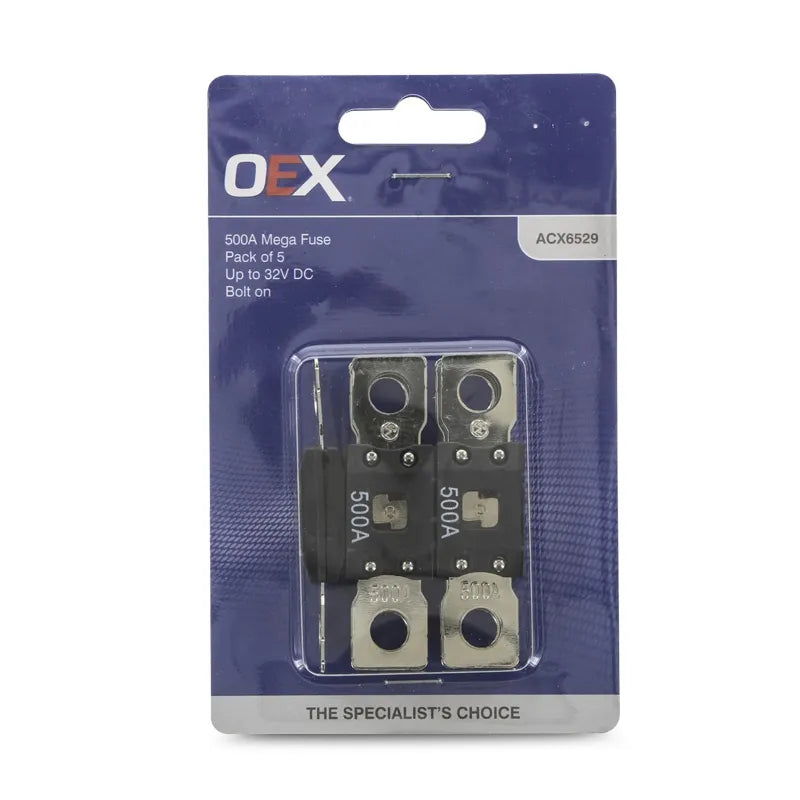

OEX ACX6529 Mega Fuse 500A Bolt On Pack of 5
Click to open expanded view
OEX logo

OEX ACX6529 Mega Fuse 500A Bolt On Pack of 5

SKU: ACX6529
Price
$73
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX6529 500A Bolt On Mega Fuse SF51 Type Copper Tin Plated Pack of 5

The OEX ACX6529 is a 500A bolt-on mega fuse of SF51 type, rated to 32V DC with copper tin plated contacts. Measuring 68.5mm in length with a 50.8mm centre-to-centre mounting distance, it is supplied in a pack of 5. Covered by a one-year warranty. Also available individually as the ACX6529BL.

Product overview

The ACX6529 is the highest-rated fuse in the OEX SF51 mega range at 500A, designed for extreme high-current main circuit protection in 12V and 24V electrical systems. At this amperage, applications include main feeds on large lithium battery banks, high-output multi-alternator charging systems, heavy commercial vehicle power distribution busbars and large-scale professional audio installations where total system current draw reaches the limits of conventional main fusing. The bolt-on SF51 format ensures the secure, vibration-resistant connection necessary for reliable operation under sustained extreme current loads.

Copper tin plated contacts maintain reliable conductivity and oxidation resistance across the service life of the fuse. The pack of 5 suits professional workshops and trade installers working with high-current systems regularly. The 50.8mm centre-to-centre bolt spacing is compatible with a wide range of SF51 mega fuse holders, and the single-unit version is available as ACX6529BL.

Features and benefits

500A rated mega fuse: The highest-rated fuse in the OEX SF51 mega range at 500A, suited to main feeds on large lithium battery banks, multi-alternator charging systems, heavy commercial power distribution and large professional audio installations.

Bolt-on SF51 type: Bolt-on connection provides a secure, vibration-resistant installation essential for reliable operation under sustained extreme current loads.

Copper tin plated contacts: Tin-plated copper contacts provide reliable conductivity and resist oxidation over time, maintaining consistent fuse performance.

32V DC rating: Compatible with both 12V and 24V DC vehicle electrical systems within the 32V rating.

68.5mm length: Standard SF51 mega fuse length compatible with a wide range of mega fuse holders.

50.8mm centre-to-centre mounting: Standard SF51 bolt spacing compatible with a wide range of mega fuse holders.

Pack of 5: Five fuses per pack provides spares for professional workshop or trade use alongside the installed fuse.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX6529
Brand OEX
Fuse Type Mega (SF51)
Amperage 500A
Voltage Rating 32V DC
Contact Material Copper tin plated
Length 68.5mm
Mount Centre to Centre 50.8mm
Pack Quantity 5
Warranty One year
Sold As Pack of 5

Frequently asked questions

How does the ACX6529 compare to other OEX mega fuses in this range? The OEX SF51 mega fuse range includes the ACX6519 (60A), ACX6520 (80A), ACX6522 (125A), ACX6523 (150A), ACX6527 (250A), ACX6528 (300A) and ACX6529 (500A). All share the same SF51 format and 50.8mm mount spacing. The ACX6529 is the highest-rated option in the range, suited to the most extreme high-current main circuit applications.

Is the ACX6529 available individually? Yes. The ACX6529BL is the single-unit version of this fuse. Contact us to order the single pack if you only need one fuse.

What fuse holder is compatible with the ACX6529? The ACX6529 uses a standard SF51 mega fuse format with 50.8mm centre-to-centre bolt spacing, compatible with mega fuse holders designed for this spacing. Contact us if you need help selecting a compatible OEX fuse holder.

Can the ACX6529 be used in a 24V system? Yes. The ACX6529 is rated to 32V DC, covering both 12V and 24V vehicle electrical systems.

Is the 500A rating suitable for my application? 500A is suited to the most extreme high-current main circuit protection applications including large lithium battery bank feeds, multi-alternator systems and large commercial power distribution. If you are unsure whether 500A is the correct rating for your circuit, contact us for advice before purchasing.
