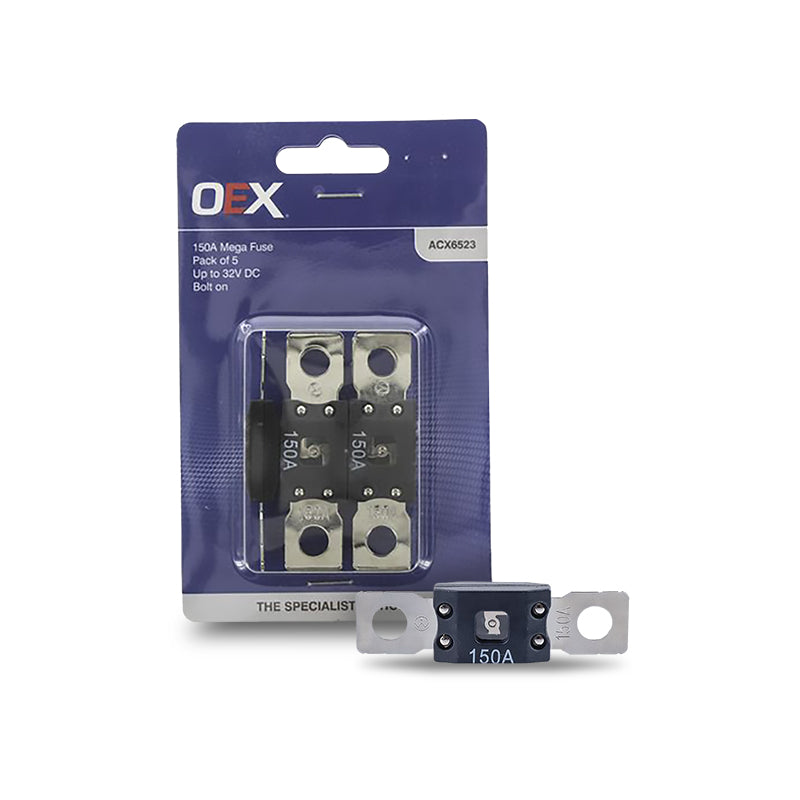

OEX ACX6523 Mega Fuse, 150A Bolt On - Pack of 5
Click to open expanded view
OEX logo

Out of stock

OEX ACX6523 Mega Fuse, 150A Bolt On - Pack of 5

SKU: ACX6523
Regular price
$73
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX6523 150A Bolt On Mega Fuse SF51 Type Copper Tin Plated Pack of 5

The OEX ACX6523 is a 150A bolt-on mega fuse of SF51 type, rated to 32V DC with copper tin plated contacts. Measuring 68.5mm in length with a 50.8mm centre-to-centre mounting distance, it is supplied in a pack of 5. Covered by a one-year warranty. Also available individually as the ACX6523BL.

Product overview

The ACX6523 is the 150A variant in the OEX SF51 mega fuse range, providing higher-current main circuit protection for demanding 12V and 24V automotive, caravan and marine electrical installations. The bolt-on SF51 format delivers a secure, vibration-resistant connection suited to high-draw applications including large amplifier main feeds, dual battery system protection, winch circuits and heavy commercial accessory installations. Copper tin plated contacts provide reliable conductivity and oxidation resistance across the service life of the fuse.

The pack of 5 suits workshop, trade and owner-installer use where having spare fuses readily available alongside the installed unit is practical. The 50.8mm centre-to-centre bolt spacing is compatible with a wide range of SF51 mega fuse holders. The single-unit version is available as ACX6523BL.

Features and benefits

150A rated mega fuse: 150A rating suits high-current main circuit protection in 12V and 24V systems including large amplifier feeds, winch installations, dual battery systems and heavy commercial accessory circuits.

Bolt-on SF51 type: Bolt-on connection provides a secure, vibration-resistant installation suited to high-current applications where connection integrity is critical.

Copper tin plated contacts: Tin-plated copper contacts provide reliable conductivity and resist oxidation over time, maintaining consistent fuse performance.

32V DC rating: Compatible with both 12V and 24V DC vehicle electrical systems within the 32V rating.

68.5mm length: Standard SF51 mega fuse length compatible with a wide range of mega fuse holders.

50.8mm centre-to-centre mounting: Standard SF51 bolt spacing compatible with a wide range of mega fuse holders.

Pack of 5: Five fuses per pack provides spares for workshop or trade use alongside the installed fuse.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX6523
Brand OEX
Fuse Type Mega (SF51)
Amperage 150A
Voltage Rating 32V DC
Contact Material Copper tin plated
Length 68.5mm
Mount Centre to Centre 50.8mm
Pack Quantity 5
Warranty One year
Sold As Pack of 5

Frequently asked questions

How does the ACX6523 compare to other OEX mega fuses in this range? The OEX SF51 mega fuse range includes the ACX6519 (60A), ACX6520 (80A), ACX6522 (125A) and ACX6523 (150A). All share the same SF51 format and 50.8mm mount spacing. Select the correct amperage for your circuit protection requirements.

Is the ACX6523 available individually? Yes. The ACX6523BL is the single-unit version of this fuse. Contact us to order the single pack if you only need one fuse.

What fuse holder is compatible with the ACX6523? The ACX6523 uses a standard SF51 mega fuse format with 50.8mm centre-to-centre bolt spacing, compatible with mega fuse holders designed for this spacing. Contact us if you need help selecting a compatible OEX fuse holder.

Can the ACX6523 be used in a 24V system? Yes. The ACX6523 is rated to 32V DC, covering both 12V and 24V vehicle electrical systems.

Is the 150A rating suitable for my application? 150A suits high-current main circuit protection including large amplifier feeds, winch installations and dual battery systems. If you are unsure whether 150A is the correct rating for your circuit, contact us for advice. OEX mega fuses are available in other amperage ratings if a different value is required.
