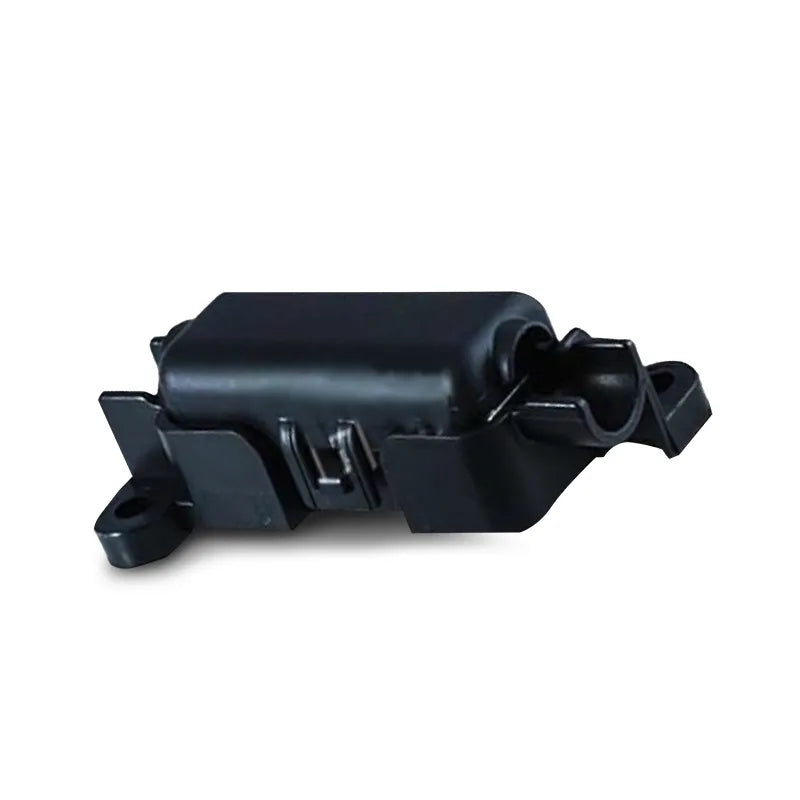

OEX ACX6514 Single 1 Way 150A In-Line Fuse Holder
Click to open expanded view
OEX logo

OEX ACX6514 Single 1 Way 150A In-Line Fuse Holder

SKU: ACX6514
Price
$21
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX6514 In Line Midi Fuse Holder 1 Way 250A with Stainless Steel Studs

The OEX ACX6514 is a single-circuit inline midi fuse holder rated to 250A maximum with a 1 to 32V voltage rating. Constructed with stainless steel studs and a 30mm mount centre-to-centre spacing, it covers a temperature range of -40°C to +120°C. Compatible with the ACX6513 mounting bracket, sold separately. Sold individually.

Product overview

The ACX6514 is designed for high-current inline fusing applications in 12V and 24V automotive, marine and caravan electrical systems. The SF30 type midi fuse holder accepts standard midi fuses up to 250A, making it suited to main battery cables, high-current amplifier feeds, winch circuits and other demanding power distribution applications. Stainless steel studs resist corrosion in demanding installation environments, and the wide temperature rating of -40°C to +120°C covers everything from cold climate starts to underbonnet heat exposure.

The 30mm mount centre-to-centre spacing is compatible with the OEX ACX6513 mounting bracket (sold separately), which provides a secure panel or chassis mounting option for the fuse holder. Without the bracket, the holder can be installed inline on the cable run directly.

Features and benefits

250A maximum current rating: Rated to 250A maximum, suitable for high-current main feeds including battery-to-amplifier runs, winch circuits and heavy accessory installations.

1 to 32V voltage rating: Covers 12V and 24V vehicle electrical systems within the 1 to 32V operating range.

Stainless steel studs: Corrosion-resistant stainless steel studs maintain connection integrity in humid, marine and underbonnet environments.

Wide temperature range: Rated from -40°C to +120°C, suitable for underbonnet installation and cold climate use.

30mm mount centre-to-centre: Standard 30mm stud spacing is compatible with the OEX ACX6513 mounting bracket (sold separately) for secure chassis or panel mounting.

SF30 type midi fuse holder: Accepts standard SF30 midi fuses, which are widely available in common amperages.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX6514
Brand OEX
Type SF30 In Line Midi Fuse Holder
Configuration 1 Way
Maximum Current 250A
Voltage Rating 1–32V
Stud Material Stainless steel
Mount Centre to Centre 30mm
Temperature Range -40°C to +120°C
Circuits 1
Weight 0.1kg
Pack Quantity 1
Warranty One year
Sold As Each

Frequently asked questions

What fuse type does the ACX6514 accept? The ACX6514 is an SF30 type midi fuse holder. It accepts standard midi fuses. Confirm the amperage rating of your chosen midi fuse suits your circuit before installing.

Can the ACX6514 be used in a 24V system? Yes. The ACX6514 is rated from 1 to 32V, covering both 12V and 24V vehicle electrical systems.

What is the ACX6513 mounting bracket and is it included? The ACX6513 is an OEX mounting bracket designed to securely mount the ACX6514 fuse holder to a panel or chassis surface. It is sold separately and is not included with the ACX6514. Contact us to add the ACX6513 to your order.

Is the ACX6514 suitable for underbonnet installation? Yes. The temperature rating of -40°C to +120°C and stainless steel stud construction make the ACX6514 suited to underbonnet environments. Ensure the fuse holder is positioned away from direct heat sources and moving components.

How many circuits does the ACX6514 protect? The ACX6514 is a single-circuit fuse holder protecting one circuit per unit. For multi-circuit applications, multiple units or a different fuse holder configuration will be required.
