OEX ACX6512 Midi Fuse 150A Bolt On - Pack of 10
Click to open expanded view
OEX logo

OEX ACX6512 Midi Fuse 150A Bolt On - Pack of 10

SKU: ACX6512
Price
$52
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

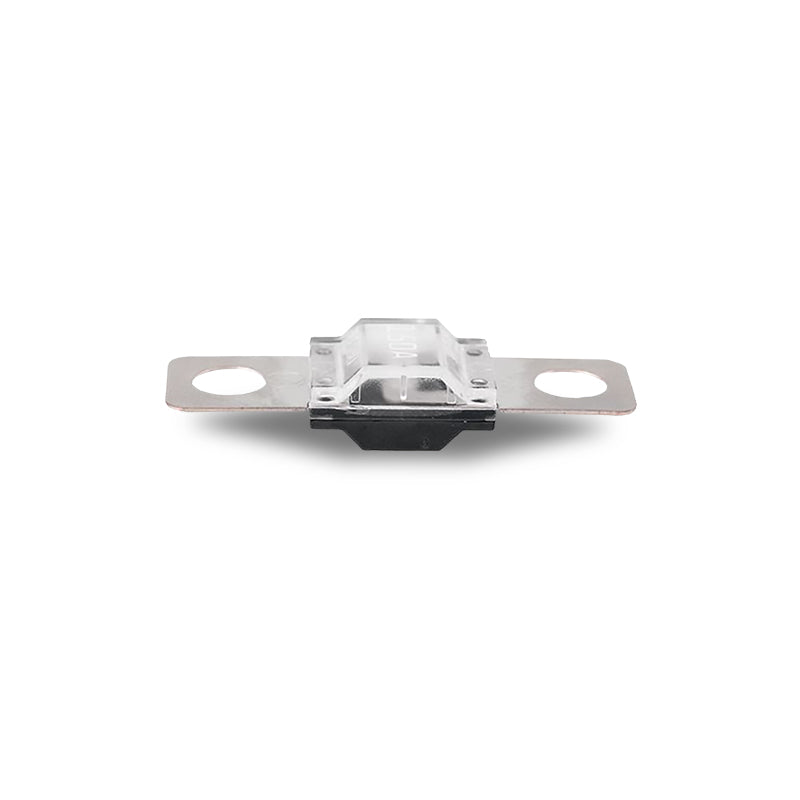

OEX ACX6512 150A Midi Fuse Bolt On Pack of 10

The OEX ACX6512 is a 150A Midi fuse with a bolt on mounting design and 32V DC rating. It features copper tin plated construction, a fuse element window and 30mm centre to centre mounting, supplied as a pack of 10.

Product overview

Designed for automotive electrical applications, the ACX6512 provides a 150A fuse solution with a bolt on mounting configuration. The copper tin plated construction provides the specified material finish, while the fuse element window allows the fuse element to be viewed.

Each fuse measures 41mm in length and uses a 30mm centre to centre mounting measurement. The pack contains 10 fuses and the ACX6512 is also available as a single pack under part number ACX6512BL.

Features and benefits

150A fuse rating: Provides circuit protection: Rated at 150A for compatible automotive electrical applications.

Midi fuse type: Designed for Midi fuse applications: Uses the Midi fuse format with a bolt on mounting design.

32V DC rating: Suitable for specified DC systems: Rated for 32V DC applications.

Copper tin plated construction: Specified conductive material: Features copper with a tin plated finish.

Fuse element window: Provides visual inspection: Includes a window that allows the fuse element to be viewed.

30mm mounting measurement: Defined installation spacing: The mounting points measure 30mm centre to centre.

Pack of 10: Supplied for multiple applications: Each pack contains 10 individual 150A Midi fuses.

Technical specs

Specification Detail
Part Number ACX6512
Brand OEX
Type Fuse
Fuse Type Midi
Amps 150A
Voltage Rating 32V DC
Length 41mm
Mounting Centre to centre 30mm
Construction Copper tin plated
Fuse Type Code SF30
Pack Quantity 10
Weight 0.1kg
Warranty One Year

Frequently asked questions

What amp rating is the OEX ACX6512 Midi Fuse? The OEX ACX6512 is rated at 150A and uses a Midi fuse design with a bolt on mounting configuration, making it suitable for compatible electrical applications requiring a 150A fuse.

What voltage is the ACX6512 rated for? The OEX ACX6512 has a 32V DC rating, making it suitable for electrical systems operating within the specified voltage rating. The product data specifically identifies the fuse as a 32V DC Midi fuse.

How many fuses are included in the ACX6512 pack? The ACX6512 is supplied as a pack of 10 individual 150A Midi fuses, providing multiple replacement fuses for applications requiring the same fuse specification.

What is the mounting measurement of the ACX6512? The OEX ACX6512 uses a bolt on mounting design with the mounting points positioned 30mm centre to centre. The fuse has an overall length of 41mm and includes a fuse element window for visual inspection.

Is the ACX6512 available as a single fuse? Yes. The OEX ACX6512 is also available as a single pack under part number ACX6512BL. The ACX6512 version covered here is supplied as a pack of 10.
