Product features

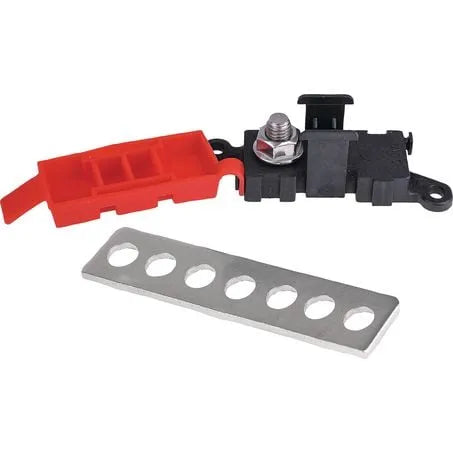

OEX ACX6499 Stud Bus Bar for Midi Fuse Holder

The OEX ACX6499 Stud Bus Bar is designed for use with the Midi Fuse Holder and features an M8 stainless steel stud with a 1 x 7 position copper bus bar. It has a temperature rating of minus 40°C to plus 85°C, with a silicone rubber cover and PPS base rated for high temperature applications.

Product overview

The ACX6499 provides a bus bar connection for the OEX Midi Fuse Holder system. Its 1 x 7 position copper bus bar provides multiple connection positions, while the M8 stainless steel stud provides the connection point within the assembly.

The silicone rubber cover has a maximum temperature rating of 200°C, while the PPS base is rated to 230°C maximum. The ACX6499 is designed for use with the OEX ACX6498 Midi Fuse Holder.

Features and benefits

M8 stainless steel stud: Secure connection point: Uses an M8 stainless steel stud for connection within the Midi Fuse Holder system.

1 x 7 position copper bus bar: Multiple connection positions: Features a copper bus bar with seven positions for electrical connections.

High temperature silicone rubber cover: Heat resistant protection: The silicone rubber cover has a maximum temperature rating of 200°C.

PPS base: High temperature material: The PPS base has a maximum temperature rating of 230°C.

Minus 40°C to plus 85°C temperature rating: Suitable for automotive applications: Designed to operate within the stated temperature range.

ACX6498 compatible: Designed for the matching fuse holder: The ACX6499 is compatible with the OEX ACX6498.

Technical specs

Specification Detail
Part Number ACX6499
Brand OEX
Type Fuse Holder and Boxes
Temperature Rating minus 40°C to plus 85°C
Stud M8 stainless steel
Bus Bar 1 x 7 position copper
Silicone Rubber Cover Maximum Temperature 200°C
PPS Base Maximum Temperature 230°C
Compatible With ACX6498
Warranty One Year

Frequently asked questions

What is the OEX ACX6499 designed for?

The ACX6499 is a Stud Bus Bar designed for use with a Midi Fuse Holder. It is compatible with the OEX ACX6498.

What type of stud does the ACX6499 use?

The ACX6499 uses an M8 stainless steel stud.

How many positions does the copper bus bar have?

The copper bus bar has 1 x 7 position.

What temperature is the ACX6499 rated for?

The stated temperature rating is minus 40°C to plus 85°C. The silicone rubber cover has a maximum rating of 200°C and the PPS base has a maximum rating of 230°C.

Is the ACX6499 compatible with the ACX6498?

Yes. The OEX ACX6499 is compatible with the OEX ACX6498 Midi Fuse Holder.
