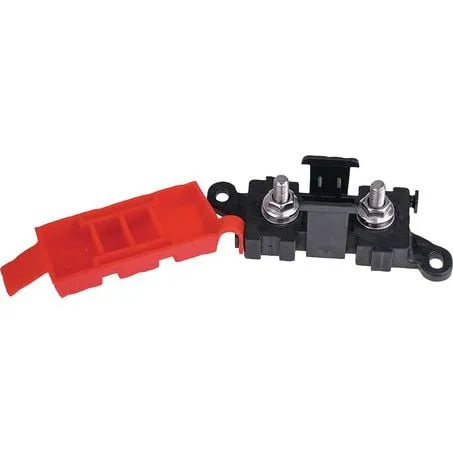

OEX ACX6498 200A Connectable Midi Fuse Holder
Click to open expanded view
OEX logo

OEX ACX6498 200A Connectable Midi Fuse Holder

SKU: ACX6498
5.0 (1)
Price
$24
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX6498 200A Connectable Midi Fuse Holder

The OEX ACX6498 Connectable Midi Fuse Holder supports fuse ratings from 20 to 200A and a continuous maximum voltage rating of 72VDC. It features M5 stainless steel studs, a silicone rubber cover and a PPS base for high temperature applications.

Product overview

Designed for high current automotive electrical applications, the ACX6498 provides a secure mounting point for compatible Midi fuses. The holder supports individual fuse ratings from 20A to 200A and has a maximum total combined rating of 400A.

Its silicone rubber cover is rated to 200°C, while the PPS base is rated to 230°C. The holder is also compatible with the OEX ACX6499.

Features and benefits

20 to 200A fuse rating: Supports a wide current range: Suitable for Midi fuse applications from 20A through to 200A.

400A maximum total combined rating: Supports multiple circuits: Provides a maximum total combined rating of 400A.

72VDC maximum voltage: Suitable for higher voltage DC systems: Rated for a continuous maximum voltage of 72VDC.

High temperature construction: Built for demanding applications: The silicone rubber cover is rated to 200°C and the PPS base is rated to 230°C.

M5 stainless steel studs: Secure electrical connections: Uses M5 stainless steel studs for connection to the fuse holder.

ACX6499 compatible: Designed for compatible OEX components: The holder is compatible with OEX ACX6499.

Technical specs

Specification Detail
Part Number ACX6498
Brand OEX
Type Fuse Holder and Boxes
Fuse Rating 20 to 200A
Maximum Total Combined Rating 400A
Continuous Maximum Voltage Rating 72VDC
Temperature Rating minus 40°C to plus 85°C
Silicone Rubber Cover Maximum Temperature 200°C
PPS Base Maximum Temperature 230°C
Studs M5 stainless steel
Compatible With ACX6499
Warranty One Year

Frequently asked questions

What fuse rating does the OEX ACX6498 support?

The ACX6498 supports Midi fuse ratings from 20A to 200A.

What is the maximum voltage rating of the ACX6498?

The holder has a continuous maximum voltage rating of 72VDC.

What is the maximum combined rating of the fuse holder?

The maximum total combined rating is 400A.

What temperature range is the ACX6498 rated for?

The stated temperature rating is minus 40°C to plus 85°C. The silicone rubber cover is rated to 200°C maximum, while the PPS base is rated to 230°C maximum.

Is the ACX6498 compatible with another OEX component?

Yes. The ACX6498 is compatible with the OEX ACX6499.
