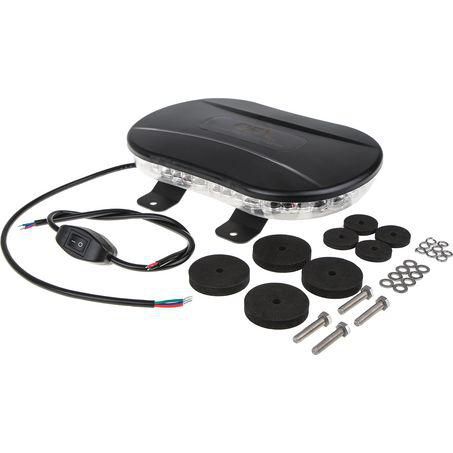

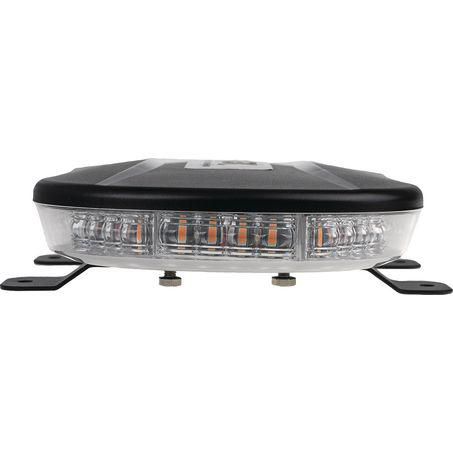

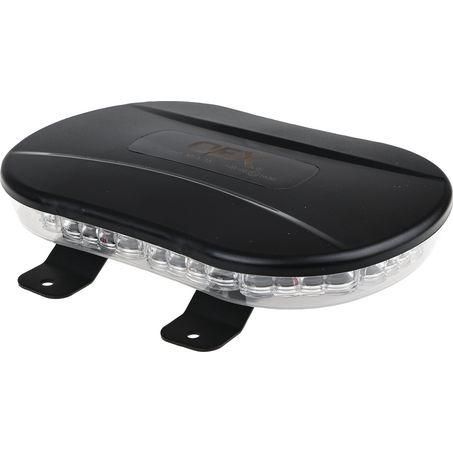

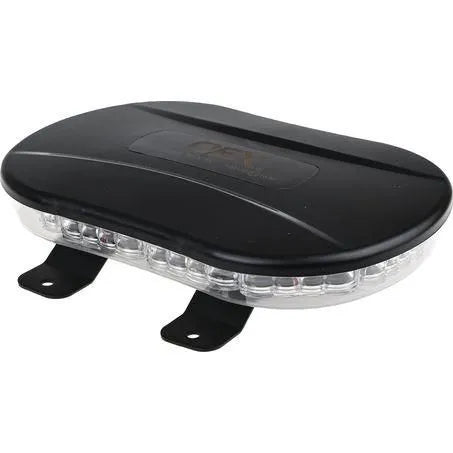

OEX ACX5734 12/24V Low Profile Minibar Amber LED Clear Lens Bracket Mount

OEX ACX5734 12/24V Amber LED Low Profile Minibar with Clear Lens and Fixed Bracket Mount

The OEX ACX5734 is a 12/24V amber LED low profile minibar with a clear lens and fixed 4-bolt bracket mount. Measuring 251mm in length with a 41mm low profile height, it carries an IP67 rating, SAE Class 1 certification and EMC R10 compliance. Twenty flash patterns are selectable, and the unit operates across a wide voltage range of 10 to 30V DC. Backed by a 12-month warranty.

Product overview

The ACX5734 shares the same core specification as the ACX5732 but is fitted with a clear lens rather than an amber lens, while retaining amber LED output. The clear lens finish gives the minibar a more discreet appearance when not in use, blending into the vehicle profile rather than drawing attention with a coloured lens. This makes the ACX5734 a practical choice where a low-visibility resting profile is preferred alongside full amber warning output when activated.

Like the ACX5732, the ACX5734 is part of the OEX Multivolt minibar range with 20 selectable flash patterns, IP67 protection, SAE Class 1 certification and EMC R10 compliance. The 4-bolt bracket mount provides a secure, permanent fixed installation suited to commercial vehicles, service vehicles and emergency support applications across 12V and 24V platforms.

Features and benefits

Clear lens with amber LED output: The clear lens provides a low-visibility resting profile while the amber LEDs deliver full SAE Class 1 warning output when activated. Distinct from the amber-lens ACX5732.

Multivolt 12/24V operation: Operates across a wide voltage range of 10 to 30V DC, compatible with both 12V and 24V vehicle platforms without modification.

Low profile 41mm body with black top: The 41mm height and black top housing keep the minibar unobtrusive on the mounting surface.

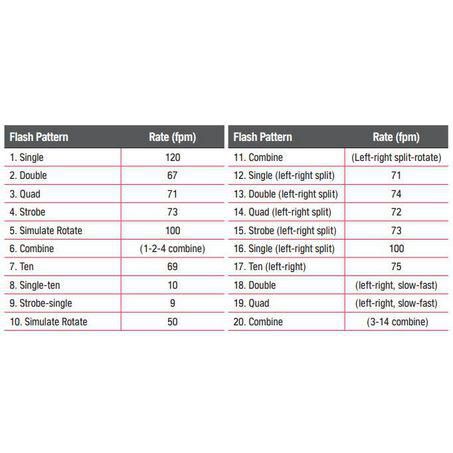

20 selectable flash patterns: Twenty flash patterns provide flexibility for different operational requirements and jurisdictional preferences.

4-bolt bracket mount: Secure fixed bracket installation with 4-bolt fixing for permanent mounting on commercial and service vehicles.

IP67 rated: Dust-tight and protected against water submersion to 1 metre depth, suitable for exposed mounting positions.

SAE Class 1 certified: Meets SAE Class 1 warning light performance standards for professional warning light applications.

EMC R10 compliant: Electromagnetic compatibility compliance per R10.

12-month warranty: Covered by a 12-month OEX warranty.

Technical specs

Frequently asked questions

What is the difference between the ACX5734 and the ACX5732? Both are 12/24V amber LED low profile minibars with the same dimensions, flash patterns and certifications. The ACX5732 has an amber lens, while the ACX5734 has a clear lens. Choose the ACX5734 if a lower-visibility resting profile is preferred.

Is the ACX5734 suitable for both 12V and 24V vehicles? Yes. The ACX5734 operates across a voltage range of 10 to 30V DC, making it compatible with 12V and 24V vehicle platforms without wiring modification.

What flash patterns are available on the ACX5734? The ACX5734 offers 20 selectable flash patterns. Contact us for further information on specific pattern options before purchasing.

What does the IP67 rating mean for this minibar? IP67 means the ACX5734 is dust-tight and protected against water submersion to a depth of 1 metre for up to 30 minutes, suitable for exposed exterior mounting positions.

Does the ACX5734 come with a magnetic mount option? The title and primary specification for this listing describe the fixed 4-bolt bracket mount variant. Contact us to confirm whether a magnetic mount version of this minibar is available separately.
