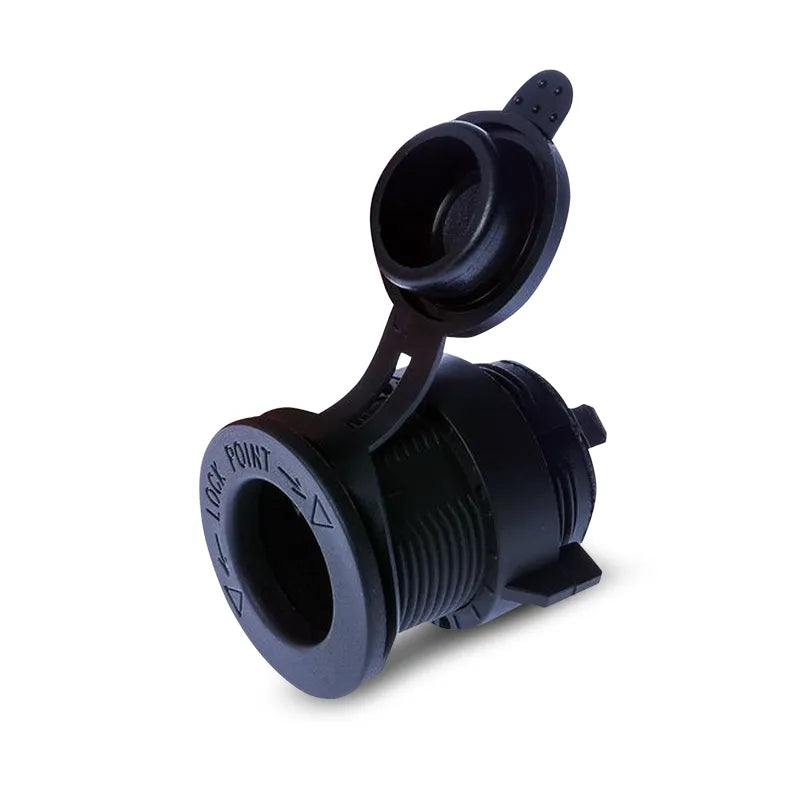

OEX ACX5607 Engel Style Socket 12/24V
Click to open expanded view
OEX logo

OEX ACX5607 Engel Style Socket 12/24V

SKU: ACX5607
Price
$21
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX5607 Engel Style DC Power Socket 15A at 12V and 7.5A at 24V 29mm Panel Mount Blade Terminals

The OEX ACX5607 is an Engel-style DC power socket rated at 15A at 12V (7.5A at 24V), designed for dash or panel mounting via a 29mm round hole. The Engel socket format is the standard DC power connector used on Engel-brand portable fridges and many other Australian-market 12V and 24V accessories, making this socket a common requirement for 4WD, caravan and marine installations where Engel-compatible accessories need a dedicated panel-mount power point. Blade terminals on the rear for direct wiring to the vehicle supply. Plastic housing. Not interchangeable with cigarette lighter or Anderson plug accessories. Covered by a one year warranty.

Product overview

The Engel socket has a different connector shape and pin configuration from a standard cigarette lighter socket and the two are not interchangeable. If an accessory uses an Engel-style plug most commonly Engel portable fridges and compatible 12V accessories in the Australian market this is the correct panel-mount socket counterpart. For accessories using a cigarette lighter plug, a standard 12V accessory socket is required instead.

The socket installs through a 29mm round hole in a dash, console or panel, with blade terminals on the rear for direct wiring to the 12V or 24V vehicle supply. At 15A at 12V it handles portable fridges, compressors and other high-draw 12V accessories. The 7.5A rating at 24V reflects the same watt-limited capacity across both voltages confirm the accessory's current draw does not exceed the rating for the voltage being used.

Features and benefits

Engel style socket format: Compatible with Engel-brand fridges and other accessories using the Engel DC connector. Not interchangeable with cigarette lighter or Anderson plug accessories.

15A at 12V and 7.5A at 24V: Sufficient for portable fridges, compressors and other high-draw 12V and 24V accessories.

29mm panel mount: Installs through a 29mm round panel hole for a clean, integrated appearance in dash, console and panel installations.

Blade terminals: Direct wiring to the vehicle supply without additional connectors.

12V and 24V compatible: Suits both passenger vehicle and commercial vehicle systems.

Plastic housing: Lightweight and corrosion-resistant.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX5607
Brand OEX
Type Engel Style DC Socket
Current Rating 15A at 12V, 7.5A at 24V
Voltage 12V and 24V
Termination Blade terminals
Body Material Plastic
Mount Type Dash or panel mount
Mounting Hole 29mm
Pack Quantity 1
Warranty One year
Sold As Single unit

Frequently asked questions

What is an Engel-style socket? The Engel socket is a DC power connector format used as the standard power input on Engel-brand portable fridges and many other Australian-market 12V accessories. It has a different shape and pin configuration from a cigarette lighter socket and is not interchangeable with cigarette lighter plugs or Anderson connectors. If an accessory has an Engel-style plug, this is the correct panel-mount counterpart.

What is the current rating for 12V and 24V use? The ACX5607 is rated at 15A at 12V and 7.5A at 24V. The derating at 24V reflects the same watt-limited capacity across both voltages. Ensure the accessory's current draw does not exceed these limits for the voltage being used.

What size hole does this socket require? The socket requires a 29mm round mounting hole in the panel or dash. Confirm the hole diameter before drilling as this is a specific size.

Is this socket the same as a cigarette lighter socket? No. The Engel socket has a different connector shape and pin configuration from a standard cigarette lighter socket. The two are not interchangeable. For accessories using a cigarette lighter plug, a standard 12V accessory socket is required instead.

Does this socket come with a matching plug? The ACX5607 is the socket (panel-mount side) only. The matching Engel-style plug is typically supplied with Engel fridges and accessories. If a replacement Engel-style plug is required, check the OEX accessories range.
