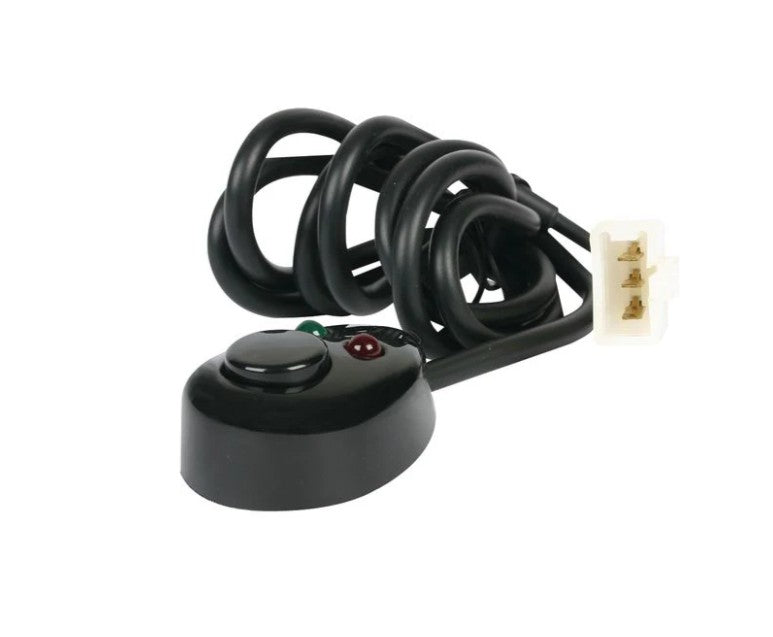

OEX ACX3678 Push Button Switch 12V SPST On/Off | Green/Red LED Illuminated 10A Rated
Click to open expanded view
OEX logo

Out of stock

OEX ACX3678 Push Button Switch 12V SPST On/Off | Green/Red LED Illuminated 10A Rated

SKU: ACX3678
Regular price
$15.95
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Illuminated On/Off Push Button Switch with Dual-Colour LED Status Indication

Product Overview

The OEX ACX3678 is a 12V, 10A illuminated On/Off push button switch in a SPST (Single Pole Single Throw) configuration, featuring a dual-colour green/red LED indicator. Unlike the momentary ACX3677BL which returns to Off when released, the ACX3678 is a latching push button pressing it toggles the switch between On and Off states, remaining in the selected position until pressed again.

The dual-colour LED provides unambiguous status indication at a glance: green when the switch is On (circuit active) and red when the switch is Off (circuit inactive). This immediate visual feedback makes it particularly well suited to multi-switch control panels, auxiliary accessory circuits, and installations where confirming the active state of a circuit without inspecting the load itself is important. At 10A and 12V, it is suited to direct switching of most standard 12V accessories, LED lighting circuits, fans, and relay trigger inputs.

Features & Benefits

  • Latching On/Off action — press to toggle between On and Off; switch stays in the selected position until pressed again; not a momentary switch
  • Green LED when On, Red LED when Off — dual-colour status indication provides unambiguous visual feedback at all times, not just when the circuit is active
  • 10A at 12V — suited to direct switching of LED lighting, accessory fans, relay triggers, and general 12V accessories
  • SPST configuration — single pole single throw for straightforward one-circuit on/off control
  • 12V rated — designed for standard 12V automotive, marine, and caravan electrical systems
  • Push button form factor — tactile, modern switch style for dash panel, console, and accessory box installations

Technical Specs

Specification Detail
Part Number ACX3678
Brand OEX
Switch Type Push Button
Switch Action On/Off (SPST, Latching)
Poles 1
Positions 2
Amp Rating 10A at 12V
Illumination Green (On) / Red (Off) LED
Voltage 12V
Mount Diameter Confirm with supplier
Pack Quantity 1
Warranty 1 Year

Compatible With

Suitable for 12V On/Off switching applications including:

  • LED lighting and interior accessory control
  • Accessory fan and ventilation switching
  • Relay trigger and solenoid coil activation
  • Multi-switch control panels requiring clear status indication
  • Caravan, 4WD, and marine auxiliary circuit control

Weight

Confirm with supplier.

Frequently Asked Questions

Is this a momentary or latching switch?

The ACX3678 is a latching (maintained) switch — pressing it toggles the circuit between On and Off, and the switch stays in the selected position until pressed again. This is different from a momentary switch such as the ACX3677BL, which only activates while the button is held down and returns to Off when released. For circuits that need to stay on without holding the button, use a latching switch like the ACX3678.

What do the green and red LEDs indicate?

Green illuminates when the switch is in the On position (circuit active). Red illuminates when the switch is in the Off position (circuit inactive). This dual-colour indication means the switch always shows its current state — not just when it is active — making it easy to confirm at a glance whether the circuit is on or off in a multi-switch panel.

How does this differ from the ACX1962BL?

The ACX1962BL is a pre-wired mouse-style surface mount switch with adhesive backing, designed for easy surface installation without a panel cutout. The ACX3678 is a panel-mount push button intended for installation in a switch panel or console cutout. Both feature green/red dual-colour LED indication at 10A, 12V, but are suited to different installation styles.

What is the maximum load this switch can handle directly?

This switch is rated at 10A at 12V. For loads exceeding 10A, use the switch to trigger a relay rather than wiring the load directly through the switch contacts.

What mounting hole does this switch require?

Mount diameter is not specified in the supplier data for this SKU. Confirm the required panel cutout size with OEX before installing.
