OEX ACX3438 Emergency Stop Switch, Mushroom Head

SKU: ACX3438
Price
$94
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
OEX ACX3438 Emergency Stop Switch On, Off /Off, On (Contacts Rated 3A @ 24V)

OEX ACX3438 Emergency Stop Switch, Mushroom Head

$94

Product features

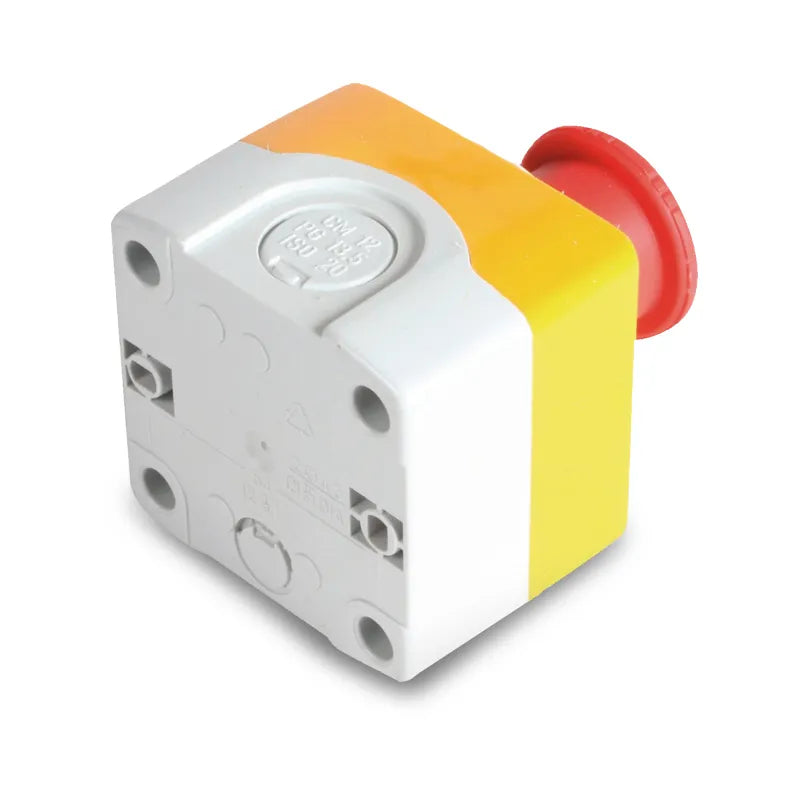

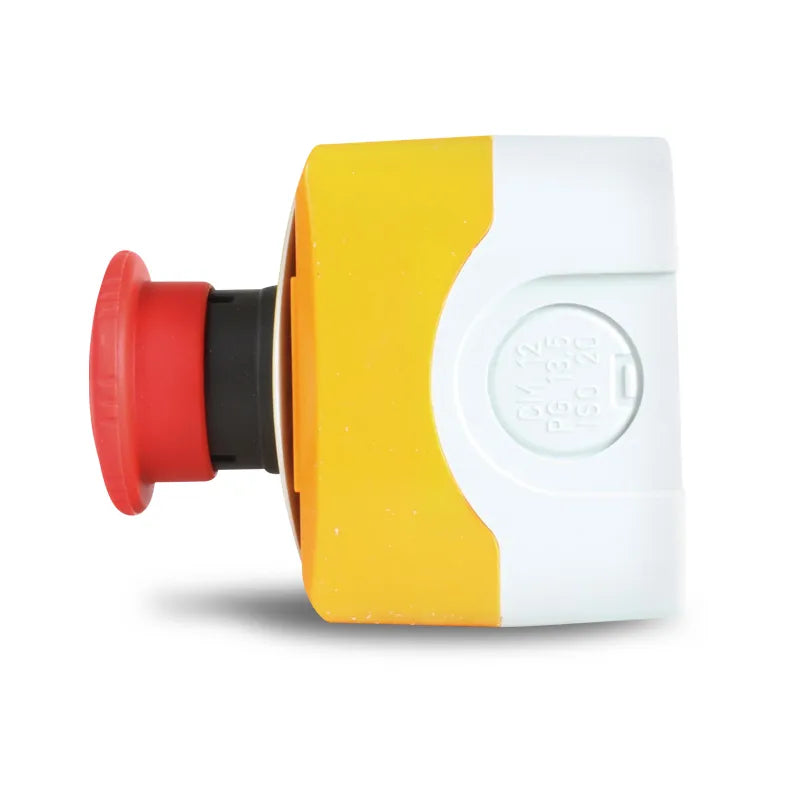

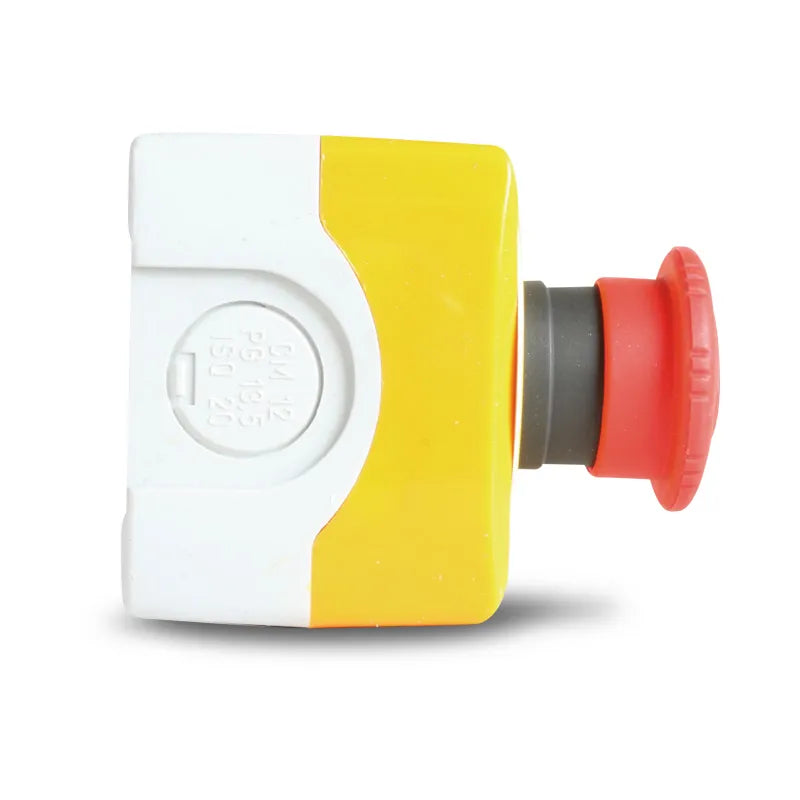

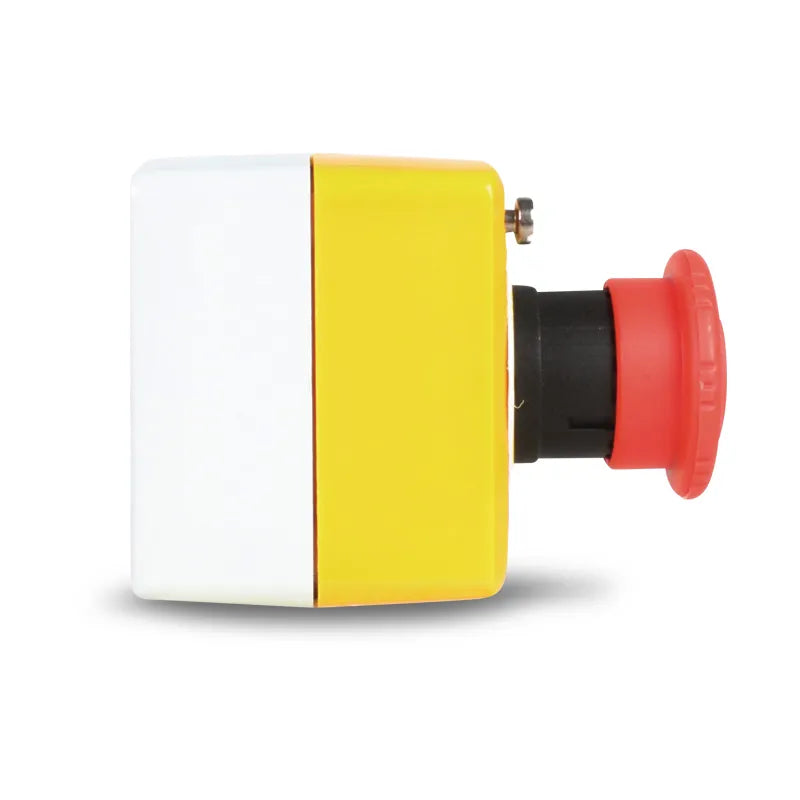

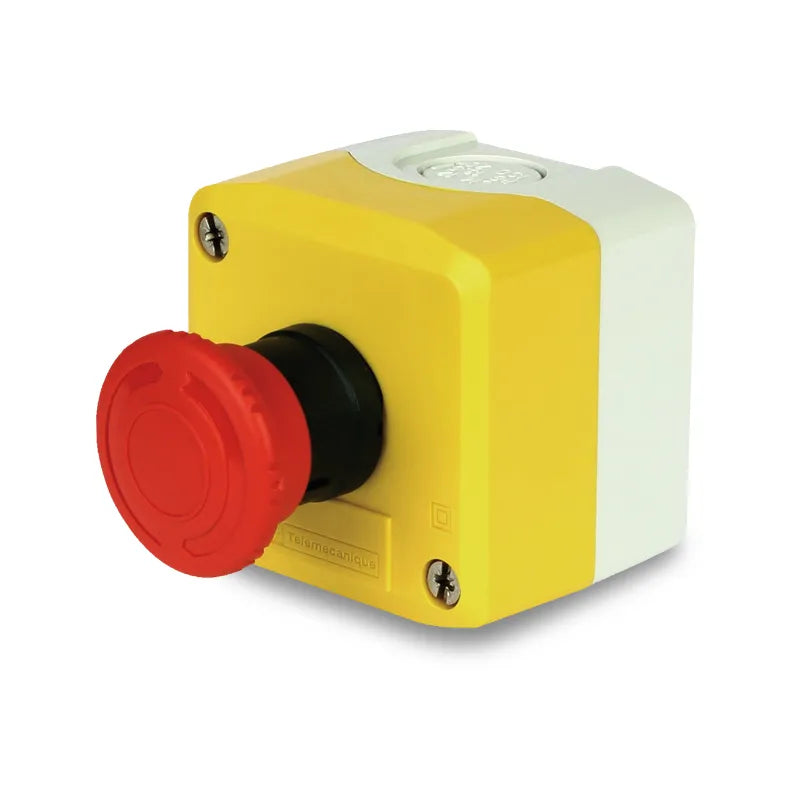

A latching emergency stop switch with a 40 mm mushroom head. Push to stop, turn to release.

It has one normally closed and one normally open contact rated at 3 A for 12 V and 24 V control circuits. IP65.

Specifications

  • Type: emergency stop switch
  • Action: latching
  • Actuator: 40 mm mushroom head
  • Release: turn to release

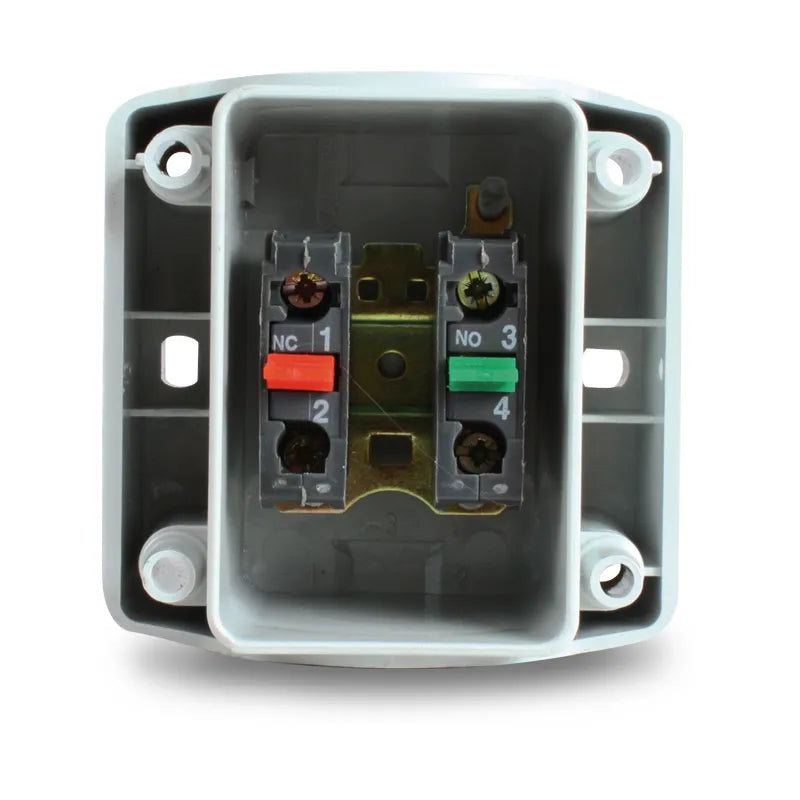

  • Contacts: 1 NC, 1 NO
  • Current rating: 3 A
  • Voltage: 12 V and 24 V
  • IP rating: IP65

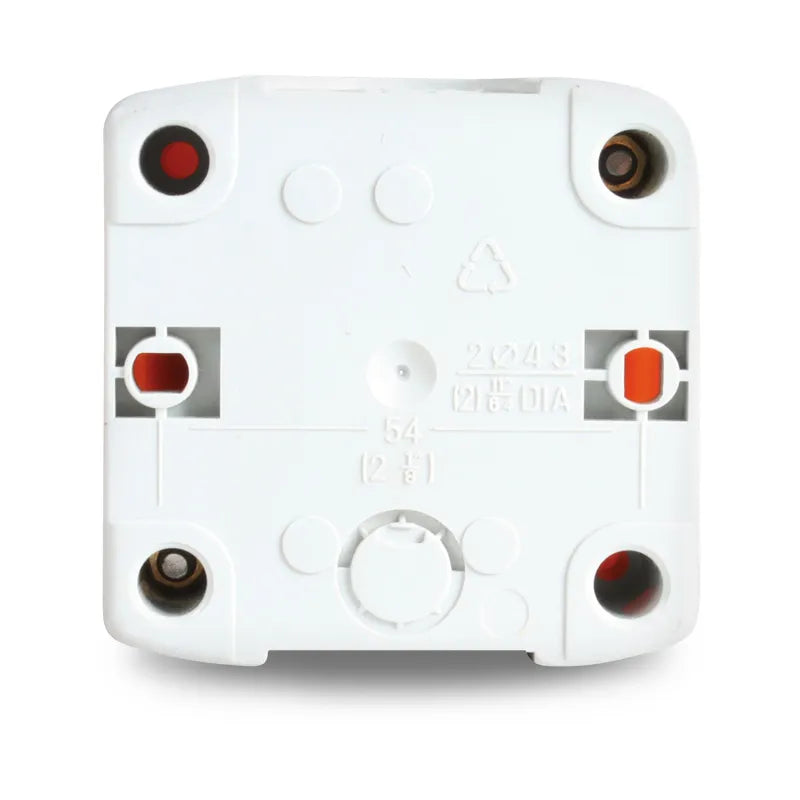

  • Mounting: internal or external
  • Size: 69 x 86 mm
  • Pack: 1
  • Weight: 0.3 kg

FAQ

What is the OEX ACX3438?

OEX ACX3438 latching emergency stop switch, 40 mm mushroom head, 1 NC and 1 NO contact, 3 A, 12 V and 24 V, IP65.

Can it switch the main power?

No. The contacts are rated at 3 A, so use it to drive a relay or solenoid that does the heavy switching.

Can you help me pick the right part?

Yes. Tell us the vehicle and the job and we will point you to the right part.
