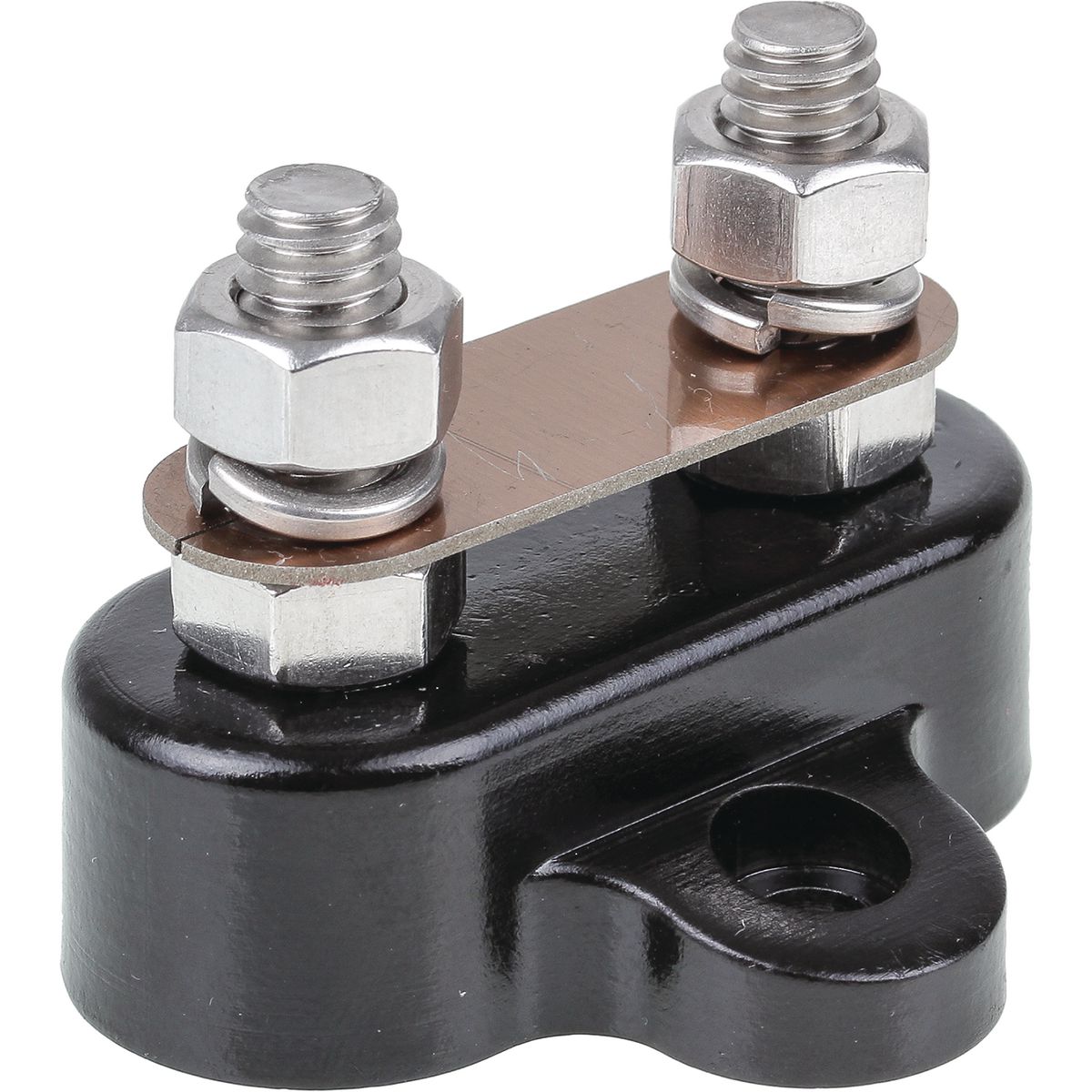

OEX ACX3158 250A Dual Stud Distribution Terminal - Black

OEX ACX3158 250A Dual Stud Distribution Terminal - Black

Consolidate negative and earth circuits cleanly with the OEX ACX3158 250A Dual Stud Distribution Terminal — featuring two 8mm stainless steel studs rated to 250A total, glass-filled nylon base for superior strength and heat resistance, and black colour coding for immediate negative/earth rail identification in automotive, marine, 4WD, caravan, RV, mining, and industrial high-current power distribution installations.

Product Overview

The OEX ACX3158 is the black-coded negative/earth variant of the ACX3157 dual stud distribution terminal, providing two 8mm stainless steel studs on a single glass-filled nylon base for consolidating multiple earth returns or negative circuit feeds at a single rated connection point. In professional automotive and marine electrical builds, earth distribution is just as critical as positive power distribution — poor earth connections are responsible for a significant proportion of electrical faults, noise issues, and intermittent problems in vehicle electrical systems. The ACX3158 provides a dedicated, high-quality earth termination point where multiple circuit earth cables can be consolidated cleanly onto two separate studs rather than being crammed onto a single chassis bolt or improvised earth point. Two studs offer practical advantages over single stud solutions — large gauge earth cables and smaller circuit earth returns can be separated across the two studs, preventing excessive lug stacking on a single post, maintaining clean mechanical clamping at each connection, and keeping the earth distribution point neat, accessible, and serviceable. The 250A continuous rating covers the combined total earth current across both studs, making the ACX3158 suitable for demanding installations including large amplifier earth systems, inverter earth connections, dual battery negative feeds, 4WD multi-accessory earth bars, and commercial vehicle auxiliary earth distribution. Paired with the red ACX3157, the ACX3158 forms a complete colour-coded positive and negative distribution terminal pair for professional electrical builds. Glass-filled nylon construction delivers superior heat resistance and structural rigidity over standard nylon, while 8mm stainless steel studs resist corrosion and maintain reliable clamping over years of service. ISO 9001-certified manufacturing and in-house testing at OEX's Brisbane facility ensures consistent quality and long-term reliability.

Features & Benefits

Dual 8mm Stainless Steel Studs for Earth Consolidation: Two 8mm stainless steel studs provide two dedicated earth termination points on a single compact base — allowing large and small gauge earth cables to be separated cleanly across two studs, reducing excessive lug stacking and maintaining maximum connection integrity at each stud.

250A Continuous Rating for Demanding Earth Systems: Rated to 250A continuous total across both studs, the ACX3158 handles the combined earth current of multiple high-current circuits — suitable for large amplifier earth systems, inverter earth connections, dual battery negative distribution, 4WD accessory earth bars, and commercial vehicle multi-circuit earth consolidation.

8mm Stainless Steel Studs for Corrosion Resistance: M8 stainless steel stud construction provides robust corrosion resistance and long-term mechanical integrity under vibration, thermal cycling, and exposure to moisture and automotive fluids — maintaining reliable, low-resistance earth connections critical for stable vehicle electrical system performance.

Glass-Filled Nylon Base for Superior Strength and Heat Resistance: Glass-filled nylon delivers significantly greater rigidity, impact resistance, and thermal stability compared to standard nylon — resisting deformation and cracking in high-temperature locations including engine bays, amplifier racks, and industrial equipment enclosures where sustained heat exposure is a concern.

Black Colour for Negative/Earth Rail Identification: Standard black colouring provides instant identification as a negative or earth terminal, reducing wiring errors in installations where multiple terminals are mounted in close proximity — essential for maintaining professional installation standards and simplifying future fault-finding.

Direct Pair for ACX3157 Red Positive Terminal: The ACX3158 is the colour-matched negative counterpart to the ACX3157 red dual stud terminal, forming a complete professional positive and negative distribution terminal pair with consistent construction, rating, and stud sizing across both polarities.

ISO 9001 Certified Manufacturing: Produced under ISO 9001 quality management certification with in-house product testing at OEX's Brisbane facility, ensuring every unit meets stringent engineering and quality control procedures for reliability across automotive, marine, mining, RV, and industrial mobile applications.

Technical Specs

Compatible With / Goes Well With

The OEX ACX3158 suits 12V and 24V automotive, marine, caravan, RV, 4WD, mining, and commercial vehicle electrical systems requiring a 250A-rated dual stud connection point for negative or earth distribution. Ideal for amplifier earth consolidation, inverter earth connections, dual battery negative feeds, multi-circuit earth bars in 4WD and caravan builds, and commercial vehicle auxiliary earth distribution. Pairs directly with the OEX ACX3157 red dual stud terminal for a complete colour-coded positive and negative distribution terminal pair. Complements the OEX ACX3145BL single stud terminal, OEX distribution blocks, busbars, and battery terminals for complete high-current power management solutions across the OEX range.

Frequently Asked Questions

What is the difference between the ACX3158 black and the ACX3157 red?

The ACX3158 is the black-coded negative/earth variant and the ACX3157 is the red-coded positive variant. Both share identical construction — two 8mm stainless steel studs, glass-filled nylon base, and 250A continuous rating. The colour difference provides instant polarity identification in professional installations. Use the ACX3157 for positive distribution and the ACX3158 for negative/earth distribution to create a clearly colour-coded terminal pair.

Why use a dual stud earth terminal instead of a single chassis bolt for earth connections?

A chassis bolt earth point relies on paint-free metal-to-metal contact that can corrode, loosen, and increase resistance over time. The ACX3158 provides a dedicated, rated stainless steel stud specifically designed for cable lug termination — delivering a lower-resistance, more reliable, and more serviceable earth connection point. Two studs also allow better organisation of multiple earth circuits compared to crowding all lugs onto a single bolt.

What is the total current rating across both studs?

The ACX3158 is rated to 250A continuous total across both studs combined. Ensure the combined current draw of all circuits connected across both studs does not exceed 250A continuous for safe, reliable operation within the terminal's rated capacity.

What cable lugs are compatible with the 8mm studs?

The M8 studs accept standard cable lugs with an 8mm hole — available in a wide range of wire gauge sizes from light accessory wire through to heavy gauge cables used in high-current automotive and marine applications. Always use correctly sized, properly crimped compression lugs matched to the wire gauge of each circuit for secure, low-resistance connections.

Is the ACX3158 suitable for marine and outdoor installations?

The 8mm stainless steel studs and glass-filled nylon base provide good corrosion and moisture resistance suitable for marine, outdoor, and under-bonnet installations. For best long-term performance in marine environments, use tinned copper cable lugs and apply dielectric grease to stud and lug contact surfaces before assembly to prevent oxidation and galvanic corrosion at the connection points.
