Product features

Fully Insulated Female Bullet Crimp Terminals for Automotive Wiring

Product Overview

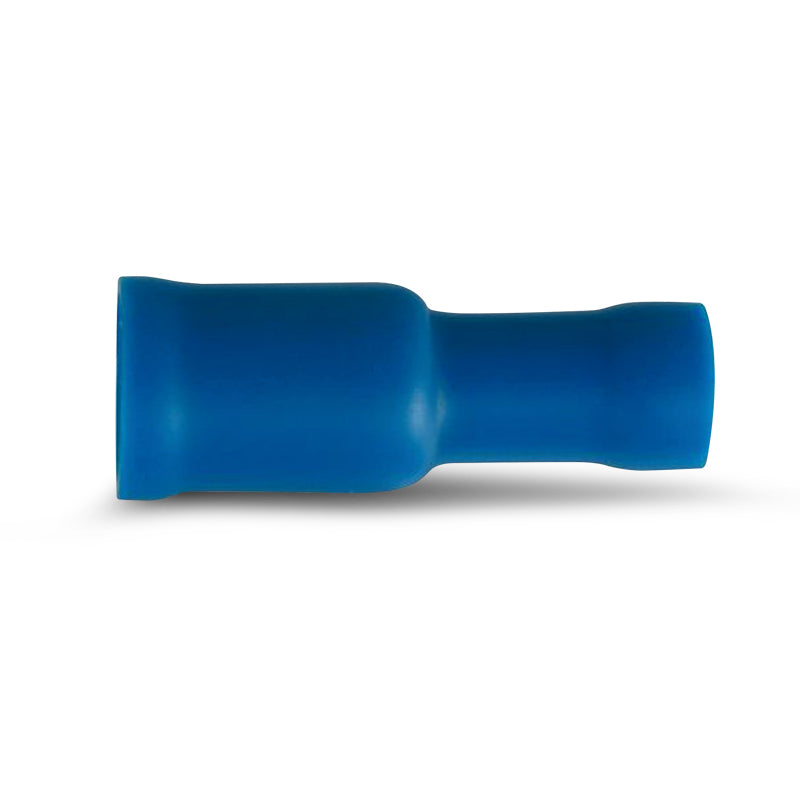

The OEX ACX3035 is a 5mm fully insulated female bullet crimp terminal in blue vinyl, supplied in a pack of 100. The fully insulated design covers the terminal barrel for complete protection. Double crimp construction provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper ensures reliable conductivity. The blue colour coding indicates compatibility with the 1.5–2.5mm² cable range. This female bullet terminal mates with a corresponding 5mm male bullet terminal.

Features & Benefits

  • 5mm female bullet — larger format for heavier gauge cable than the 4mm range
  • Blue vinyl fully insulated — complete barrel coverage; colour indicates 1.5–2.5mm² cable range
  • Double crimp — separate cable and insulation crimp for a secure, strain-relieved connection
  • Tin plated copper — reliable conductivity and corrosion resistance
  • Pack of 100 — trade-friendly workshop quantity

Technical Specs

Specification Detail
Part Number ACX3035
Brand OEX
Terminal Type Female Bullet
Terminal Size 5mm
Insulation Vinyl, Blue
Insulation Style Fully Insulated
Cable Range 1.5–2.5mm² (Blue)
Construction Double Crimp
Material Tin Plated Copper
Pack Quantity 100
Warranty 1 Year

Compatible With

Suitable for:

  • 5mm male bullet terminals
  • Inline wire joins in automotive wiring harnesses using 1.5–2.5mm² cable
  • General 12V and 24V accessory and auxiliary wiring connections

Weight

0.14kg

Frequently Asked Questions

What is a female bullet terminal used for?

A female bullet terminal receives a male bullet pin to create an inline connection that can be disconnected by hand. They are commonly used in automotive wiring for lighting, sensors, and accessory circuits where a removable inline connection is needed.

What does the blue colour indicate?

Blue is the standard colour code for automotive crimp terminals suited to the 1.5–2.5mm² cable range. Always match the terminal colour to your cable size for a correct crimp.

How does a 5mm bullet terminal differ from a 4mm?

The 5mm format is physically larger and suits heavier gauge cable in the 1.5–2.5mm² range. The 4mm format suits lighter gauge cable in the 0.5–1.5mm² range. They are not interchangeable — confirm the bullet diameter of the mating terminal before purchasing.

What tool is required to crimp these terminals?

A ratchet crimping tool designed for insulated terminals in the blue (1.5–2.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp.

Are these terminals available in other sizes or colours?

OEX produces crimp terminals in a range of types, sizes, and cable ranges. Check the OEX terminal range for other available options.
