OEX ACX3033 Crimp Terminal Female Bullet Red Terminal Size 4mm Vinyl 100 Pce
Click to open expanded view
OEX logo

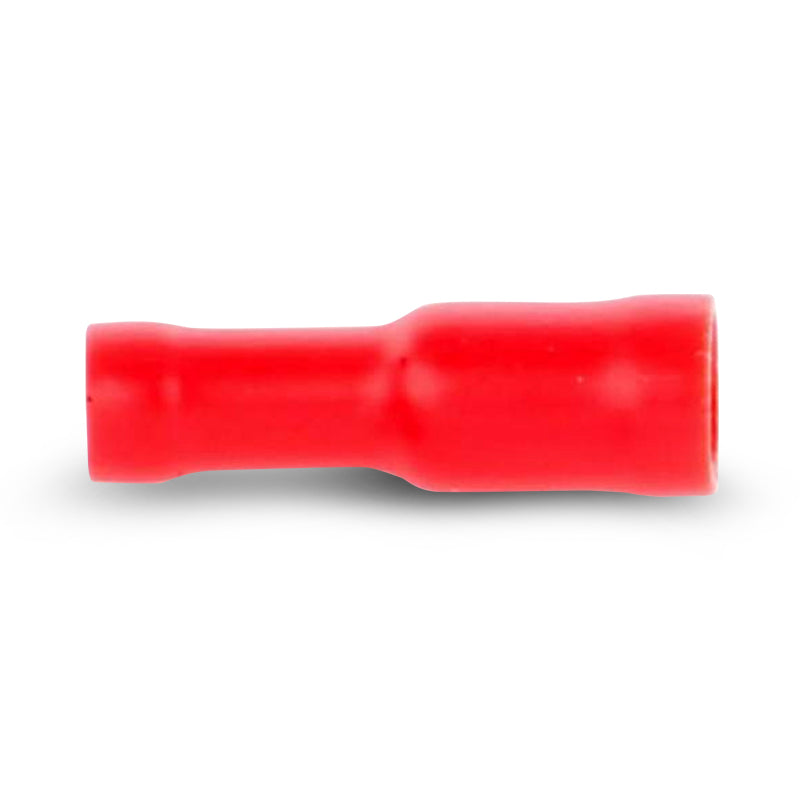

OEX ACX3033 Crimp Terminal Female Bullet Red Terminal Size 4mm Vinyl 100 Pce

SKU: ACX3033
Price
$23
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Fully Insulated Female Bullet Crimp Terminals for Automotive Wiring

Product Overview

The OEX ACX3033 is a 4mm fully insulated female bullet crimp terminal in red vinyl, supplied in a pack of 100. The fully insulated design covers the terminal barrel for complete protection. Double crimp construction provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper ensures reliable conductivity. The red colour coding indicates compatibility with the 0.5–1.5mm² cable range. This female bullet terminal mates with a corresponding 4mm male bullet terminal such as the OEX ACX3027.

Features & Benefits

  • 4mm female bullet — mates with 4mm male bullet terminals for inline automotive connections
  • Red vinyl fully insulated — complete barrel coverage; colour indicates 0.5–1.5mm² cable range
  • Double crimp — separate cable and insulation crimp for a secure, strain-relieved connection
  • Tin plated copper — reliable conductivity and corrosion resistance
  • Pack of 100 — trade-friendly workshop quantity

Technical Specs

Specification Detail
Part Number ACX3033
Brand OEX
Terminal Type Female Bullet
Terminal Size 4mm
Insulation Vinyl, Red
Insulation Style Fully Insulated
Cable Range 0.5–1.5mm² (Red)
Construction Double Crimp
Material Tin Plated Copper
Pack Quantity 100
Warranty 1 Year

Compatible With

Suitable for:

  • 4mm male bullet terminals including OEX ACX3027 (red vinyl) and ACX3028/50 (red polycarbonate)
  • Inline wire joins in automotive wiring harnesses using 0.5–1.5mm² cable
  • General 12V and 24V accessory and auxiliary wiring connections

Weight

0.1kg

Frequently Asked Questions

What is a female bullet terminal used for?

A female bullet terminal receives a male bullet pin to create an inline connection that can be disconnected by hand. They are commonly used in automotive wiring for lighting, sensors, and accessory circuits where a removable inline connection is needed.

What male bullet terminal does this mate with?

This 4mm female bullet mates with 4mm male bullet terminals such as the OEX ACX3027 (red vinyl, pack of 100) and ACX3028/50 (red polycarbonate, pack of 50).

What does the red colour indicate?

Red is the standard colour code for automotive crimp terminals suited to the 0.5–1.5mm² cable range. Always match the terminal colour to your cable size for a correct crimp.

What tool is required to crimp these terminals?

A ratchet crimping tool designed for insulated terminals in the red (0.5–1.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp.

Are these terminals available in other sizes or colours?

OEX produces crimp terminals in a range of types, sizes, and cable ranges. Check the OEX terminal range for other available options.
