Product features

Insulated Male Bullet Crimp Terminals for Automotive Wiring

Product Overview

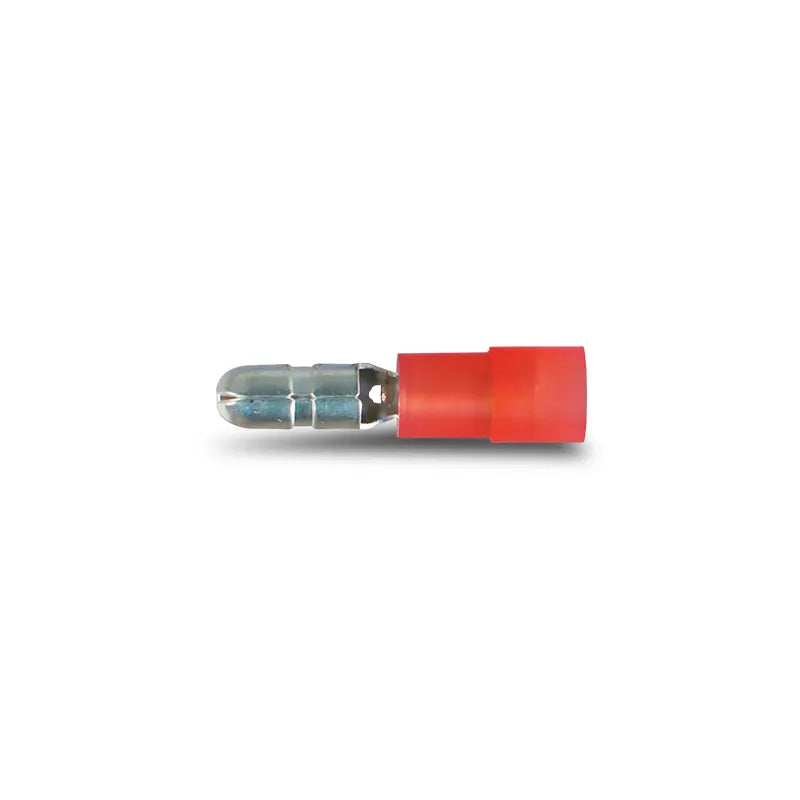

The OEX ACX3028/50 is a 4mm male bullet crimp terminal in red with polycarbonate insulation, supplied in a pack of 50. The insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. The red colour coding indicates compatibility with the 0.5–1.5mm² cable range. Male bullet terminals mate with corresponding female bullet receptacles of the same diameter.

Features & Benefits

  • 4mm male bullet — standard automotive bullet terminal for inline wire joins and circuit connections
  • Red polycarbonate insulation — colour indicates 0.5–1.5mm² cable range
  • Double crimp — separate cable and insulation crimp for a secure, strain-relieved connection
  • Pack of 50 — practical quantity for workshop use

Technical Specs

Specification Detail
Part Number ACX3028/50
Brand OEX
Terminal Type Male Bullet
Terminal Size 4mm
Insulation Polycarbonate, Red
Cable Range 0.5–1.5mm² (Red)
Construction Double Crimp
Pack Quantity 50
Warranty 1 Year

Compatible With

Suitable for:

  • 4mm female bullet terminals and receptacles
  • Inline wire joins in automotive wiring harnesses using 0.5–1.5mm² cable
  • General 12V and 24V accessory and auxiliary wiring connections

Weight

Confirm with supplier.

Frequently Asked Questions

What is a bullet terminal used for?

A bullet terminal creates an inline connection between two wire ends. The male bullet pin inserts into the female bullet receptacle to form a disconnect that can be separated by hand, commonly used in automotive wiring for lighting, sensors, and accessory circuits.

What does the red colour indicate?

Red is the standard colour code for automotive crimp terminals suited to the 0.5–1.5mm² cable range. Always match the terminal colour to your cable size for a correct crimp.

What is the difference between polycarbonate and vinyl insulation?

Polycarbonate insulation is harder and more rigid than vinyl, offering good impact resistance and dimensional stability. Vinyl is more flexible. Both are suitable for automotive wiring; polycarbonate may be preferred where rigidity and impact resistance are priorities.

What female terminal does this mate with?

This male bullet terminal mates with a 4mm female bullet terminal. Ensure the female bullet diameter matches 4mm for a correct fit.

How does this compare to the ACX3027?

Both are 4mm red male bullet terminals for 0.5–1.5mm² cable. ACX3027 uses vinyl insulation and comes in a pack of 100. ACX3028/50 uses polycarbonate insulation and comes in a pack of 50. Choose based on insulation preference and quantity needed.
