Insulated Male Bullet Crimp Terminals for Automotive Wiring

Product Overview

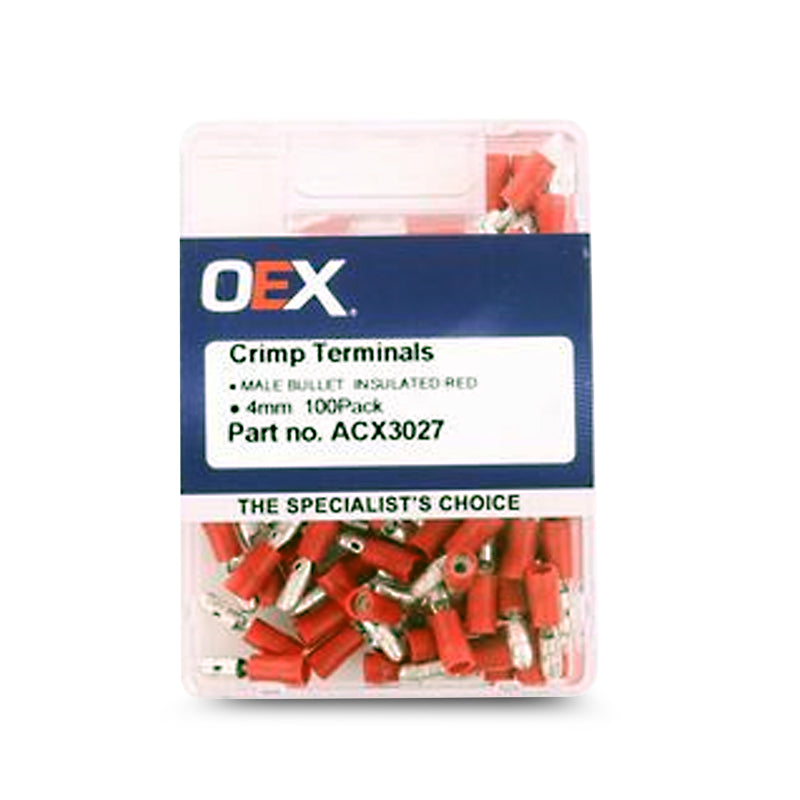

The OEX ACX3027 is a 4mm male bullet crimp terminal in red, supplied in a pack of 100. The vinyl insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper construction ensures reliable conductivity and corrosion resistance. The red colour coding indicates compatibility with the 0.5–1.5mm² cable range. Male bullet terminals mate with corresponding female bullet receptacles of the same diameter.

Features & Benefits

  • 4mm male bullet — standard automotive bullet terminal for inline wire joins and circuit connections
  • Red vinyl insulation — colour indicates 0.5–1.5mm² cable range
  • Double crimp — separate cable and insulation crimp for a secure, strain-relieved connection
  • Tin plated copper — reliable conductivity and corrosion resistance
  • Pack of 100 — trade-friendly workshop quantity

Technical Specs

Specification Detail
Part Number ACX3027
Brand OEX
Terminal Type Male Bullet
Terminal Size 4mm
Insulation Vinyl, Red
Cable Range 0.5–1.5mm² (Red)
Construction Double Crimp
Material Tin Plated Copper
Pack Quantity 100
Warranty 1 Year

Compatible With

Suitable for:

  • 4mm female bullet terminals and receptacles
  • Inline wire joins in automotive wiring harnesses using 0.5–1.5mm² cable
  • General 12V and 24V accessory and auxiliary wiring connections

Weight

0.06kg

Frequently Asked Questions

What is a bullet terminal used for?

A bullet terminal creates an inline connection between two wire ends. The male bullet pin inserts into the female bullet receptacle to form a disconnect that can be separated by hand. They are commonly used in automotive wiring for lighting, sensors, and accessory circuits where a removable inline connection is needed.

What does the red colour indicate?

Red is the standard colour code for automotive crimp terminals suited to the 0.5–1.5mm² cable range. Always match the terminal colour to your cable size for a correct crimp.

What is a double crimp terminal?

A double crimp terminal has two crimp zones — one that grips the bare conductor, and one that grips the cable insulation. This provides both a secure electrical connection and strain relief.

What female terminal does this mate with?

This male bullet terminal mates with a 4mm female bullet terminal. Ensure the female bullet diameter matches 4mm for a correct fit.

Are these terminals available in other sizes or colours?

OEX produces crimp terminals in a range of types, sizes, and cable ranges. Check the OEX terminal range for other available options.
