OEX ACX3026 Yellow Female Blade Terminal 6.3x0.8mm, 50 Pack

SKU: ACX3026
Price
$23
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
OEX ACX3026 Crimp Terminal Female Blade Yellow Terminal Entry 6.3 x 0.8mm Vinyl 50 Pce

OEX ACX3026 Yellow Female Blade Terminal 6.3x0.8mm, 50 Pack

$23

Product features

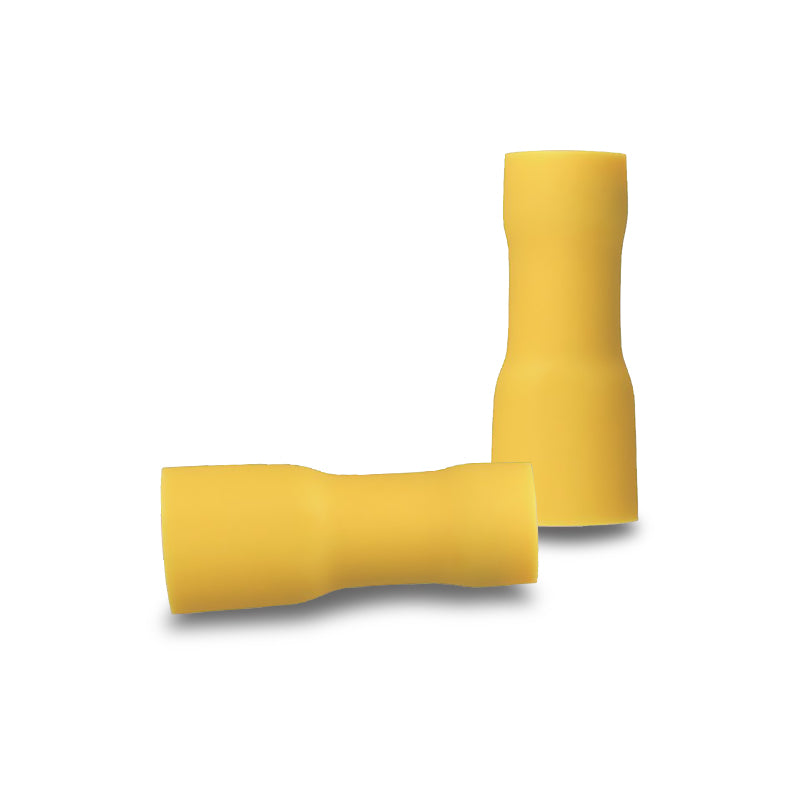

Yellow vinyl insulated female blade crimp terminals, 6.3 x 0.8 mm, in a pack of 50.

They suit 4 to 6 mm² cable, with a double crimp that grips both the core and the insulation.

Specifications

  • Type: female blade
  • Size: 6.3 x 0.8 mm
  • Insulation: fully insulated
  • Insulation material: vinyl
  • Colour: yellow
  • Cable range: 4 to 6 mm²
  • Crimp: double crimp
  • Material: tin plated copper
  • Pack: 50
  • Weight: 0.06 kg

FAQ

What is the OEX ACX3026?

OEX ACX3026 yellow female blade crimp terminals, 6.3 x 0.8 mm, 4 to 6 mm² cable. Pack of 50.

Do I need a special crimper?

Use a ratchet crimper made for insulated terminals. Pliers squash the barrel and the joint can pull out later.

Can you help me pick the right part?

Yes. Tell us the vehicle and the job and we will point you to the right part.
