OEX ACX3020 Crimp Terminal Female Blade Yellow Entry 9.5 x 1.2mm Vinyl 50 Pce

SKU: ACX3020
Price
$23
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

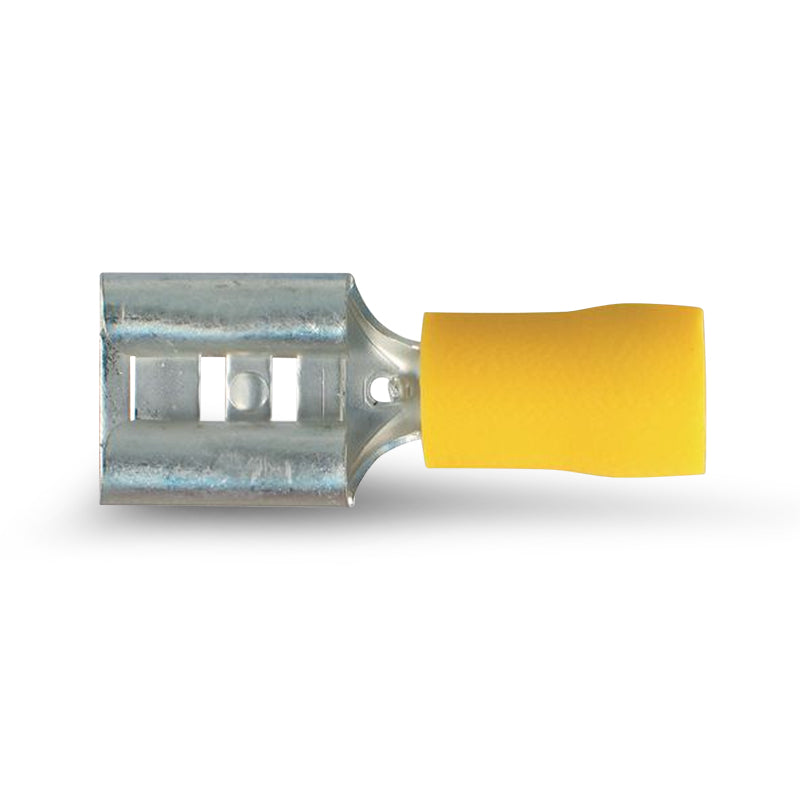

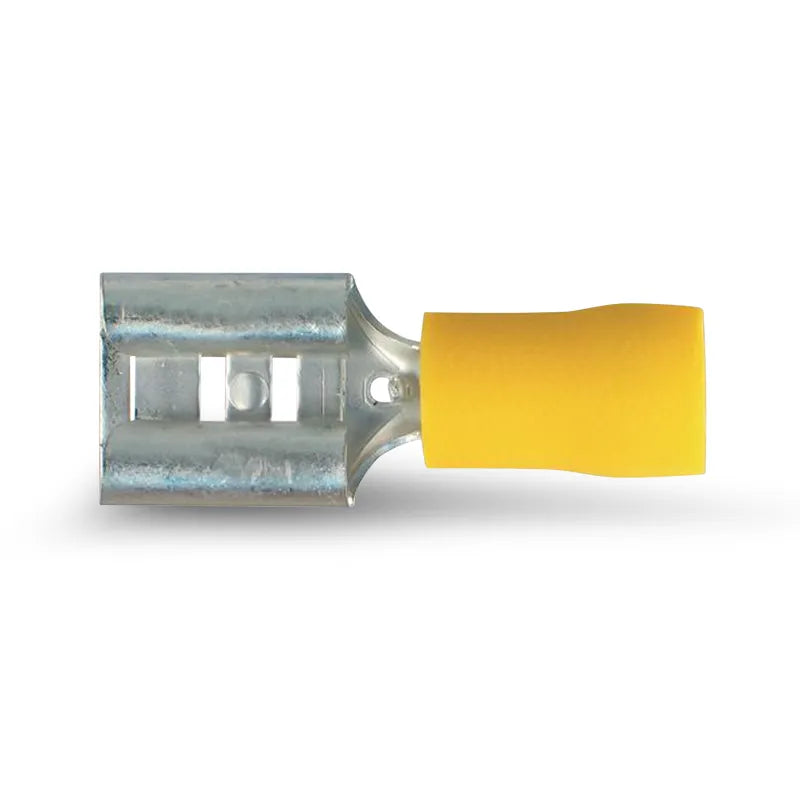

OEX ACX3020 9.5mm Female Blade Crimp Terminal Yellow Vinyl 4.0 to 6.0mm² Double Crimp Tin Plated Copper Pack of 50

The OEX ACX3020 is a 9.5mm female blade crimp terminal in yellow, supplied in a pack of 50. The vinyl insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper construction ensures reliable conductivity and corrosion resistance. The yellow colour coding and 9.5x1.2mm blade size indicate this terminal is designed for heavier gauge cable in the 4.0 to 6.0mm² range, mating with 9.5mm male blade terminals. Covered by a one year warranty.

Product overview

The ACX3020 is the heavy gauge version of the OEX female blade crimp terminal range, stepping up from the 6.3mm format (suited to 0.5 to 2.5mm² cable) to a 9.5mm blade for 4.0 to 6.0mm² cable used in higher-current automotive circuits. The larger blade and heavier insulation suit the thicker cable gauges found in battery feeds, high-draw accessory circuits and other applications where lighter gauge 6.3mm terminals would be undersized.

The double crimp design grips both the bare conductor and the cable insulation for a secure electrical connection with strain relief. Yellow is the standard colour code for the 4.0 to 6.0mm² range in the automotive terminal colour convention. A ratchet crimping tool designed for insulated terminals in the yellow range is recommended. The pack of 50 reflects the typically lower usage frequency of larger terminal sizes compared to the 100-piece packs for smaller formats.

Features and benefits

9.5mm x 1.2mm female blade: Larger format for heavy gauge connections and high-current circuits, mating with 9.5mm male blade terminals. Not interchangeable with the 6.3mm format.

Yellow vinyl insulation: Colour codes the 4.0 to 6.0mm² cable range following the standard automotive terminal convention.

Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.

Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.

Pack of 50: Suited to the typically lower usage frequency of larger terminal sizes.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX3020
Brand OEX
Terminal Type Female Blade
Terminal Size 9.5mm x 1.2mm
Insulation Vinyl, Yellow
Cable Range 4.0 to 6.0mm²
Construction Double crimp
Material Tin plated copper
Pack Quantity 50
Weight 0.1kg
Warranty One year
Sold As Pack of 50

Frequently asked questions

What does the yellow colour indicate? Yellow is the standard colour code for automotive crimp terminals suited to the 4.0 to 6.0mm² cable range. Always match the terminal colour to the cable size for a correct crimp.

How does a 9.5mm female blade differ from a 6.3mm female blade? The 9.5mm female blade is a larger format designed for heavier gauge cable (4.0 to 6.0mm²) and higher-current circuits. The 6.3mm format suits lighter gauge cable (0.5 to 2.5mm²). They are not interchangeable confirm the tab width of the mating terminal before purchasing.

What is a double crimp terminal? A double crimp terminal has two crimp zones: one that grips the bare conductor for the electrical connection, and one that grips the cable insulation for strain relief, preventing the terminal from pulling off the cable under tension.

What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the yellow (4.0 to 6.0mm²) cable range is recommended. Using the correct tool and die ensures a proper crimp.

Are these terminals available in other sizes or colours? OEX produces crimp terminals in a range of types, sizes and cable ranges. Check the OEX terminal range for other available options.
