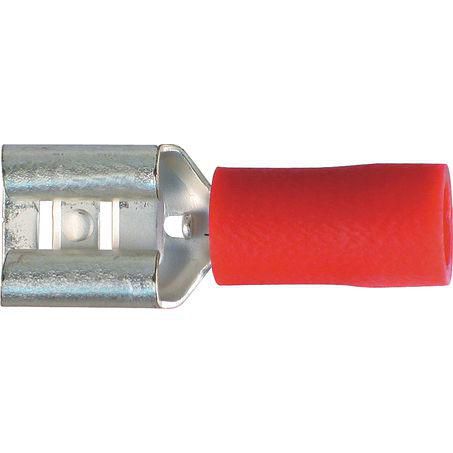

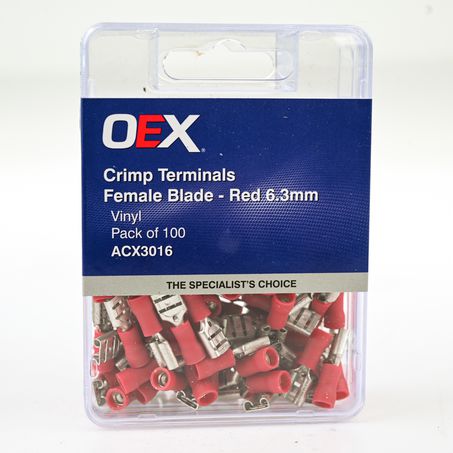

OEX ACX3016 6.3mm Female Blade Crimp Terminal Red Vinyl Insulated 0.5 to 1.5mm² Double Crimp Tin Plated Copper Pack of 100

The OEX ACX3016 is a 6.3mm female blade crimp terminal in red, supplied in a pack of 100. The vinyl insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper construction ensures reliable conductivity and corrosion resistance. The red colour coding indicates compatibility with the 0.5 to 1.5mm² cable range in the standard automotive terminal colour convention. The ACX3016 is the female counterpart to the ACX3006 male blade terminal and mates directly with 6.3mm male blade terminals. Covered by a one year warranty.

Product overview

The ACX3016 completes the 6.3mm blade terminal pair, providing the female receptacle that mates with the ACX3006 male blade (red, 0.5 to 1.5mm²) and ACX3007 male blade (blue, 1.5 to 2.5mm²). Where the cable on the female side is in the 0.5 to 1.5mm² range, the ACX3016 is the correct choice. If the cable on the female side falls in the 1.5 to 2.5mm² range, a blue female blade terminal should be used instead.

The double crimp design grips both the bare conductor and the cable insulation for a secure electrical connection with strain relief. The red vinyl insulation follows the standard automotive terminal colour convention. A ratchet crimping tool designed for insulated terminals in the red range is recommended. The pack of 100 suits trade workshops.

Features and benefits

6.3mm x 0.8mm female blade: Mates with standard 6.3mm male blade terminals including OEX ACX3006 (red) and ACX3007 (blue).

Red vinyl insulation: Colour codes the 0.5 to 1.5mm² cable range following the standard automotive terminal convention. Female counterpart to the red ACX3006 male blade.

Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.

Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.

Pack of 100: Trade-friendly workshop quantity.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX3016
Brand OEX
Terminal Type Female Blade
Terminal Size 6.3mm x 0.8mm
Insulation Vinyl, Red
Cable Range 0.5 to 1.5mm²
Construction Double crimp
Material Tin plated copper
Pack Quantity 100
Weight 0.08kg
Warranty One year
Sold As Pack of 100

Frequently asked questions

What does the red colour indicate? Red is the standard colour code for automotive crimp terminals suited to the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.

What male blade terminal does this mate with? This female terminal mates with 6.3mm male blade terminals including the OEX ACX3006 (red, 0.5 to 1.5mm²) and ACX3007 (blue, 1.5 to 2.5mm²). Where ACX3007 male blades are used, ensure the female terminal cable range also suits the conductor size being used.

What is a double crimp terminal? A double crimp terminal has two crimp zones: one that grips the bare conductor for the electrical connection, and one that grips the cable insulation for strain relief, preventing the terminal from pulling off the cable under tension.

What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the red (0.5 to 1.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.

Are these terminals available in other sizes or colours? OEX produces crimp terminals in a range of types, sizes and cable ranges. Check the OEX terminal range for other available options.
