OEX ACX3006 Red Male Blade Crimp Terminals 6.3x0.8mm Vinyl Insulated 100pc Pack

SKU: ACX3006
Price
$23
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX3006 6.3mm Male Blade Crimp Terminal Red Vinyl Insulated 0.5 to 1.5mm² Double Crimp Tin Plated Copper Pack of 100

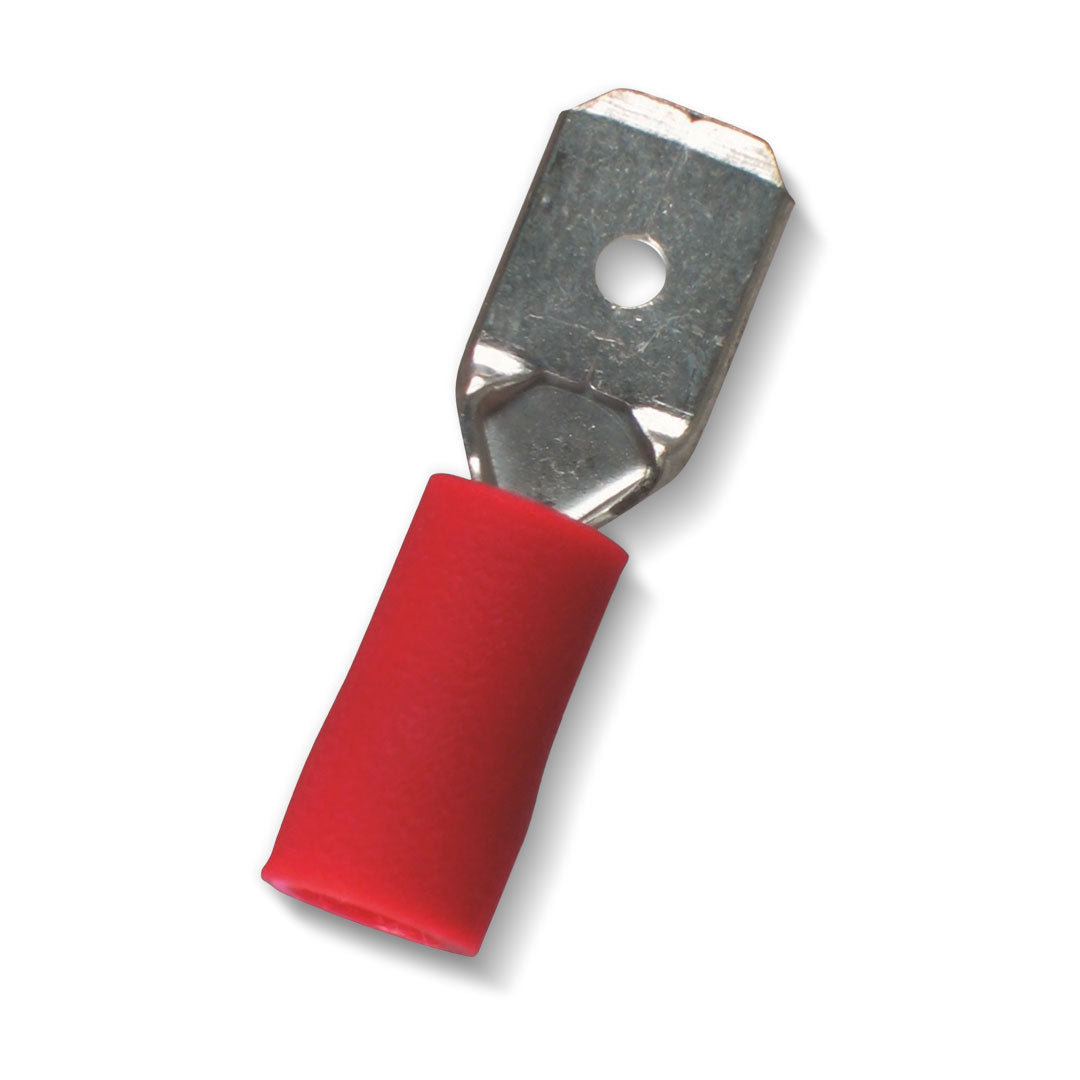

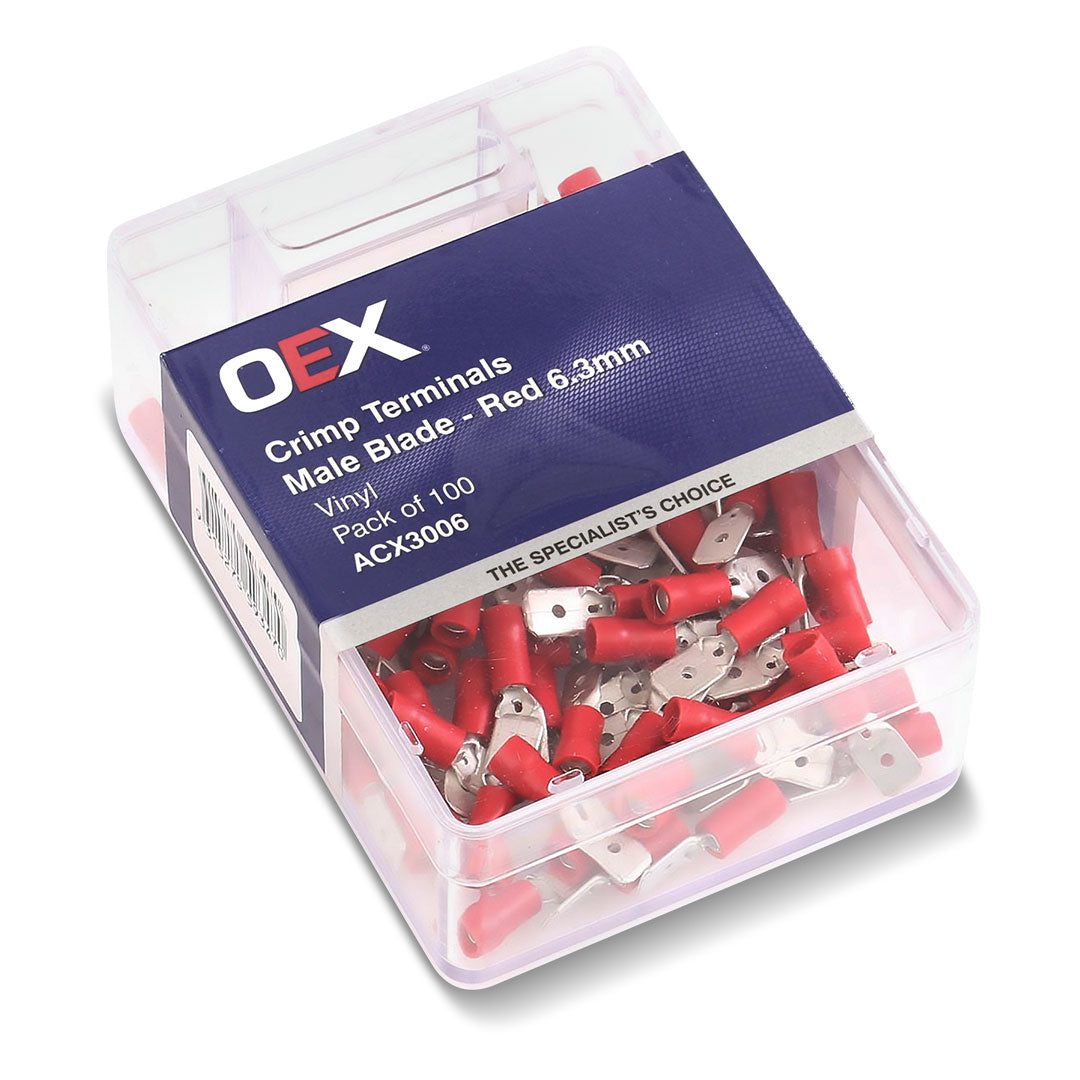

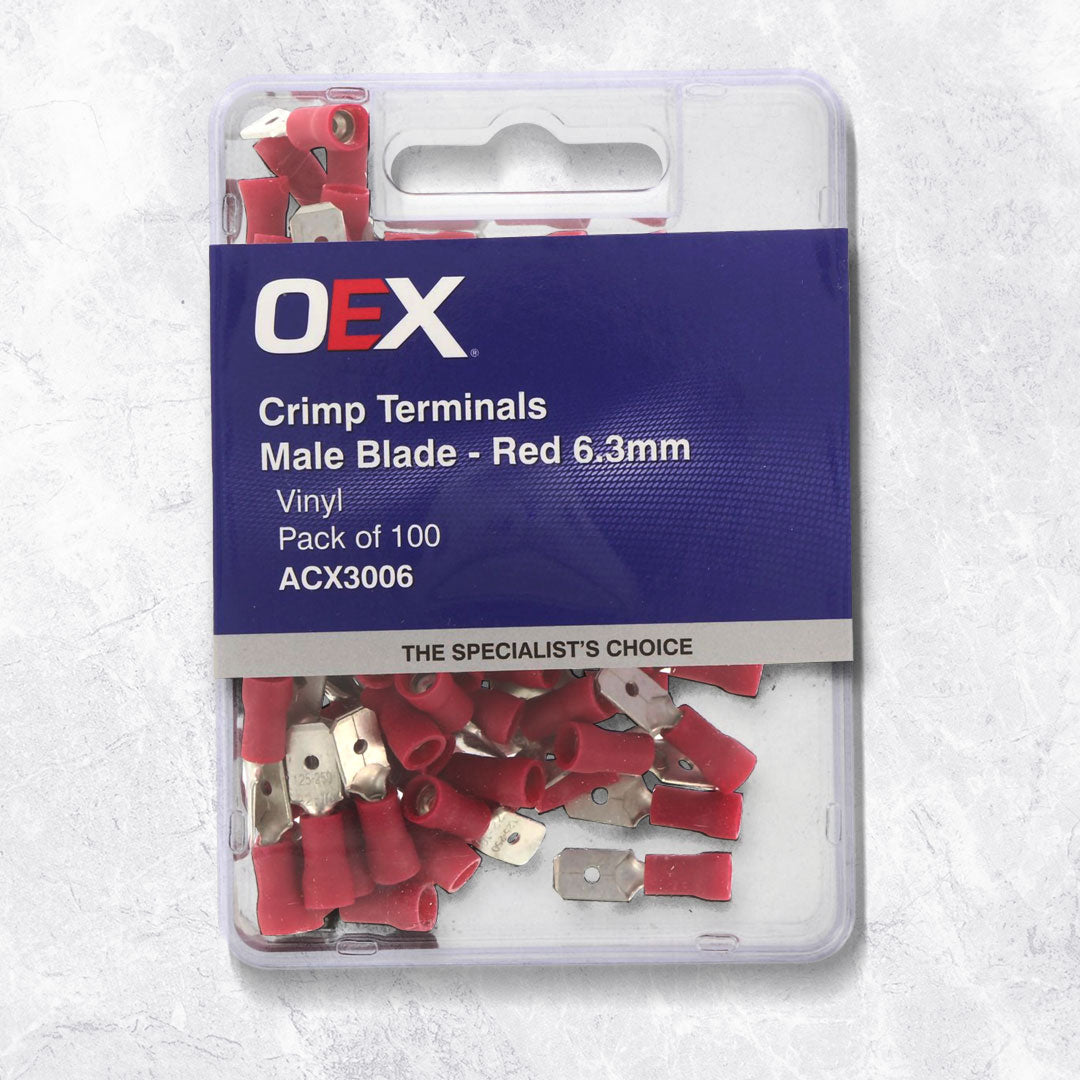

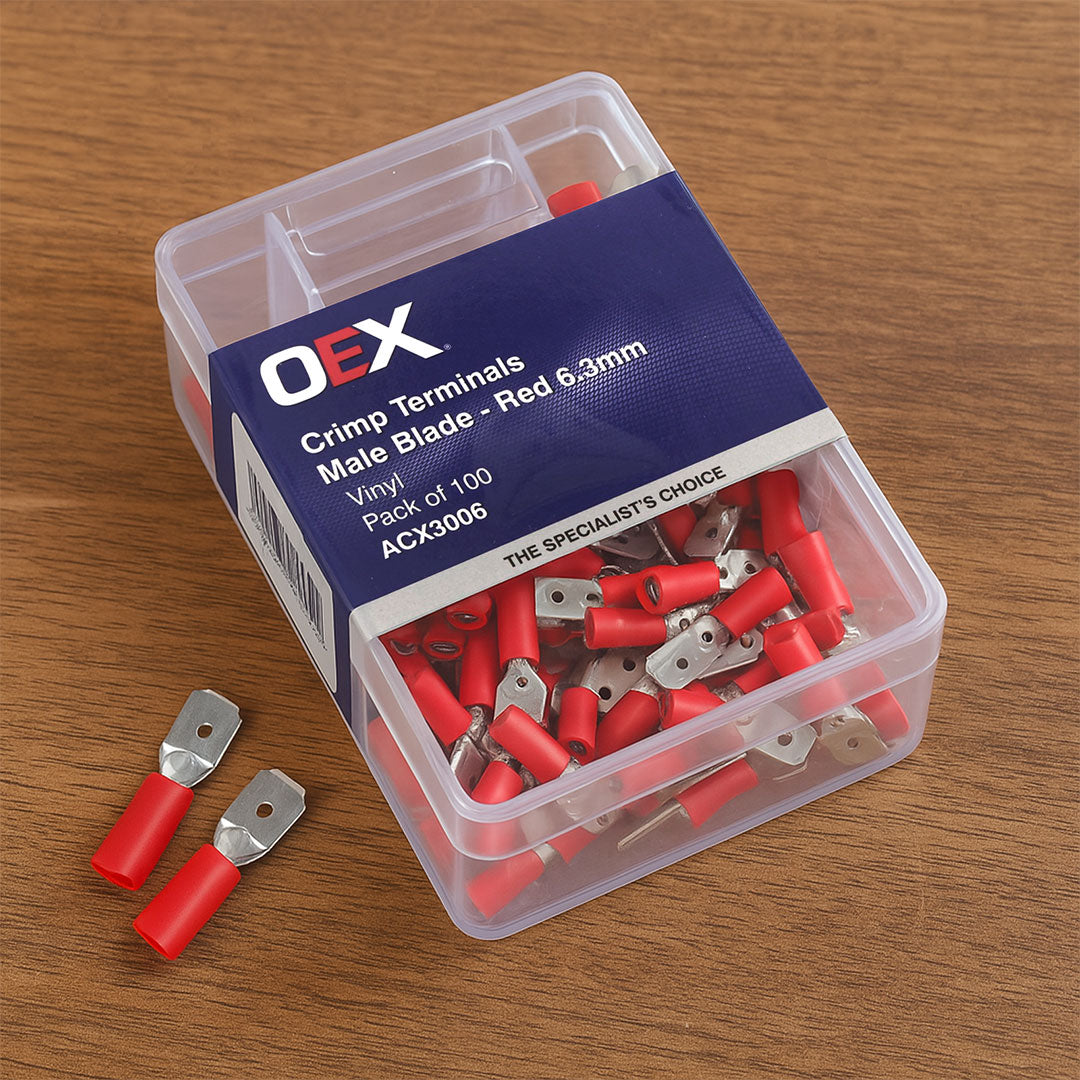

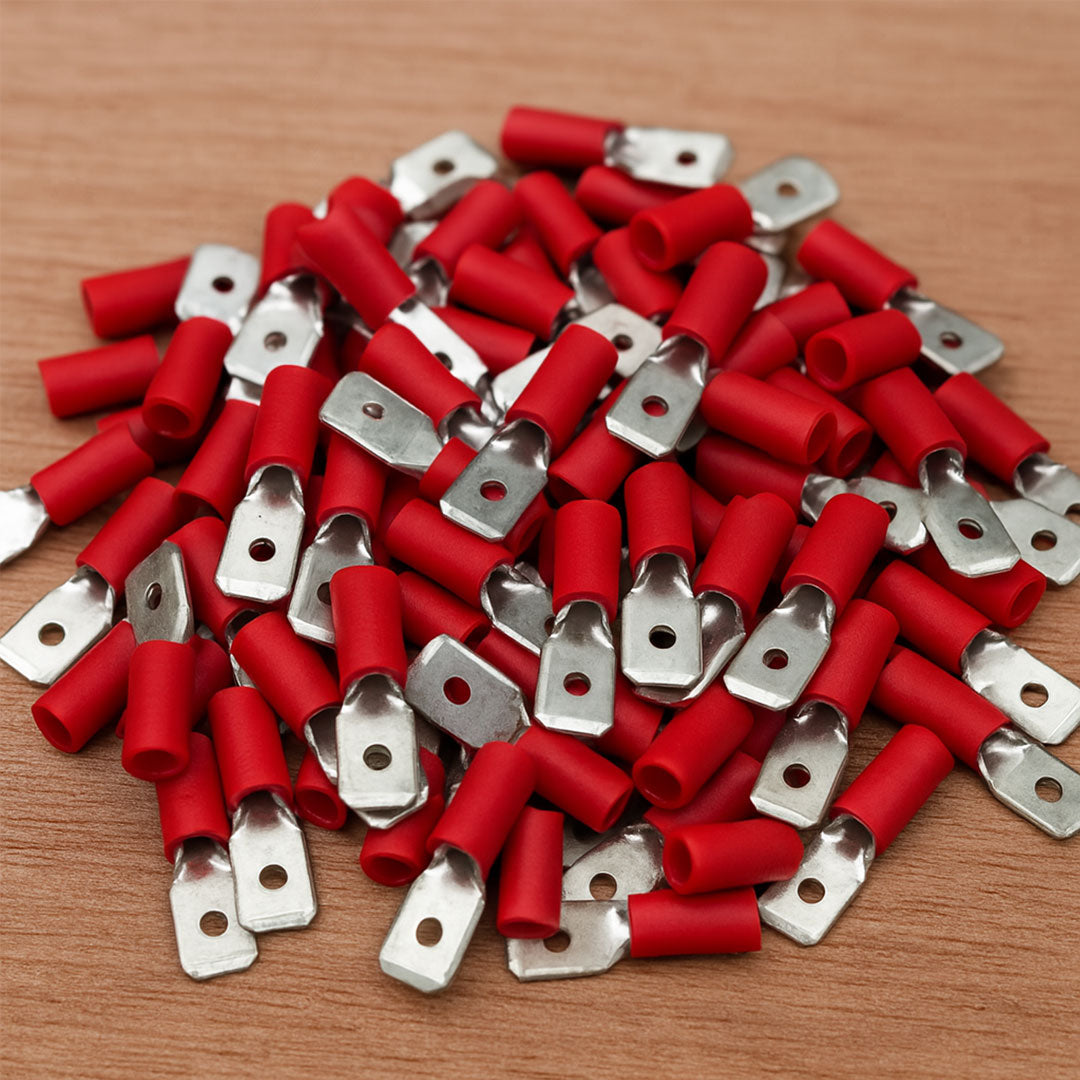

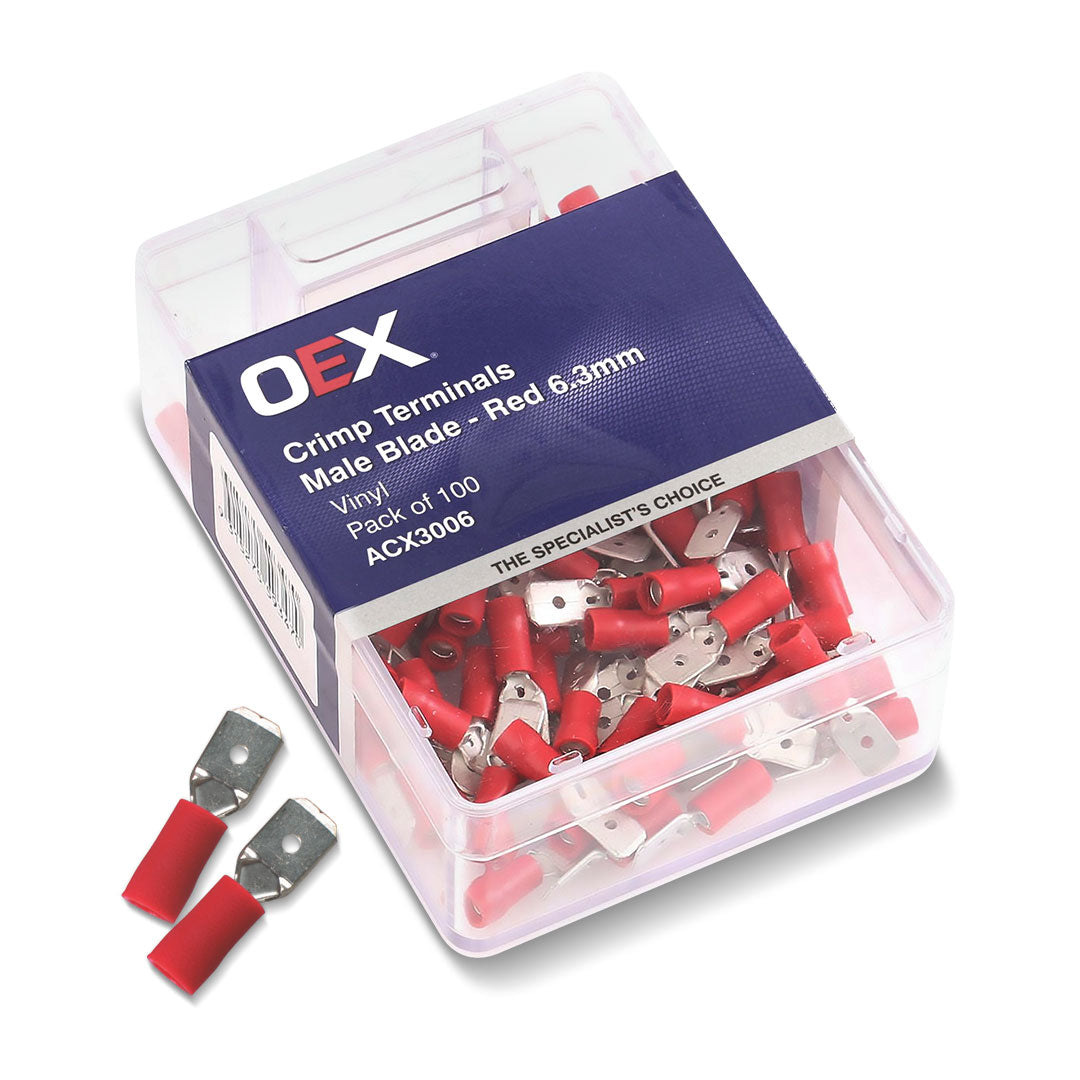

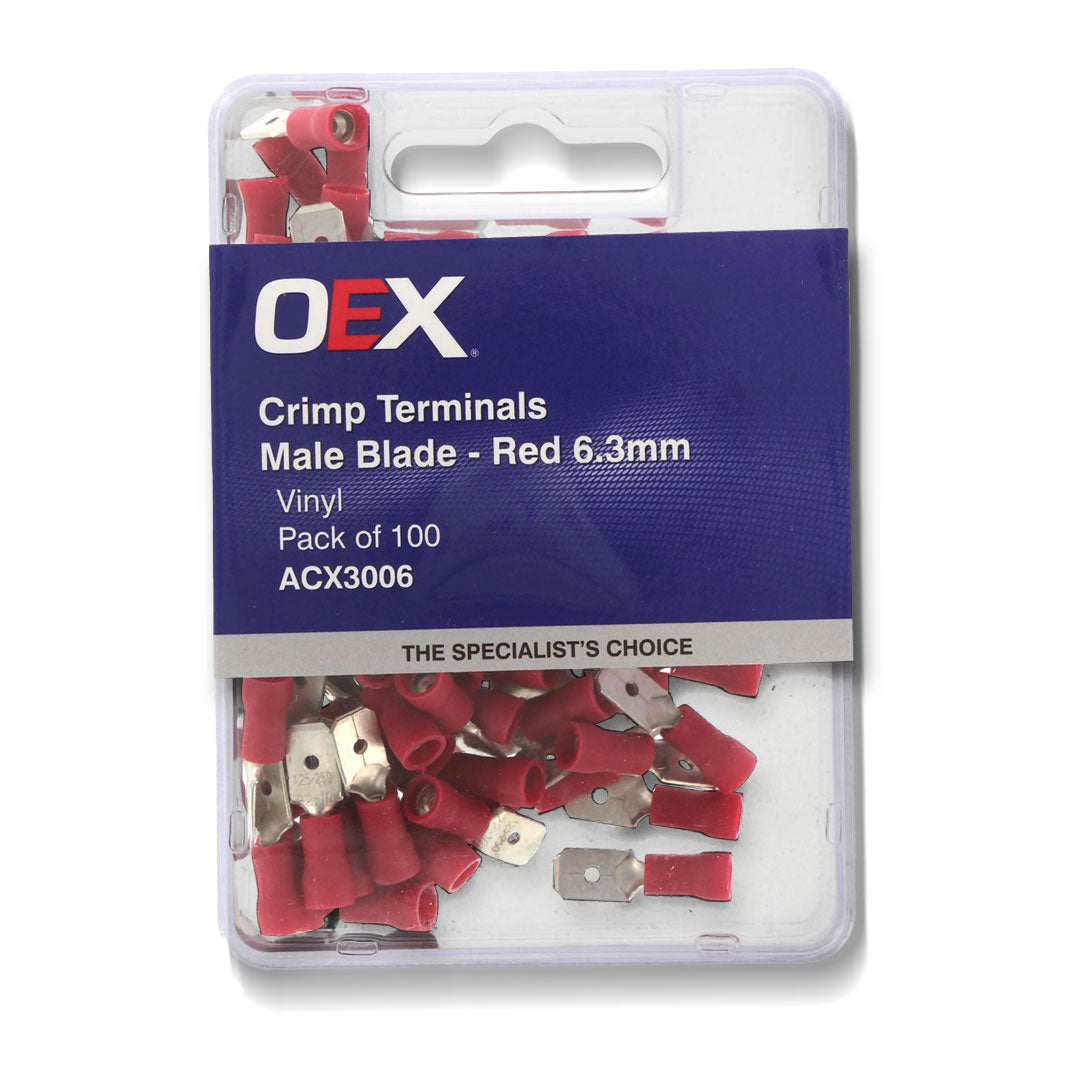

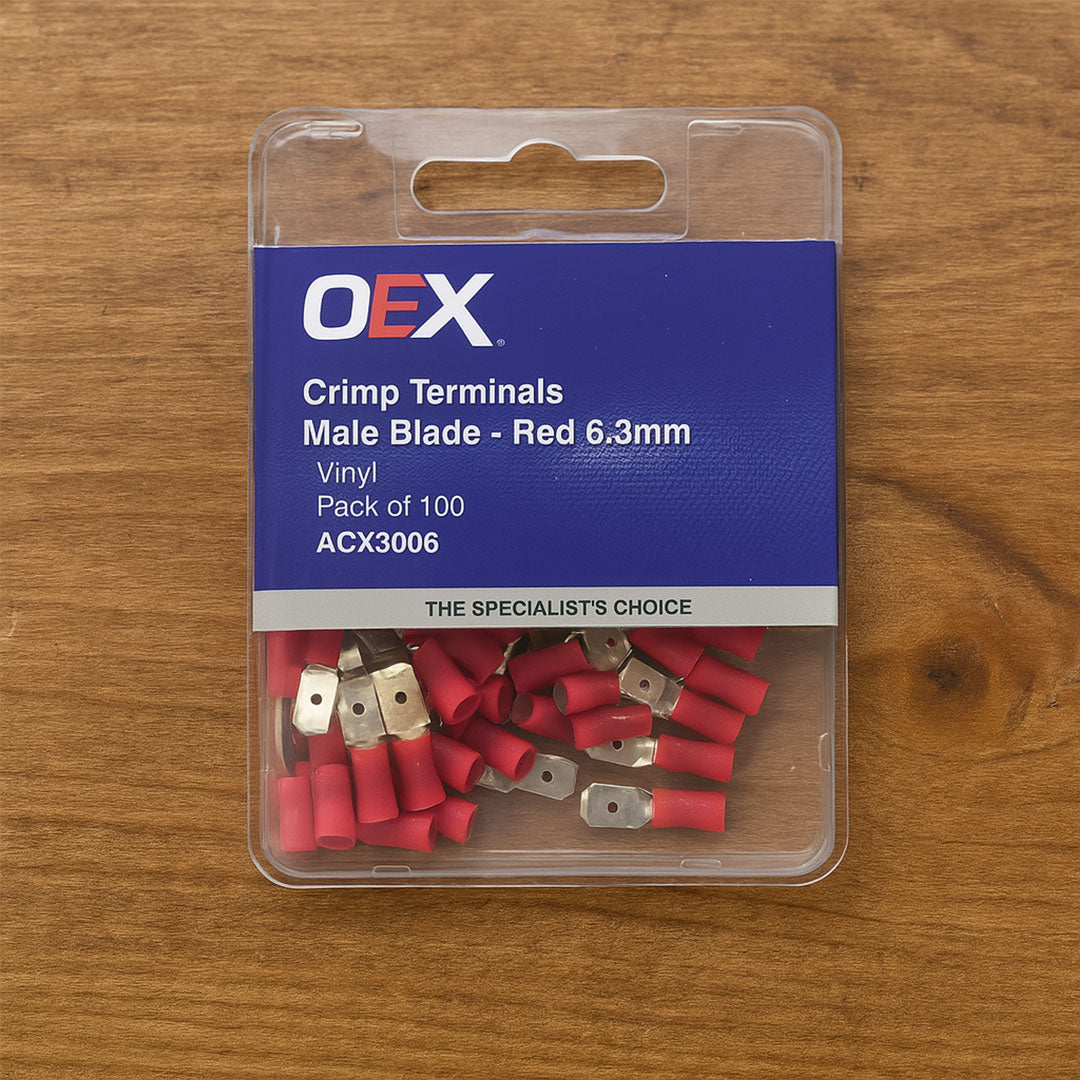

The OEX ACX3006 is a 6.3mm male blade crimp terminal in red, supplied in a pack of 100. The vinyl insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper construction ensures reliable conductivity and corrosion resistance. The red colour coding indicates compatibility with the 0.5 to 1.5mm² cable range in the standard automotive terminal colour convention. Covered by a one year warranty.

Product overview

The 6.3mm male blade terminal is one of the most widely used automotive crimp terminal sizes, mating with standard 6.3mm female blade receptacles used throughout vehicle wiring harnesses, relay sockets, fuse holders and accessory connectors. The double crimp design has two separate crimp zones one grips the bare conductor for the electrical connection, and one grips the cable insulation for strain relief preventing the terminal from pulling off the cable under tension.

The red vinyl insulation follows the standard automotive terminal colour convention for the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp. A ratchet crimping tool designed for insulated terminals in the red range is recommended for reliable crimps that meet pull-out force requirements. The pack of 100 suits trade workshops.

Features and benefits

6.3mm x 0.8mm male blade: Standard automotive blade terminal size, mating with 6.3mm female blade receptacles used widely in vehicle wiring harnesses and accessory connectors.

Red vinyl insulation: Colour codes the 0.5 to 1.5mm² cable range following the standard automotive terminal convention.

Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.

Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.

Pack of 100: Trade-friendly workshop quantity.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX3006
Brand OEX
Terminal Type Male Blade
Terminal Size 6.3mm x 0.8mm
Insulation Vinyl, Red
Cable Range 0.5 to 1.5mm²
Construction Double crimp
Material Tin plated copper
Pack Quantity 100
Weight 0.08kg
Warranty One year
Sold As Pack of 100

Frequently asked questions

What does the red colour indicate? Red is the standard colour code for automotive crimp terminals suited to the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.

What is a double crimp terminal? A double crimp terminal has two crimp zones one that grips the bare conductor for the electrical connection, and one that grips the cable insulation for strain relief, preventing the terminal from pulling off the cable under tension.

What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the red (0.5 to 1.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.

What is the mating receptacle size for this terminal? This terminal is 6.3mm wide and mates with standard 6.3mm female blade receptacles used widely in automotive wiring harnesses, relay sockets and accessory connectors.

Are these terminals available in other sizes or colours? OEX produces crimp terminals in a range of types, sizes and cable ranges. Check the OEX terminal range for other available options.
