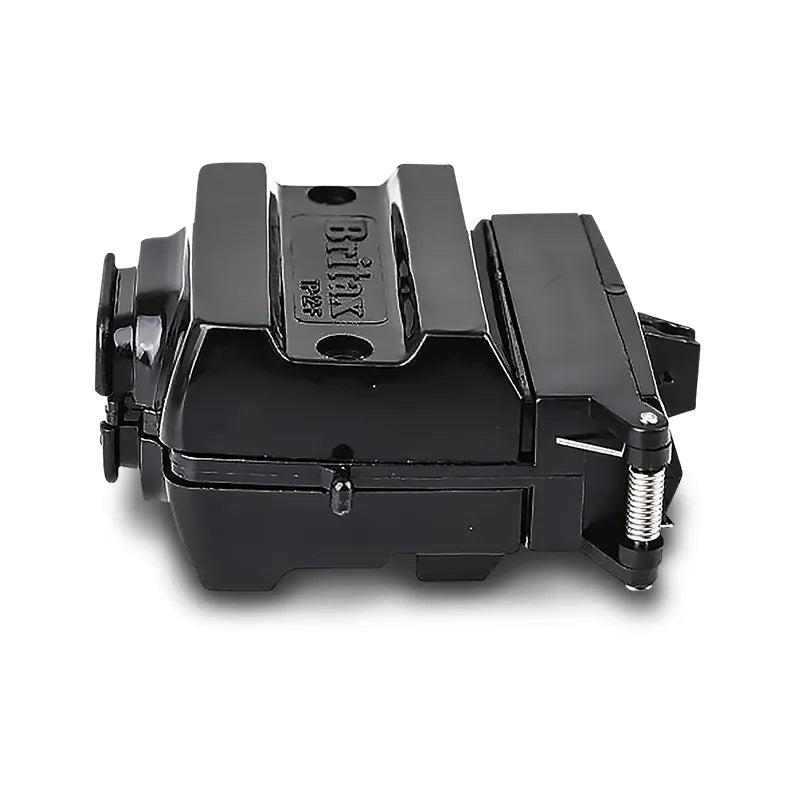

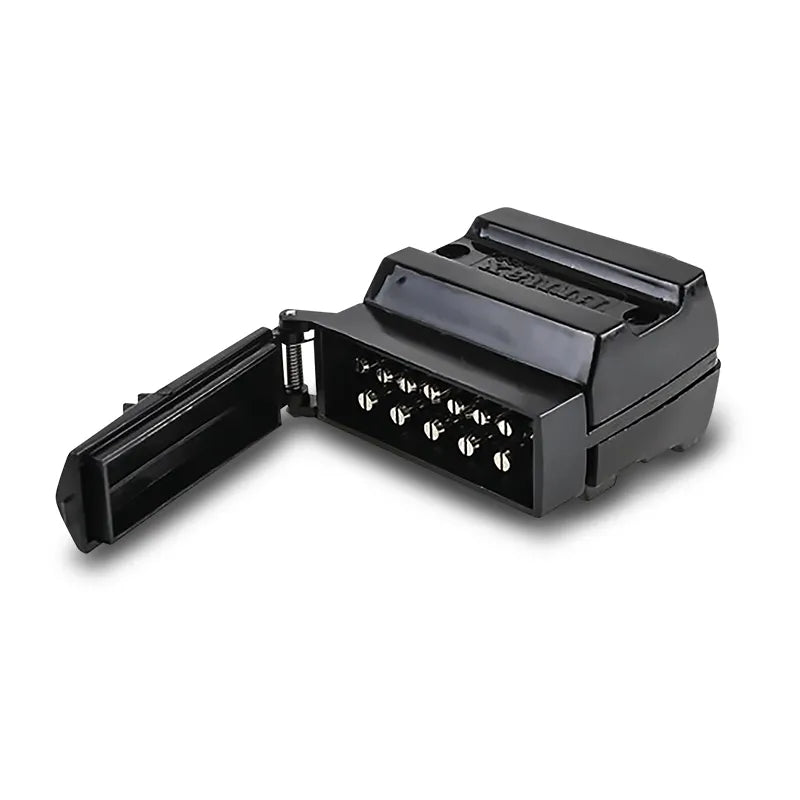

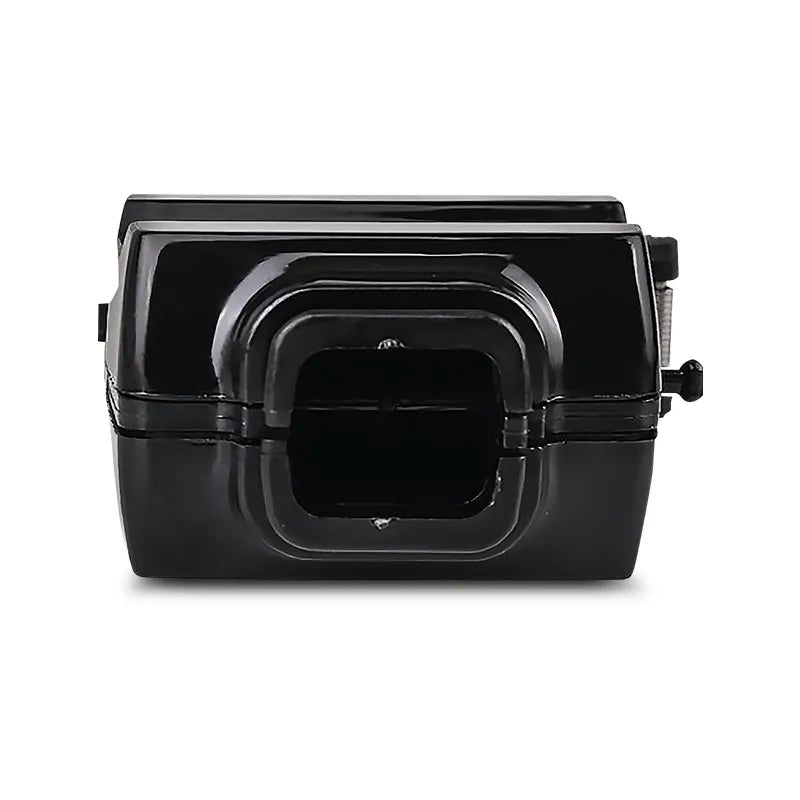

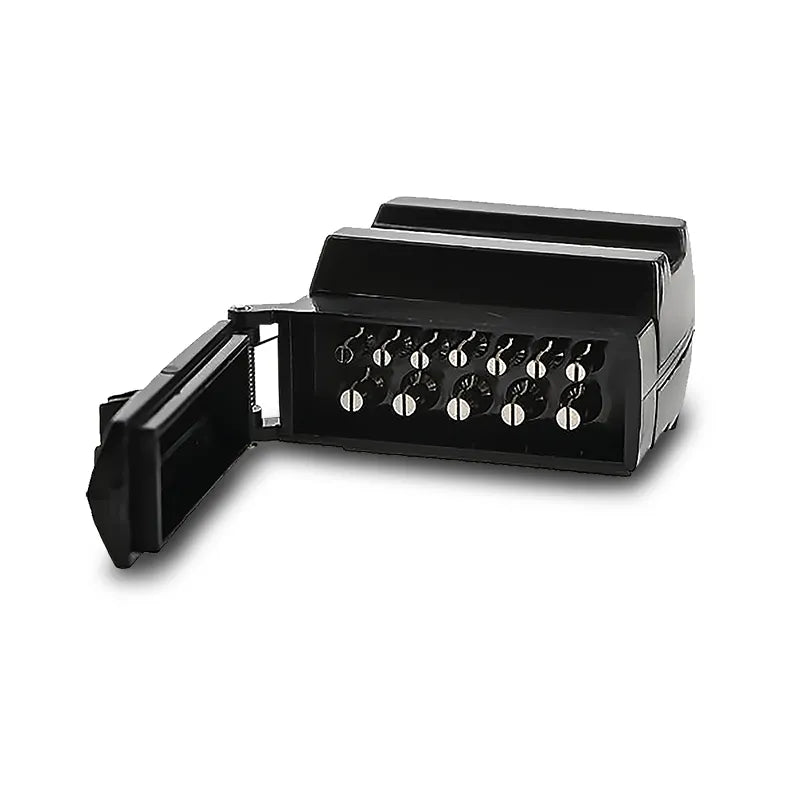

OEX ACX2812 Trailer Plug 12 Pin Flat - Plastic

OEX ACX2812 12 Pin Flat Trailer Plug Dual Row 7-Pin 20A and 5-Pin 35A Nickel Plated Brass Caravan Side

The OEX ACX2812 is a 12-pin flat trailer plug in a dual-row configuration, combining a 7-pin row (rated 20A) and a 5-pin row (rated 35A) in a single connector. The ACX2812 is the plug (trailer and caravan side) counterpart to the ACX2811 socket. The 7-pin section handles standard trailer lighting and braking circuits, while the 5-pin section accommodates higher-current auxiliary connections such as battery charging, 240V shore power switching or air conditioning control. Nickel plated brass pins secured with Phillips head screws. Plastic wire cap included. Supplied as a single unit. Covered by a one year warranty.

Product overview

The ACX2812 is the plug counterpart to the ACX2811 socket, completing the 12-pin flat connection pair. The plug fits on the trailer or caravan wiring cable and connects to the ACX2811 socket on the towing vehicle's tow bar. The dual-row format carries the same seven standard trailer circuits in the 20A row and up to five auxiliary circuits in the 35A row, suited to modern caravans with electrical systems beyond what the standard 7-pin flat can accommodate.

The nickel plated brass pins are secured with Phillips head screws for straightforward terminal tightening and reliable long-term connections. The plastic wire cap protects wiring entries from moisture and debris. Match circuits to the correct row based on current requirements: the 7-pin row for lighting, braking and standard circuits, and the 5-pin row for battery charging, 240V switching, air conditioning and other high-draw services.

Features and benefits

12-pin flat dual-row format: Combines a 7-pin row for standard lighting and braking with a 5-pin row for higher-current auxiliary services in a single connector.

7-pin row rated 20A: Handles standard trailer lighting, brake lights, indicators, reverse lights and electric brake control.

5-pin row rated 35A: Accommodates higher-current auxiliary circuits such as battery charging, 240V switching and air conditioning control for modern caravans.

Plug (trailer and caravan side): The male connector on the caravan or trailer wiring cable. The matching vehicle-side socket is the OEX ACX2811.

Nickel plated brass pins: Reliable conductivity and corrosion resistance across all 12 circuits.

Phillips head screws: Straightforward terminal tightening for reliable wiring connections.

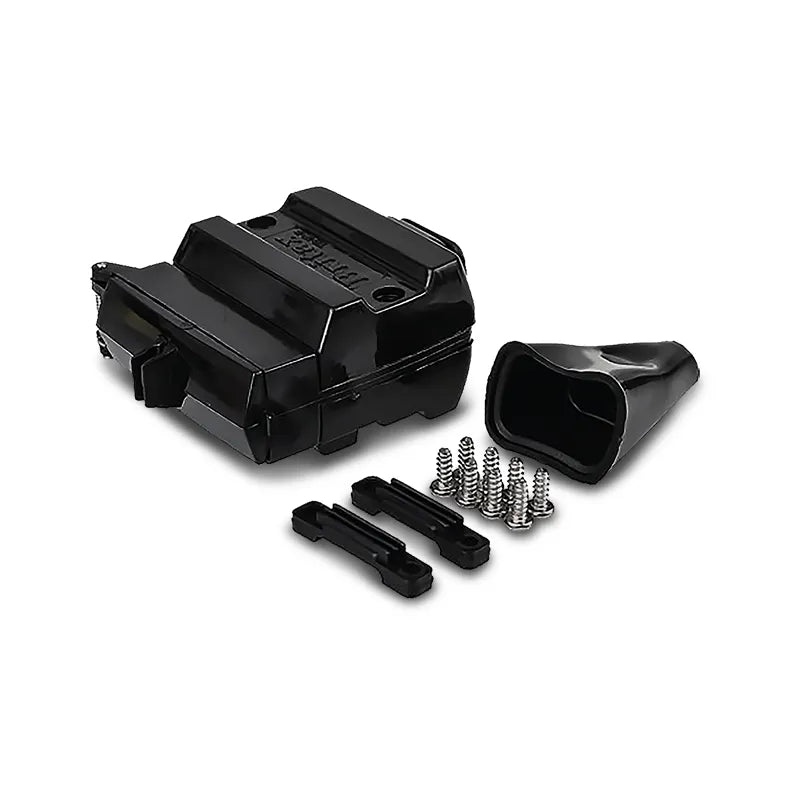

Plastic wire cap included: Protects wiring entries from moisture and debris.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Frequently asked questions

What is the difference between a plug and a socket? The plug is the male connector and fits on the trailer or caravan wiring cable. The socket is the female connector and fits on the towing vehicle's tow bar. The ACX2812 is the plug (trailer and caravan side). The matching vehicle-side socket is the OEX ACX2811.

What are the amp ratings for each row? The 7-pin row is rated at 20A per circuit and the 5-pin row is rated at 35A per circuit. Match circuits to the correct row based on current requirements.

What is a 12-pin flat connector used for? The 12-pin flat connector extends the standard 7-pin format with an additional 5-pin auxiliary row. The 7-pin row handles standard lighting and braking, while the 5-pin row carries higher-current circuits such as battery charging, 240V AC switching, air conditioning control and other caravan auxiliary loads.

Is the matching socket included? No. The ACX2812 is the plug only. The matching vehicle-side socket is the OEX ACX2811, sold separately.

Is this plug weatherproof? Weatherproofing is not specified for this SKU. Confirm the sealing specification with OEX if weatherproofing is a requirement for your installation.
