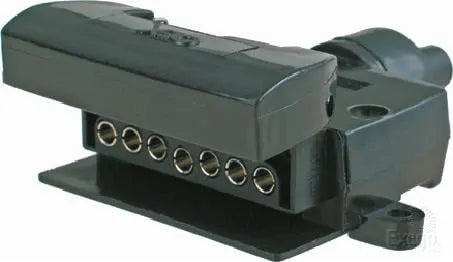

OEX ACX2805 Trailer Socket 7 Pin Flat, Plastic
Click to open expanded view
OEX logo

OEX ACX2805 Trailer Socket 7 Pin Flat, Plastic

SKU: ACX2805
Price
$22
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX2805 7 Pin Flat Trailer Socket 15A 12V Surface Mount Chrome Plated Brass Terminals Australian Standard

The OEX ACX2805 is a 7-pin flat trailer socket rated at 15A and 12V, with a plastic surface mount housing and chrome plated brass terminals. The 7-pin flat connector is the standard trailer socket format used across Australia for caravans, trailers, horse floats and boat trailers. The surface mount design allows the socket to be fitted to a tow bar, chassis rail or body panel. The matching plug for this socket is the OEX ACX2804. Supplied as a single unit. Covered by a one year warranty.

Product overview

The 7-pin flat socket is the female, vehicle-side connector in the Australian standard trailer connection system. It mounts to the tow bar, chassis rail or body panel and accepts the 7-pin flat plug from the trailer wiring harness. The ACX2805 carries seven circuits following the Australian standard AS4177, including left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit.

The chrome plated brass terminals provide reliable conductivity and corrosion resistance across all seven circuits. The surface mount housing attaches directly to a flat surface using screws through the housing. At 15A the socket suits standard trailer lighting and electric brake controller circuits.

Features and benefits

7-pin flat format: Australian standard trailer socket format for caravans, trailers, horse floats and boat trailers.

Surface mount: Mounts directly to a tow bar, chassis rail or body panel using screws through the housing.

15A at 12V: Suited to standard trailer lighting and electric brake controller circuits.

Chrome plated brass terminals: Reliable conductivity and corrosion resistance across all seven circuits.

Plastic housing: Lightweight and durable for automotive and trailer applications.

Matches OEX ACX2804 plug: The ACX2804 7-pin flat plug is the direct counterpart for this socket.

Single unit: For new installation or replacement of a damaged 7-pin flat socket.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX2805
Brand OEX
Connector Type 7 Pin Flat
Style Socket (vehicle and tow bar side)
Mount Type Surface mount
Current Rating 15A
Voltage 12V
Housing Material Plastic
Terminal Material Chrome plated brass
Pack Quantity 1
Weight 0.08kg
Warranty One year
Sold As Single unit

Frequently asked questions

What is the difference between a trailer plug and socket? The socket is the female connector, typically mounted on the vehicle tow bar or chassis. The plug is the male connector, typically on the trailer cable or wiring harness. The ACX2805 is the socket (female, vehicle side). The matching plug is the ACX2804.

What circuits does a 7-pin flat connector carry? A standard 7-pin flat connector carries left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit, following the Australian standard AS4177.

How is this socket mounted? The ACX2805 is a surface mount socket that mounts directly to a flat surface such as a tow bar, chassis rail or body panel using screws through the housing.

Is this socket weatherproof? Weatherproofing is not specified for this SKU. For exposed or demanding installations, consider a heavy duty or sealed trailer socket from the OEX range.

What plug does this socket accept? The ACX2805 accepts a standard 7-pin flat trailer plug such as the OEX ACX2804, and any other Australian standard 7-pin flat plug.
