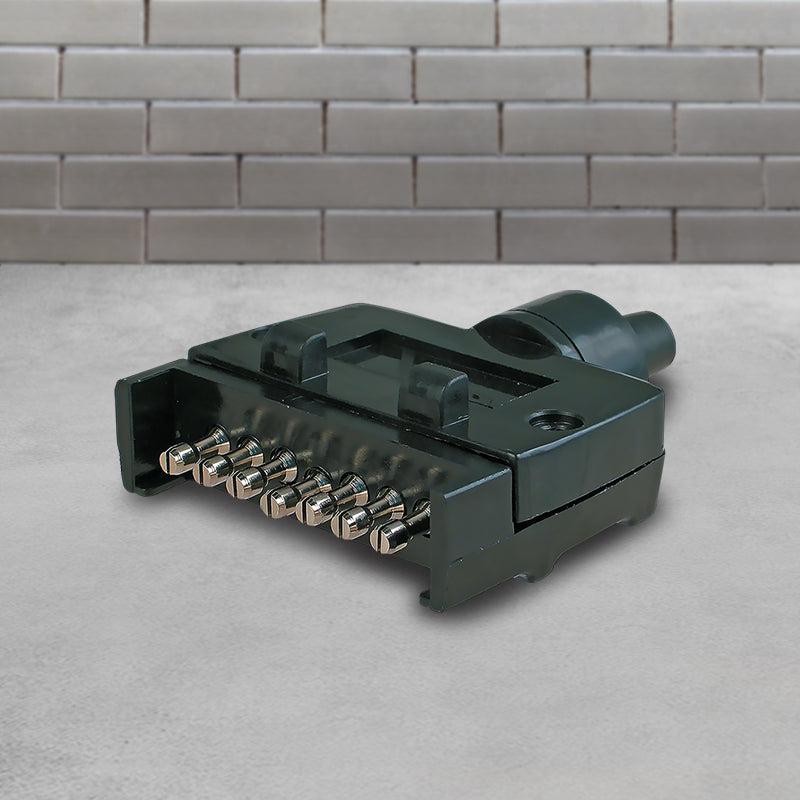

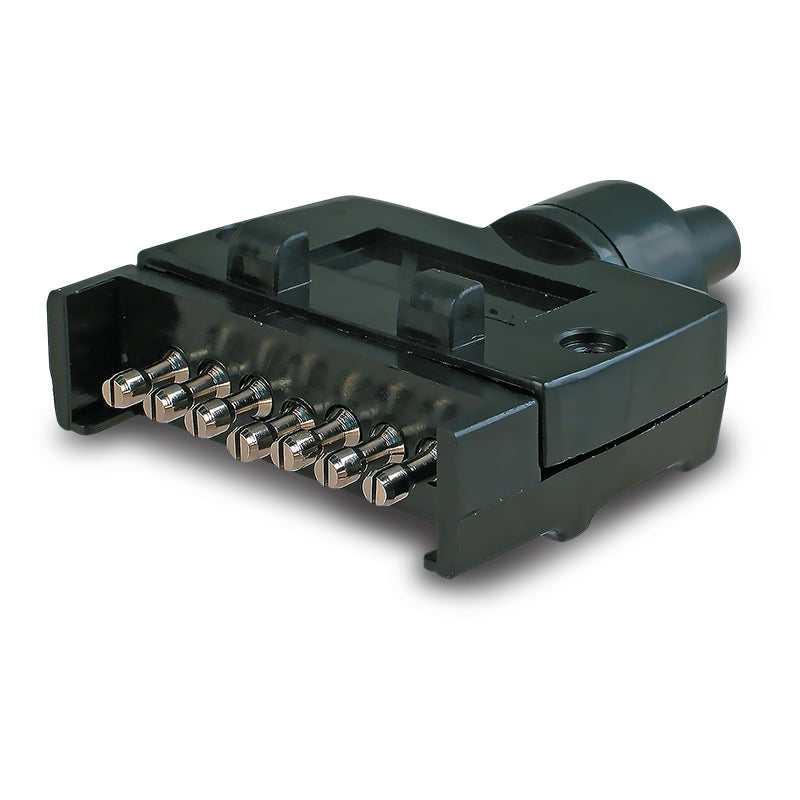

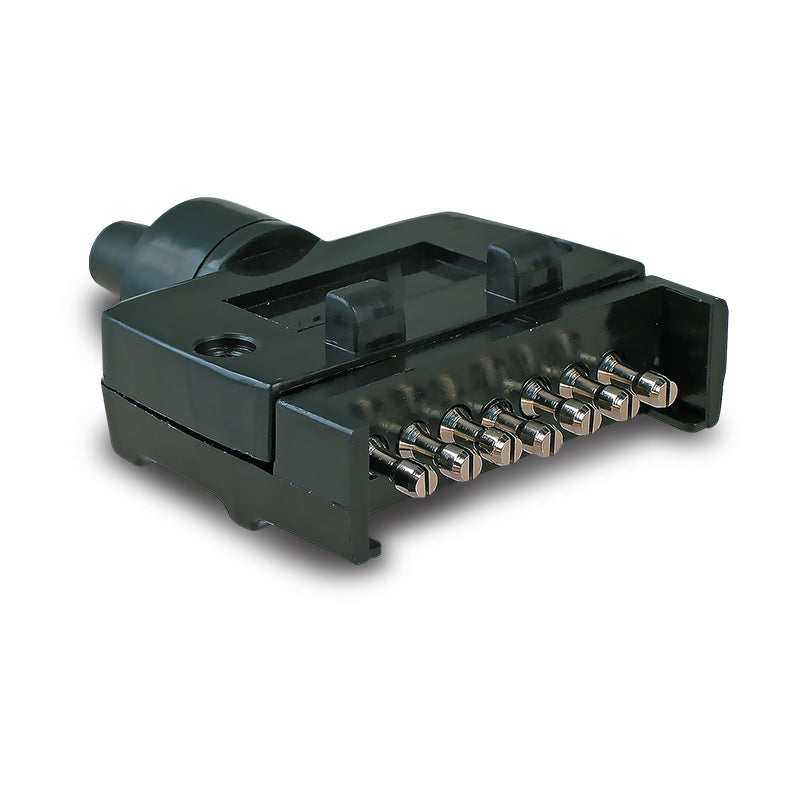

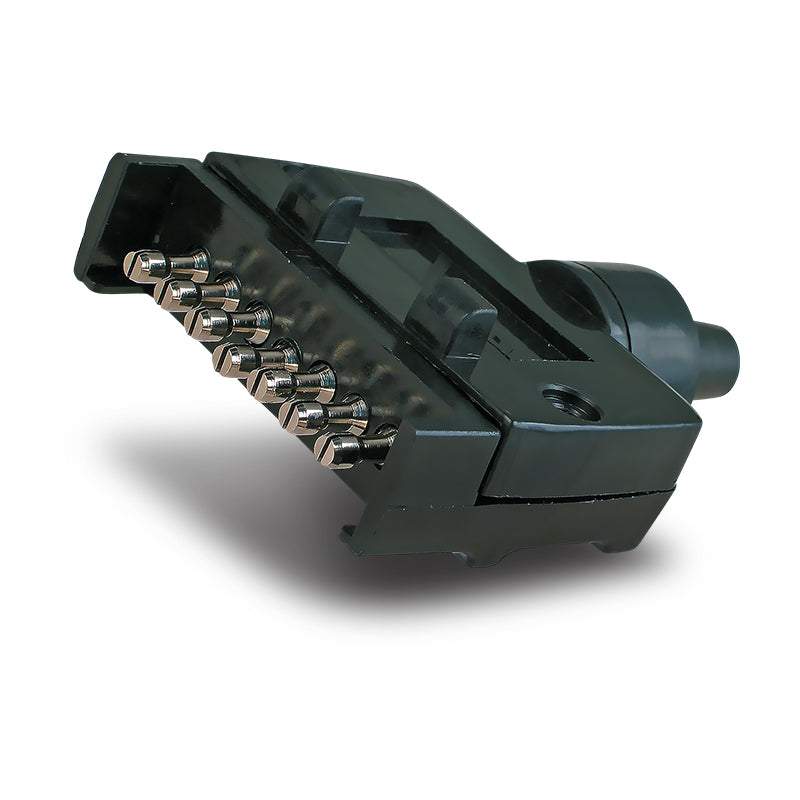

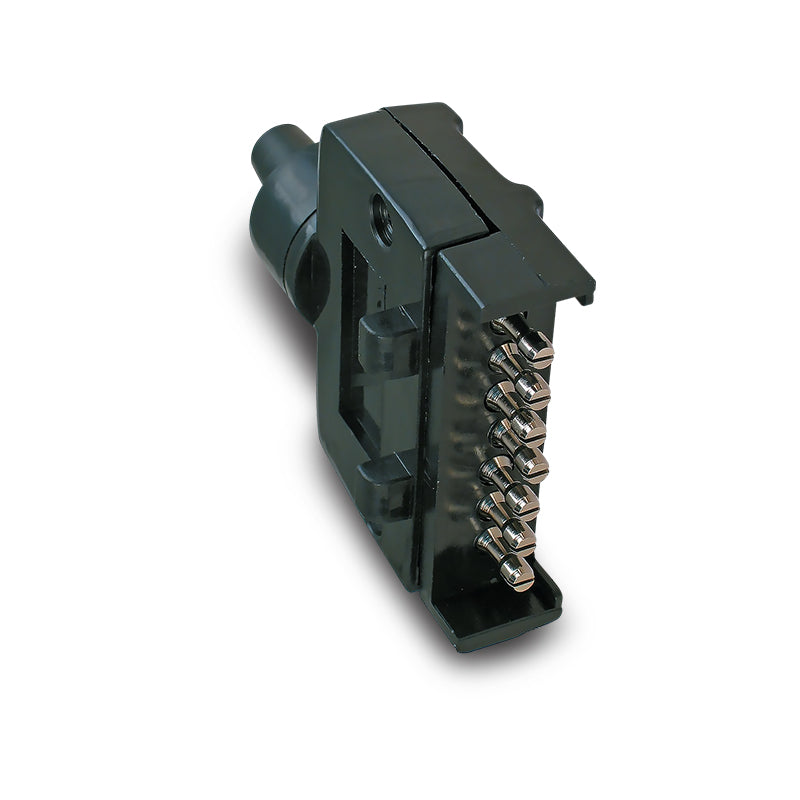

OEX ACX2804 Trailer Plug 7 Pin Flat, Plastic

SKU: ACX2804
Price
$22
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX2804 7 Pin Flat Trailer Plug 15A 12V Brass Chrome Plated Terminals Australian Standard

The OEX ACX2804 is a 7-pin flat trailer plug rated at 15A and 12V, with a plastic housing and brass chrome plated terminals. The 7-pin flat connector is the standard trailer plug format used across Australia for caravans, trailers, horse floats and boat trailers, providing connections for brake lights, indicators, tail lights, reverse lights and electric brake control. Supplied as a single unit. Covered by a one year warranty.

Product overview

The 7-pin flat is the Australian standard trailer connector, carrying seven circuits between the towing vehicle and the trailer including left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit. Pin assignments follow the Australian standard AS4177. The ACX2804 is the plug (male, vehicle side), compatible with any standard 7-pin flat socket on a tow bar or trailer.

The brass chrome plated terminals provide reliable conductivity and corrosion resistance for the multiple circuits carried by the connector. At 15A the plug suits standard trailer lighting and electric brake controller circuits. For circuits with higher current requirements, verify the circuit current does not exceed the 15A plug rating.

Features and benefits

7-pin flat format: Australian standard trailer plug format for caravans, trailers, horse floats and boat trailers.

15A at 12V: Suited to standard trailer lighting and electric brake controller circuits.

Brass chrome plated terminals: Reliable conductivity and corrosion resistance across all seven circuits.

Plastic housing: Lightweight and durable for trailer applications.

Single unit: For new installation or replacement of a damaged 7-pin flat plug.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX2804
Brand OEX
Connector Type 7 Pin Flat
Style Plug (vehicle side)
Current Rating 15A
Voltage 12V
Housing Material Plastic
Terminal Material Brass chrome plated
Pack Quantity 1
Weight 0.06kg
Warranty One year
Sold As Single unit

Frequently asked questions

What is a 7-pin flat trailer plug? The 7-pin flat is the standard Australian trailer connector format. It has seven flat blade pins arranged in a flat configuration and connects the towing vehicle's electrical system to the trailer, carrying circuits for left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charge circuit.

What is the difference between a plug and a socket? The plug is the male connector and fits on the towing vehicle's wiring harness or trailer cable. The socket is the female connector and fits on the vehicle tow bar or trailer. The ACX2804 is the plug (male). A matching 7-pin flat socket is required on the other end of the connection.

What circuits does a 7-pin flat connector carry? A standard 7-pin flat connector carries left indicator, right indicator, tail and marker lights, brake lights, reverse lights, electric brake control and a battery charging circuit. Pin assignments follow the Australian standard AS4177.

Is this connector weatherproof? Weatherproofing is not specified for this SKU. For exposed or demanding installations, consider a heavy duty or sealed trailer plug from the OEX range.

What is the amp rating per circuit? This plug is rated at 15A. For circuits with higher current requirements such as electric brake controllers or battery chargers, verify the circuit current does not exceed the 15A rating before use.
