OEX ACX2761 50A Genuine Anderson Plug Connector Red - 1 Pair with Terminals
Click to open expanded view
OEX logo

OEX ACX2761 50A Genuine Anderson Plug Connector Red - 1 Pair with Terminals

SKU: ACX2761
Price
$23
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

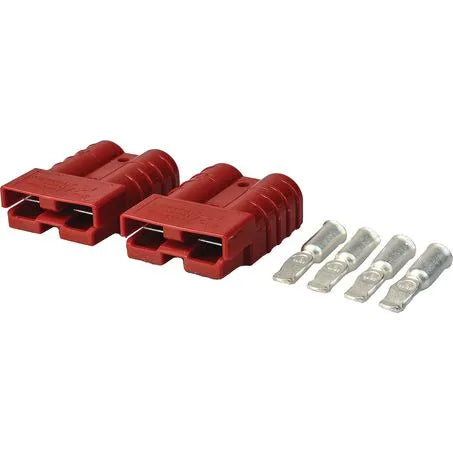

OEX ACX2761 Genuine Anderson SB50 50A Red Connector 1 Pair with 4 Silver Plated Copper Terminals

The OEX ACX2761 is a genuine Anderson 50A plug connector in red, supplied as one pair of housings with four silver plated copper terminals. Functionally identical to the grey ACX2760, the red colour provides an alternative for systems where colour coding is used to distinguish circuits, such as 24V systems, high-current feeds, or specific wiring conventions where grey and red Anderson plugs serve different roles. Single-piece polycarbonate housing, mechanically keyed to prevent incorrect polarity connection. Suits up to 8 B&S cable. Also available in a bulk pack of 5 pairs as ACX2761B. Covered by a one year warranty.

Product overview

In Australian 12V and 24V wiring, grey is the most common Anderson plug colour. Red is commonly used to distinguish 24V systems from 12V, to colour-code specific circuits in a multi-connector installation, or to meet a specific wiring convention where colour separation between circuits is needed. The red and grey connectors are mechanically identical and will mate with each other correctly, with colour being the only difference.

The ACX2761 supplies genuine Anderson brand connectors, not generic equivalents. Genuine Anderson connectors are manufactured to precise tolerances and specific contact materials that ensure reliable mating force and conductivity. Generic equivalents may not mate correctly with genuine Anderson housings, causing poor contact or connection failure. The mechanical keying of the SB50 housing prevents incorrect polarity connection. The pack of one pair with four terminals provides everything needed to make a complete two-wire connection on both ends of a cable.

Features and benefits

Genuine Anderson SB50, not a generic equivalent: Manufactured to Anderson's precise tolerances, fully interchangeable with all genuine Anderson SB50 connectors across colours.

50A rated: Standard current rating for dual battery, solar and portable power applications in Australian 4WD and caravan installations.

Red colour for colour-coded installations: Commonly used to distinguish 24V from 12V systems, separate specific circuits, or meet a wiring convention where colour differentiation is required.

Mechanically keyed: Single-piece polycarbonate housing prevents incorrect polarity connection.

Silver plated copper terminals: Excellent conductivity and corrosion resistance for reliable long-term contact.

Suits up to 8 B&S cable: The standard battery cable size for 50A Anderson plug applications.

1 pair with 4 terminals: Everything needed to make a complete two-wire connection on both ends of a cable.

Also available in bulk pack of 5 pairs: The ACX2761B is the same red connector in a 5-pair bulk pack.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX2761
Brand OEX
Connector Type Anderson SB50
Current Rating 50A
Colour Red
Housing Material Single-piece polycarbonate
Terminal Material Silver plated copper
Cable Range Up to 8 B&S
Polarity Protection Mechanically keyed
Dimensions 16mm x 36mm x 48mm
Pack Contents 1 pair (2 housings) and 4 terminals
Weight 0.04kg
Warranty One year
Sold As 1 pair with 4 terminals

Frequently asked questions

Why would I use a red Anderson plug instead of grey? In Australian 12V and 24V wiring, grey is the most common Anderson plug colour. Red is commonly used to distinguish 24V systems from 12V, to colour-code specific circuits in a multi-connector installation, or to meet a wiring convention where circuit separation by colour is needed. The red and grey connectors are mechanically identical and the colour is the only difference.

Why specify genuine Anderson? Genuine Anderson connectors are manufactured to precise tolerances and use specific contact materials that ensure reliable mating force and conductivity. Generic equivalents may not mate correctly with genuine Anderson housings, causing poor contact or connection failure. Genuine Anderson SB50 connectors are fully interchangeable with all genuine Anderson SB50 products across brands.

Will a red Anderson plug mate with a grey Anderson plug? Yes. All standard Anderson SB50 connectors of the same format are mechanically interchangeable regardless of colour. Grey and red housings will mate correctly.

What cable does this connector suit? The ACX2761 suits up to 8 B&S cable (approximately 8.37mm² conductor cross-section). For heavier cable gauges, a larger Anderson connector format may be required.

Is this available in larger quantities? Yes. The ACX2761B is the same red connector available in a bulk pack of 5 pairs.
