Product features

Genuine Anderson 50A Connector for Dual Battery, Solar, and High-Current DC Applications

Product Overview

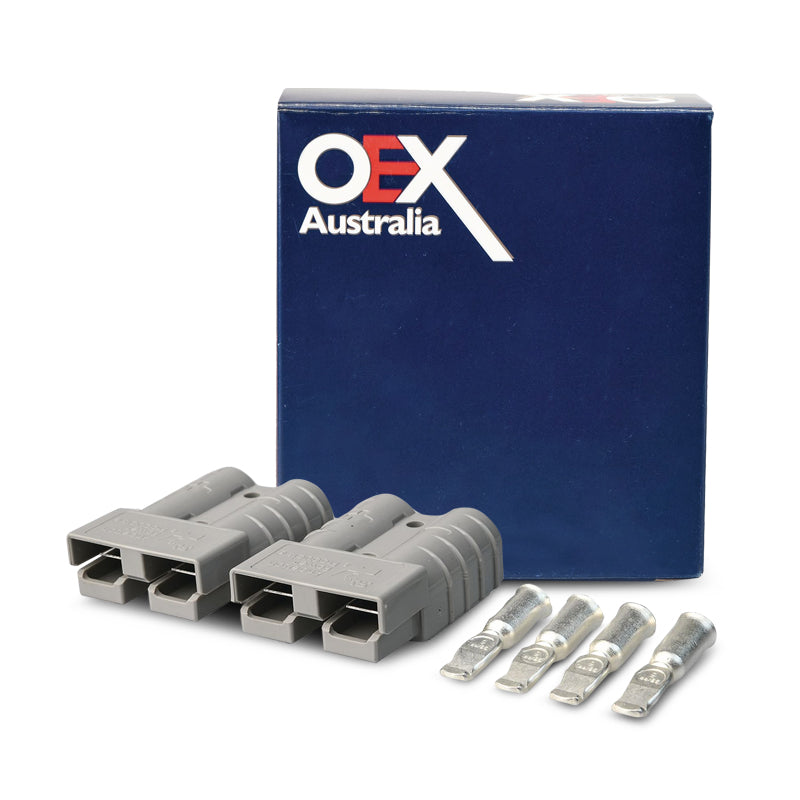

The OEX ACX2760B is a genuine Anderson 50A plug connector in grey, supplied as five pairs of housings with terminals. The Anderson SB50 is the industry standard connector for 12V and 24V DC high-current applications in Australian 4WD, caravan, solar, and commercial vehicle installations used universally for dual battery interconnects, solar panel connections, and portable power leads.

The single-piece polycarbonate housing is mechanically keyed, preventing incorrect polarity connection. Silver plated copper terminals suit up to 8 B&S cable. Connector dimensions are 16 x 36 x 48mm. The five-pair format suits workshops and installers running multiple Anderson plug connections. Also available as a single pair with terminals as ACX2760.

Features & Benefits

  • Genuine Anderson connector — not a generic equivalent; genuine Anderson brand SB50
  • 50A rated — standard current rating for dual battery, solar, and portable power applications
  • Mechanically keyed — prevents incorrect polarity connection
  • Single-piece polycarbonate housing — robust and lightweight
  • Silver plated copper terminals — excellent conductivity and corrosion resistance
  • Suits 8 B&S cable — standard battery cable size for 50A applications
  • Grey — the universal colour for 12V Anderson plug systems in Australia
  • 5 pairs with terminals — workshop-friendly bulk quantity
  • Also available as single pair — ACX2760

Technical Specs

Specification Detail
Part Number ACX2760B
Brand OEX
Connector Type Anderson SB50
Amp Rating 50A
Colour Grey
Housing Material Single-piece Polycarbonate
Terminal Material Silver Plated Copper
Cable Range Up to 8 B&S
Polarity Protection Mechanically Keyed
Dimensions 16 x 36 x 48mm
Pack Contents 5 pairs (10 housings) + terminals
Warranty 1 Year

Compatible With

Standard 50A Anderson plug applications including:

  • Dual battery system interconnects
  • Solar panel input connections
  • Portable power leads and jump starter connections
  • Caravan and camper trailer 12V power feeds
  • DC-DC charger and battery management system connections
  • Any 12V or 24V DC application rated up to 50A using 8 B&S cable

Weight

0.3kg

Frequently Asked Questions

What is an Anderson plug?

An Anderson plug (SB50) is a high-current DC connector widely used in Australian automotive and caravan applications. The two-pole connector provides a simple, robust, genderless connection point for 12V and 24V power systems. The grey 50A Anderson plug has become the de facto standard for dual battery interconnects, solar connections, and portable power in the Australian market.

Why specify genuine Anderson?

Genuine Anderson connectors are manufactured to precise tolerances and use specific contact materials that ensure reliable mating force and conductivity. Generic equivalents may not mate correctly with genuine Anderson housings, causing poor contact or connection failure. Genuine Anderson connectors are fully interchangeable with all genuine Anderson SB50 products across brands.

What cable does this connector suit?

The ACX2760B is rated for up to 8 B&S cable (approximately 8.37mm² conductor cross-section). For heavier cable gauges, a larger Anderson connector format may be required.

How many terminals are included in the pack?

The pack includes 5 pairs of housings (10 plugs) with terminals. Each housing requires 2 terminals — confirm the exact terminal count with OEX if required.

Is this available in smaller quantities?

Yes. The ACX2760 is the same connector available as a single pair with 4 terminals.
