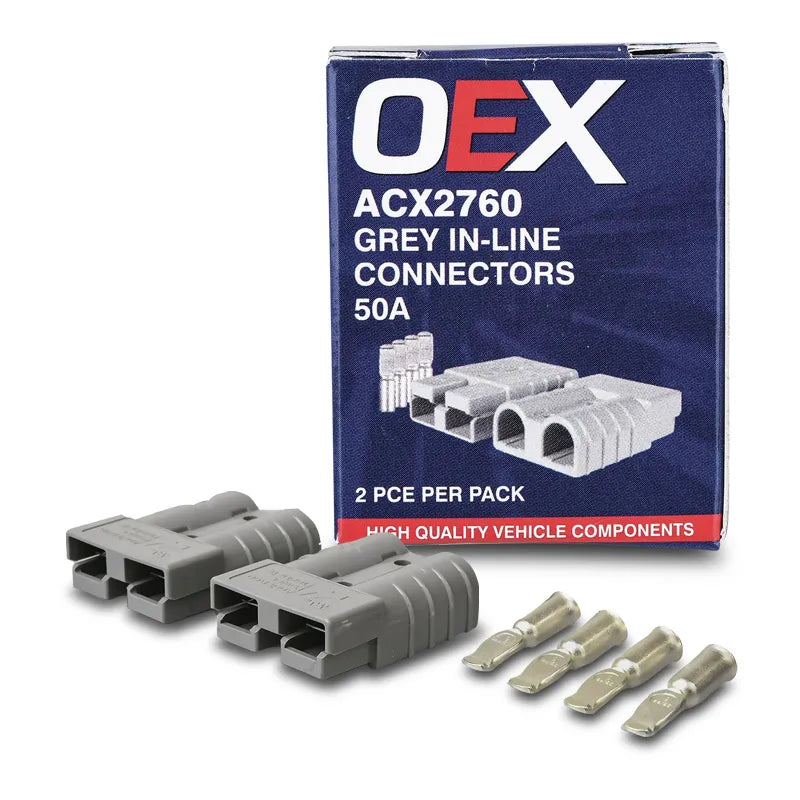

Blue OEX box behind two grey connectors and four contacts
Blue OEX box behind two grey connectors and four contacts

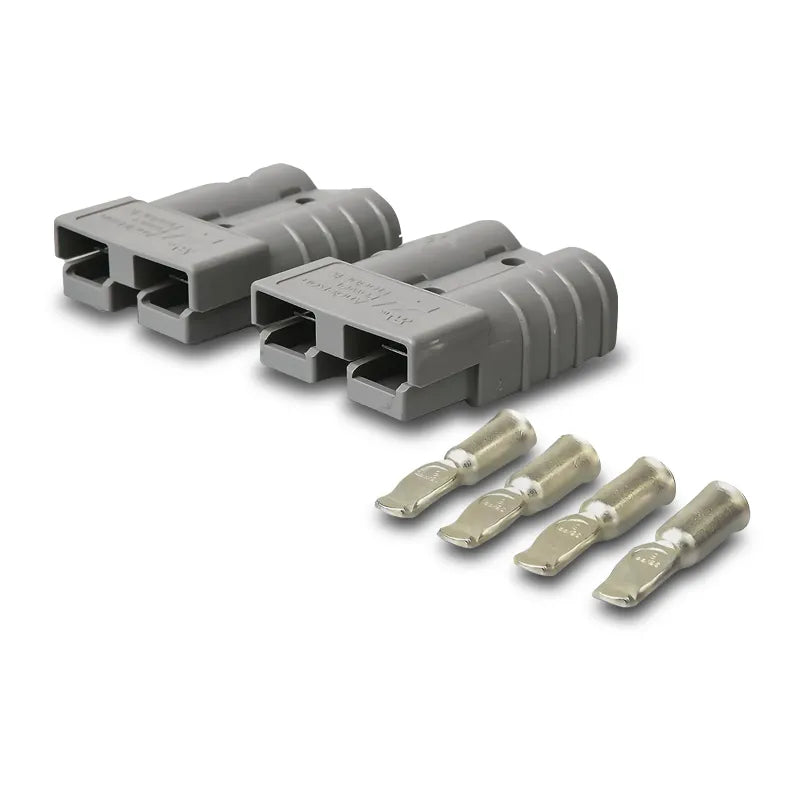

Two grey connectors with four crimp contacts laid in front
Two grey connectors with four crimp contacts laid in front

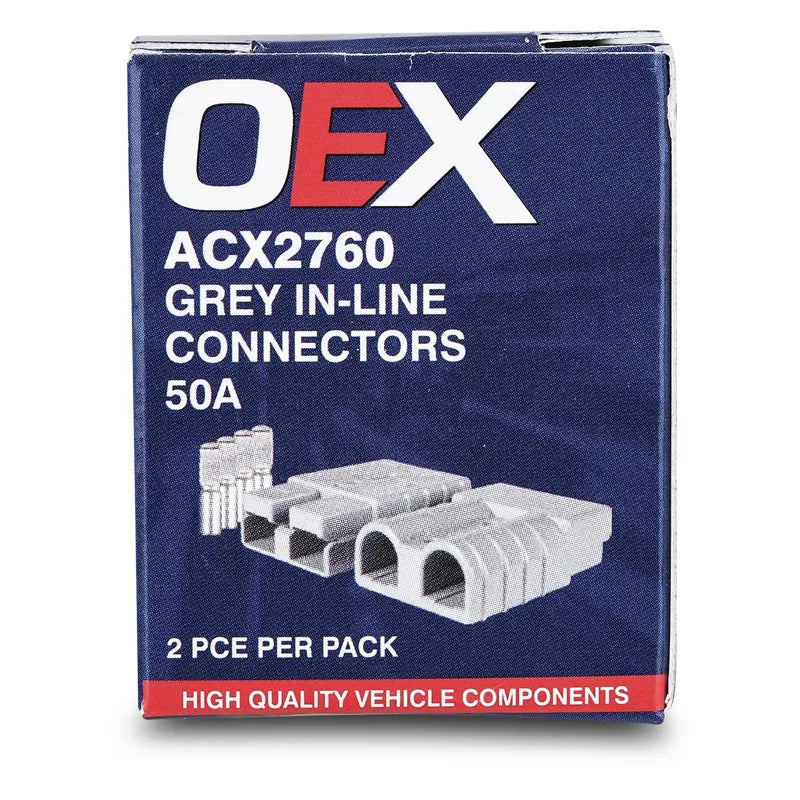

Front of the OEX box printed Grey In Line Connectors 50A, 2 PCE per pack
Front of the OEX box printed Grey In Line Connectors 50A, 2 PCE per pack

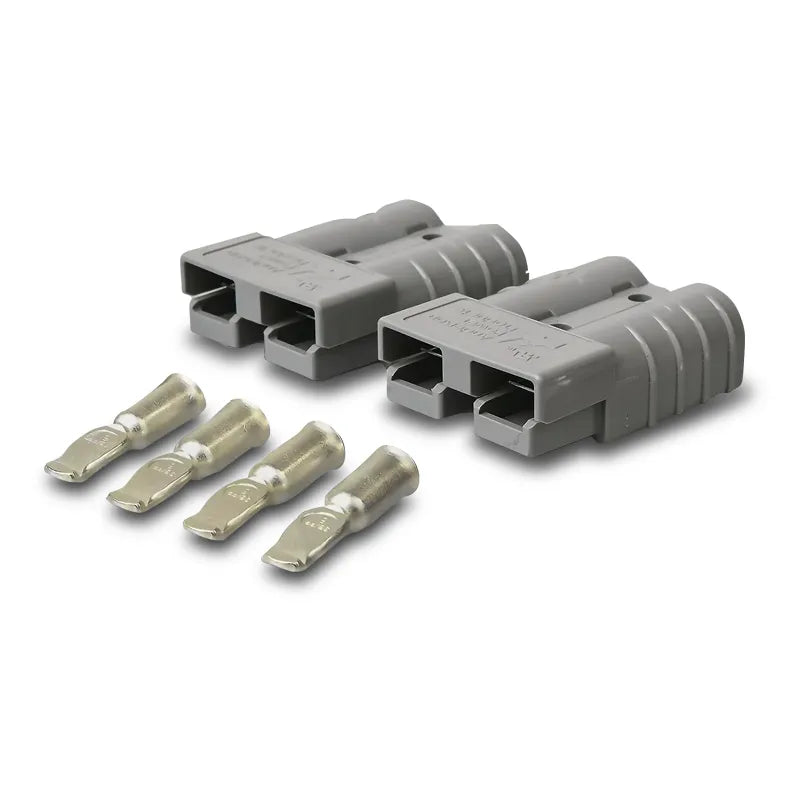

Connectors and contacts from a lower angle, contacts on the left
Connectors and contacts from a lower angle, contacts on the left
Click to open expanded view

Pairs perfectly with
OEX logo

OEX ACX2760 50A Genuine Anderson Plug Connector, Grey, 1 Pair with Terminals

SKU: ACX2760
5.0 (1)
Price
$23
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image
Clearance countdown sale! 45% off

Not on our shelf right now. We order this one in from our supplier.

Pairs perfectly with
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Blue OEX box behind two grey connectors and four contacts

OEX ACX2760 50A Genuine Anderson Plug Connector, Grey, 1 Pair with Terminals

$23

Product features

The OEX ACX2760 is a pair of genuine Anderson SB50 50A connectors in grey, with four silver plated copper terminals. That is enough to make a two wire connection at both ends of a cable, rated at 50A for cable up to 8 B&S.

Why genuine Anderson matters

Cheap copies often sit loose in a genuine housing, so the contact runs hot and power drops under load. On a fridge or a DC charger that means flat batteries. Genuine SB50 housings are made to Anderson's tolerances and mate with every other genuine SB50, whether it is on a caravan, a solar blanket or a mate's camper trailer.

Specifications

SKU ACX2760
Connector Anderson SB50
Rating 50A
Colour Grey
Housing Single piece polycarbonate, mechanically keyed
Terminals Silver plated copper
Cable Up to 8 B&S
Dimensions 16mm x 36mm x 48mm
Weight 0.06kg

What is in the pack

  • 2 x grey SB50 housings
  • 4 x silver plated copper terminals

Need more? The ACX2760B is the same connector in a bulk pack of 5 pairs.

Crimping tips

Use a proper Anderson crimper or a hex crimper sized for the cable. Hammer crimpers and pliers leave a weak joint. Push the terminal in until it clicks behind the housing spring, then tug test it. The housings are genderless, so keep red and black consistent across all your plugs.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Will it mate with my caravan's Anderson plug?

Yes, if that plug is a genuine SB50.

What size cable does it take?

Up to 8 B&S.

How many terminals come with it?

Four, two for each housing.

How are the SB50 terminals fitted?

Crimp each silver plated terminal onto cable up to 8 B&S with a proper Anderson crimper, then push it into the housing until it locks.
