OEX ACX2483BL LED Pilot Light Clear/Red/Green 12-24V Blade Terminals

OEX ACX2483BL LED Pilot Light 12V to 24V Clear Red and Green 16.1mm Panel Mount Blade Terminals

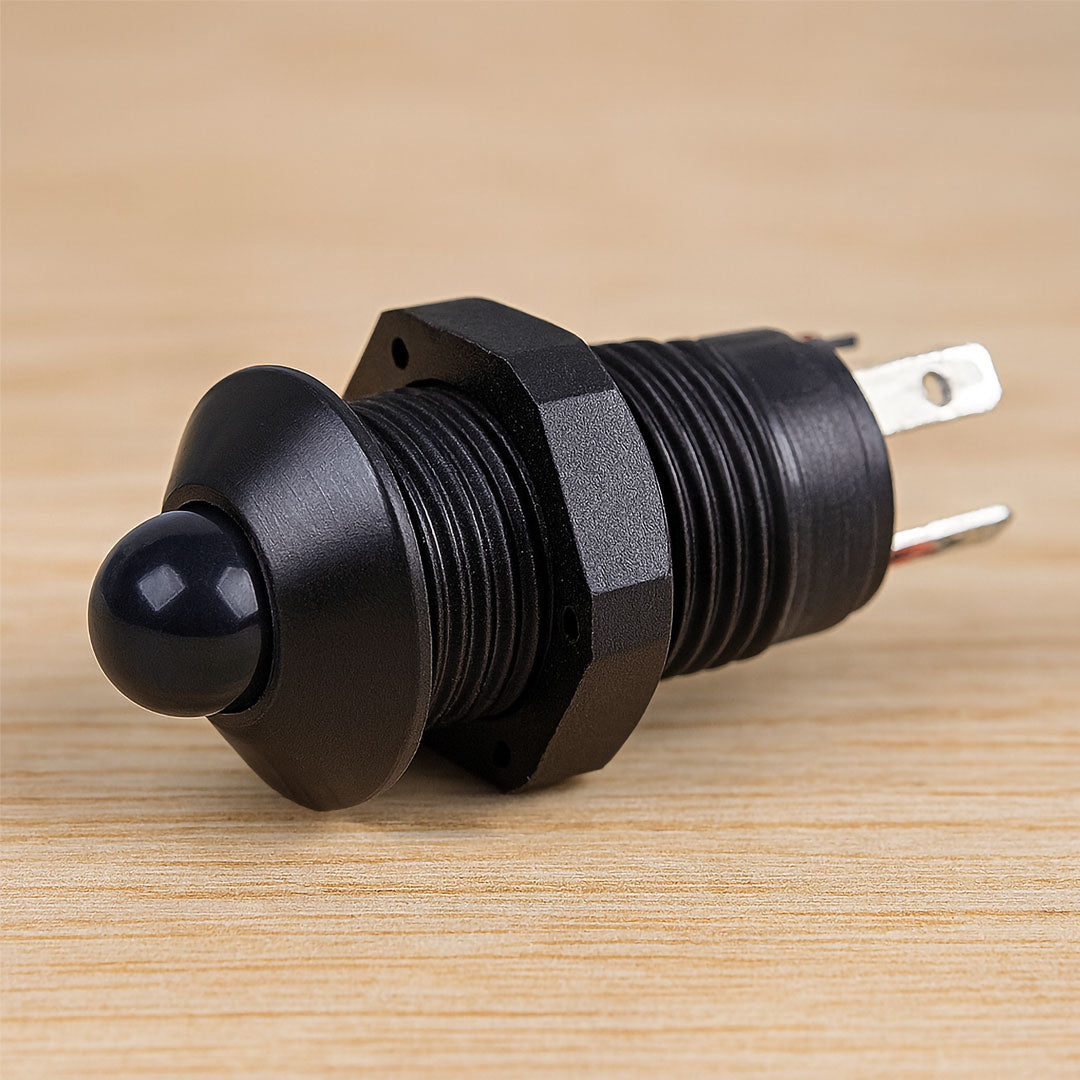

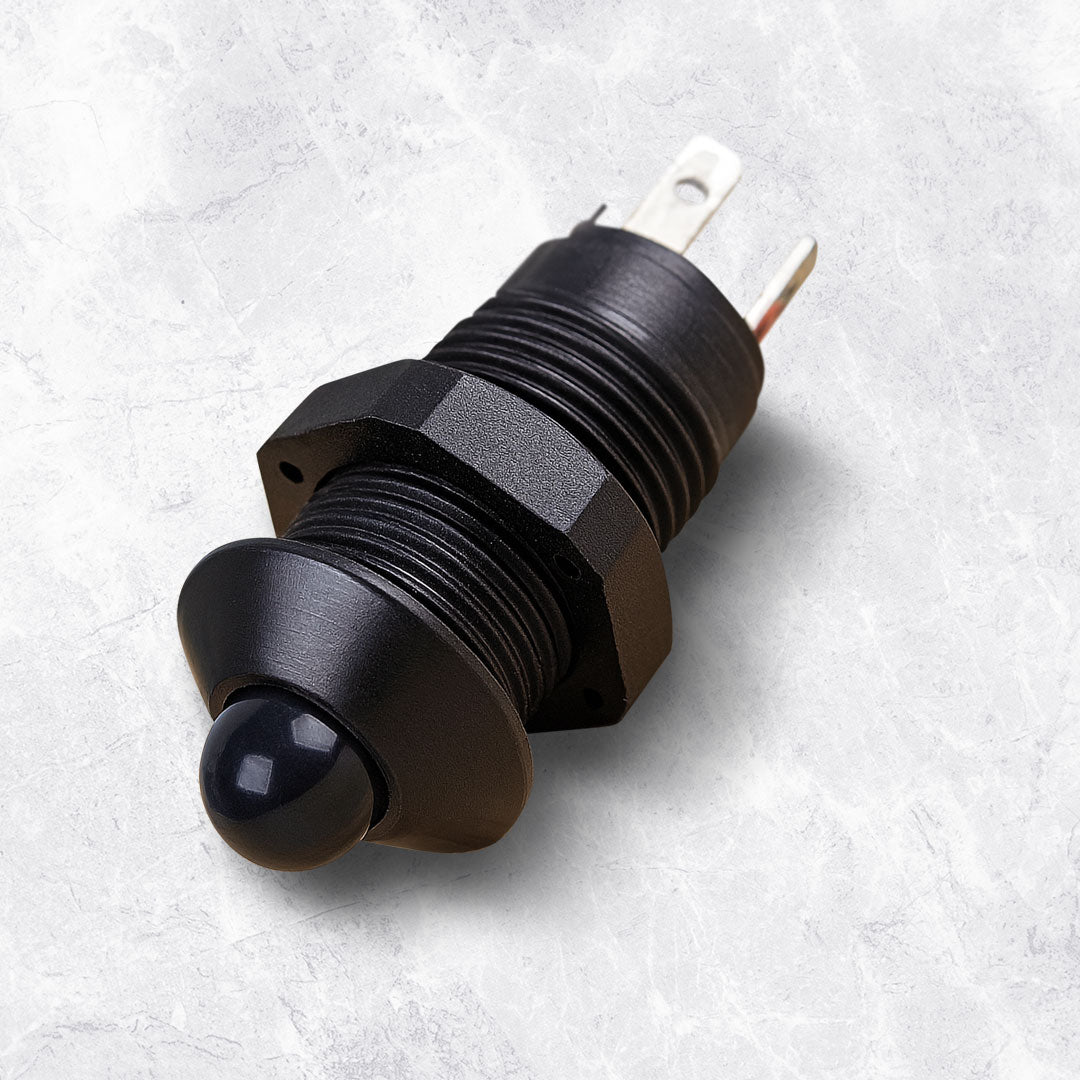

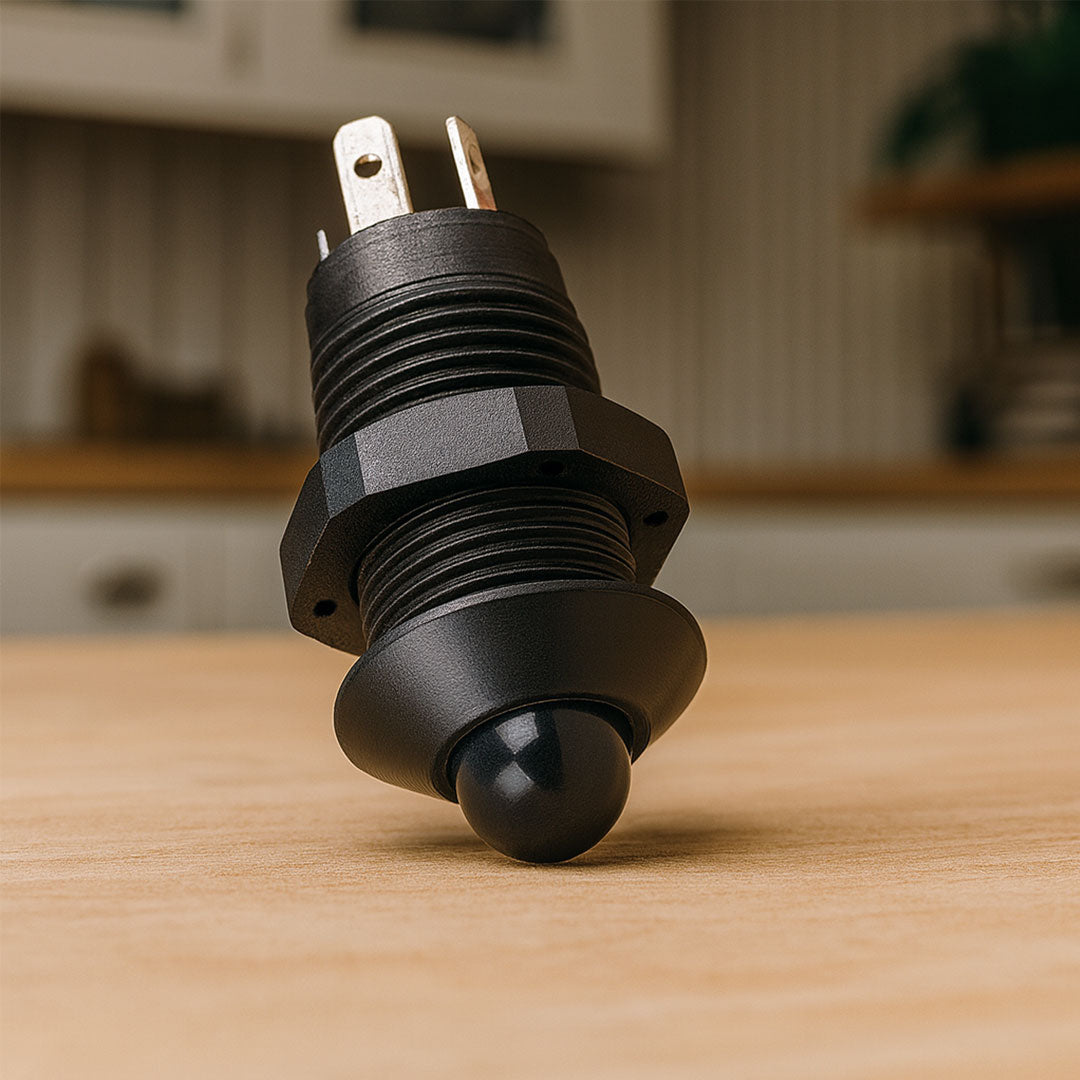

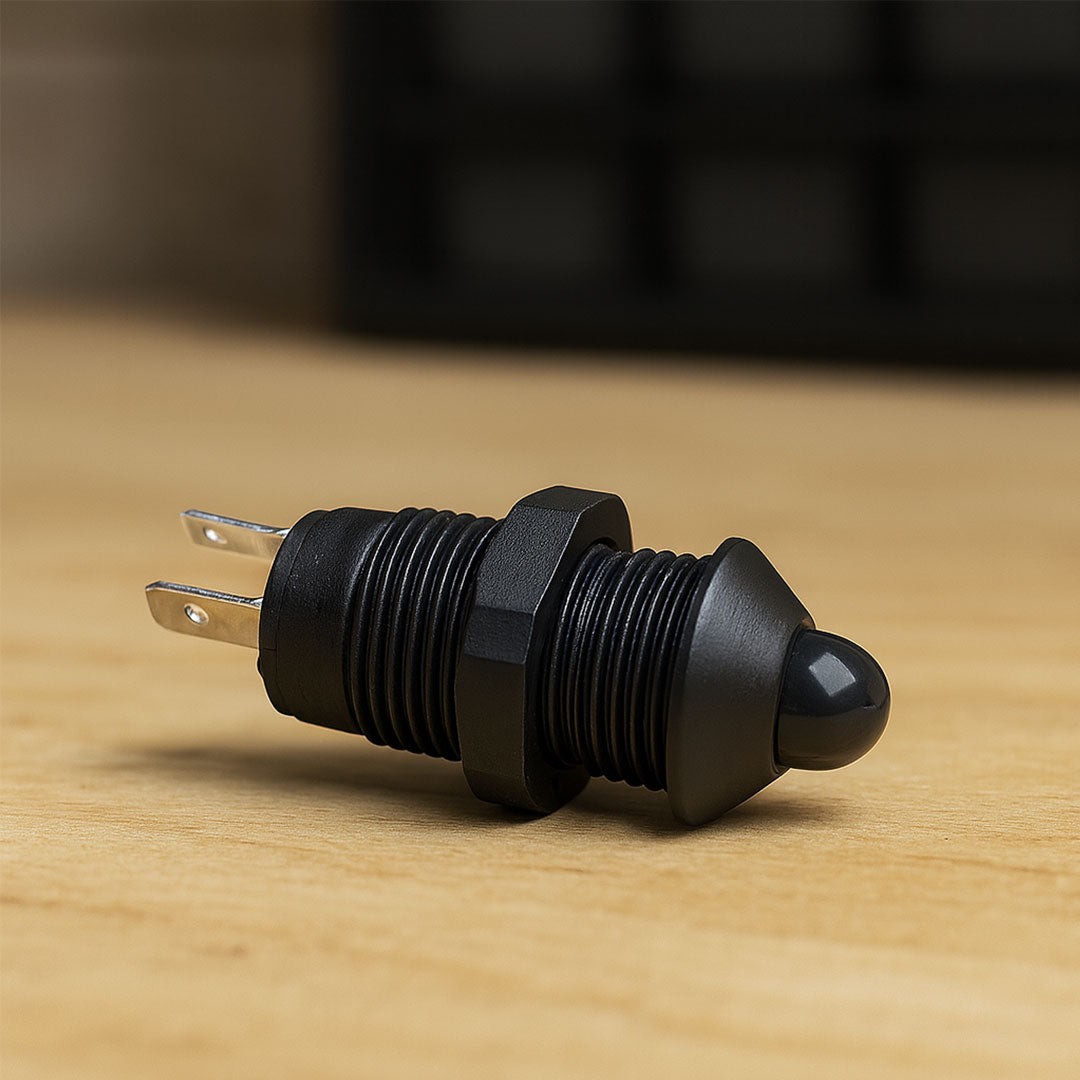

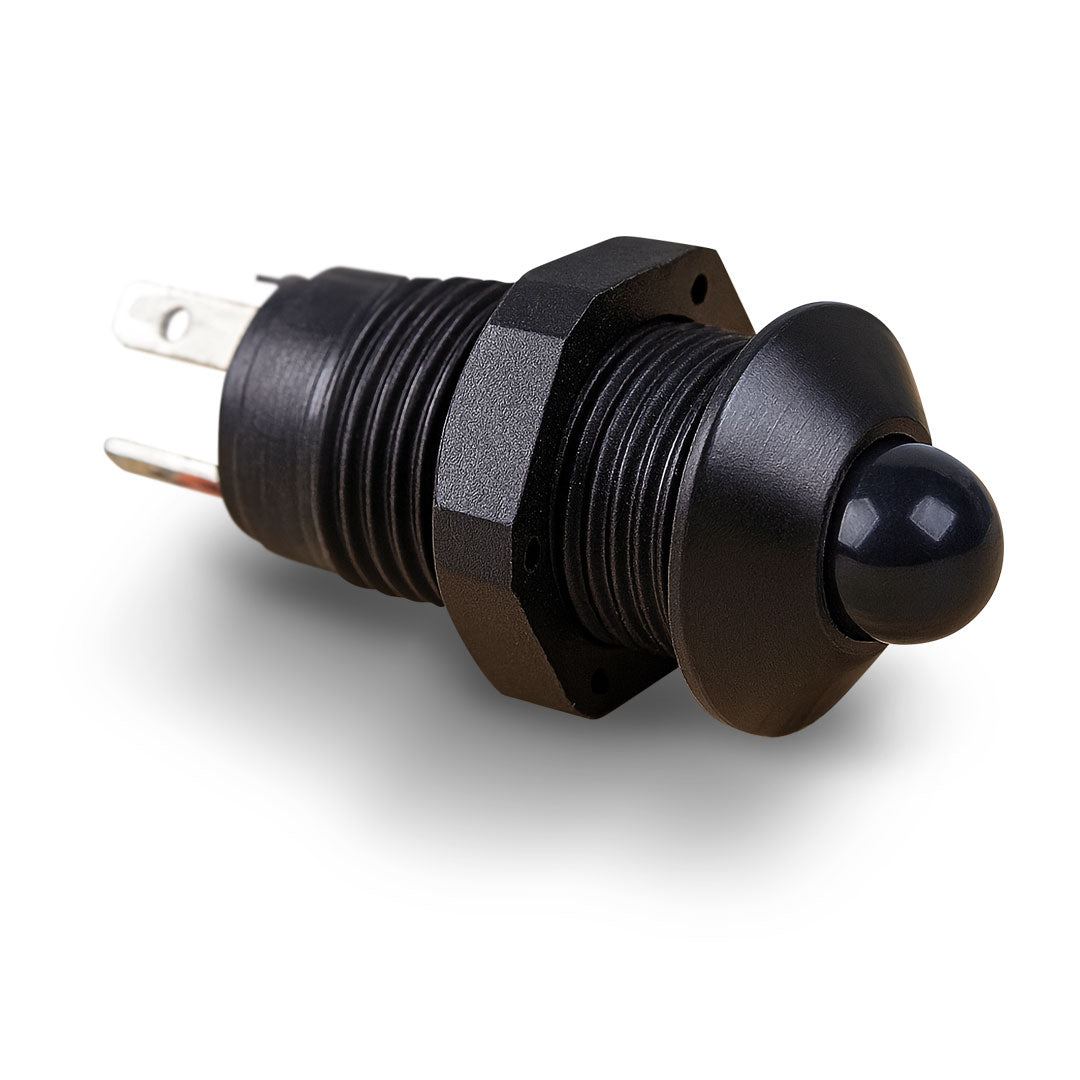

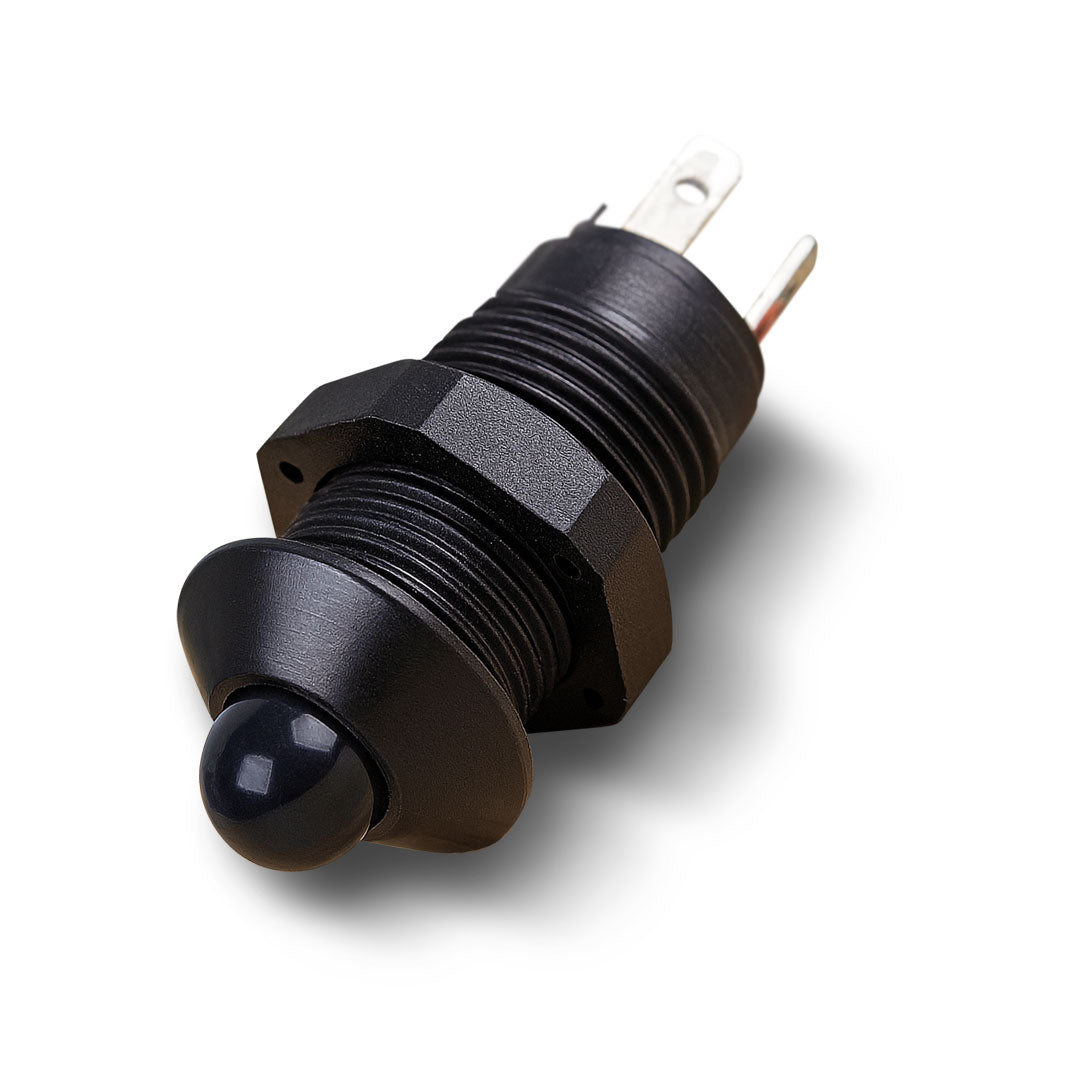

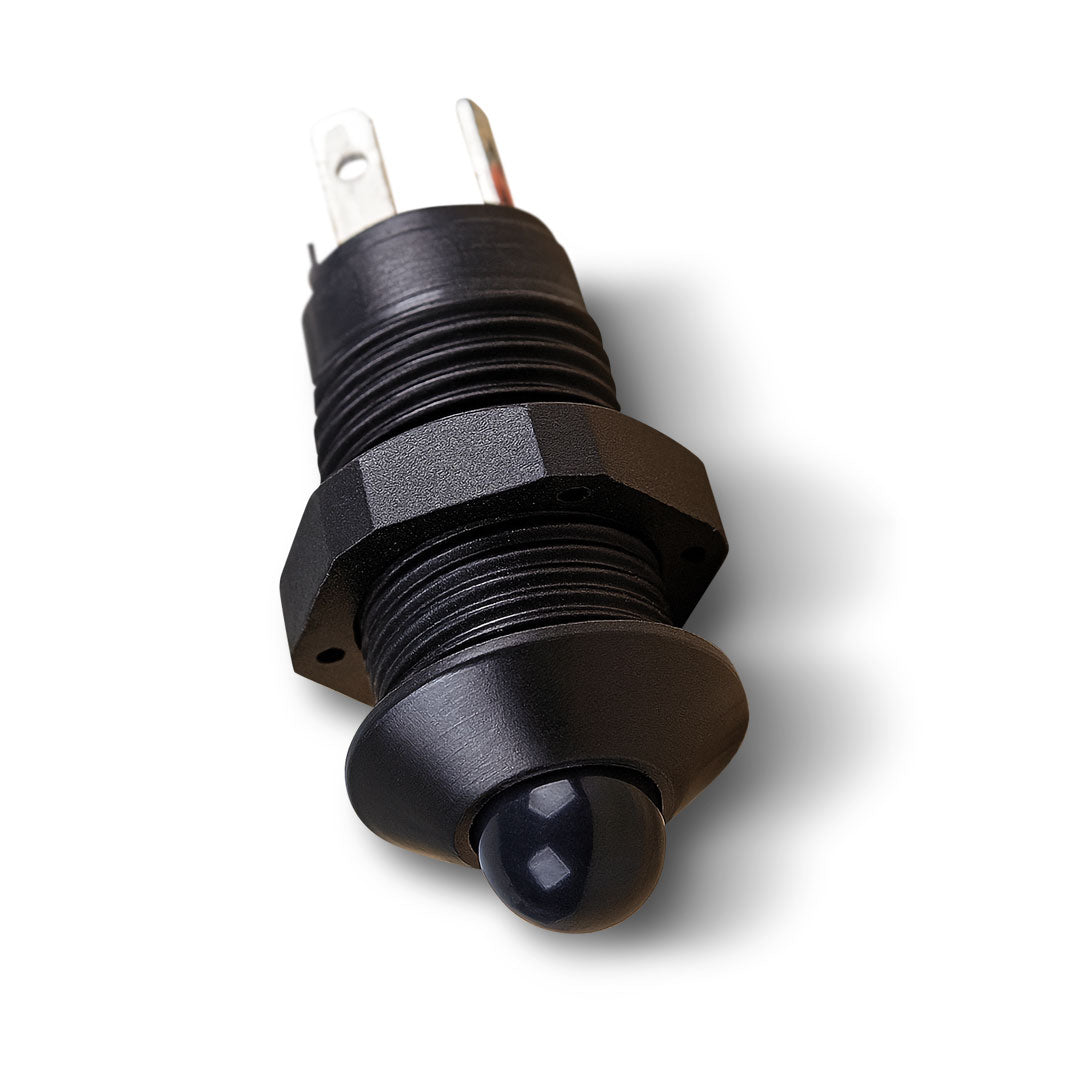

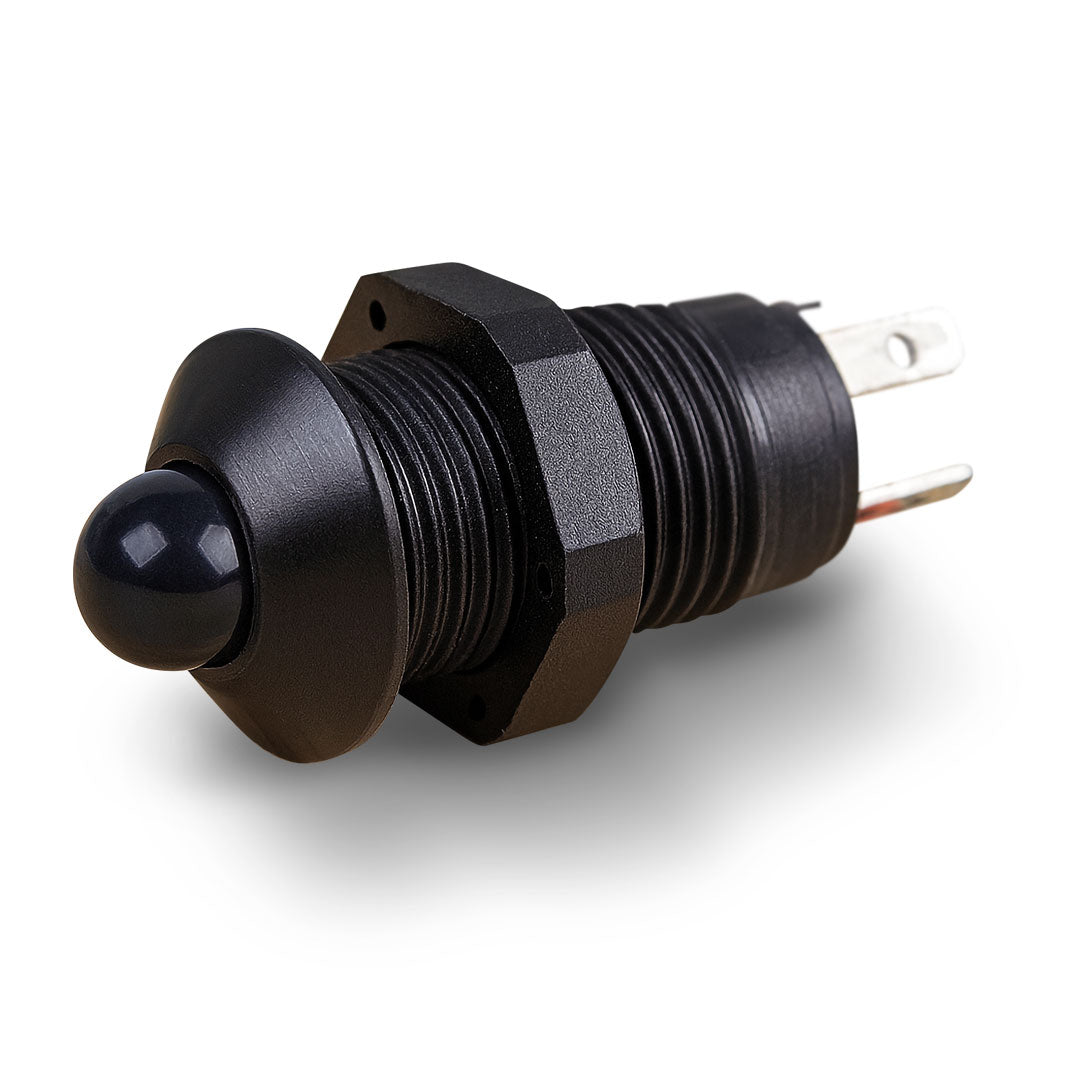

The OEX ACX2483BL is an LED pilot light for panel-mounted circuit status indication, available in clear, red and green. Rated for 12 to 24V operation, it suits both passenger vehicle and commercial vehicle electrical systems. Blade terminal connections allow direct wiring to the monitored circuit, and the 16.1mm mounting hole fits standard pilot lamp panel cutouts. At 24x46mm overall with a 16.1mm diameter body, it is a compact indicator for switch panels, fuse boxes and control consoles. Supplied as a single unit. Covered by a one year warranty.

Product overview

A pilot light provides visual confirmation that a circuit is energised a small but important element in a well-organised switch panel, fuse box or control console. The ACX2483BL is an LED-based pilot light, providing low current draw and long service life compared to incandescent indicator lamps. The 12 to 24V voltage range covers both 12V passenger and auxiliary systems and 24V commercial vehicle and truck electrical systems without the need for a separate resistor or voltage adapter.

Three colour options are available clear, red and green to suit different indication conventions. Red is commonly used for warning or active fault indication, green for normal operation or circuit-on confirmation, and clear for general illumination or neutral indication. Confirm which colour is being supplied when ordering. The blade terminals connect directly to the monitored circuit and earth without a connector housing.

Features and benefits

LED light source: Low current draw and long service life compared to incandescent indicator lamps.

Three colour options clear, red and green: Available to suit different indication conventions. Confirm which colour is being supplied when ordering.

12 to 24V rated: Suits both 12V passenger vehicle and 24V commercial vehicle electrical systems without additional components.

Blade terminals: Direct wiring to the monitored circuit and earth without a connector housing.

16.1mm mounting hole: Fits standard pilot lamp panel cutouts.

Compact 24x46mm: Suitable for switch panels, fuse boxes and control consoles where space is limited.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Frequently asked questions

What is a pilot light used for? A pilot light is a small indicator lamp mounted in a panel to show the status of a circuit whether it is active or inactive. They are commonly used in switch panels, fuse boxes and control consoles to provide visual confirmation that a circuit is energised.

What colour options are available? The ACX2483BL is available in clear, red and green. Common conventions are red for warning or active fault indication, green for normal operation or circuit-on confirmation, and clear for general illumination or neutral indication. Confirm which colour is being supplied when ordering.

What mounting hole does this lamp require? The lamp requires a 16.1mm diameter round hole in the panel.

Does this lamp work on both 12V and 24V systems? Yes. The ACX2483BL is rated for 12 to 24V operation, making it suitable for both passenger vehicles and commercial vehicles without additional components.

How is this lamp wired? The lamp uses blade terminals for direct connection. Connect the positive terminal to the circuit being monitored and the negative terminal to earth, or follow the specific wiring requirements of your application.
