Product features

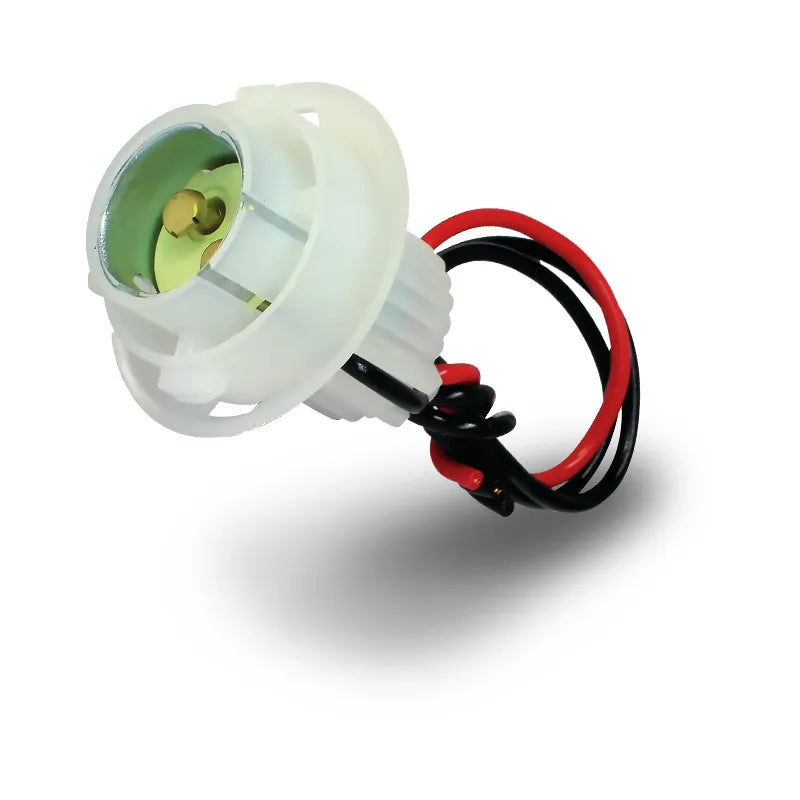

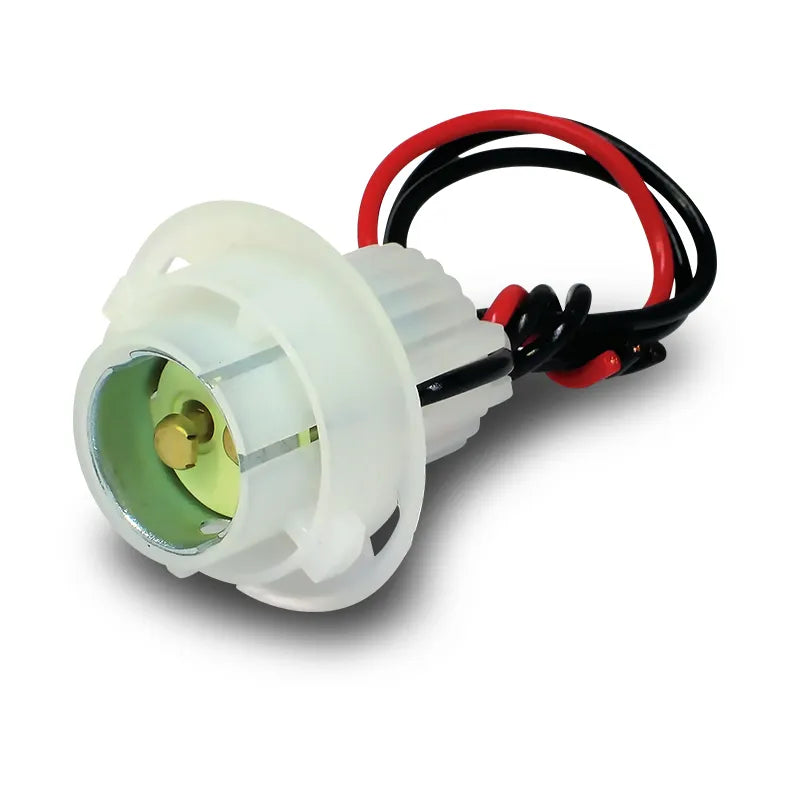

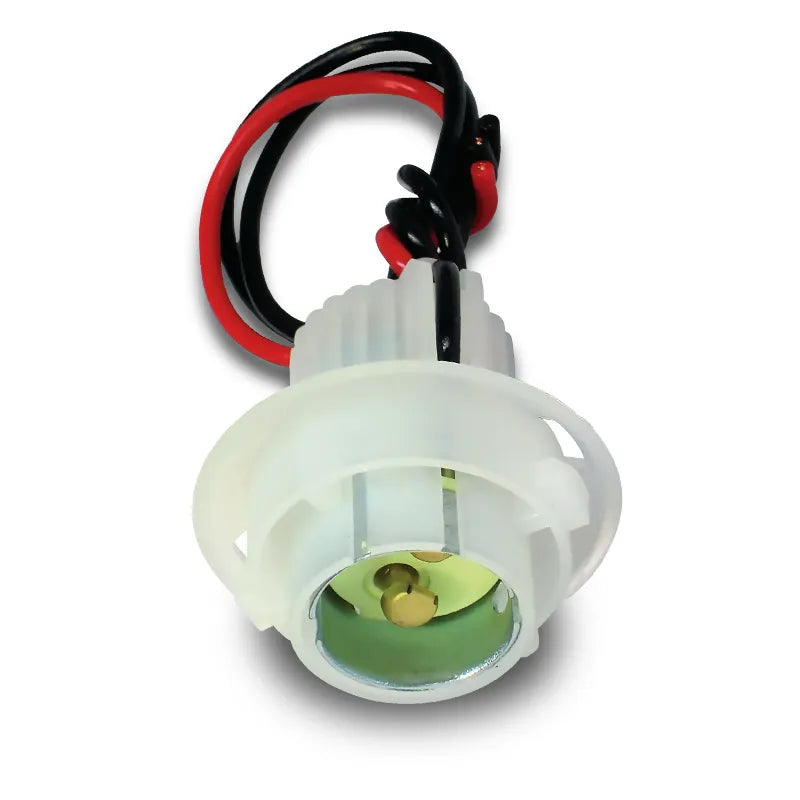

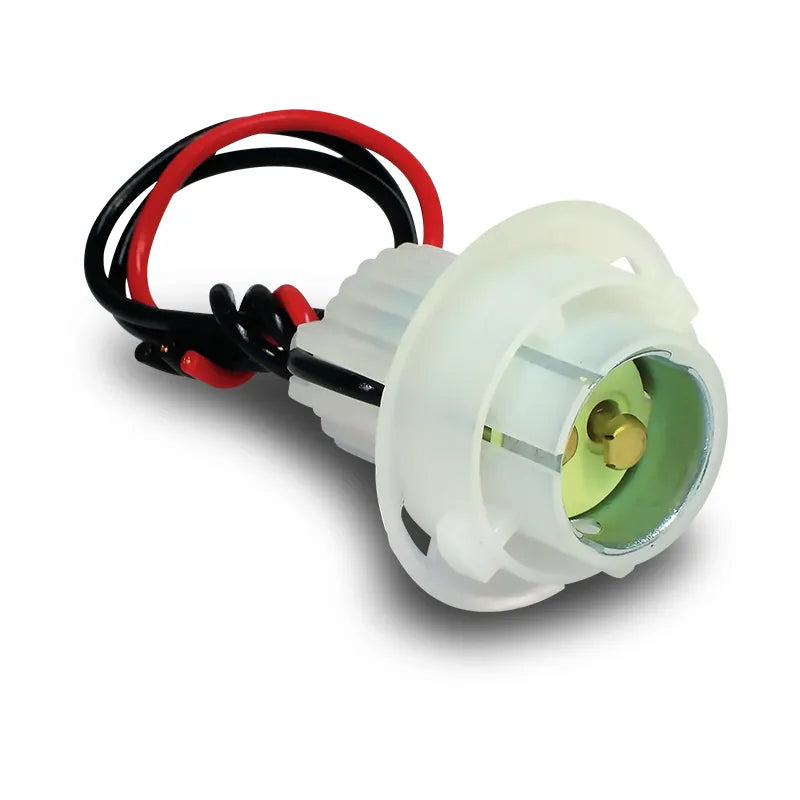

OEX ACX2463BL BAY15d Twist Lock Globe Holder Pre-Wired 26mm Mounting Hole for Stop and Tail Light Applications

The OEX ACX2463BL is a pre-wired BAY15d twist lock globe holder for stop and tail light applications. It twist-locks into a 26.0mm diameter mounting hole, providing a secure, rattle-free installation without additional fasteners. Pre-wired for direct connection to the vehicle's wiring harness. Compatible with standard BAY15d bayonet base globes the dual-contact bayonet base used in most stop and tail light applications. Supplied as a single unit. Covered by a 3-month warranty.

Product overview

The ACX2463BL is a direct replacement or new-installation globe holder for stop and tail lamp assemblies on trailers, caravans and vehicles using the BAY15d base globe standard. The twist lock mounting system locks the holder securely into a 26.0mm hole in the lamp housing without additional fasteners, ensuring a rattle-free installation that stays in place on rough roads and in heavy vibration environments. The pre-wired leads connect directly to the vehicle's wiring harness without requiring separate terminal connections.

The BAY15d base is the standard dual-contact bayonet base used in automotive stop and tail light globes. The two pins are offset at different heights to ensure correct orientation, with the two contacts supplying the stop (higher current) and tail (lower current) circuits independently. This holder is compatible with standard incandescent BAY15d globes and LED BAY15d replacements confirm compatibility with your specific LED globe before purchasing. Globe not included.

Features and benefits

BAY15d base: Suits standard dual-contact bayonet globes used in stop and tail light circuits, including both incandescent and LED BAY15d replacements.

Twist lock mount 26.0mm hole: Locks securely into a 26.0mm diameter hole without additional fasteners for a rattle-free installation.

Pre-wired: Leads already attached for direct connection to the vehicle's wiring harness without separate terminal wiring.

Single unit: For individual replacement or new installation.

3-month warranty: Note that this product carries a 3-month warranty as a wear and consumable item, shorter than the standard OEX one year warranty.

Technical specs

Specification Detail
SKU ACX2463BL
Brand OEX
Globe Base BAY15d
Mount Type Twist lock
Mounting Hole 26.0mm diameter
Connector Pre-wired
Pack Quantity 1
Weight 0.02kg
Warranty 3 months
Sold As Single unit

Frequently asked questions

What is a BAY15d globe base? BAY15d is a dual-contact bayonet globe base with two pins offset at different heights to ensure correct orientation. It is the standard base type used in automotive stop and tail light globes, where the two contacts supply the separate stop (higher current) and tail (lower current) circuits independently.

What diameter hole does this holder require? The holder twist-locks into a 26.0mm diameter mounting hole. Confirm the hole size in your lamp assembly before purchasing.

Does this holder come with a globe? No. This is the holder only. Select an appropriate BAY15d globe separately for your stop and tail light application.

Is this holder suitable for LED globes? This holder is compatible with any BAY15d base globe including LED replacements, provided the globe fits the 26.0mm twist lock socket. Confirm compatibility with your specific LED globe before purchasing.

What is the warranty on this product? This globe holder carries a 3-month warranty. As a wear and consumable item the warranty period is shorter than the standard OEX one year warranty note this before purchasing.
