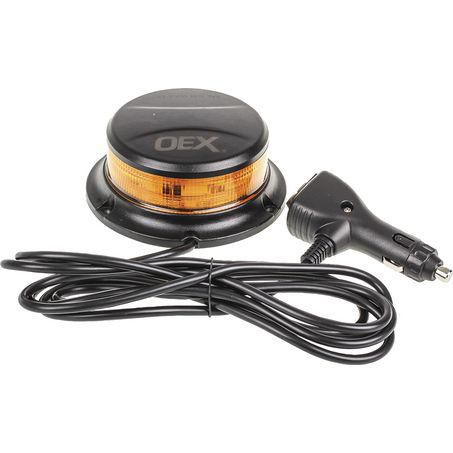

OEX ACX2368 Slimline Amber LED Beacon Magnetic Mount Class 1

OEX ACX2368 Slimline Amber LED Beacon Magnetic Mount Class 1

Deploy professional warning visibility anywhere on the go with the OEX ACX2368 Slimline Amber LED Beacon, a magnetic mount Class 1 warning light built to SAE J845, ECE R65, and ECE R10 standards for flexible, compliant emergency and safety signalling across a wide range of vehicles.

Product Overview

The OEX ACX2368 is a low-profile amber LED beacon designed for magnetic temporary mounting on a wide range of vehicles including emergency response, roadside maintenance, construction, mining, and agricultural equipment. Built around 32 high-brightness LEDs in a compact 48mm tall slimline housing, it delivers powerful Class 1 warning visibility without the bulk of traditional rotating beacon units and without the need for permanent installation.

The magnetic mount base allows the ACX2368 to be quickly deployed and repositioned across different vehicles or locations, making it ideal for fleet operators, contractors, and emergency responders who need a portable, high-visibility warning light that can be transferred between vehicles without tools or drilling.

With 10 selectable flash patterns including a simulated rotation mode, the ACX2368 gives operators the flexibility to match the flash pattern to the application or local regulatory requirements. Rated IP67 waterproof and compliant with ECE R10 electromagnetic compatibility standards, the ACX2368 is engineered for long-term outdoor and off-road use across 10 to 30V systems covering both 12V and 24V vehicle platforms.

Wiring Note: This beacon is not insulated or above ground. Ensure correct earthing is observed during installation for reliable operation.

Features & Benefits

• Magnetic mount base for quick, tool-free deployment and repositioning across different vehicles and surfaces without permanent installation
• SAE J845 Class 1 certified meeting the highest SAE warning light performance standard for maximum visibility
• ECE R65 and ECE R10 compliant satisfying European standard requirements for warning lights and electromagnetic compatibility
• 32 high-brightness LEDs delivering powerful amber warning output across the full 360° slimline lens
• 10 selectable flash patterns including a simulated rotation mode to suit different applications and regulatory requirements
• IP67 waterproof rating fully protected against dust ingress and temporary submersion for harsh environment use
• 10 to 30V operating range compatible with both 12V and 24V vehicle electrical systems
• Compact slimline profile at just 48mm tall, reducing wind resistance and drag compared to traditional dome beacons
• Two year warranty backed by OEX for professional and commercial confidence

Technical Specs

Compatible With / Goes Well With

The OEX ACX2368 Slimline Amber LED Beacon is suited for temporary magnetic deployment across a wide range of vehicles and equipment including:

• Emergency and first response vehicles requiring portable Class 1 certified amber warning lighting that can be transferred between fleet vehicles
• Roadside maintenance and council vehicles requiring flexible amber beacon placement for worker safety without permanent installation
• Hire and rental fleet vehicles where a magnetic beacon can be deployed across multiple units as required
• Construction and earthmoving equipment including site vehicles requiring temporary warning lighting in shared traffic zones
• Tow trucks and breakdown vehicles requiring portable high-visibility amber signalling for roadside use
• Agricultural machinery including tractors and slow-moving vehicles requiring temporary amber warning lighting

Goes well with:

• OEX ACX2367 Slimline Amber LED Beacon Fixed Mount (for permanent installation on the same or sister vehicles)
• OEX Emergency Lighting and Strobe range (for full vehicle warning light setups)
• OEX Wiring Harnesses and Switches (for clean in-cab flash pattern selection wiring)

Frequently Asked Questions

Q: What is the difference between the OEX ACX2368 and the ACX2367?

A: The key difference is the mounting method. The ACX2368 uses a magnetic base for quick, tool-free temporary deployment and can be easily repositioned or transferred between vehicles. The ACX2367 is a permanent fixed mount beacon designed for bolted installation. Both share the same 32 LED slimline housing, 10 flash patterns, Class 1 compliance, and IP67 rating. Choose the ACX2368 for flexible or multi-vehicle use, and the ACX2367 for permanent dedicated installation.

Q: What compliance certifications does the OEX ACX2368 hold?

A: The ACX2368 is certified to SAE J845 Class 1, ECE R65, and ECE R10 standards. SAE J845 Class 1 is the highest SAE warning light performance rating. ECE R65 is the European standard for warning lights, and ECE R10 covers electromagnetic compatibility. Always verify which certifications are required in your state or territory before use on road-registered vehicles.

Q: How do I change the flash pattern on the ACX2368?

A: Flash patterns are changed by cycling through the 10 available modes via the beacon's control method. The ACX2368 offers 10 selectable patterns including a simulated rotation mode. Refer to the included instruction guide for the confirmed pattern selection procedure specific to this model.

Q: Is the ACX2368 suitable for both 12V and 24V vehicles?

A: Yes. The ACX2368 operates across a 10 to 30V range, making it fully compatible with both 12V passenger, 4WD, and light commercial vehicles, and 24V trucks, buses, and heavy machinery without any modification. Note that current draw is rated at 2.25A at 12V and will vary depending on the selected flash pattern.

Q: Does the magnetic mount hold securely at highway speeds?

A: The magnetic base is designed for secure mounting on steel and iron vehicle surfaces. Performance at speed will depend on the mounting surface condition, curvature, and vehicle speed. For sustained high-speed use or permanent installation requirements, the OEX ACX2367 fixed mount beacon is recommended instead.
