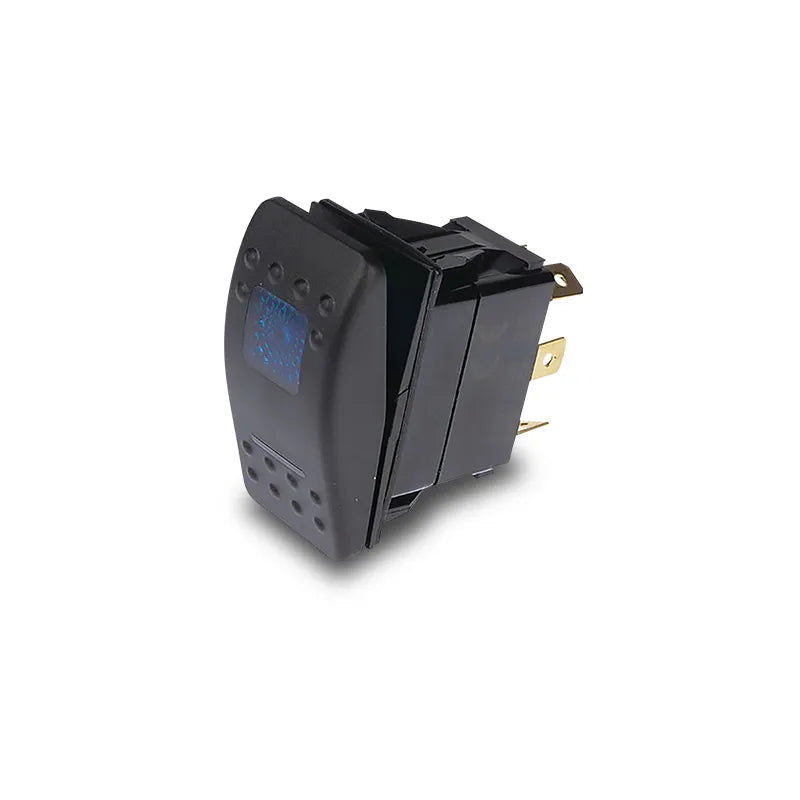

OEX ACX1975BL Carling Style Rocker Switch On/Off SPST Blue Illumination
Click to open expanded view
OEX logo

OEX ACX1975BL Carling Style Rocker Switch On/Off SPST Blue Illumination

SKU: ACX1975BL
Price
$28
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX1975BL 20A Carling Style SPST Illuminated Rocker Switch Blue LED 12V and 24V 21x37mm Panel Mount

The OEX ACX1975BL is a Carling style blue illuminated On/Off SPST (Single Pole Single Throw) rocker switch rated at 20A, suitable for both 12V and 24V systems. The Carling style format uses a 21x37mm rectangular mounting hole, compatible with Carling-format switch panels and marine-style consoles widely used in 4WD, caravan and marine dash configurations. The blue LED illuminates when the switch is in the On position. Three blade terminals accommodate the separate illumination circuit alongside the switching circuit. Supplied as a single unit. Covered by a one year warranty.

Product overview

Carling style rocker switches use a 21x37mm rectangular mounting footprint that is widely adopted in aftermarket marine and 4WD switch panels, consoles and housings. Many purpose-built switch panel enclosures are designed around this format, making the ACX1975BL a direct-fit replacement or addition in these panel types without modification. The Carling format is physically distinct from the 12mm round mount used by the ACX1971BL and ACX1973BL confirm your panel format before purchasing.

The blue LED illuminates when the switch is in the On position, providing clear status indication in low-light conditions. The third terminal powers the LED independently of the main switching circuit, allowing connection to a constant 12V or 24V supply. At 20A the ACX1975BL handles lighting and general accessory switching. For loads exceeding 20A, the switch should be used to trigger a relay.

Features and benefits

Carling style format 21x37mm rectangular mount: Compatible with Carling-format switch panels and marine-style consoles used in 4WD, caravan and marine applications.

20A at 12V and 24V: Suited to lighting and general accessory switching on both passenger vehicles and commercial vehicle systems. For loads exceeding 20A, use the switch to trigger a relay.

SPST On/Off configuration: Single pole single throw switching with one input and one output for straightforward accessory on/off control.

Blue LED illuminated: Glows when the switch is in the On position for clear status indication in switch panels and consoles in low-light conditions.

12V and 24V compatible: Suits passenger vehicles, 4WDs and commercial vehicles including trucks and buses.

3 blade terminals: Separate connections for the switching circuit (2 terminals) and the LED illumination circuit (1 terminal), allowing the LED to be powered from a constant 12V or 24V supply.

Single unit: For individual panel installation.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1975BL
Brand OEX
Switch Type Carling Style Rocker
Switch Action On/Off (SPST)
Poles 1
Positions 2
Current Rating 20A
Voltage 12V and 24V
Illumination Blue LED
Terminals 3 Blade
Mounting Hole 21mm x 37mm
Pack Quantity 1
Warranty One year
Sold As Single unit

Frequently asked questions

What is a Carling style switch? Carling style refers to a rocker switch format with a 21x37mm rectangular mounting footprint, widely used in marine and 4WD switch panels. Many aftermarket switch panels, consoles and housings are designed around this format, making it a popular and interchangeable switch type for custom builds and panel replacements.

What mounting hole does this switch require? The switch requires a 21x37mm rectangular panel cutout. This is a different format to the 12mm round mount used by the ACX1971BL and ACX1973BL confirm your panel format before purchasing.

Does this switch work on both 12V and 24V systems? Yes. The ACX1975BL is rated for both 12V and 24V systems, making it suitable for passenger vehicles, 4WDs and commercial vehicles.

Why does this switch have 3 terminals? The third terminal is for the LED illumination circuit. It connects to a constant 12V or 24V supply to power the blue LED indicator, separate from the main switching circuit.

What is the maximum current this switch can handle? This switch is rated at 20A. For loads exceeding 20A, use the switch to trigger a relay rather than wiring the load directly through the switch.
