OEX ACX1969BL Rocker Switch On/Off SPST
Click to open expanded view
OEX logo

OEX ACX1969BL Rocker Switch On/Off SPST

SKU: ACX1969BL
Price
$11
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

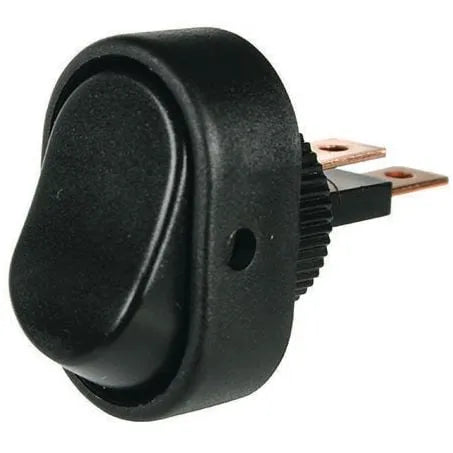

OEX ACX1969BL 30A SPST Non-Illuminated On/Off Rocker Switch 12V and 24V 12mm Round Panel Mount

The OEX ACX1969BL is a non-illuminated On/Off SPST (Single Pole Single Throw) rocker switch rated at 30A, suitable for both 12V and 24V systems. With a 12mm round mounting hole and two blade terminals, it is a straightforward switch for controlling accessories, auxiliary loads and general circuits where LED illumination is not required. Supplied as a single unit. Covered by a one year warranty.

Product overview

The ACX1969BL is a no-frills rocker switch for accessory control in 12V and 24V electrical systems. The SPST On/Off configuration switches a single circuit conductor with one input terminal and one output terminal the simplest wiring arrangement for accessory switching. At 30A it handles driving lights, LED light bars and higher-current auxiliary accessories directly. For loads exceeding 30A, the switch should be used to trigger a relay rather than wiring the load directly through the switch.

The 12mm round mounting hole suits standard 12mm switch panel cutouts in aftermarket switch panels and consoles. The non-illuminated face keeps the installation clean and simple in applications where a status LED is not needed. The dual 12V and 24V voltage rating covers both passenger vehicles, 4WDs and commercial vehicles including trucks and buses.

Features and benefits

30A rating: Suited to driving lights, LED light bars and higher-current auxiliary accessories drawing up to 30A. For loads exceeding 30A, use the switch to trigger a relay.

SPST On/Off configuration: Single pole single throw switching with one input and one output the simplest wiring arrangement for accessory on/off control.

12V and 24V compatible: Suits both passenger vehicle and commercial vehicle electrical systems including trucks, buses and 24V caravan and auxiliary setups.

Non-illuminated: No LED indicator clean, straightforward appearance for applications where a status light is not required.

2 blade terminals: Simple two-wire connection for direct accessory switching.

12mm round mounting hole: Fits standard 12mm round switch panel cutouts in aftermarket switch panels and consoles.

Single unit: For individual panel installation.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1969BL
Brand OEX
Switch Type Rocker
Switch Action On/Off (SPST)
Poles 1
Positions 2
Current Rating 30A
Voltage 12V and 24V
Illumination Non-illuminated
Terminals 2 Blade
Mounting Hole 12mm (round)
Pack Quantity 1
Warranty One year
Sold As Single unit

Frequently asked questions

What does SPST mean? SPST stands for Single Pole Single Throw the simplest switch configuration with one input and one output. It either connects or disconnects a single circuit conductor, making it the standard On/Off type for accessory control.

Does this switch work on both 12V and 24V systems? Yes. The ACX1969BL is rated for both 12V and 24V systems, making it suitable for passenger vehicles, 4WDs and commercial vehicles including trucks and buses.

What mounting hole does this switch require? The switch requires a 12mm round hole. This is a standard switch panel cutout size compatible with many aftermarket switch panels and consoles.

Is this switch illuminated? No. The ACX1969BL is non-illuminated there is no LED indicator. For an illuminated alternative, the ACX1960BL illuminated rocker switch features a red LED and driving light symbol in a 20x35mm panel cutout format.

What is the maximum current this switch can handle? This switch is rated at 30A. For loads exceeding 30A, use the switch to trigger a relay rather than wiring the load directly through the switch.
