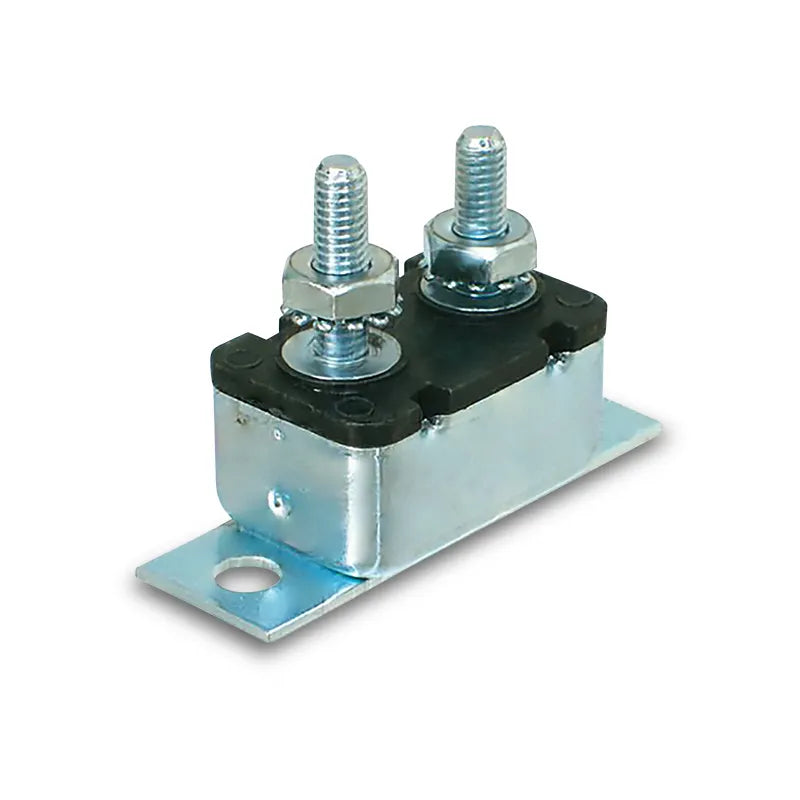

OEX ACX1868BL 50A Circuit Breaker Auto Reset
Click to open expanded view
OEX logo

OEX ACX1868BL 50A Circuit Breaker Auto Reset

SKU: ACX1868BL
Price
$16
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Type I Cycling Auto Reset Circuit Breaker for Accessory Circuit Protection

Product Overview

The OEX ACX1868BL is a Type I cycling automatic reset circuit breaker rated at 50A. It automatically cycles or continuously resets until the overload condition is cleared providing self-recovering protection for circuits where momentary overloads are expected or where unattended operation is required.

Housed in a plated steel case with an integrated mounting bracket and two 10-32 stud terminals, it mounts via two 5.61mm holes spaced 39.62mm centre-to-centre. The single pack format suits individual circuit installations.

Features & Benefits

  • Type I cycling auto reset — automatically resets after tripping; cycles until the overload is corrected
  • 50A rating — suited to higher-current accessory and auxiliary circuits
  • Two 10-32 stud terminals — standard threaded stud connections for reliable wiring
  • Plated steel case and mounting bracket — durable and corrosion-resistant construction
  • Two 5.61mm mounting holes, 39.62mm on centre — standard mounting pattern for panel and bracket installation
  • Single pack — for individual circuit installations

Technical Specs

Specification Detail
Part Number ACX1868BL
Brand OEX
Type Circuit Breaker
Breaker Type Type I, Auto Reset (Cycling)
Amp Rating 50A
Terminal Type 2 x 10-32 Stud
Mounting Holes 2 x 5.61mm, 39.62mm on centre
Case Material Plated Steel
Pack Quantity 1
Warranty 1 Year

Compatible With

Suitable for automatic reset circuit protection in:

  • Higher-current automotive accessory and auxiliary circuits
  • Electric fan and cooling system circuits
  • Trailer and caravan accessory feeds
  • Marine auxiliary circuits requiring self-recovering protection
  • Any circuit rated at 50A requiring automatic reset functionality

Weight

0.037kg

Frequently Asked Questions

What is a Type I cycling circuit breaker?

A Type I circuit breaker automatically resets by cycling — it trips when current exceeds its rating, then automatically resets once the element cools, repeating this cycle until the overload is corrected or removed. This is different from a Type III manual reset breaker which stays tripped until manually reset.

How does this differ from the manual reset circuit breakers?

This breaker automatically cycles on and off until the fault is cleared, without any user intervention. The ACX1847 and ACX1848 manual reset breakers stay tripped until physically reset by the user. Auto reset is suited to accessories and fans where brief overloads are expected; manual reset is generally preferred for main battery protection.

How does this differ from the 30A ACX1864BL?

The ACX1868BL is rated at 50A compared to the ACX1864BL at 30A. Choose the 50A breaker for higher-draw circuits such as electric winches on lighter loads, dual fan setups, or any circuit drawing up to 50 amps.

What cable terminals suit the 10-32 studs?

The 10-32 thread accepts standard #10 ring terminals. Select ring terminals sized for your cable gauge with a #10 (approximately 3.5mm) hole.

Is this breaker weatherproof?

An IP rating is not specified in the supplier data for this SKU. Confirm with OEX if weatherproofing is a requirement for your installation location.
