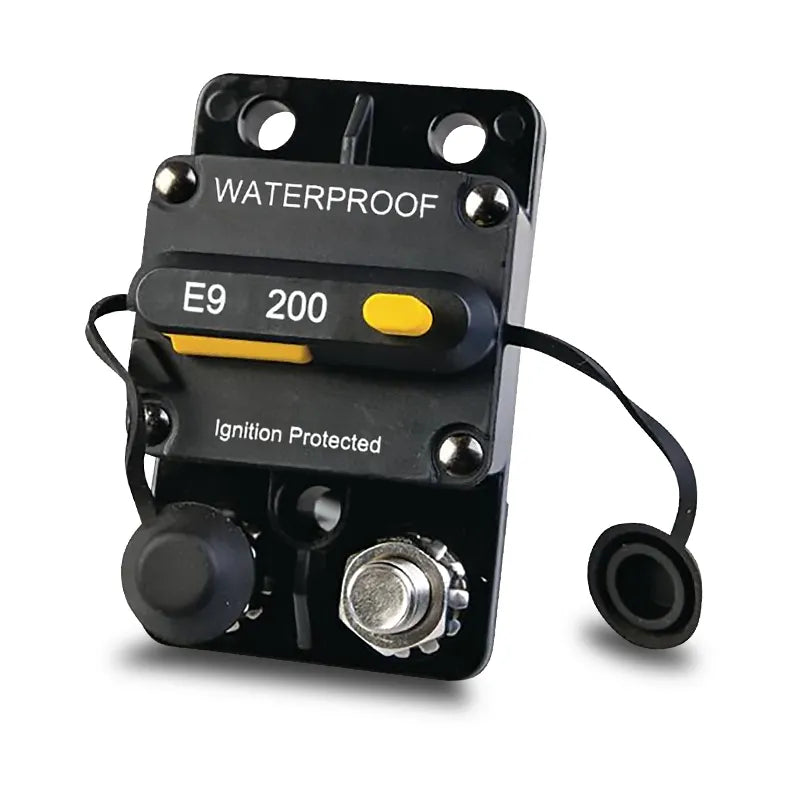

OEX ACX1848 Type III 200A Heavy-Duty Manual Reset Circuit Breaker - Single Pack
Click to open expanded view
OEX logo

OEX ACX1848 Type III 200A Heavy-Duty Manual Reset Circuit Breaker - Single Pack

SKU: ACX1848
Price
$89
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX1848 200A Type III Heavy Duty Switchable Manual Reset Circuit Breaker IP67 Waterproof Stainless Steel 9.5mm Studs Up to 72VDC

The OEX ACX1848 is a 200A Type III heavy duty manual reset circuit breaker designed for very high-current circuit protection in automotive, marine, caravan and 4WD applications. Unlike a blade fuse, this circuit breaker can be manually reset after tripping, eliminating the need to carry spare fuses and reducing downtime in the field. IP67 waterproof and dustproof housing with stainless steel 9.5mm studs and rubber protective caps. Rated up to 72VDC. The switchable function also allows the breaker to operate as a manual isolation switch. Covered by a one year warranty.

Product overview

The ACX1848 is the highest-rated circuit breaker in the OEX Type III manual reset series at 200A, suited to the most demanding high-current protection applications where even the 150A ACX1847 is undersized. Very high-draw main battery supply circuits, high-capacity winch and recovery equipment, large dual battery installations with high current demand, marine main power feeds, and solar and battery storage systems at 12V, 24V or 48V are the primary applications.

All specifications are shared with the rest of the Type III series Type III switchable for both overcurrent protection and manual isolation, IP67 waterproof and dustproof housing, 9.5mm stainless steel studs for heavy gauge cable lugs and ring terminals, rubber stud caps and up to 72VDC. The manual reset function requires deliberate operator action to restore the circuit after a trip, preventing repeated cycling into a fault condition.

Features and benefits

200A rating highest in the OEX Type III series: Suited to very high-draw main battery supply circuits, high-capacity winch and recovery equipment, large dual battery installations and marine main power feeds where lower-rated breakers would be undersized.

Manual reset (switchable): Resets after tripping without replacing a fuse, reducing downtime in the field. Can also function as a manual isolation switch.

Type III heavy duty construction: Robust housing for demanding automotive, marine and 4WD environments.

IP67 waterproof and dustproof: Fully sealed against dust and temporary water immersion, suited to exposed, underbonnet and deck-mounted installations.

Up to 72VDC: Suits 12V, 24V and 48V DC electrical systems including solar and battery storage applications.

Stainless steel 9.5mm studs: Corrosion-resistant terminations for heavy cable connections. Select cable lugs and ring terminals with a 9.5mm hole to suit.

Rubber stud caps: Protect terminals from moisture, corrosion and accidental contact.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1848
Brand OEX
Type Circuit Breaker
Breaker Type Type III, Manual Reset (Switchable)
Current Rating 200A
Voltage Rating Up to 72V DC
IP Rating IP67
Terminal Studs Stainless steel, 9.5mm
Terminal Protection Rubber stud caps
Pack Quantity 1
Warranty One year
Sold As Single unit

Frequently asked questions

What is the advantage of a circuit breaker over a fuse? A circuit breaker can be manually reset after it trips, whereas a fuse must be replaced. In remote or off-road situations where carrying spare fuses may not be practical, a resettable circuit breaker provides a significant convenience and safety advantage. This breaker can also be used as a manual isolation switch when required.

How does the ACX1848 compare to the rest of the OEX Type III series? The ACX1848 is rated at 200A, the highest in the OEX Type III series, extending above the ACX1847 (150A), ACX1846 (100A), ACX1845 (80A), ACX1844 (60A) and ACX1843 (50A). All share the same Type III switchable design, 9.5mm stainless studs, IP67 rating and up to 72VDC voltage range. Select based on your circuit's current requirements.

What cable termination size does this breaker use? The breaker uses 9.5mm stainless steel studs. Select cable lugs and ring terminals with a 9.5mm hole to suit these studs.

Is this breaker suitable for marine use? Yes. The IP67 rating confirms full dust protection and resistance to temporary water immersion. Stainless steel studs and rubber caps further protect the terminals from corrosion in marine environments.

Where should this circuit breaker be installed? As close as practical to the power source ideally within 300mm of the battery terminal or distribution point to minimise the length of unprotected cable between the battery and the breaker.
