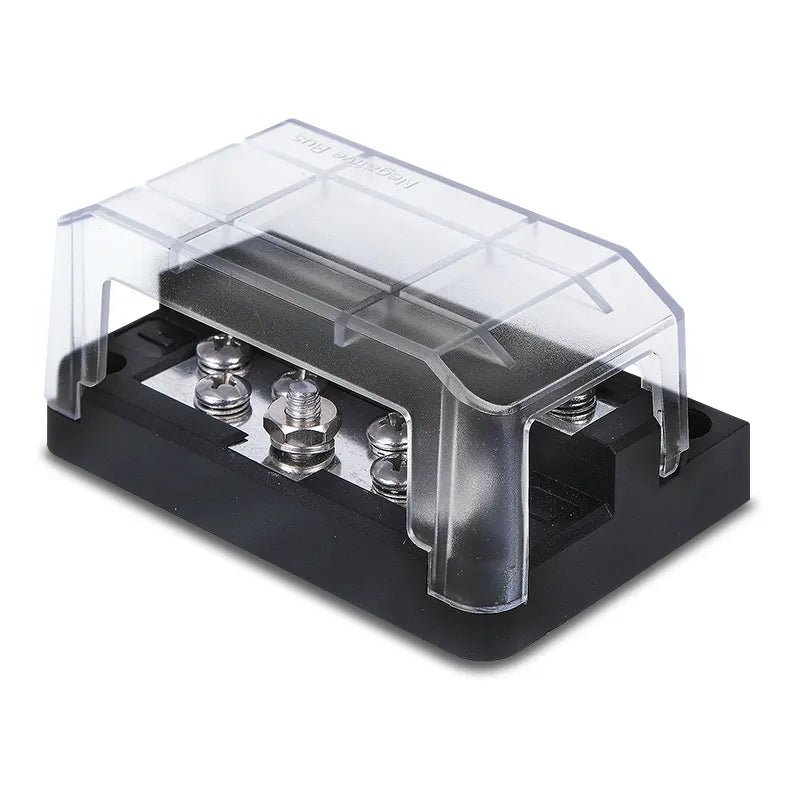

OEX ACX1837 12-Way Negative Buss Bar For ACX1836
Click to open expanded view
OEX logo

OEX ACX1837 12-Way Negative Buss Bar For ACX1836

SKU: ACX1837
Price
$17
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX1837 12-Way Negative Bus Bar for ACX1836 Fuse Box 32V DC 100A Stainless Steel Hardware

The OEX ACX1837 is a 12-way negative bus bar designed to pair with the ACX1836 fuse box to create a complete, compliant fuse distribution and grounding system. The ACX1837 is not a standalone product it is the negative side companion to the ACX1836. Rated to 32V DC and 100A, it features 12x M4 stainless steel grounding screws for individual circuit ground connections and 1x M5 stainless steel common recessed mounting point. Supplied as a single unit. Covered by a one year warranty.

Product overview

A properly wired fuse distribution system requires both a positive fuse distribution point and a corresponding negative grounding point. The ACX1837 provides the negative side of the ACX1836 system, giving each of the 12 circuits a dedicated M4 grounding screw for a clean, organised negative return path rather than routing all negative leads back to a single chassis ground point separately.

The M5 common recessed mounting point connects the bus bar to the main negative feed, while each of the 12 M4 terminals provides an individual ground connection for the corresponding circuit. All hardware is stainless steel for corrosion resistance in automotive, marine and caravan environments. The 32V DC rating covers both 12V and 24V vehicle electrical systems. The 100A total current rating handles the combined load across all 12 circuits.

Features and benefits

Designed for the ACX1836 fuse box: Pairs with the ACX1836 to create a complete positive fuse distribution and negative grounding solution. Not suitable for standalone use.

12x M4 stainless steel grounding screws: Individual M4 grounding point for each of the 12 circuits for a clean, organised negative return path.

1x M5 stainless steel common recessed mount: Single M5 common connection point for the main negative feed.

32V DC rated: Suits both 12V and 24V vehicle electrical systems.

100A total current rating: Handles the combined load across all 12 circuit terminals.

Stainless steel hardware: Corrosion-resistant hardware for long-term reliability in automotive, marine and caravan environments.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1837
Brand OEX
Type Negative Bus Bar
Compatible With OEX ACX1836 Fuse Box
Number of Terminals 12 x M4
Common Mount 1 x M5 stainless steel recessed
Voltage Rating 32V DC
Current Rating 100A
Hardware Stainless steel
Pack Quantity 1
Warranty One year
Sold As Single unit

Frequently asked questions

Can the ACX1837 be used without the ACX1836? No. The ACX1837 is specifically designed to connect with the ACX1836 fuse box to create a complete, compliant fuse distribution and grounding system. It is not suitable for standalone use.

What size screws does this bus bar use? The ACX1837 features 12x M4 stainless steel grounding screws for individual circuit connections and 1x M5 stainless steel for the common recessed mounting point.

What voltage systems does this suit? The ACX1837 is rated to 32V DC, covering both 12V and 24V vehicle electrical systems.

What is the total current rating? The ACX1837 is rated at 100A combined across all 12 terminals.

Why use a dedicated negative bus bar instead of individual chassis grounds? A dedicated negative bus bar provides a single, organised negative return path for all circuits, reducing the number of individual chassis ground connections and simplifying wiring. It also makes fault finding easier since each circuit's negative return is clearly identified and terminated at a single point.
