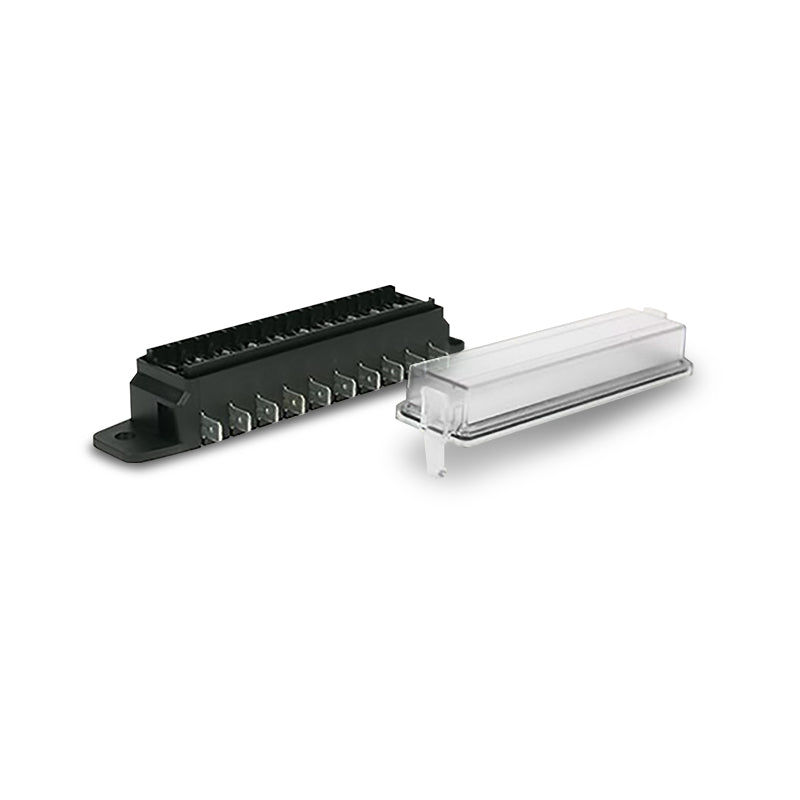

OEX ACX1834 Fuse Box Standard Blade 10 Way 30A 1 Pce
Click to open expanded view
OEX logo

OEX ACX1834 Fuse Box Standard Blade 10 Way 30A 1 Pce

SKU: ACX1834
Price
$36
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX1834 10-Way Standard Blade Fuse Box 30A Per Circuit Male Spade Terminals Clear Clip-On Cover 2-Hole Flush Mount

The OEX ACX1834 is a 10-way standard blade automotive fuse box the largest in the OEX spade terminal fuse box range, adding two additional circuits over the ACX1833 (8-way, 30A). Shares the same 30A rating per circuit, male spade terminals, clear clip-on cover and 2-hole flush mount configuration. Full dimensions are 142.2mm (L) x 44.1mm (H) x 45.5mm (W). Supplied as a single unit. Covered by a one year warranty.

Product overview

The ACX1834 is the top of the OEX spade terminal fuse box range with ten independent circuit positions at 30A per circuit. It suits large custom vehicle builds, touring rigs, caravan switchboards, marine electrical panels and commercial vehicle auxiliary wiring where eight circuits (ACX1833) are insufficient. All other specifications are identical to the ACX1832 and ACX1833 male spade terminals for direct wire termination with custom wire gauge selection, clear clip-on cover for fuse status visibility without removing the cover, and 2-hole flush mount for clean panel installation.

The confirmed dimensions of 142.2mm (L) x 44.1mm (H) x 45.5mm (W) allow accurate panel cutout planning for flush-mount installations. Standard screws or bolts (not supplied) are required for mounting.

Features and benefits

10-way largest in the OEX spade terminal fuse box range: Supports up to ten independent fused circuits, two more than the ACX1833 (8-way), suited to large builds requiring maximum circuit capacity.

30A per circuit: High-current circuit protection for automotive accessories drawing up to 30A per circuit.

Male spade terminal connections: Direct wire termination via spade connectors — not pre-wired allows custom wire gauge selection for each circuit.

Clear clip-on cover: Allows visual inspection of fuse status without removing the cover for faster fault diagnosis.

2-hole flush mount: Two mounting holes for a clean, secure flush-panel installation. Standard screws or bolts required (not supplied).

Full confirmed dimensions 142.2mm x 44.1mm x 45.5mm: Accurate dimensions for panel cutout planning and space assessment before installation.

Standard blade ATC/ATO fuse format: Compatible with widely available standard blade fuses.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1834
Brand OEX
Type Fuse Box
Fuse Type Standard Blade (ATC/ATO)
Number of Ways 10
Maximum Current 30A per circuit
Terminals Male spade
Cover Clear clip-on
Mounting 2-hole flush mount
Dimensions 142.2mm (L) x 44.1mm (H) x 45.5mm (W)
Pack Quantity 1
Weight 0.1kg
Warranty One year
Sold As Single unit

Frequently asked questions

What is the difference between the ACX1834 and the ACX1833? Both are 30A standard blade fuse boxes with male spade terminals and a clear clip-on cover. The ACX1833 has 8 ways and the ACX1834 has 10 ways. Select the ACX1834 where more than eight independent circuits are required.

Is this fuse box pre-wired? No. The ACX1834 uses male spade terminal connections for direct wire termination, allowing custom wire sizes to be used for each circuit.

What are the dimensions? The ACX1834 measures 142.2mm (L) x 44.1mm (H) x 45.5mm (W), confirmed from supplier specifications. These dimensions allow accurate panel cutout planning for flush-mount installations.

What fuse type does this box accept? Standard blade ATC/ATO fuses the most widely available automotive fuse format. Select the appropriate amp rating for each circuit up to the 30A maximum per position.

Can this fuse box be used in a caravan or marine application? Yes. The ACX1834 suits 12V automotive, caravan and marine applications requiring up to ten independent fused circuits. The clear clip-on cover allows fuse status to be checked at a glance for panel-mount installations in these environments.
