OEX ACX1833 Fuse Box Standard Blade 8 Way 30A 1 Pce

OEX ACX1833 8-Way Standard Blade Fuse Box 30A Per Circuit Male Spade Terminals Clear Clip-On Cover 2-Hole Flush Mount

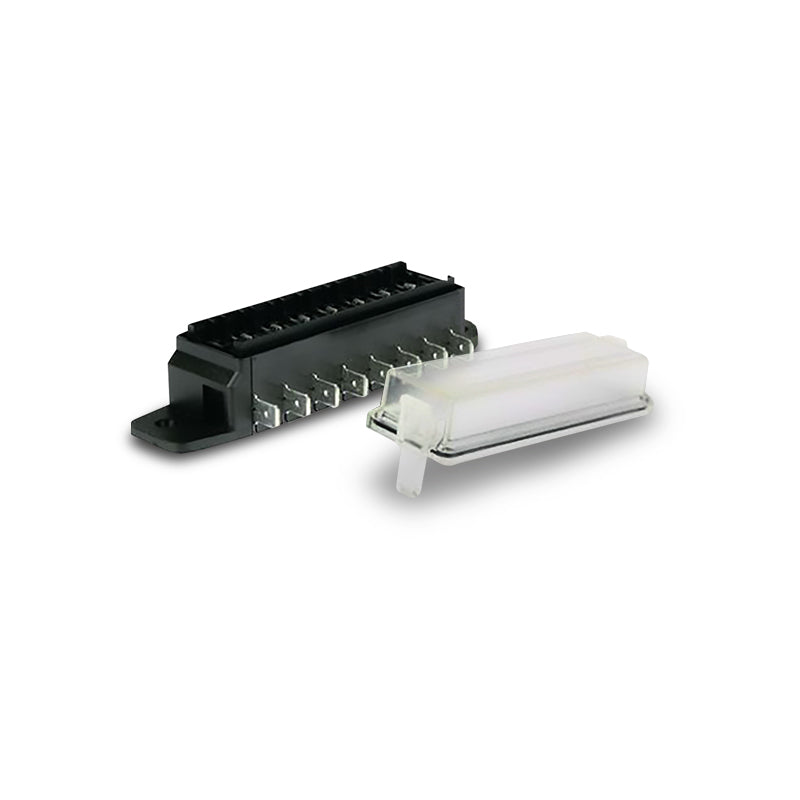

The OEX ACX1833 is an 8-way standard blade automotive fuse box with male spade terminal connections the 8-circuit version of the ACX1832 (6-way, 30A). Shares the same 30A rating per circuit, male spade terminals, clear clip-on cover and 2-hole flush mount configuration, with two additional circuits for larger installations. Supplied as a single unit. Covered by a one year warranty.

Product overview

The ACX1833 steps up from the ACX1832 with two additional circuit positions, suited to installations where six circuits are insufficient. All other specifications are identical 30A per circuit, male spade terminals for direct wire termination with custom wire gauge selection, clear clip-on cover for fuse status visibility without removing the cover, and 2-hole flush mount for clean panel installation with standard screws or bolts (not supplied).

At 30A per circuit the ACX1833 suits higher-current loads including compressors, winches and lighting circuits across up to eight independent circuits. The male spade terminals allow each circuit's wire gauge to be matched to the load rather than being constrained by a pre-wired gauge. The clear cover allows fuse status to be checked at a glance, useful for fault diagnosis in a busy caravan switchboard, marine panel or custom vehicle build.

Features and benefits

8-way: Two additional circuits over the ACX1832 (6-way), suited to installations requiring more fused circuit positions at 30A.

30A per circuit: Higher current capacity than the pre-wired 20A ACX1829 and ACX1830, suited to compressors, winches and higher-current lighting circuits.

Male spade terminal connections: Direct wire termination via spade connectors — not pre-wired allows custom wire gauge selection for each circuit.

Clear clip-on cover: Allows visual inspection of fuse status without removing the cover for faster fault diagnosis.

2-hole flush mount: Two mounting holes for a clean, secure flush-panel installation. Standard screws or bolts required (not supplied).

Standard blade ATC/ATO fuse format: Compatible with widely available standard blade fuses.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Frequently asked questions

What is the difference between the ACX1833 and the ACX1832? Both are 30A standard blade fuse boxes with male spade terminals and a clear clip-on cover. The ACX1832 has 6 ways and the ACX1833 has 8 ways. Select the ACX1833 where more than six independent circuits are required.

Is this fuse box pre-wired? No. The ACX1833 uses male spade terminal connections for direct wire termination, allowing custom wire sizes to be used for each circuit.

What fuse type does this box accept? Standard blade ATC/ATO fuses the most widely available automotive fuse format. Select the appropriate amp rating for each circuit up to the 30A maximum per position.

What mounting hardware is required? The ACX1833 uses a 2-hole flush mount configuration. Standard screws or bolts suited to the mounting surface are required and are not supplied with the unit.

Can this fuse box be used in a caravan or marine application? Yes. The ACX1833 suits 12V automotive, caravan and marine applications. The clear clip-on cover allows fuse status to be checked at a glance, useful for panel-mount installations in these environments.
